water level controllers

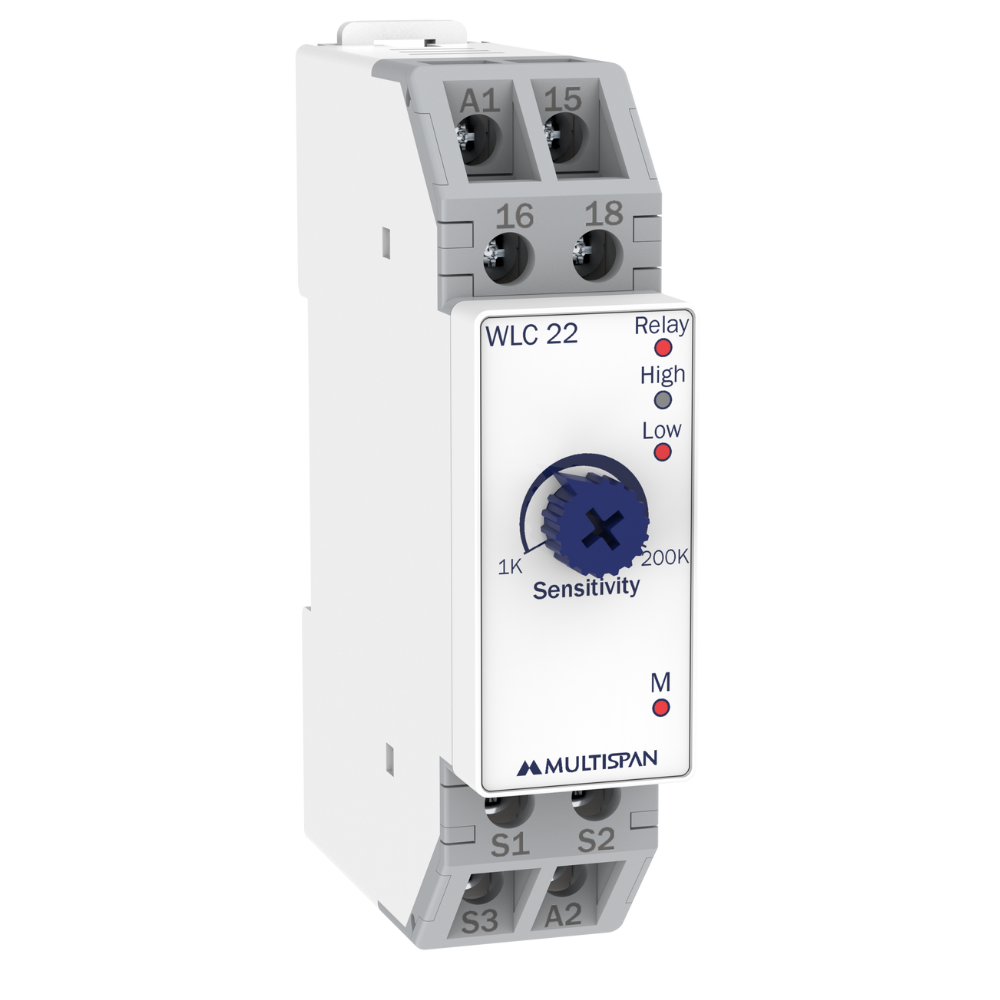

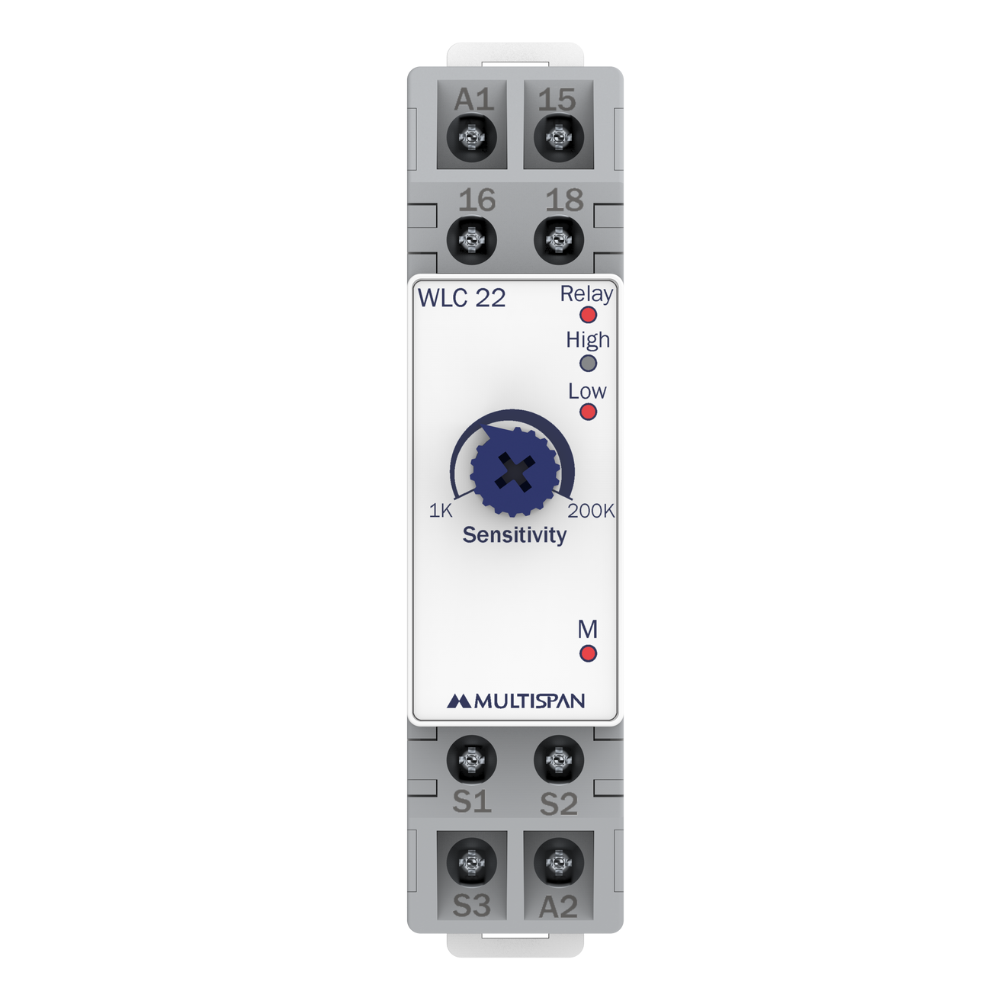

Product: WLC-22

  • Input: 3 Probes
  • Sensitivity Adjustable: 1K Ohm to 200K Ohm
  • High & Low-Level LED Indication
  • Pump protection from Dry run & Overflow condition
  • Size: (H)90mm x (W)22.5mm x (D)72mm
  • Supply Voltage: 100-270V AC, 50/60Hz

Model WLC 22
Mounting Din Rail Mounting
Input Sensor 3 nos. prods
  S1: Common
S2: Low
S3: High
Indications LED 1: Relay
LED 2: High Level (Lower)
LED 3: Low Level (Lower)
LED 4: Mains
Power Supply 100 270V AC, 50/60 Hz, 3VA
Output Rating 5Amp, 230V AC (Resistive)
Dimension 90 x 22.5 x 72 mm
Output 1 Relay, 1 C/O (NO-C-NC)
Sensitivity 1K to 200K ohms
Reset Auto
Trip Delay 0.5 sec (Approx.)

  • Perfect for Drain & Fill Control
  • Water Distribution Pump Stations
  • Submersible Pump Panels
  • Soda Machines
  • Textile Industry Setups
  • Boiler Panels
