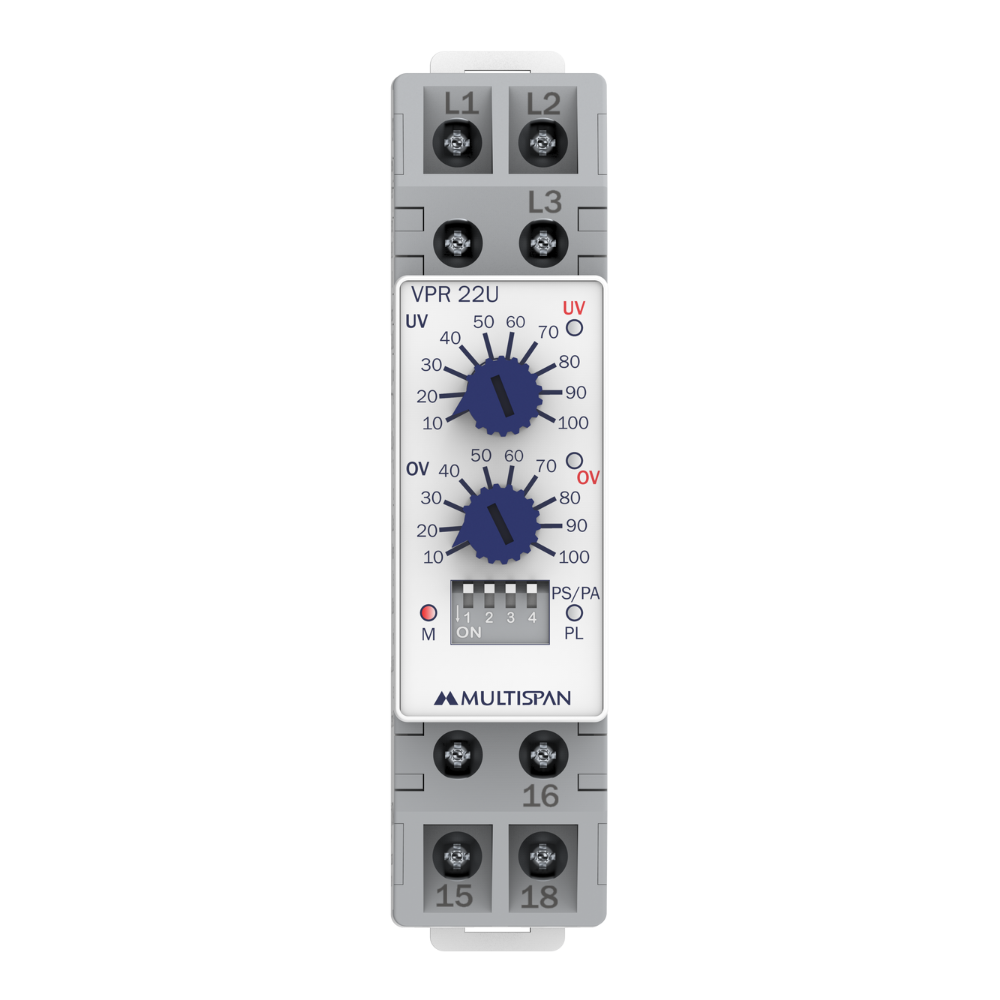

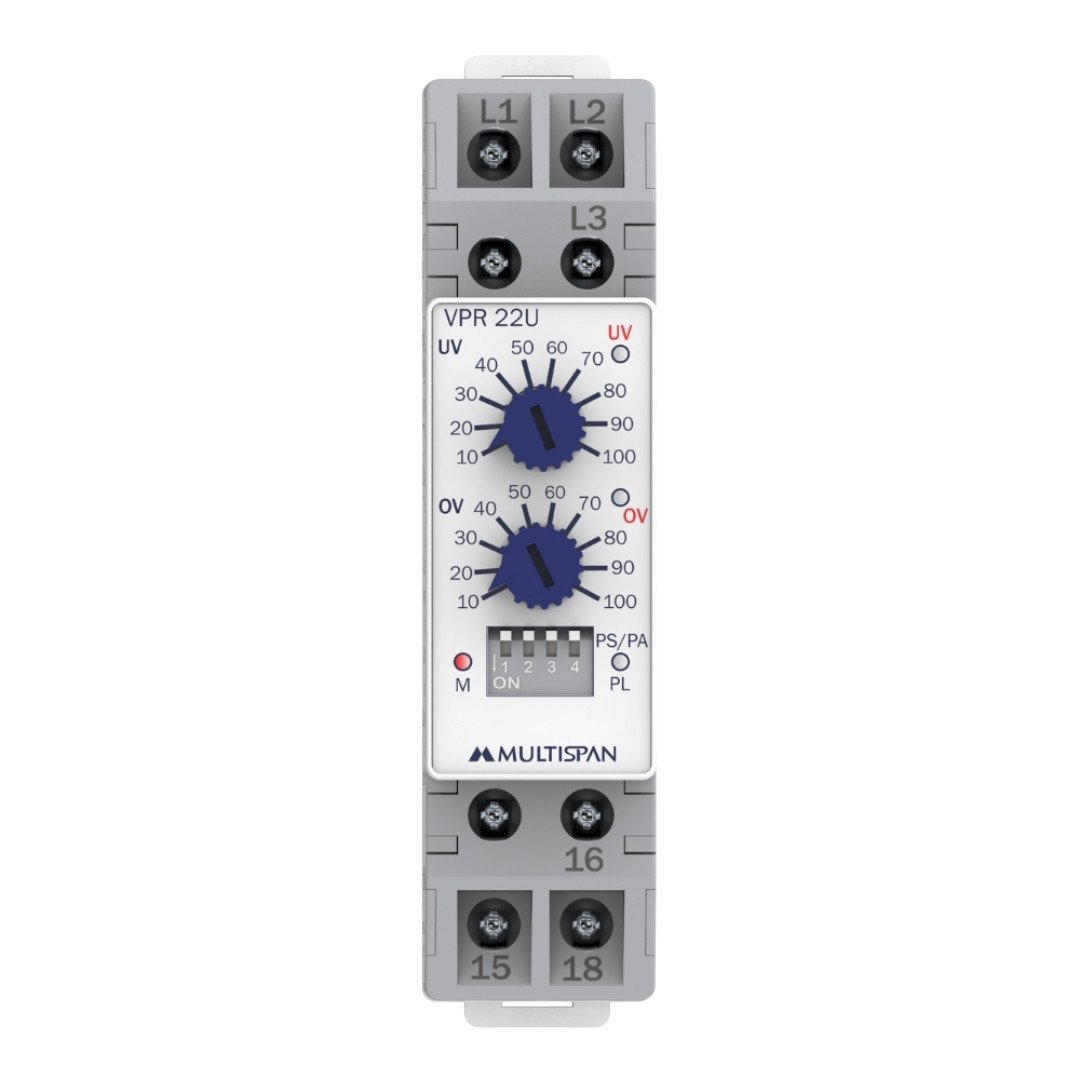

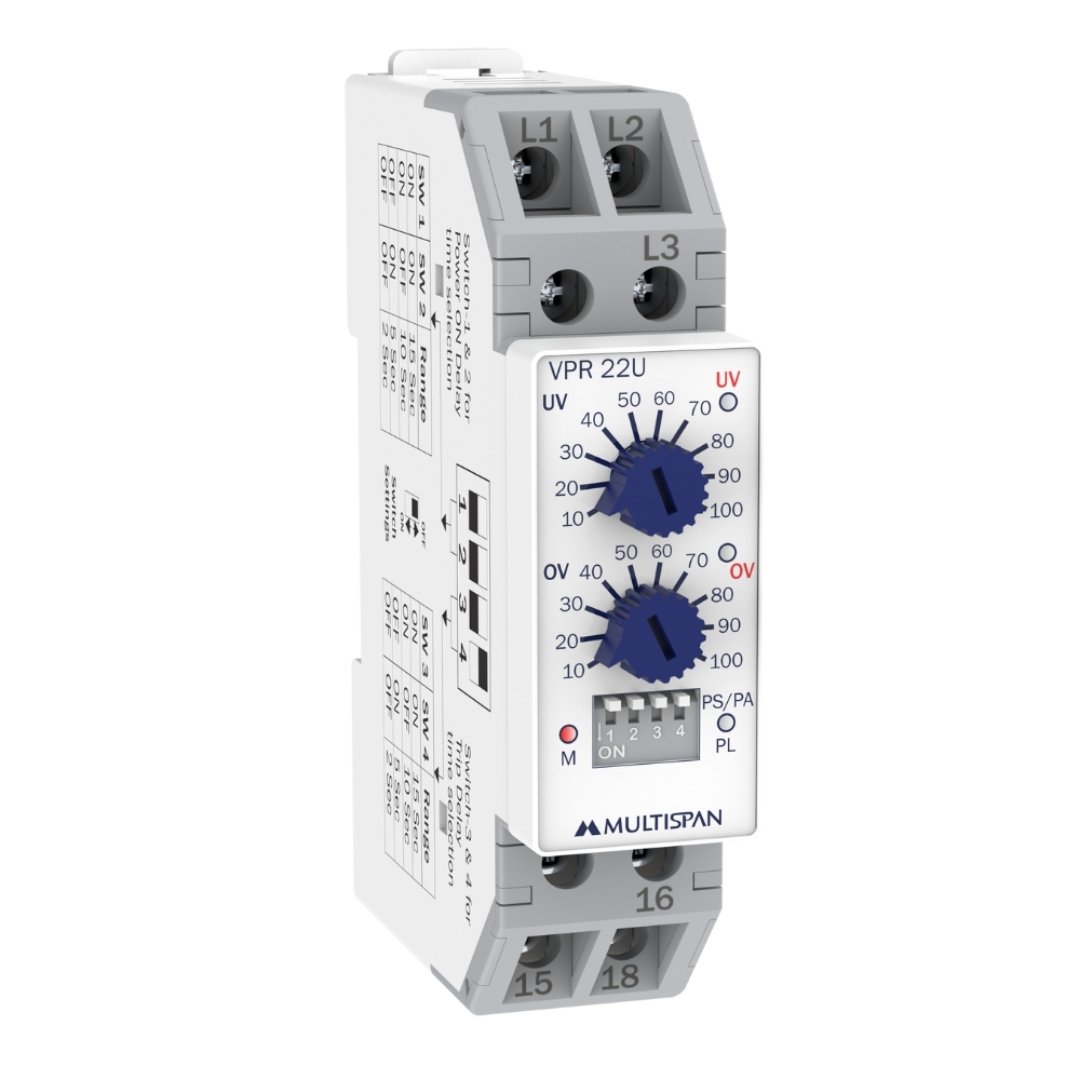

VPR-22U Analog Voltage Protection Relay - Product image VPR-22U Analog Voltage Protection Relay - Product image VPR-22U Analog Voltage Protection Relay - Product image

Voltage Protection Relay Din Rail Mount - Analog

Product: VPR-22U

  • Selection of Under- Over Voltage by Knob
  • Trip Delay Selection by Dip Switch
  • 1-Relay, 2-C/O, 5A, 230V AC
  • Size: (H)90mm X (W)22.5mm X (D)72mm
  • Self-Powered

Top Variants:

Parameter Specification
Power Supply No Power Supply to be Given Separately
Input Voltage 280 to 520V AC (L-L) 3Ø -3W
Rated Voltage 415V AC (L-L)
Output 1-Relay, 1-C/O, 5A 230V AC Resistive Load
Tripping Parameters Under Voltage, Over Voltage, Phase Asymmetry, Phase Sequence, Phase Loss

  • DG Set Panels
  • Motor Control Center Panels
  • Control Panels
  • Distribution Panels
  • Process Control

Product Variant

Part Code

Size

Network

Under Voltage

Over Voltage

Phase Loss

Phase Sequence

Phase Asymmetry

Power On& Trip Delay Selection

Input

Output

Supply

VPR-22-01 90(H)x22.5(W)x72(D) mm  3Ø3W, yes yes yes yes yes   280V AC to 520V AC 1R, 1-C/O Self Powered
VPR-22U-01 90(H)x22.5(W)x72(D) mm  3Ø3W, yes yes yes yes yes yes 280V AC to 520V AC 1R, 1-C/O Self Powered
VPR-22-1-01 90(H)x22.5(W)x72(D) mm  3Ø3W, yes yes yes   yes   280V AC to 520V AC 1R, 1-C/O Self Powered
VPR-22U-1-01 90(H)x22.5(W)x72(D) mm  3Ø3W, yes yes yes   yes yes 280V AC to 520V AC 1R 1-C/O Self Powered
