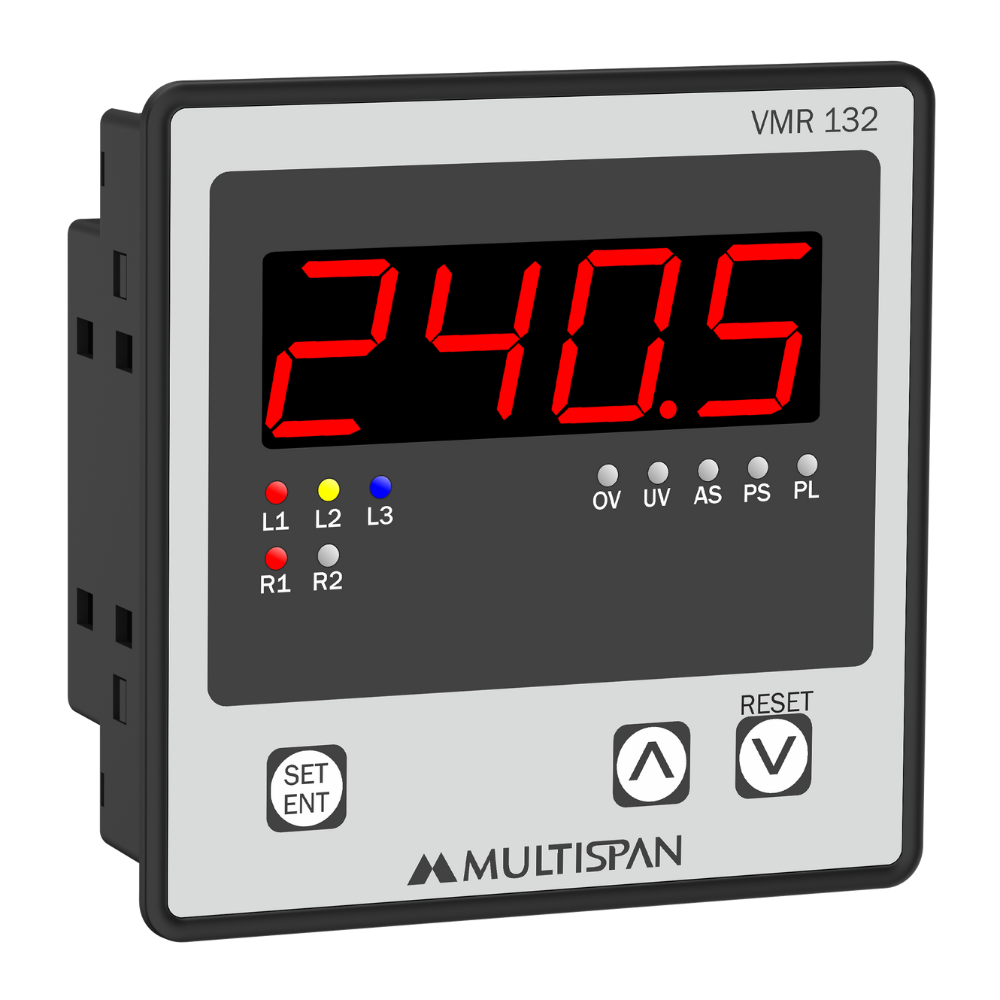

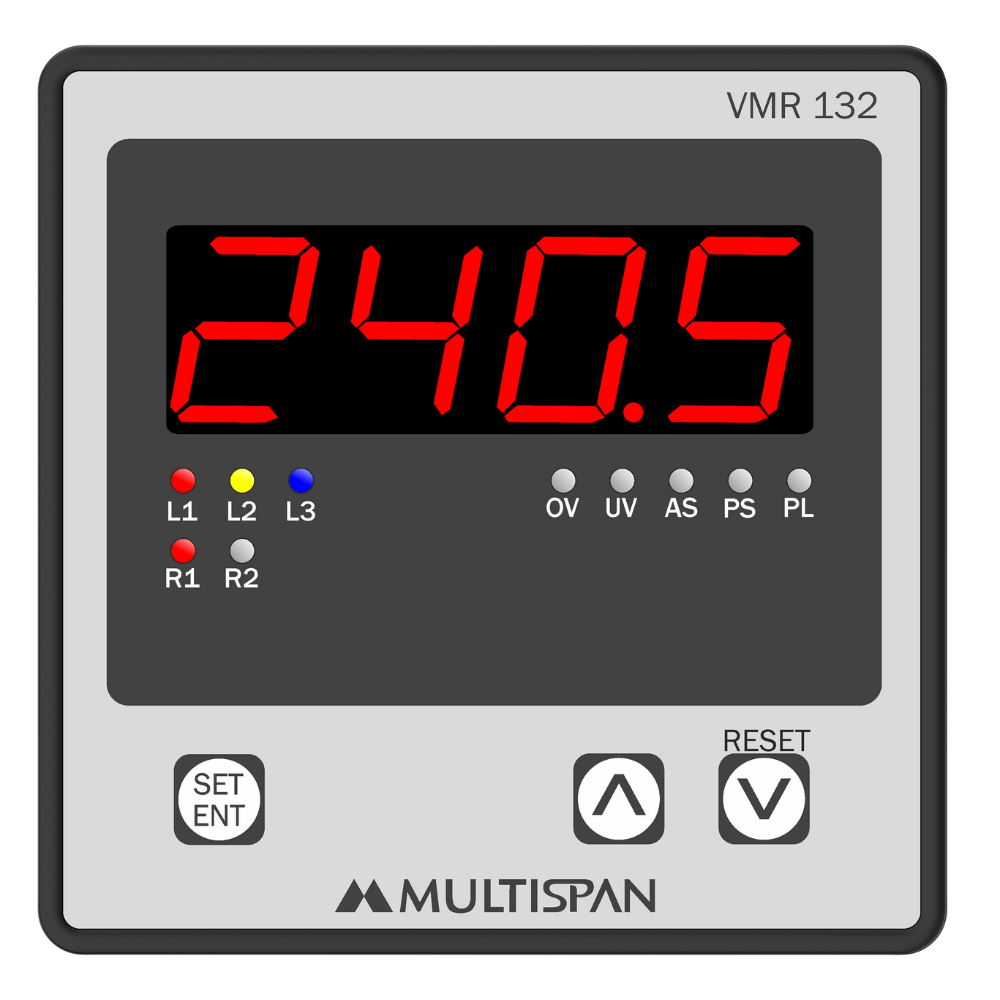

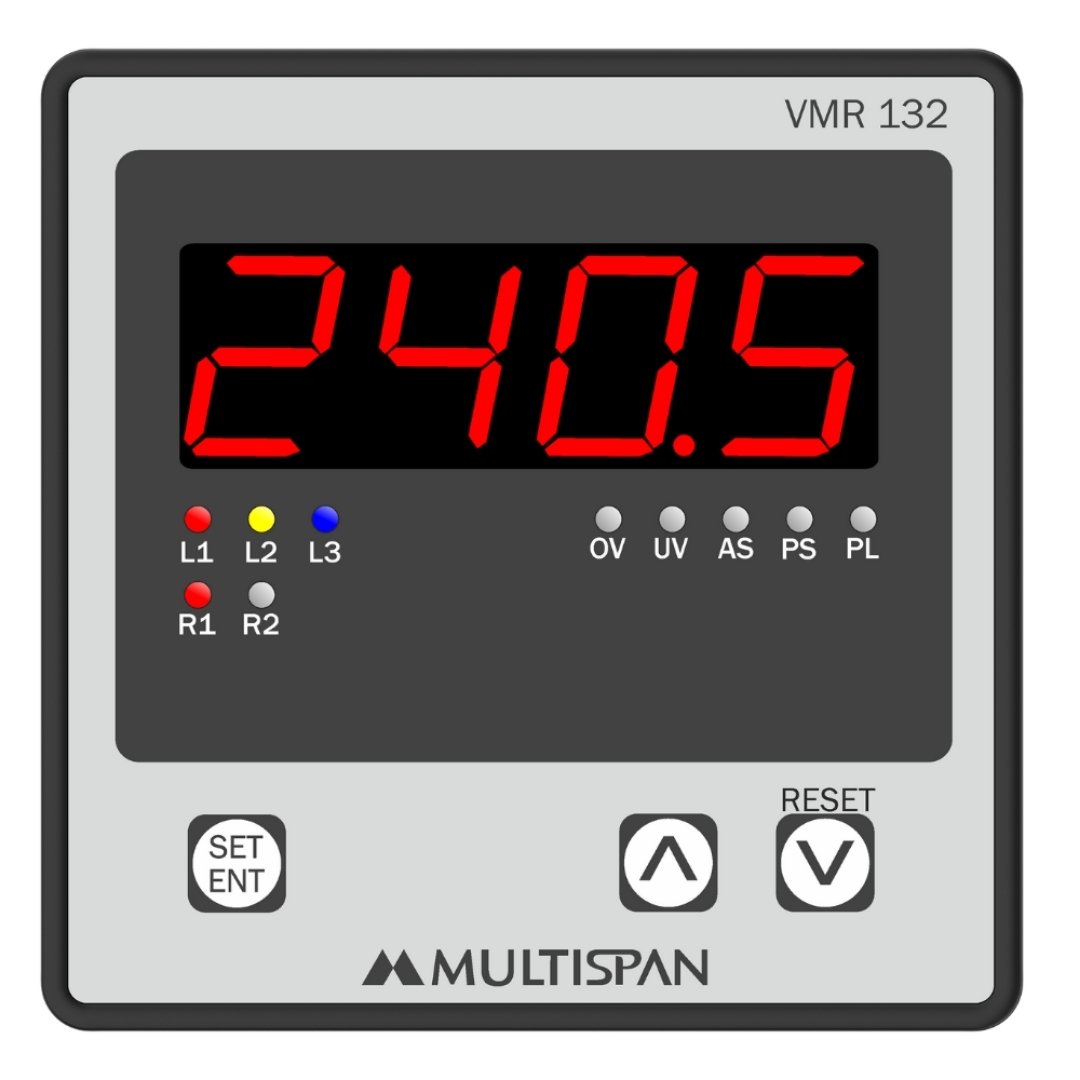

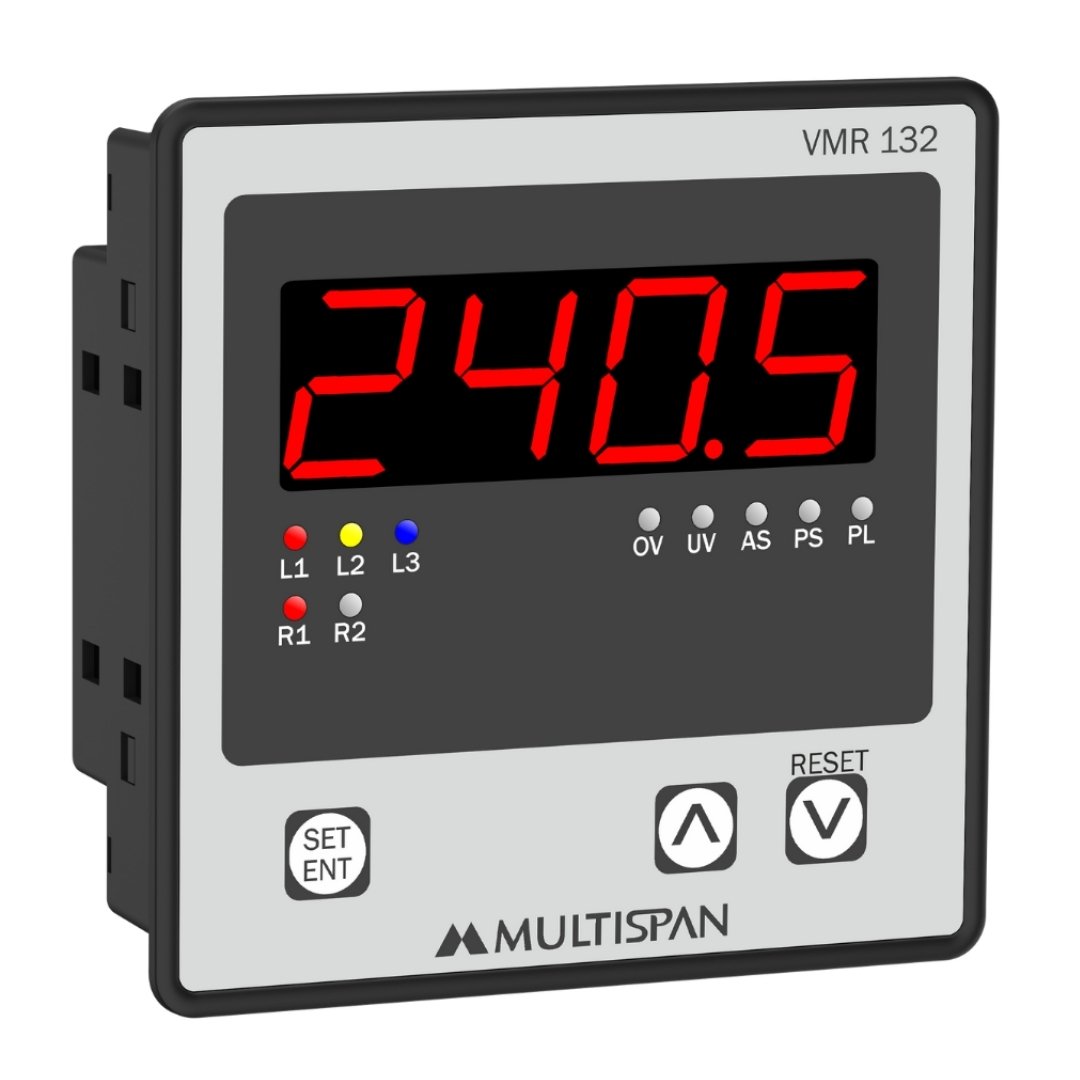

Voltage Monitoring Relay- Panel Mount

Product: VMR-132

  • 7-Segment RED , 4-Digit LED Indication, Digit Size 0.8”
  • 2-Relay 5A, 230V AC
  • Programmable Tripping Parameter On
  • Over & Under Voltage, Phase Asymmetry, Phase Loss, Phase Sequence, Neutral Loss
  • Individual Enable /Disable Tripping Parameter
  • More Accurate and Immediate Tripping
  • Fail Safe and Non Fail Safe Mode
  • Size: (H)96mm X (W)96mm X (D)43mm
  • Supply Voltage : 230V AC

INPUT SPECIFICATION :
Direct Voltage AC

50 to 300V AC (L - N) 3Ø-4W/1Ø-2W

85 to 520V AC (L - L) 3Ø-3W

Frequency 45.0 Hz to 65.0 Hz
Resolution 0.1 Volt
Accuracy Class 0.5
DISPLAY AND KEY :
Display 4-Digit, 1-Line, 7-Seg, 0.8” RED LED
Keys SET/ENT, INC, DEC/RST
GENERAL SPECIFICATION
Dimension (mm) 96 (H) x 96 (W) x 43 (D)
Panel Cutout (mm) 92 (H) x 92 (W)
Trip Setting Under Voltage : 85-520V AC 3Ø-3W 50-300V AC 3Ø-4W/1Ø-2W
Over Voltage : 85-550V AC 3Ø-3W 50-330V AC 3Ø4W/1Ø2W
Under Frequency : 45.0 Hz To 65.0 Hz
Over Frequency : 45.0 Hz To 65.0 Hz
Phase Asymmetry : 2-30%
Time Parameter Power ON Delay Time : 0 To 99 Sec.
Trip Delay Time : 0 To 999 Sec.
Recovery Time : 0 To 99 Sec.
ACCURACY Class 1.0 (Standard)
OUTPUT SPECIFICATION
Relay 2 nos.
Relay Type 1-C/O (NO-C-NC)
Rating 1st Relay 10A, 230V AC
2nd Relay 5A, 230V AC
AUXILIARY SUPPLY :
Supply voltage 230V AC, ±20%,50Hz

Power consumption

(VA RATING)

3VA
ENVIRONMENT CONDITION
Operating Temp. 0°C to 55°C
Relative Humidity

Upto 95% RH

(non-condensing)

Protection Level (As per request) IP-65 (Front side) As per IS/IEC 60529 : 2001
NETWORK CONNECTION
3Ø-3W/3Ø-4W/1Ø-2W

  • DG Set Panels
  • Motor Control Center Panels
  • Control Panels
  • Distribution Panels

Product Variant

Part code Size(H X W X D)mm Network Input  Output  Aux Supply
VMR-13-B1-00 96 X 96 X 54 3Ø3W/4W ,1Ø2W,  30 to 300V AC (L-N), 50 to 520V AC (L-L) 1-Relay, 1-C/O 230V AC
VMR-132-B1-00 96 X 96 X 54 3Ø3W/4W ,1Ø2W,  30 to 300V AC (L-N), 50 to 520V AC (L-L) 2-Relay, 1-C/O 230V AC
VMR-23-E2-00 72 X 72 X 45 3Ø3W/4W ,1Ø2W,  30 to 300V AC (L-N), 50 to 520V AC (L-L) 1-Relay, 1-C/O 50-520V AC
VMR-232-E2-00 72 X 72 X 45 3Ø3W/4W ,1Ø2W,  30 to 300V AC (L-N), 50 to 520V AC (L-L) 2-Relay, 1-C/O 50-520V AC
