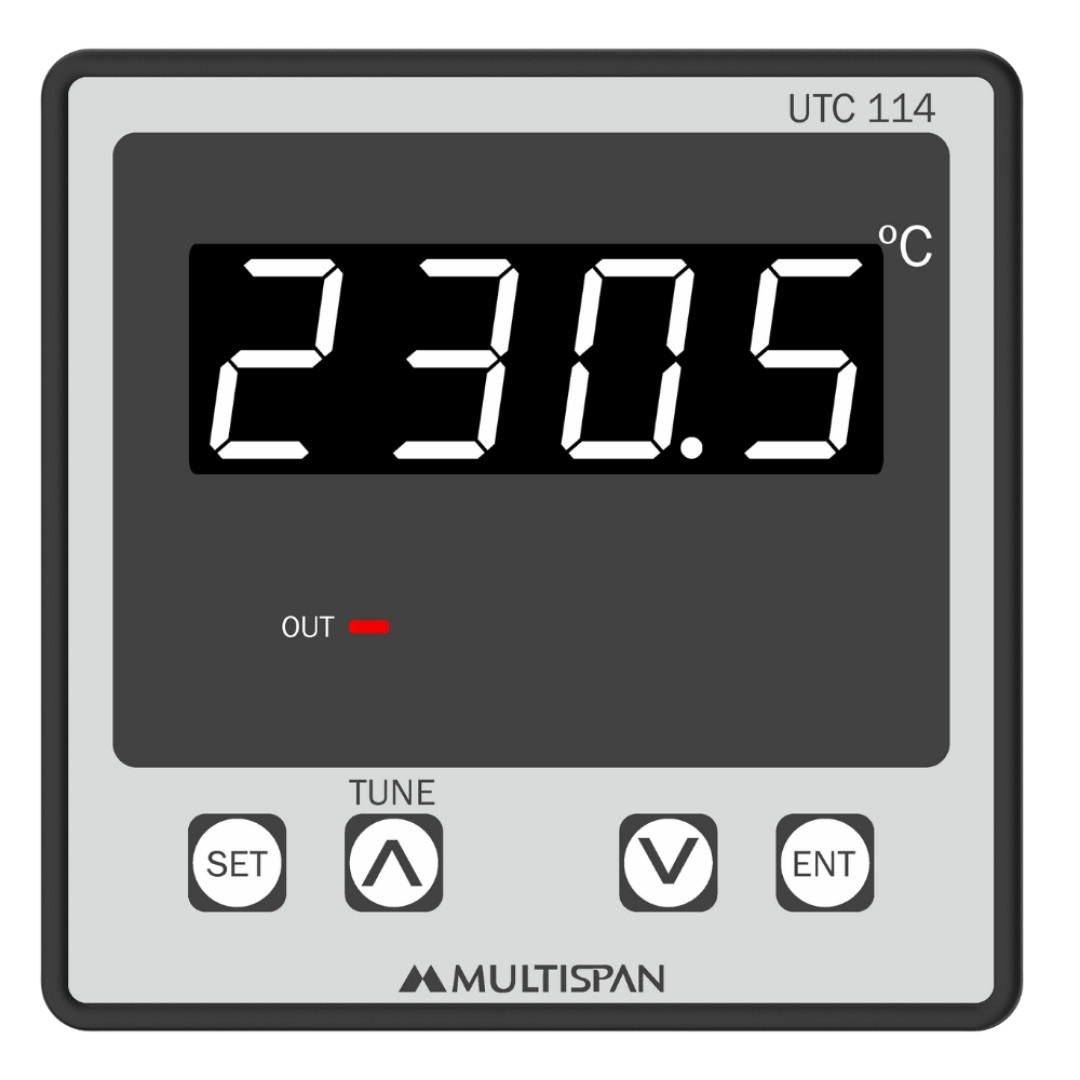

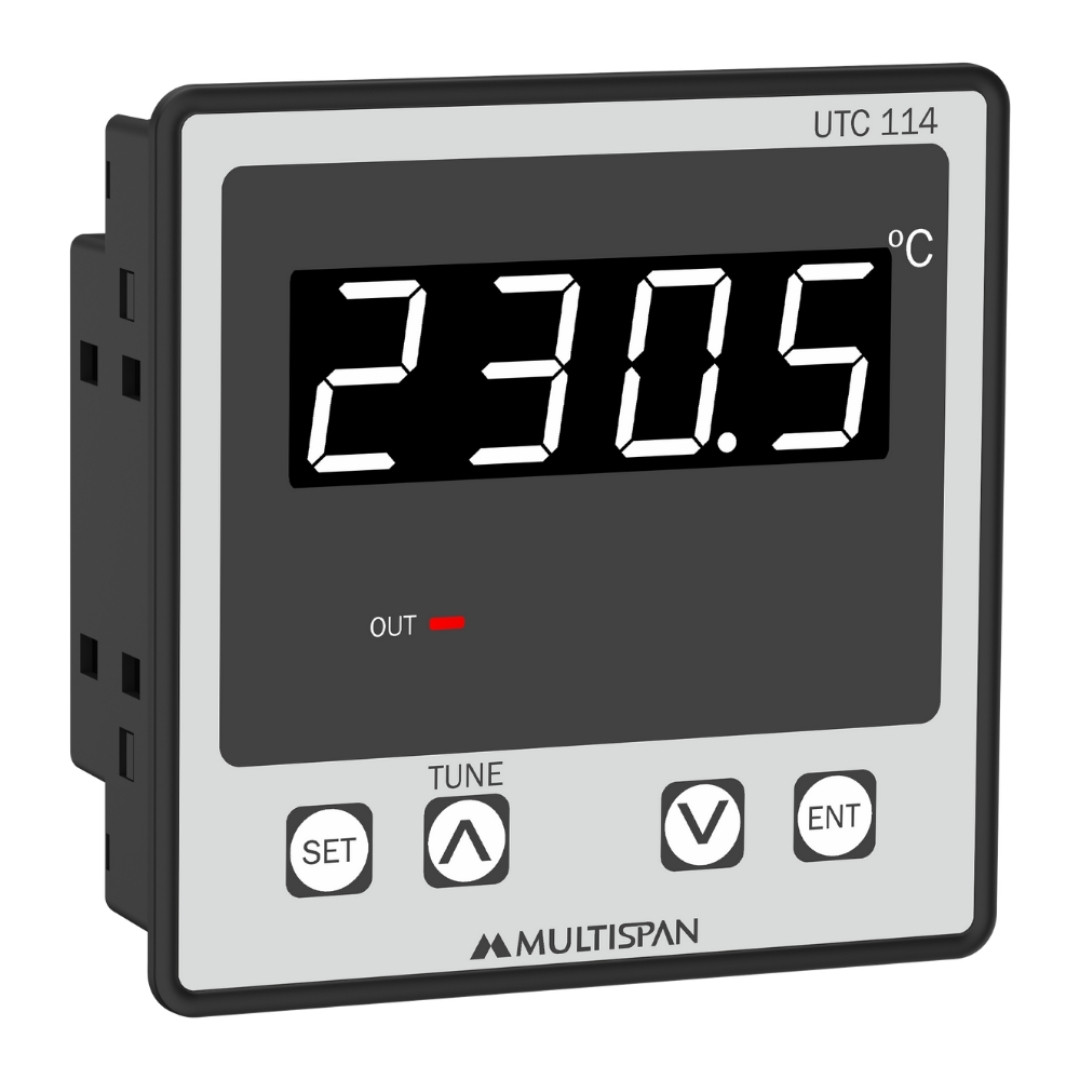

Universal Input Single Display PID Controller

Product: UTC-114

  • Universal Input (J/K/RTD)
  • 4-Digit Single Red/White LED Display
  • PID/On-Off Controller
  • Single Output (Relay || SSR) for Load Control
  • Size: (H)96mm x (W)96mm x (D)43mm
  • Supply Voltage: 100-270V AC

INPUT SPECIFICATION:
Input Types Input Range
J 0 to 600°C
K 0 to 1200°C
PT-100 -99 to 400°C
PT.1 -99.9 to 400.0°C
Resolution J,K,PT-100 = 1°C, PT.1 = 0.1°C
Indication Accuracy ±1% of FSD
(FSD:- Full Scale Deflection)
DISPLAY AND KEYS:
Display 4-Digit, 7-Segment, 0.8” Red
Keys SET, INC, DEC, ENT
DIMENSION:
Size (mm) 96 (H) x 96 (W) x 43 (D)
Panel Cutout (mm) 92 (H) x 92 (W)
CONTROL METHOD:
Heating 1. PID control with Auto-Tuning
2. (TP) Time Proportional
3. On-Off Control
Cooling ON-OFF control
OUTPUT SPECIFICATION:
Relay Output
Relay 1 Nos
Relay Type 1C/O (NO-C-NC)
Rating 10A, 230V AC / 28V DC (Reg. Load)
SSR Drive Output
Output Signal 12V DC, 30mA DC (On-Off condition)
POWER SUPPLY:
Supply Voltage 100 to 270V AC, 50-60Hz
Power Consumption (VA Rating) 4VA @ 230V AC MAX
ENVIRONMENT CONDITION:
Operating Temp. 0°C to 55°C
Relative Humidity(As per request)

Upto 95% RH

(non-condensing)

IP-65 (Front side) As per IS/IEC 60529 : 2001
Protection Level

  • Packaging Machinery
  • Extrusion Machinery
  • Furnace & Boilers
  • Ovens & Incubators
  • Food Industry

Product Variant

Sr.no Model No Input  Output  Aux Supply Display Size
1 UTC-114-A2-R J/K/Pt-100 (Selectable)  Relay || SSR 100-270V AC  Red  96x96x43(HxWxD)mm
2 UTC-114-A2-W J/K/Pt-100 (Selectable)  Relay || SSR 100-270V AC  White  96x96x43(HxWxD)mm
3 UTC-214-A2-R J/K/Pt-100 (Selectable)  Relay || SSR 100-270V AC  Red  72x72x45(HxWxD)mm
4 UTC-214-A2-W J/K/Pt-100 (Selectable)  Relay || SSR 100-270V AC  White  72x72x45(HxWxD)mm
5 UTC-413P-A2-R J/K/Pt-100 (Selectable)  Relay || SSR 100-270V AC  Red  48x48x70(HxWxD)mm
6 UTC-413P-A2-W J/K/Pt-100 (Selectable)  Relay || SSR 100-270V AC  White  48x48x70(HxWxD)mm
