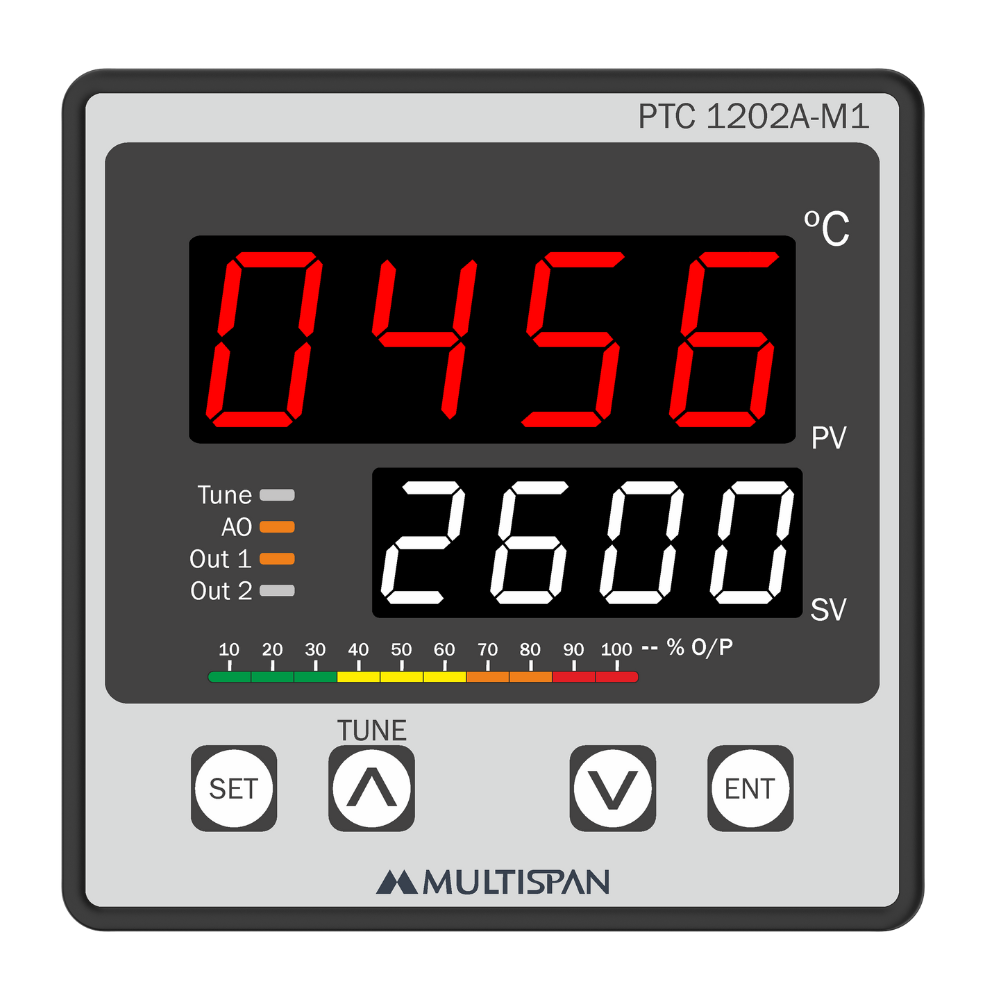

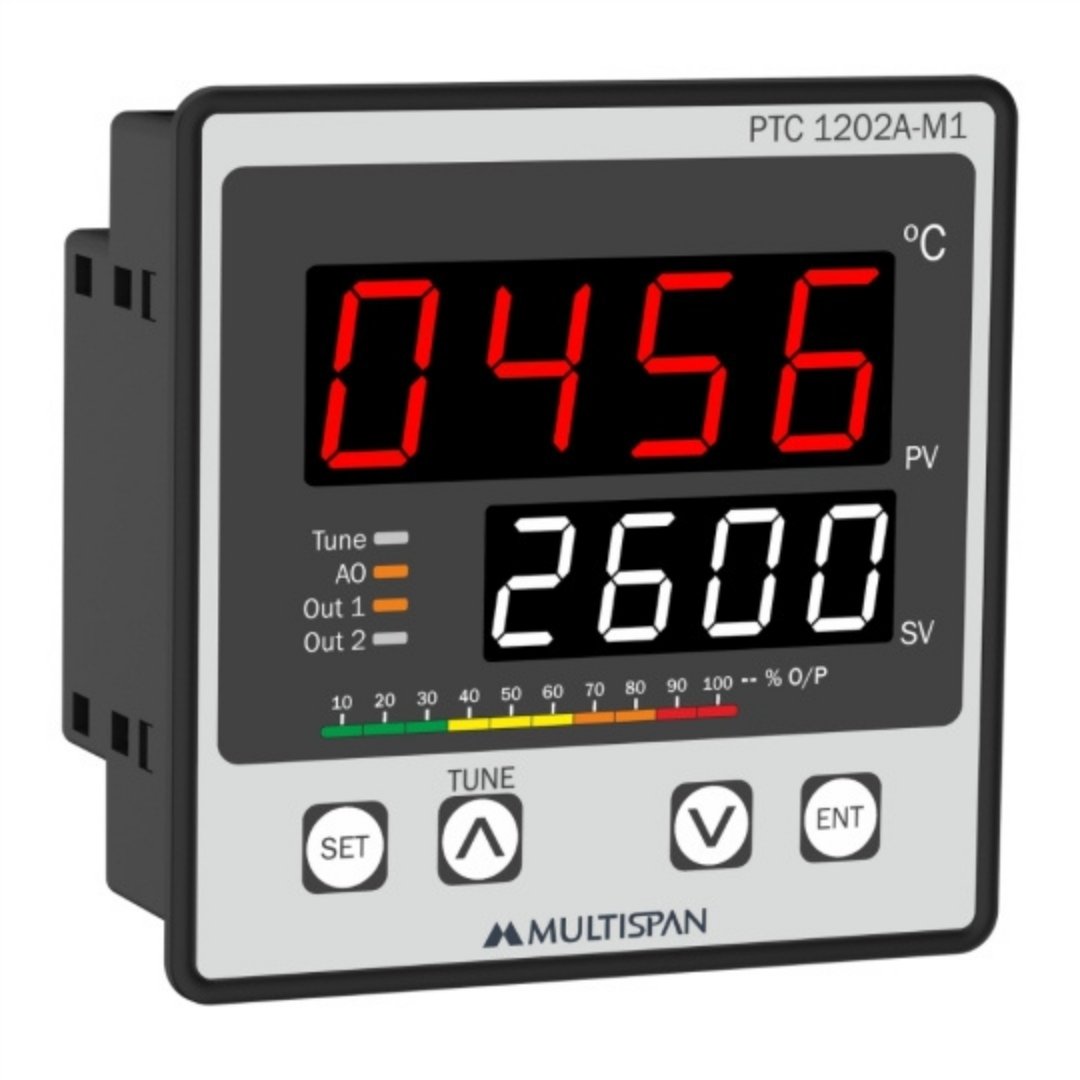

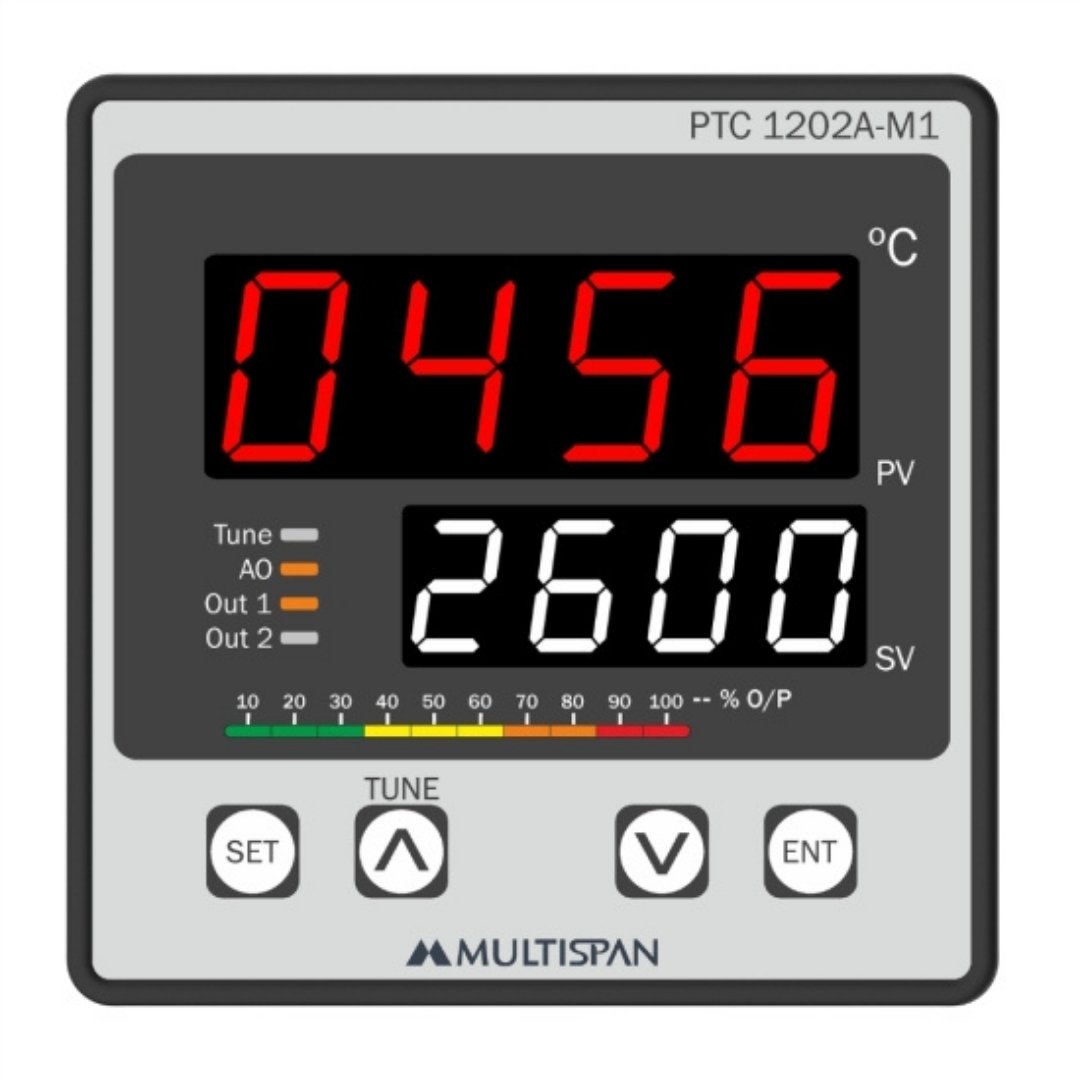

PTC-1202A-M1 PID Controller - Universal Input with Analog Modbus Output - Product image PTC-1202A-M1 PID Controller - Universal Input with Analog Modbus Output - Product image PTC-1202A-M1 PID Controller - Universal Input with Analog Modbus Output - Product image

Universal Input PID Controller with Analog Output & RS-485 Modbus Facility

Product: PTC-1202A-M1

  • Universal Input (J/K/RTD/4-20mA DC/0-10V DC/0-20mA DC)
  • 4-Digit Dual Red/White LED Display
  • 2-Relay Output
  • Analog Output (Retransmission & Controlling) & RS-485 Modbus Facility
  • Size: (H)96mm x (W)96mm x (D)54mm
  • Supply Voltage: 100-270V AC

Top Variants:

INPUT SPECIFICATION:
Input Types Input Range
J 0 to 600°C
K 0 to 1200°C
PT-100 -99 to 400°C
PT.1 -99.9 to 400.0°C
0-10V DC -999 to 9999
0-20mA DC -999 to 9999
4-20mA DC -999 to 9999
Resolution J,K,PT-100 = 1°C
PT.1 = 0.1°C
0-10V DC,0-20mA DC,4-20mA DC
= 0.1,0.01,0.001,0001
Indication Accuracy ±1% of FSD
(FSD : full scale deflection)
DISPLAY AND KEYS:
Display Upper : 4-Digit,7-Seg 0.8” RED LED
Lower : 4-Digit,7-Seg 0.56” Green LED
Keys SET, INC, DEC, ENT
DIMENSION:
Size (mm) 96 (H) x 96 (W) x 54 (D)
Panel Cutout (mm) 92 (H) x 92 (W)
CONTROL METHOD:
Heating 1. PID Control with Auto-Tuning
2. ON-OFF Control
Cooling 1. BL.TP (Blower Time Proportion)
2. ON-OFF Control
Alarm High/Low/Inband/Outband/ Absolute Low/Absolute Outband
OUTPUT SPECIFICATION
Relay Output
Relay 2 nos.
Relay Type 1 C/O (NO-C-NC)
Rating 5A, 230V AC/30V DC
Analog Output
4 to 20mA DC/0 to 10V DC (Factory Set)
Transmitter supply
24V DC
Modbus Communication
RS-485
AUXILIARY SUPPLY
Supply voltage 100 to 270V AC, 50-60Hz
Power consumption (VA RATING) Approx 7 VA @ 230V AC MAX
ENVIRONMENT CONDITION
Operating Temp. 0°C to 55°C
Relative Humidity Upto 95% RH
(non-condensing)
Protection Level IP-65 (Front side) As per IS/IEC 60529 : 2001

  • Scientific Industry
  • Boiler Industry
  • Food Process Industry
  • Power Plant

Product Variant

Sr.no

Model No

Input

Output

RS-485 Modbus

Aux Supply

Size

1 PTC-1202-A2-00 J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 2 Relay   100-270V AC  96x96x54(HxWxD)mm
2 PTC-1202-M1-A2-00 J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 2 Relay yes 100-270V AC  96x96x54(HxWxD)mm
3 PTC-1202A-A2-00A J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 4-20mA DC + 2 relay   100-270V AC  96x96x54(HxWxD)mm
4 PTC-1202A-A2-00V J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 0-10V DC + 2 relay   100-270V AC  96x96x54(HxWxD)mm
5 PTC-1202A-M1-A2-00A J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 4-20mA DC + 2 relay yes 100-270V AC  96x96x54(HxWxD)mm
6 PTC-1202A-M1-A2-00V J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 0-10V DC + 2 relay yes 100-270V AC  96x96x54(HxWxD)mm
7 PTC-4202-A2-00 J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 2 Relay   100-270V AC  48x48x95(HxWxD)mm
8 PTC-4202-M1-A2-00 J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 2 Relay yes 100-270V AC  48x48x95(HxWxD)mm
9 PTC-4202A-A2-00A J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 4-20mA DC + 2 relay   100-270V AC  48x48x95(HxWxD)mm
10 PTC-4202A-A2-00V J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 0-10V DC + 2 relay   100-270V AC  48x48x95(HxWxD)mm
11 PTC-4202A-M1-A2-00A J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 4-20mA DC + 2 relay yes 100-270V AC  48x48x95(HxWxD)mm
12 PTC-4202A-M1-A2-00V J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 0-10V DC + 2 relay yes 100-270V AC  48x48x95(HxWxD)mm
13 PTC-382-A2-00 J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 2 Relay   100-270V AC  48x96x76(HxWxD)mm
14 PTC-382-M1-A2-00 J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 2 Relay yes 100-270V AC  48x96x76(HxWxD)mm
15 PTC-382A-A2-00A J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 4-20mA DC + 2 relay   100-270V AC  48x96x76(HxWxD)mm
16 PTC-382A-A2-00V J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 0-10V DC + 2 relay   100-270V AC  48x96x76(HxWxD)mm
17 PTC-382A-M1-A2-00A J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 4-20mA DC + 2 relay yes 100-270V AC  48x96x76(HxWxD)mm
18 PTC-382A-M1-A2-00V J/K/Pt-100/4-20mA DC/0-20mA DC/0-10V DC (Selectable) 0-10V DC + 2 relay yes 100-270V AC  48x96x76(HxWxD)mm
