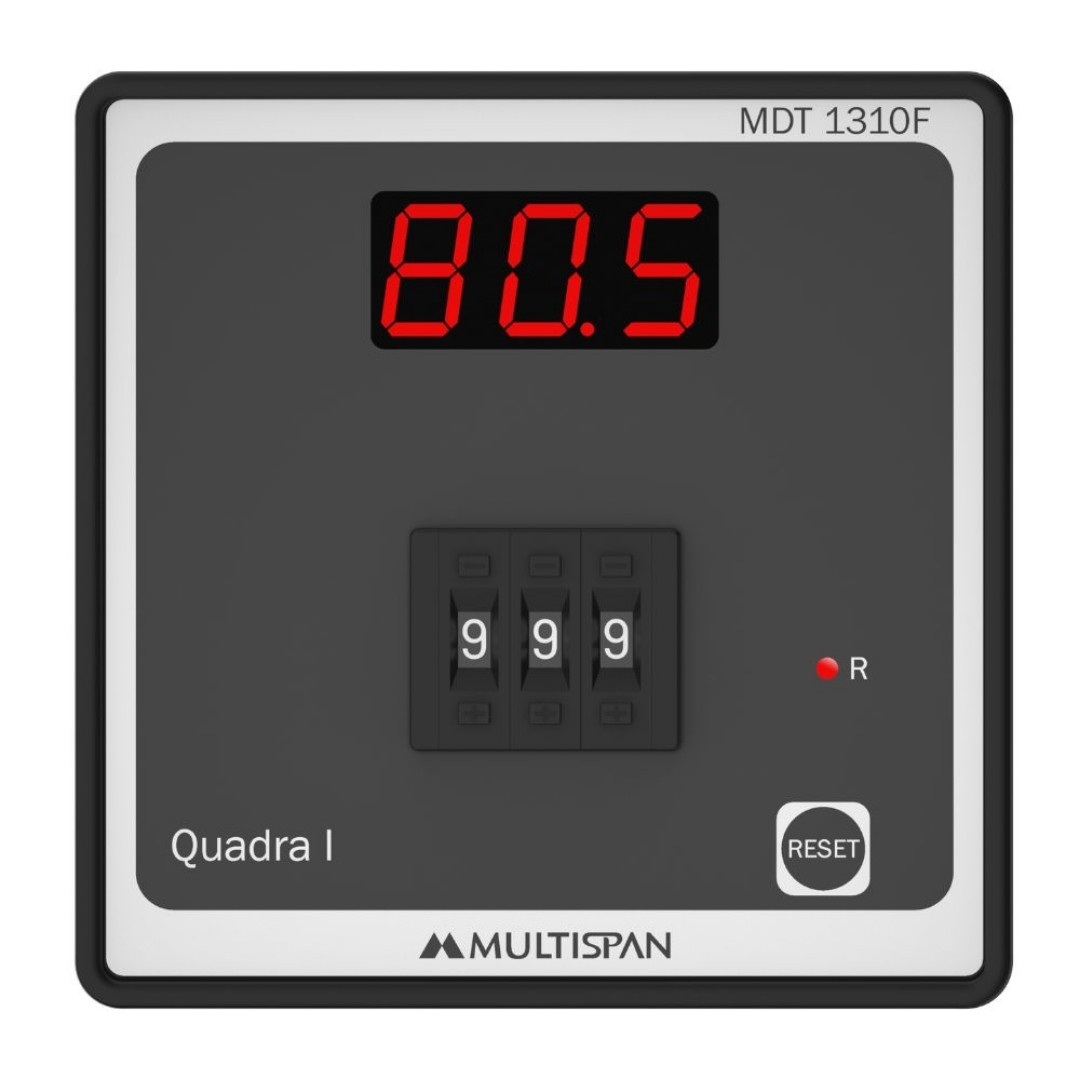

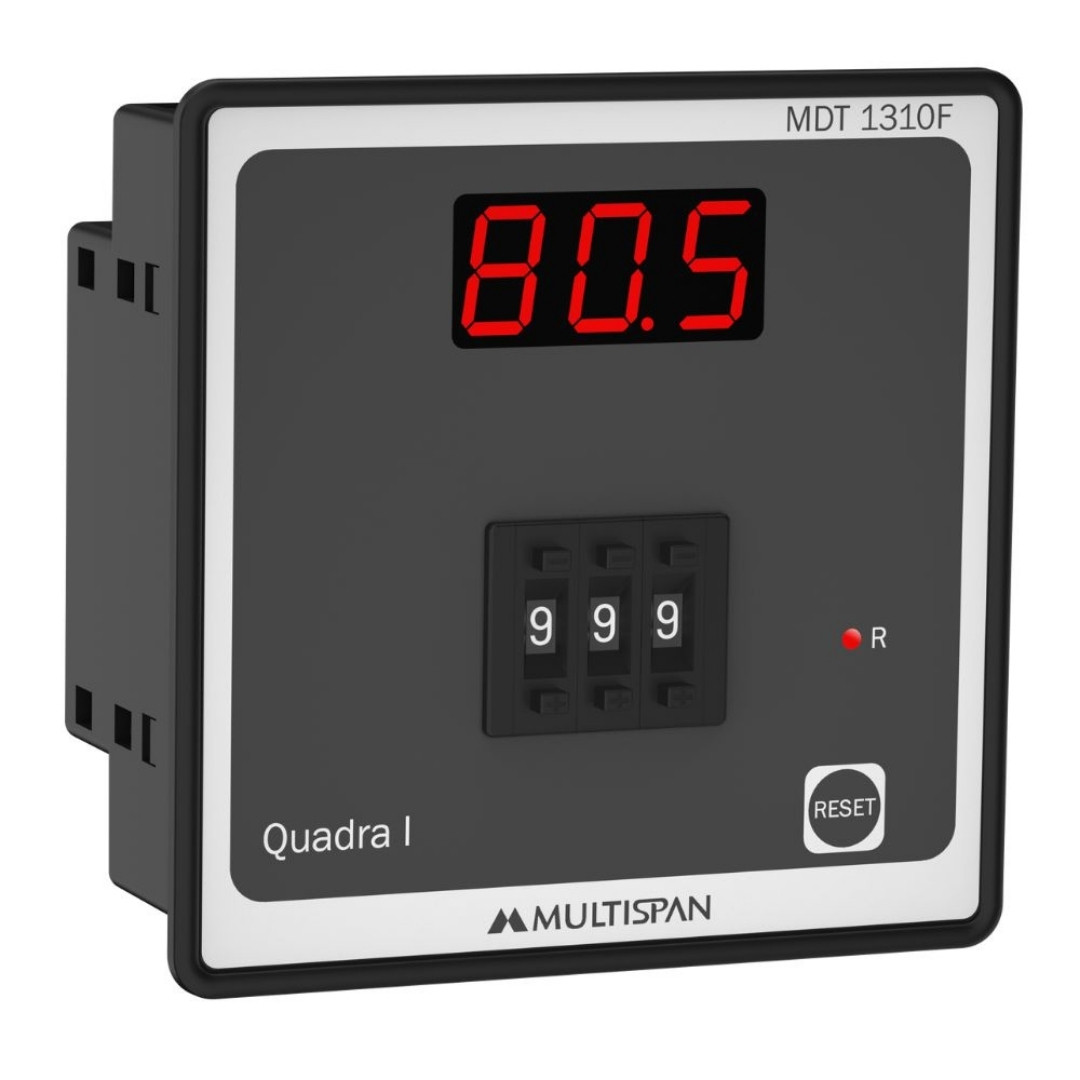

MDT-1310F Digital Timer product regular image MDT-1310F Digital Timer product front image MDT-1310F Digital Timer product side  image

Thumbwheel –On/Off Timer

Product: MDT-1310F

  • 3-Digit Display, Time Set by Thumbwheel
  • Input Micro Switch
  • Delayed On/Off
  • Range Hour/Minute/Second
  • With Power fail memory
  • Size: (H)96mm x (W)96mm x (D)54mm
  • Supply Voltage: 100-270V AC

Description MDT-1310F
Dimension (mm) 96 (H) X 96 (W) X 54 (D)
Panel Cutout (mm) 92 (H) X 92 (W)
Display 7-Segment, 3-Digit, 0.56", RED LED
Timer Type Multi-Range Timer
Resetting Timer RST key in Front and Back
Counting Direction Up or Down Counting
Output 1-Relay, 2-C/O
Input (Range) 999, 99.9, 9.99 Hrs/Min/Sec
Relay Rating 230V AC, 5Amp
Supply 230V AC, 50Hz, 4VA
100 to 270V AC, 50/60Hz, 4VA

  • Packaging Machinery
  • Printing Industries
  • Furnace & Boilers
  • Automation Panel
  • Food Industry

Product Variant

Sr.no Model No Output  Aux Supply Size
1 MDT-1310F-B1-00  1Relay 2C/O 230V AC 96x96x54(HxWxD)mm
2 MDT-2312F-A2-00  1Relay 2C/O 100-270V AC  72x72x45(HxWxD)mm
3 MDT-4310-A2-00  1Relay 2C/O 100-270V AC  48x48x102(HxWxD)mm
