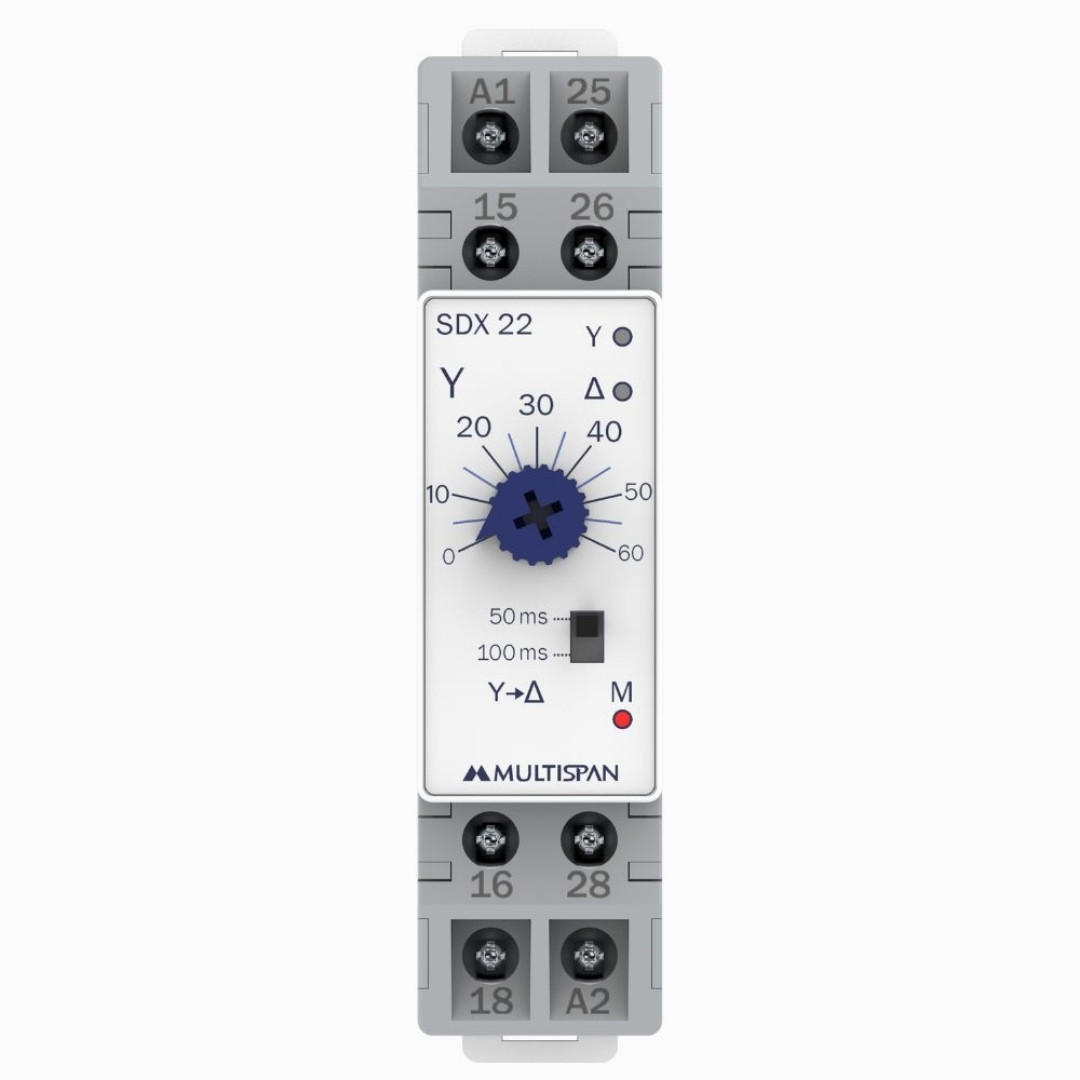

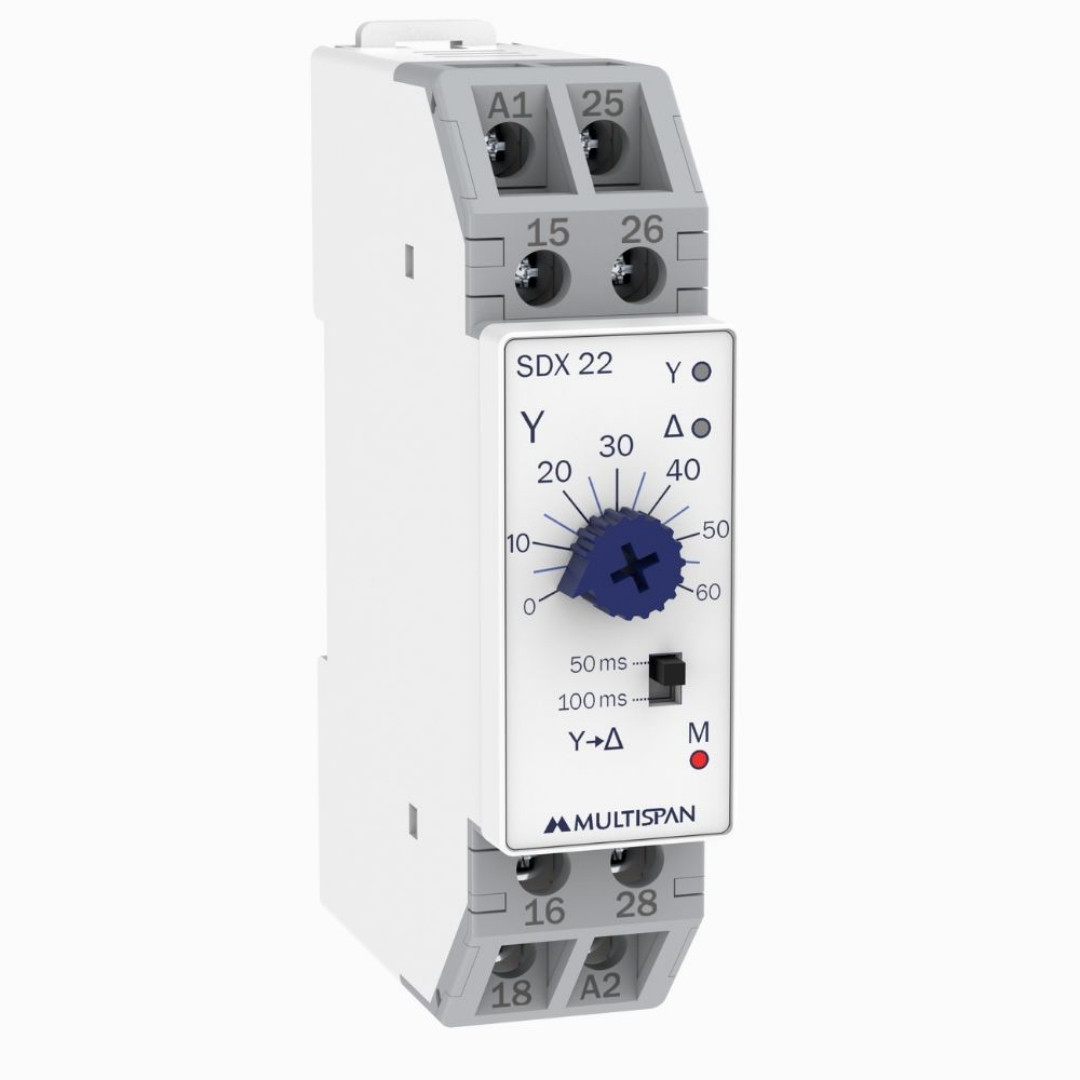

SDX-22 Star Delta Timer - product regular image SDX-22 Star Delta Timer - product front image SDX-22 Star Delta Timer - product side image

Star Delta Timer

Product: SDX-22

  • 0 Second to 60 Seconds
  • Pause time selection 50mSec and 100mSec
  • Aux Supply 415VAC or 230V AC Selectable
  • Size: (H)90mm x (W)22.5mm x (D)72mm

Parameter Specification
Power Supply 230 V AC ±20%, 50 Hz
415 V AC ±20%, 50 Hz
Output 2-Relay O/P (1-C/O, 5A 230 VAC Resistive Load) - 1st Relay for Star Connection & 2nd Relay for Delta Connection
Time Range 0 to 60 sec
Pause Time 50 ms or 100 ms selection by front key
