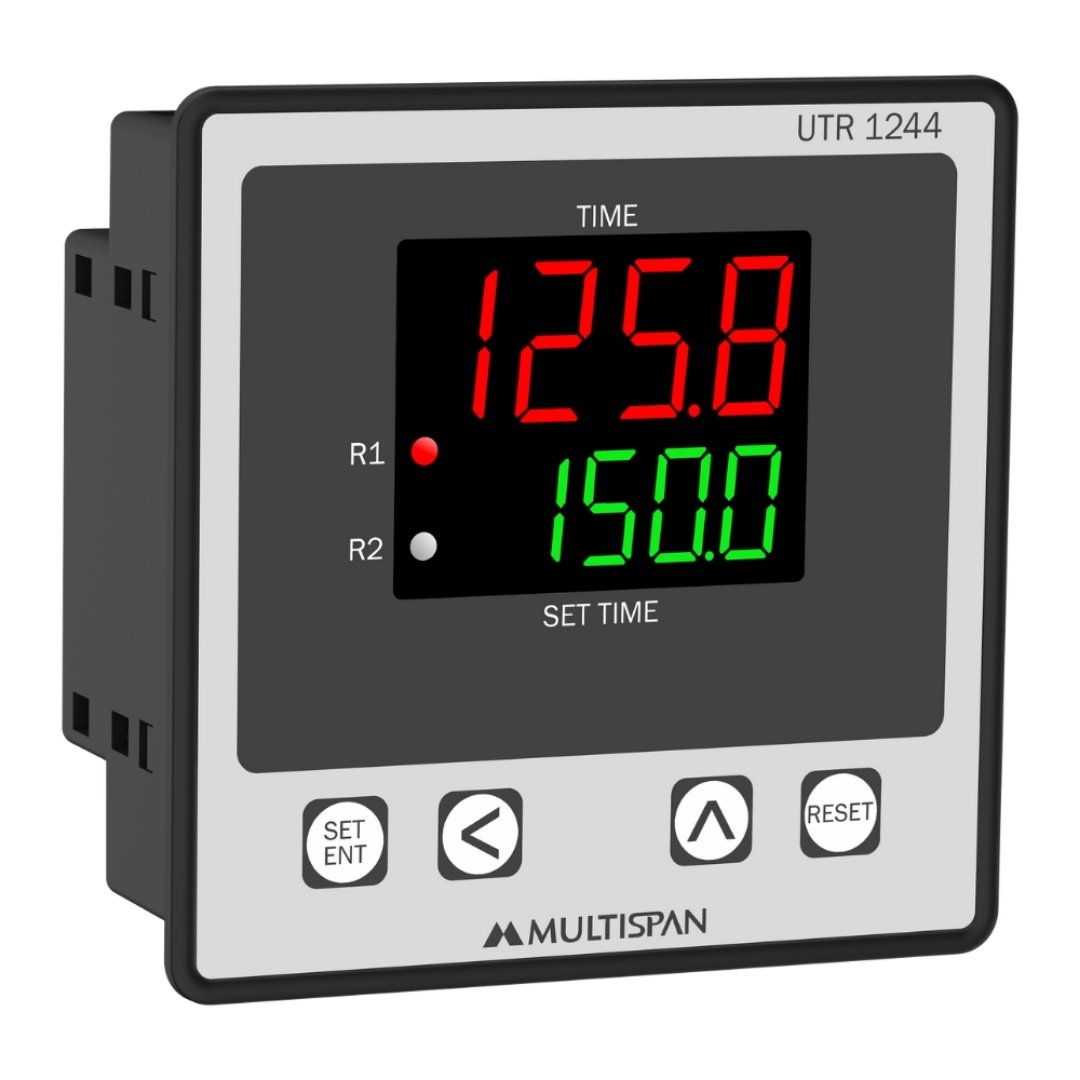

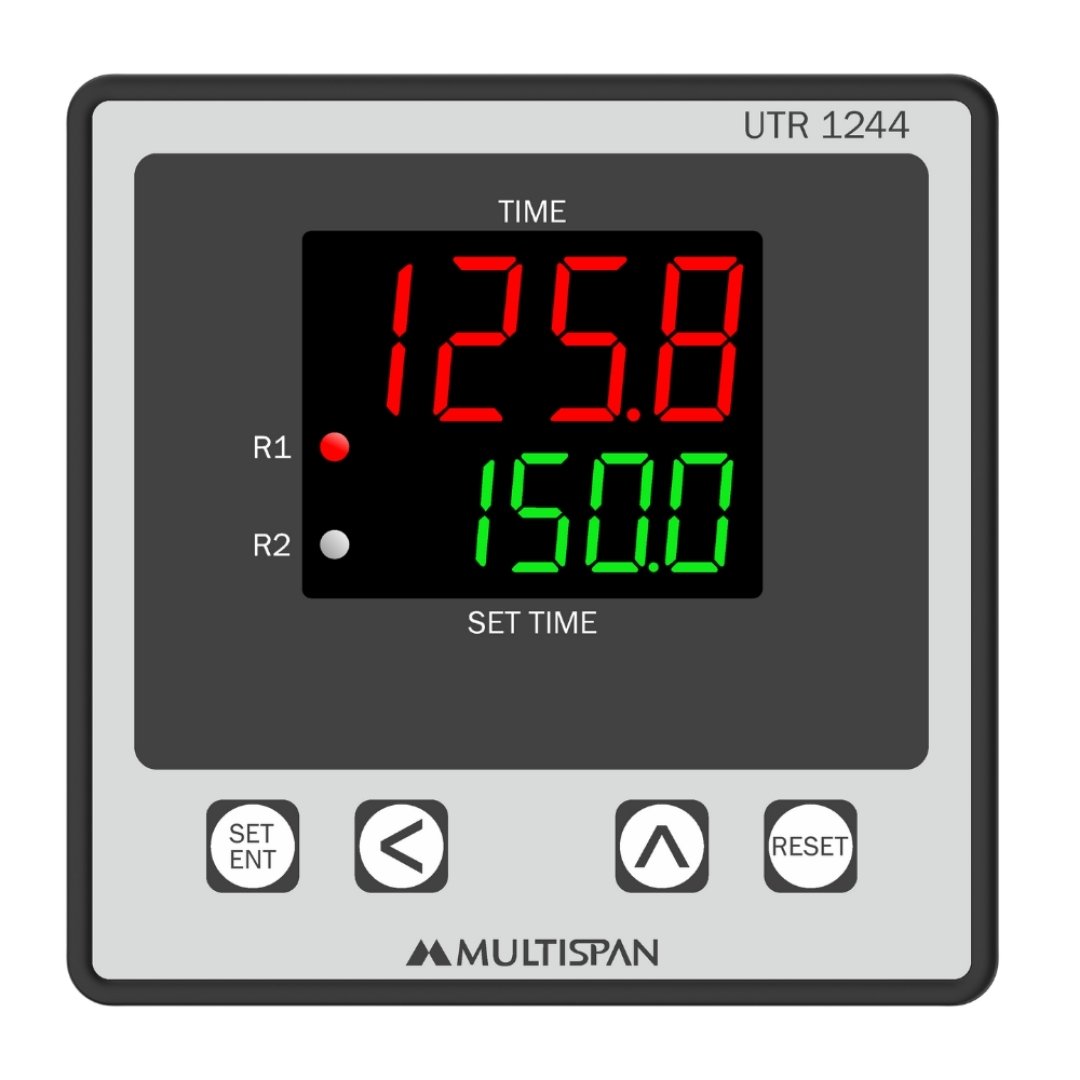

UTR-1244 UTR-1244 UTR-1244

Programmable 2-Relay Timer

Product: UTR-1244

  • PNP/NPN/Micro Switch Trigger Input
  • Cyclic, Sequential, Combinational, Forward Reverse Mode
  • Range: Hour/Minute/Second
  • Reset by Front Keypad and Remote
  • With Power Fail Memory
  • Size: (H)96mm x (W)96mm x (D)54mm
  • Supply Voltage: 100-270V AC

Model UTR-1244
Dimension (mm) 96 (H) x 96 (W) x 54 (D)
Panel Cutout (mm) 92 (H) x 92 (W)
Input NPN/PNP Proximity
Micro Switch
Limit Switch
Time Range
Sec 9.999/ 999.9/ 9999
Min 99.59/ 999.9/ 9999
Hour 99.59/ 999.9/ 9999
Output 2-Relay, 1-C/O, 5A, 230V AC For Resistive Load
Operating Mode Forward - Reverse Timer
Cyclic Timer
Sequential Timer
Combination Timer
Power Supply 100-270V AC, 50/60 Hz, Approx 4VA

Product Variant

Sr.no Model No Output  Aux Supply Size
1 UTR-1244-A2-00  2 Relay 100-270V AC  96x96x54(HxWxD)mm
2 UTR-2244-A2-00  2 Relay 100-270V AC  72x72x45(HxWxD)mm
3 UTR-4244-A2-00  2 Relay 100-270V AC  48x48x70(HxWxD)mm
