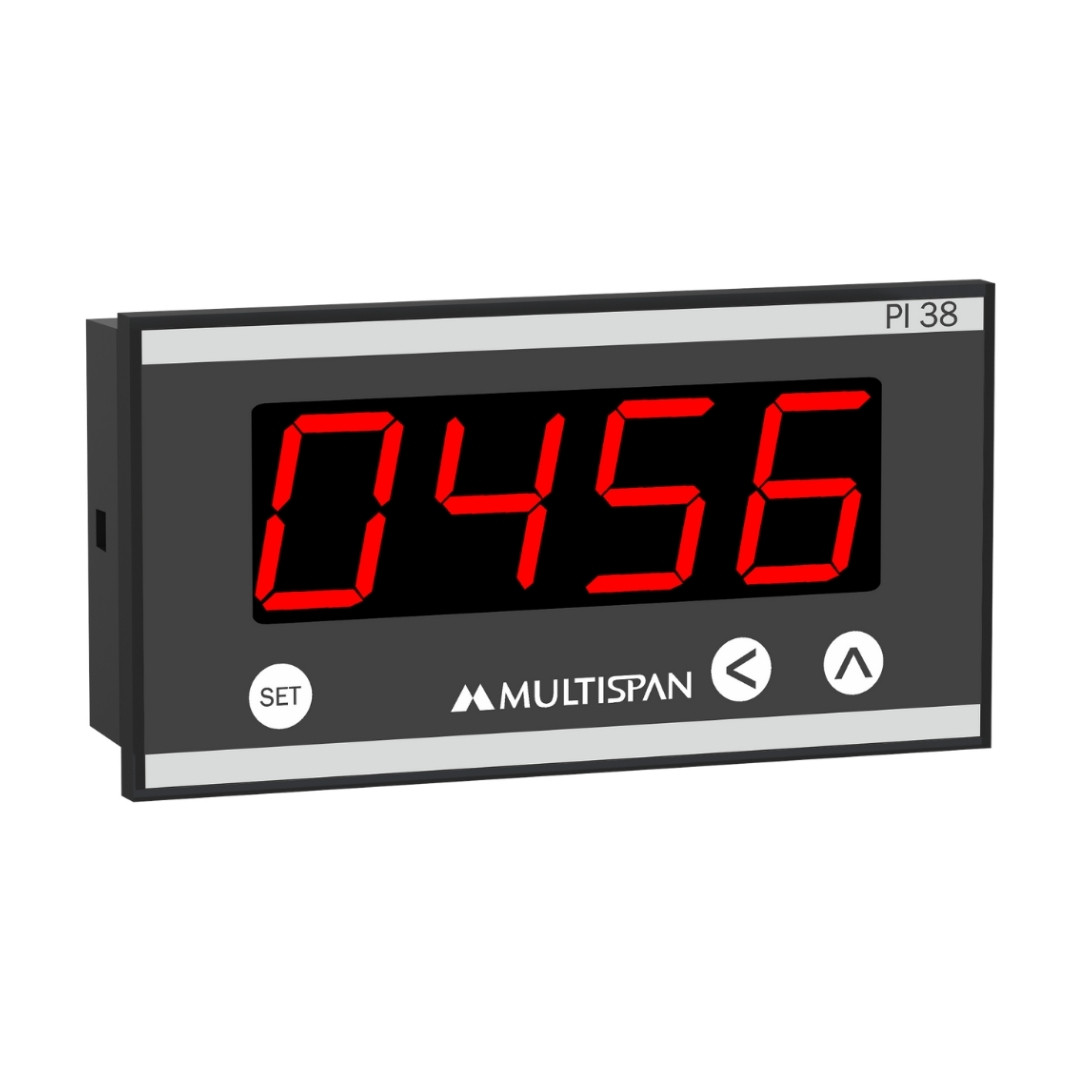

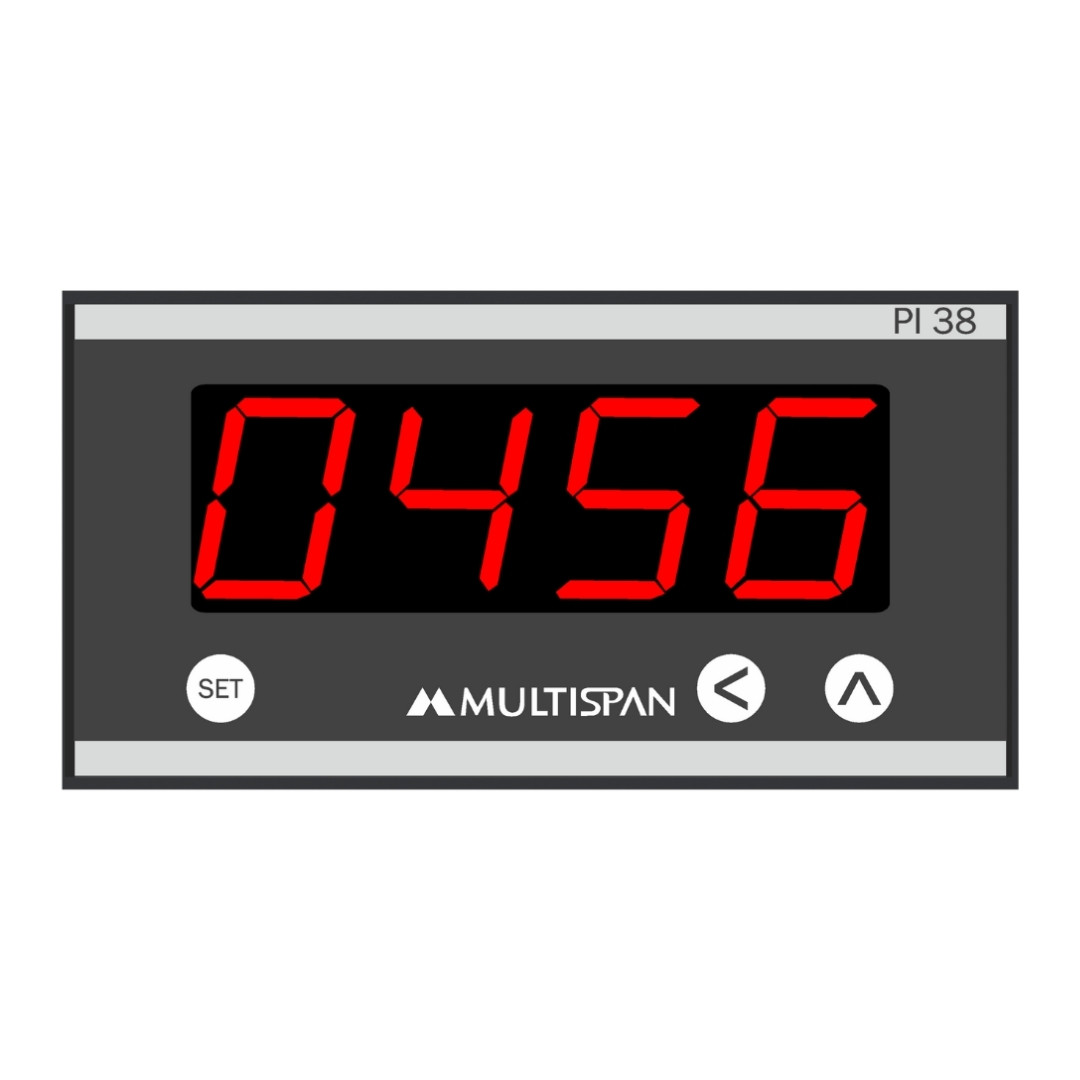

PI-38-Process Indicator - Product image PI-38-Process Indicator - Product image PI-38-Process Indicator - Product image

Process Indicator

Product: PI-38

  • 4-Digit Process Indictor
  • Universal Input (4-20mA DC/0-20mA DC/0-10V DC)
  • Upto 3-Digit Resolution
  • Size: (H)48mm x (W)96mm x (D)26mm
  • Supply Voltage: 100-270V AC

Top Variants:

INPUT SPECIFICATION
Input Types Voltage: 0 to 10V DC
Current: 0 to 20mA DC,
              4 to 20mA DC
I/P Filter Time 0.1 Sec to 10.0 Sec
Resolution Decimal Point Selectable:
0.1, 0.01, 0.001, 0001
Range -999 to 9999 (For all I/P)
Indication Accuracy ±1% FSD
(FSD - Full Scale Deflection)
DISPLAY AND KEY
Display 4-Digit, 7-Segment, 0.8” RED LED
Keys SET, SHIFT, INC
DIMENSION
Size (mm) 48 (H) x 96 (W) x 26 (D)
Panel Cutout (mm) 46 (H) x 92(W)
POWER SUPPLY
Supply Voltage 100 to 270V AC, 50-60Hz
Power Consuption (VA Rating) 2VA
ENVIRONMENT CONDITION
Operating Temp. 0°C to 55°C
Relative Humidity Upto 95% RH
(non-condensing)
Protection Level
(As per request)
IP-65 (Front side) As per IS/IEC 60529 : 2001

Monitoring of process parameters
with digital display

  • Pressure
  • Level
  • Flow
  • Temperature

Measurement of PH, O (oxygen), 2
CO (Carbon Monoxide), PH, etc.
Use of analytic transmitter.


Measurement of RPM from VFD
use of analog signal.

Product Variant

Sr.no Model No Aux Supply Display Color  Size
1 PI-11-A2-00 100-270V AC Red 96x96x43(HxWxD)mm
2 PI-21-A2-00 100-270V AC Red 72X72x45(HxWxD)mm
3 PI-38-A2-00 100-270V AC Red 48x96x26(HxWxD)mm
4 PI-38-A2-00-W 100-270V AC White  48x96x26(HxWxD)mm
5 PI-38-D1-00 24V DC Red 48x96x26(HxWxD)mm
6 PI-41-A2-00 100-270V AC Red 48x48x46(HxWxD)mm
7 PI-54-A2-00 100-270V AC Red 38x62x63(HxWxD)mm
