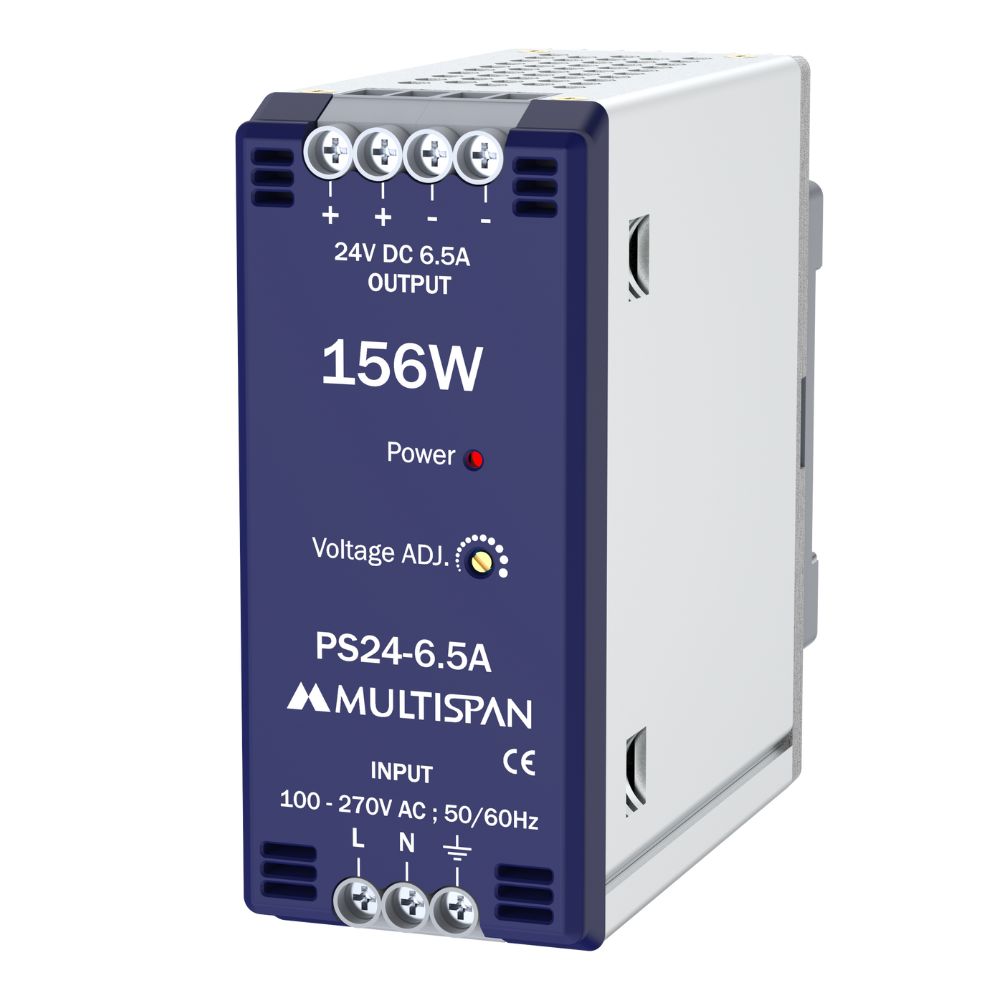

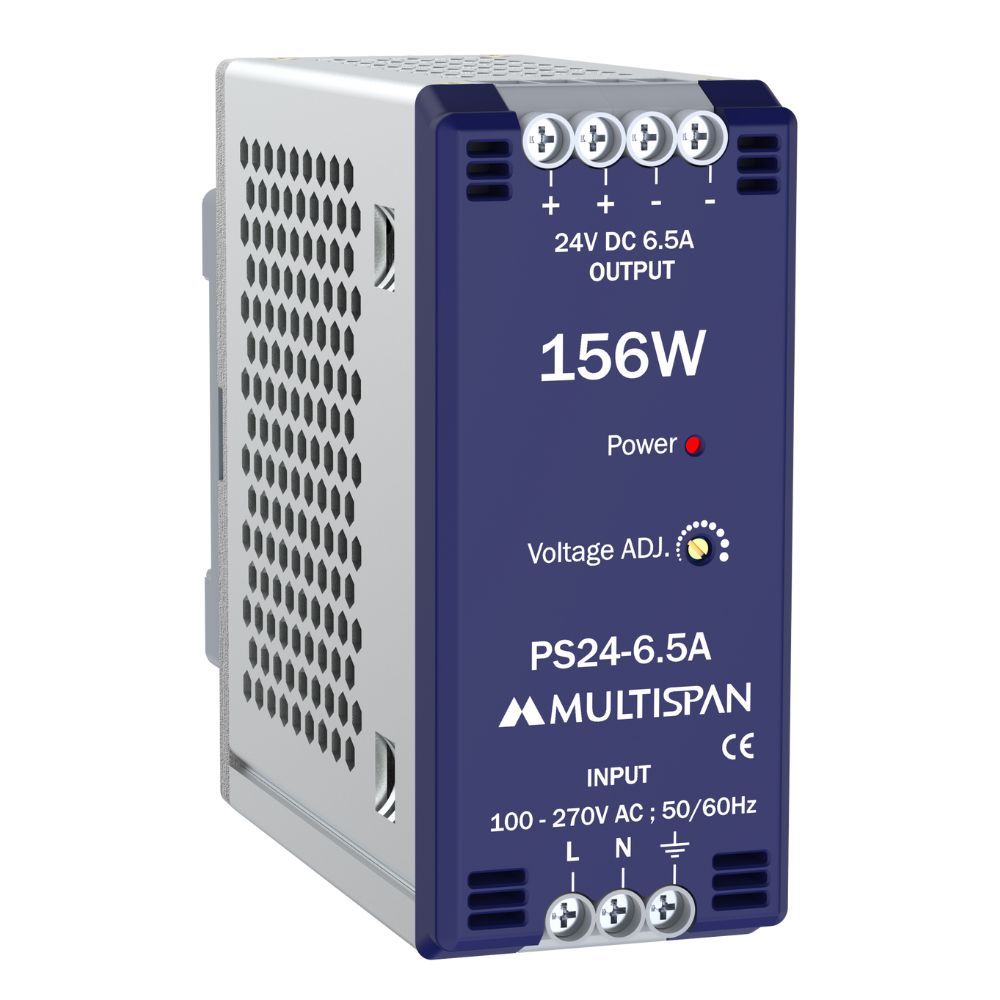

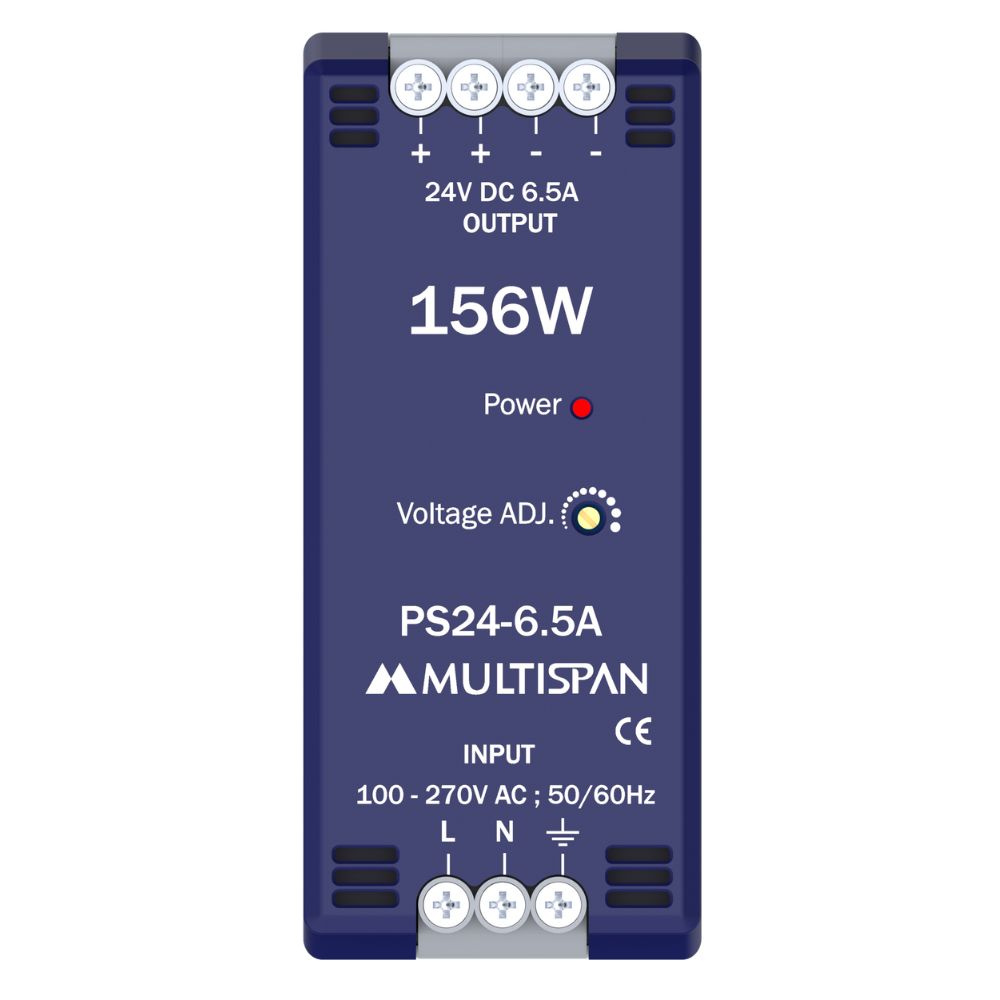

Power Supply 24V-6.5A regular image Power Supply 24V-6.5A front image Power Supply 24V-6.5A side image

Power Supply 24V-6.5A

Product: PS24-6.5A

  • Power 156W
  • Input Voltage : 100-270V AC
  • Output Voltage : 24V DC
  • Efficiency > 90% @230V AC
  • Material: Front Facia (ABS) & Enclosure (Aluminium)
  • Protection Parameter : Output Overload, Output Over Voltage , Output short circuit, Over Temperature

Input Specification :
Supply Voltage 100 to 270V AC±10%,(L-N)
Frequency Range 50 / 60Hz
AC Current (TYP.) 2.5A@100V AC, 1.1A@270V AC
Efficiency (TYP.) >90%@230V AC
Start UP time <1 sec@230V AC &
<3 sec@100VAC (Full Load)
Output Specification :
Output Voltage 23 - 28V DC
Output Current 6.5A at 24V; 5.57A at 28V
Ripple & noise <1% of V out
Line & Load Regulation ±1%
Hold UP Time <60ms at 230V AC &
>15ms at 100V AC (Full Load)
Protection Parameters:
Input Fuse 5A-250V AC Internal
Output Over Load 110% to 120% of rated output Current  protection Protection Type : hiccup mode;recover automatically after fault condition is removed
Output Short Circuit Hiccup mode when output is shorted;Recovers automatically after fault condition is removed.
Output Over Voltage SMPS Latches off if output voltage exceeds the specified output voltage limit.
Over Temperature Power supply shuts down when the temperature goes above specified limit;
Turns on automatically after temperature goes back to Normal operating conditions.
Isolation between
Input and Output :
2.5 KV
Physical Data:
Mounting Type Din Rail Mount
Size 105 (H) x 45 (W) x 110 (D)
Material Front - ABS
Enclosure - Aluminium

  • Robotics
  • Elevators
  • Automation panel
  • Special purpose machine
