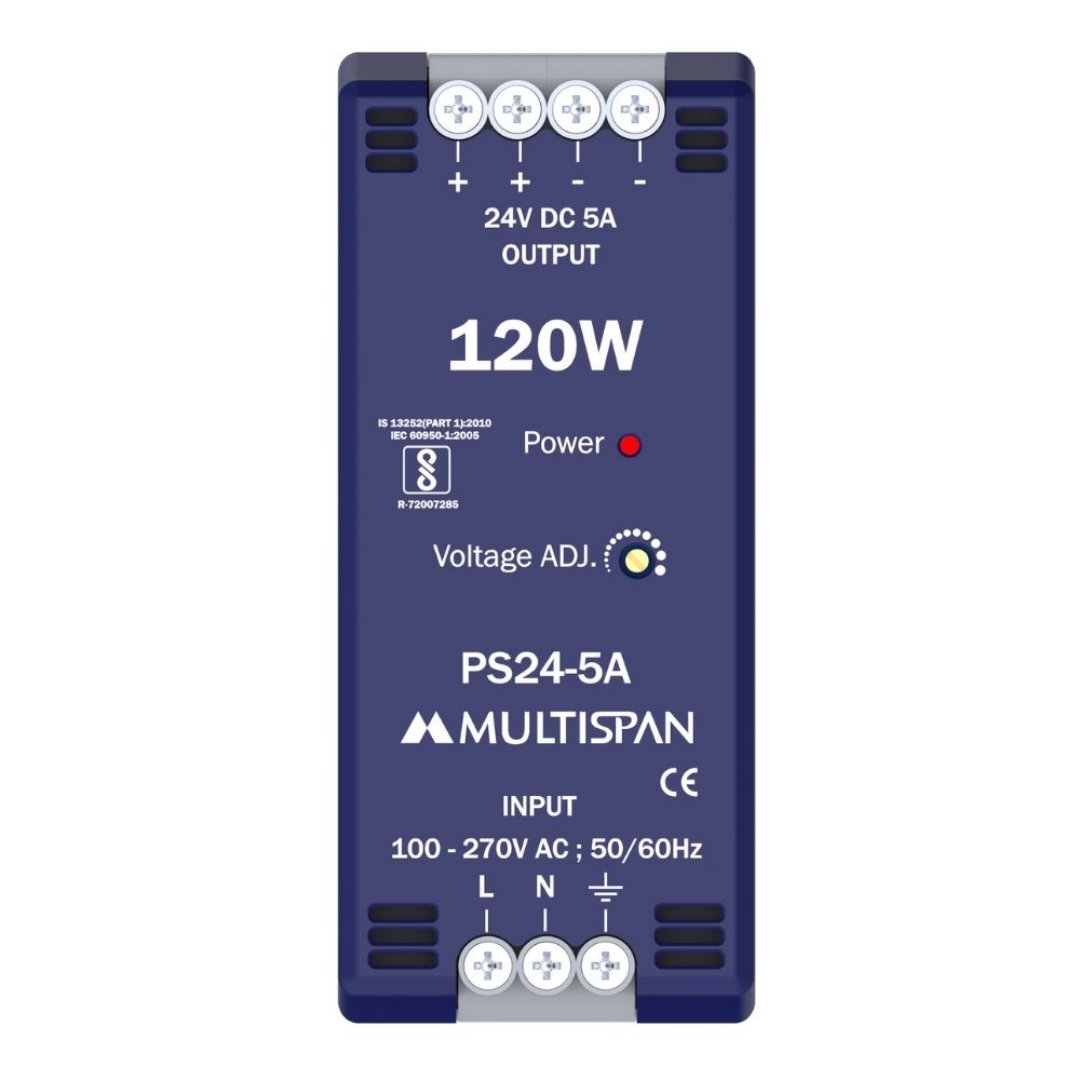

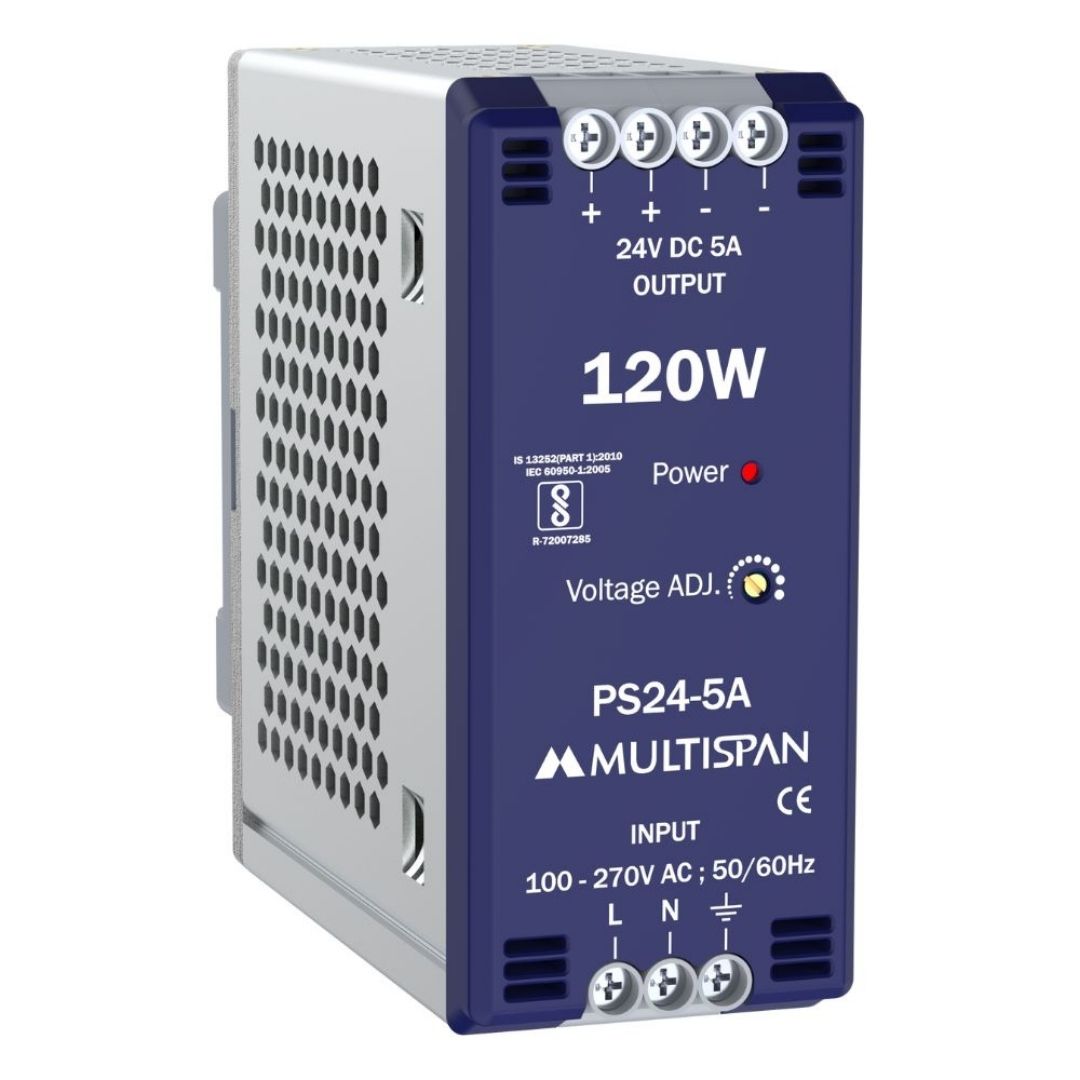

High-Efficiency AC to DC 120W Power Supply | product image High-Efficiency AC to DC 120W Power Supply | product image High-Efficiency AC to DC 120W Power Supply | product image

Power Supply 24V-5A

Product: PS24-5A

  • Input Voltage : 100-270V AC
  • Output Voltage : 24V DC,12V DC,48V DC,15V DC
  • Efficiency : 89% @230V AC
  • Material: Front Facia (ABS) & Enclosure (Aluminium)
  • Protection parameter : Overload, Over Voltage , Output short circuit, Over Temperature

Input Specification :
Supply Voltage 100 to 270V AC±10%,(L-N)
Frequency Range 50 / 60Hz
AC Current (TYP.) 2.1A@100V AC, 0.95A@270V AC
Efficiency (TYP.) >89%@230V AC
Start UP time <1 sec@230V AC &
<3 sec@100VAC (Full Load)
Output Specification :
Output Voltage 23 - 28V DC
Output Current 5A at 24; 4.29A at 28V
Ripple & noise <1% of Vout*
Line & Load Regulation ±1%
Hold UP Time <60ms at 230V AC &
>15ms at 100V AC (Full Load)
Input Fused 3.15A-250V AC Internal
Output Over Load 110% to 120% of rated output Current  protection Protection Type : hiccup mode;
recover automatically after fault condition is removed
Output Short Circuit Hiccup mode when output is shorted;Recovers automatically after fault condition is removed.
Output Over Voltage SMPS Latches off if output voltage Exceeds the specified output voltage Limits.
Over Temperature Power supply shuts down when the temperature goes above specified limit;
Turns on automatically after temperature goes back to Normal operating conditions.
Physical :
Mounting Type Din Rail Mount
Size (H) x (W) x (D) 105 x 45 x 110
Material ABS
Working Temperature -25°C to 50°C * De-rate output power at 3w/°C above +50°C Ambient
Storage Temperature -40°C to 85°C
Relative Humidity 95% RH Non-condensing
Warm up time 5 minutes

  • Robotics
  • Elevators
  • Automation panel
  • Special purpose machine

Product Variant

Sr.No Model Number  Input Voltage  Output Voltage  Current Capacity
1 PS24-5A 100-270V AC  24V DC  5A
2 PS24-6.5A 100-270V AC  24V DC  6.5A
3 PS12-8A 100-270V AC  12V DC  8A
4 PS12-5A 100-270V AC  12V DC  5A
5 PS48-2.5A 100-270V AC  48V DC  2.5A
6 PS15-5A 100-270V AC  15V DC  5A
