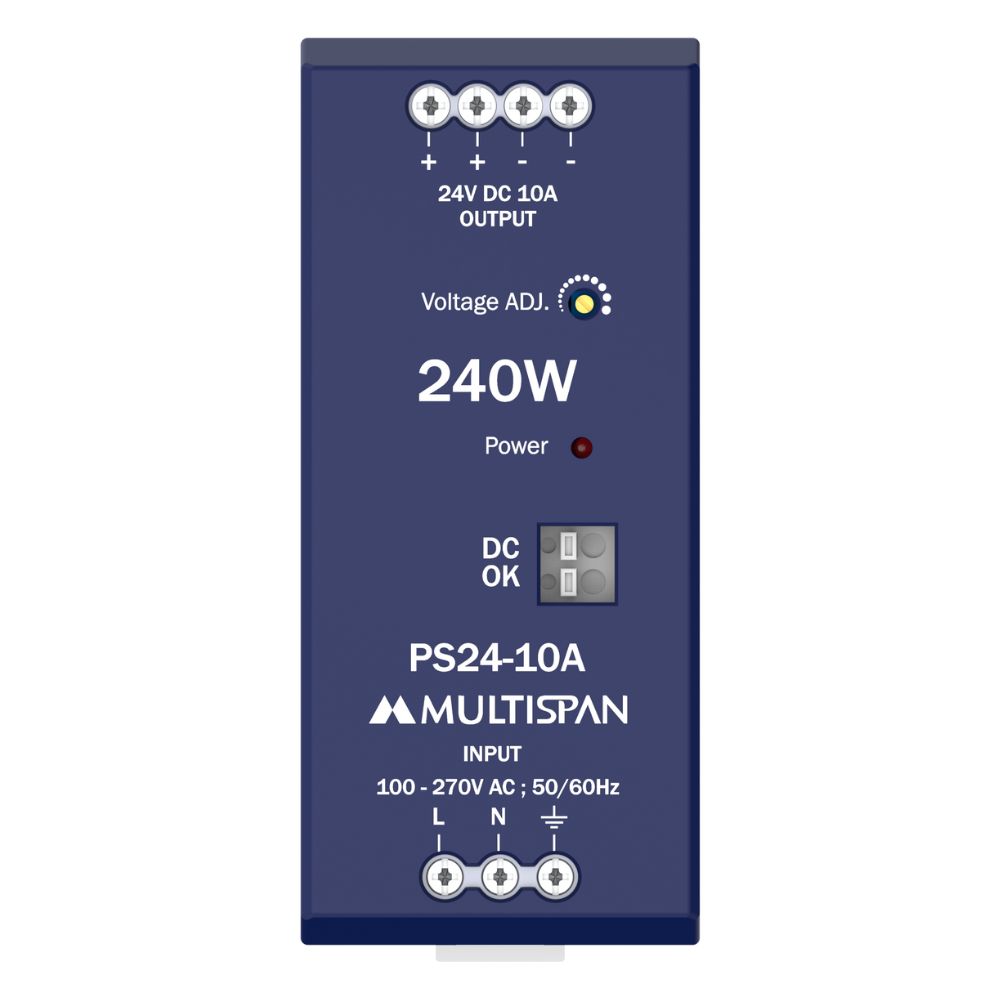

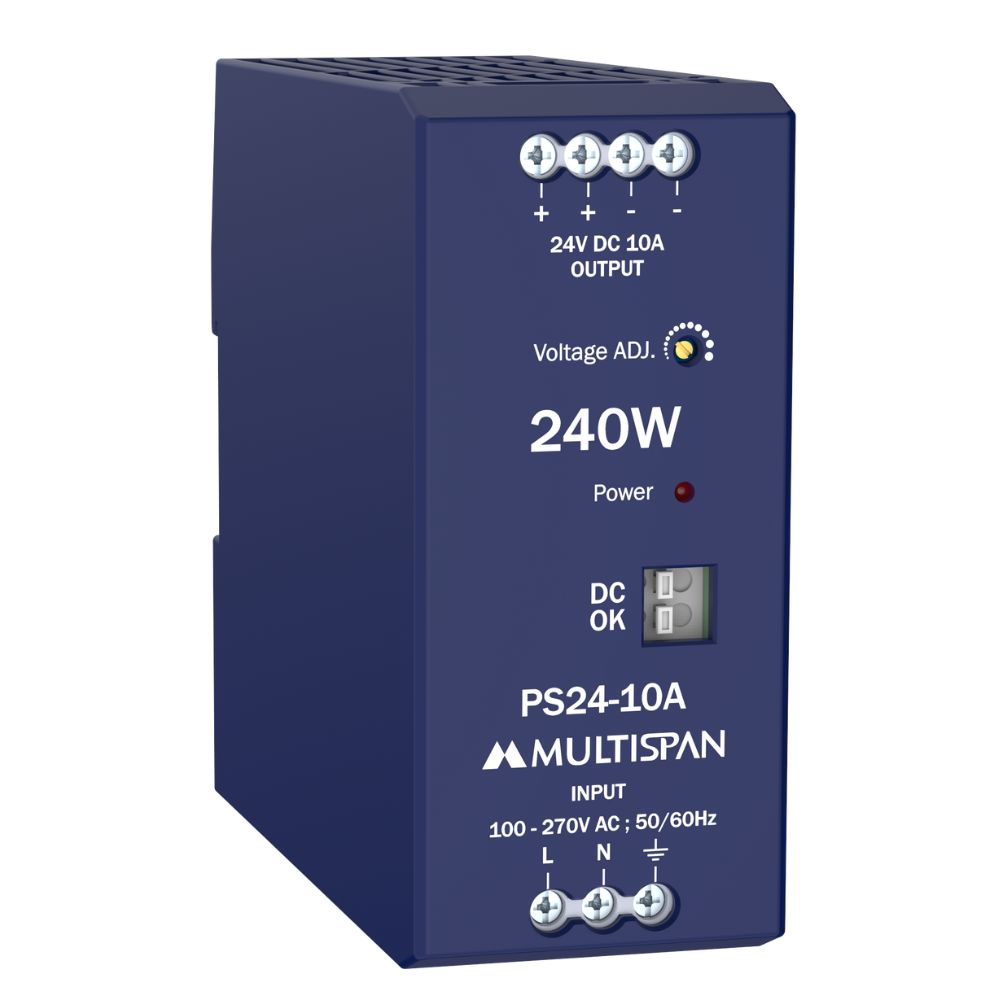

Power Supply 24V-10A regular image Power Supply 24V-10A front image Power Supply 24V-10A side image

Power Supply 24V-10A

Product: PS24-10A

  • Power 240W
  • Input Voltage : 100-270V AC
  • Output Voltage : 24V DC
  • Efficiency > 93% @230V AC
  • Protection Parameter : Output Overload, Output Over Voltage , Output short circuit, Over Temperature

Input Specification :
Supply Voltage 100 to 270V AC (L-N)
Frequency Range 50 / 60Hz
Power Factor > 0.95 @ Full Load
AC Current (TYP.) 2.7A@100V AC, 1.2A@230V AC
Efficiency (TYP.) >93%@230V AC
Start UP time <2 sec@230V AC (Full Load)
Output Specification :
Nominal DC Voltage 24V DC
Output Voltage 24 - 28V DC
Output Current 10A at 24; 8.57A at 28V
Ripple & noise <1% of Vout*
Line & Load Regulation ±1%
Hold UP Time >13ms at 24V @ 100 /230V AC (Full Load)
Protection Parameters:
Input Fuse 4A-250V AC Internal
Output Over Load 110% to 140% of rated output Current protection Protection Type : hiccup mode;recover automatically after fault condition is removed
Output Short Circuit Hiccup mode when output is shorted;Recovers automatically after fault condition is removed.
Output Over Voltage SMPS Latches off if output voltage 31V DC ± 0.5V DC
Over Temperature Power supply shuts down when the temperature goes above specified limit;
Turns on automatically after temperature goes back to Normal operating conditions.
Physical :
Mounting Type 35mm Din Rail
Size 125 (H) x 55 (W) x 135 (D)
Material Polycarbonate
Environmental:
Working Temperature -25°C to 50°C * De-rate output power at 3w/°C above +50°C Ambient
Storage Temperature -40°C to 85°C
Relative Humidity 95% RH Non-condensing

  • Robotics
  • Elevators
  • Automation panel
  • Special purpose machine
