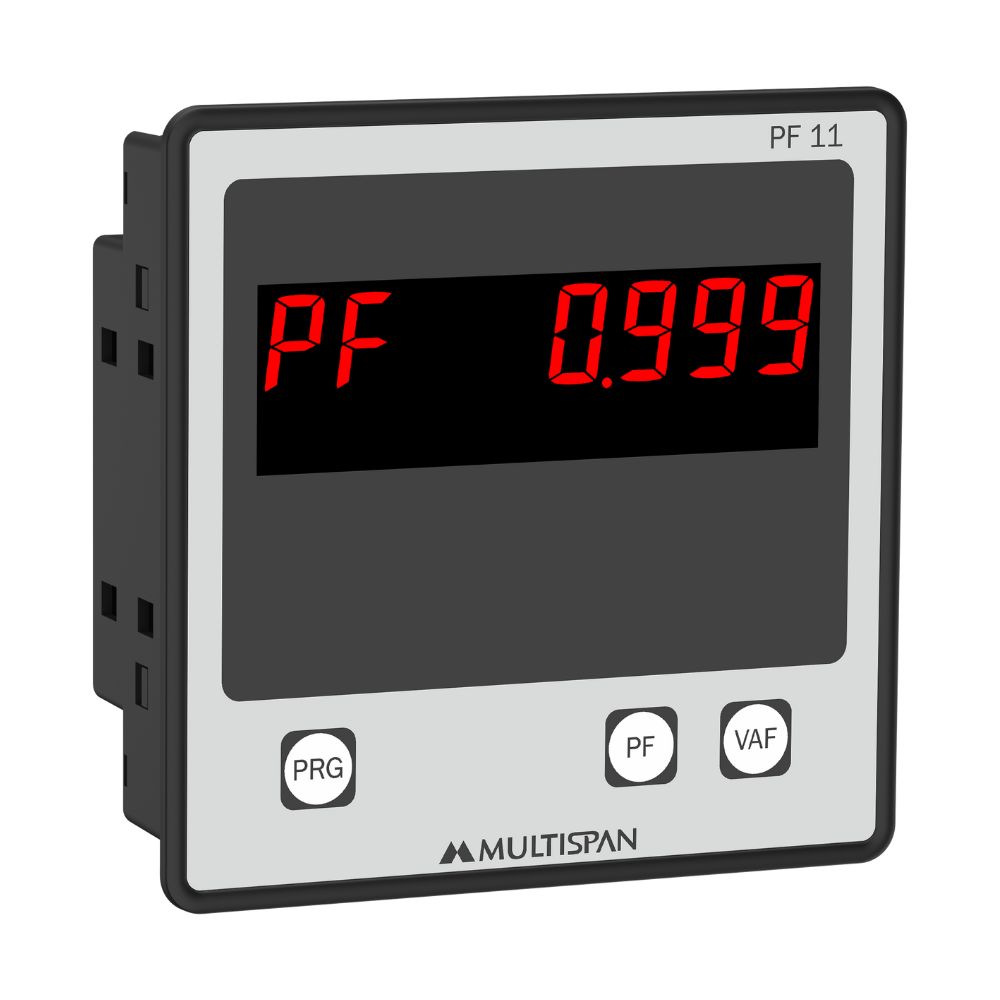

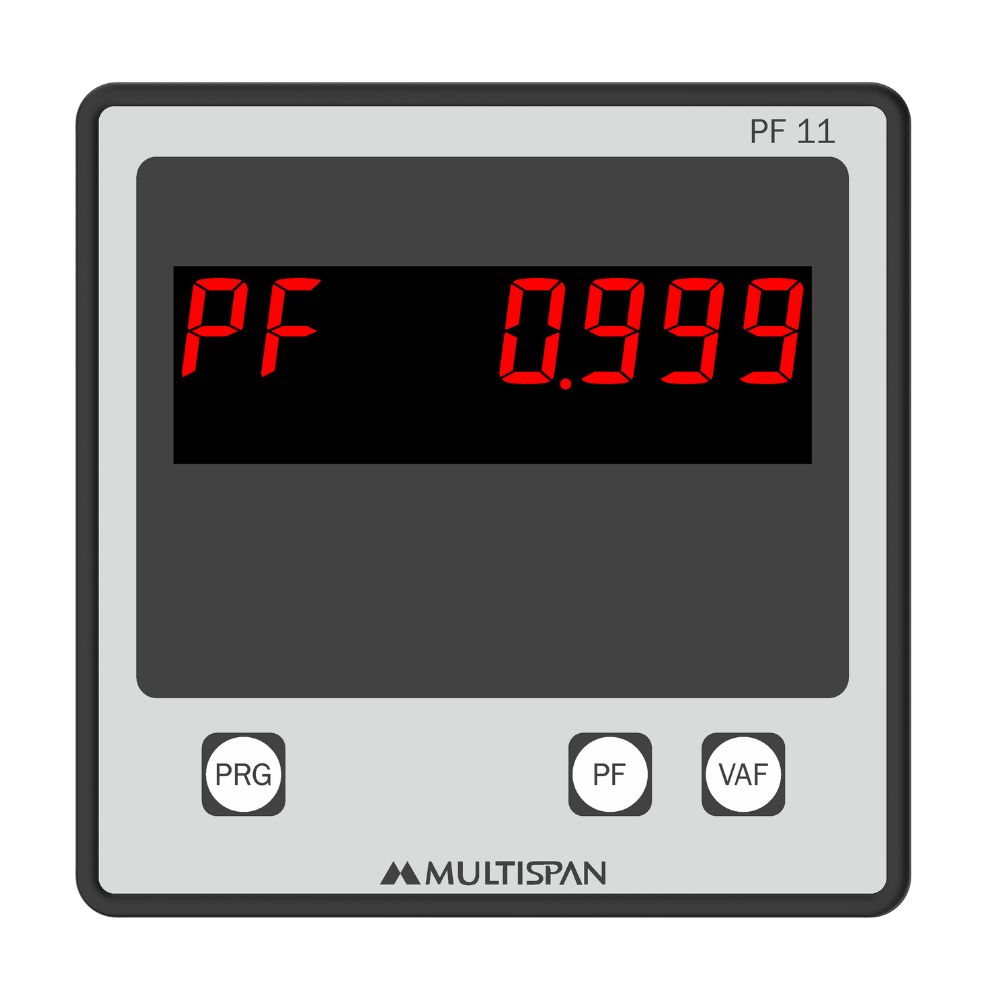

Power Factor Indicator
Product: PF-11
- 1Ø-2W
- CT Primary Selectable Upto 9999A
- CT Secondary: 5A
- Size: (H)96mm X (W)96mm X (D)43mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
Top Variants:
| Model | PF-11 |
| Display | 4-Digit, 1-Line, 7-Seg 0.56”, Red LED Display |
| Size (mm) | 96(H) X 96 (W) X 43 (D) |
| Panel Cutout (mm) | 92 (H) X 92 (W) |
|
Measurement Range |
0.100 to 1.000 PF CAT III |
| Voltage Input | 20-300V AC CAT III |
| Current Input | 10mA To 5Amp AC CAT III |
| Power Supply | 230V AC, 50 Hz, Approx 4VA |
| Frequency | 45 To 65 Hz |
|
Protection Level (As per request) |
IP-65 (Front side) As per IS/IEC 60529 : 2001 |
|
Operating Temperature |
10°C To 50°C |
|
Relative Humidity |
Upto 95% RH Non Condensing |
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- Process Control
- Power Control Center Panels
- Motor Control Center Panels
Product Variant
| Model | Voltage | Current | Auxillary |
| PF-11-E3-N0 | Network Selection :1Ø-2Wire Voltage Input: 20-300V AC |
CT Primary: 5 to 9999A CT Secondary: 5A |
100 to 270V AC/DC |
| PF-13-E3-N0 | Network Selection :3Ø-4Wire Voltage Input: 50-520V AC |
