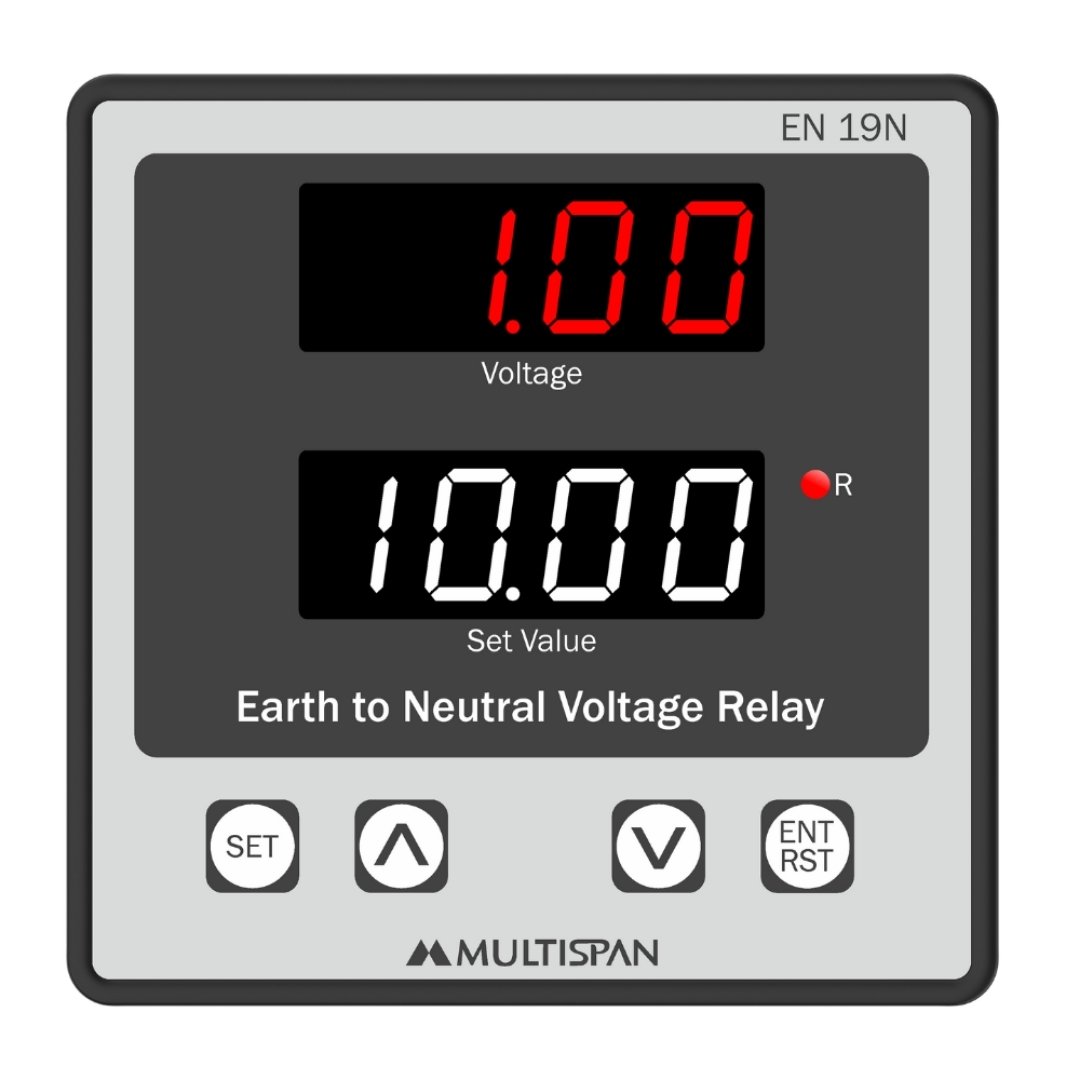

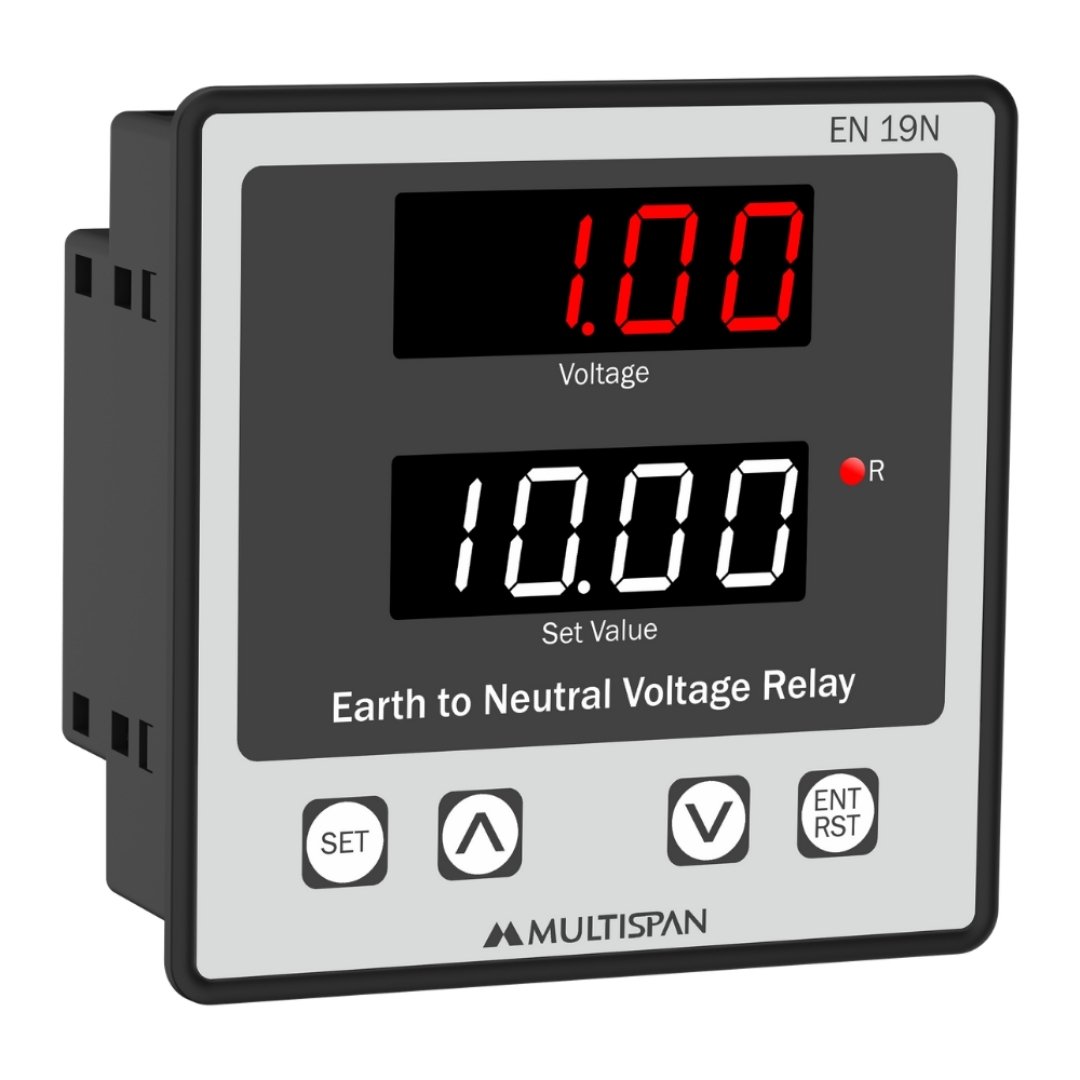

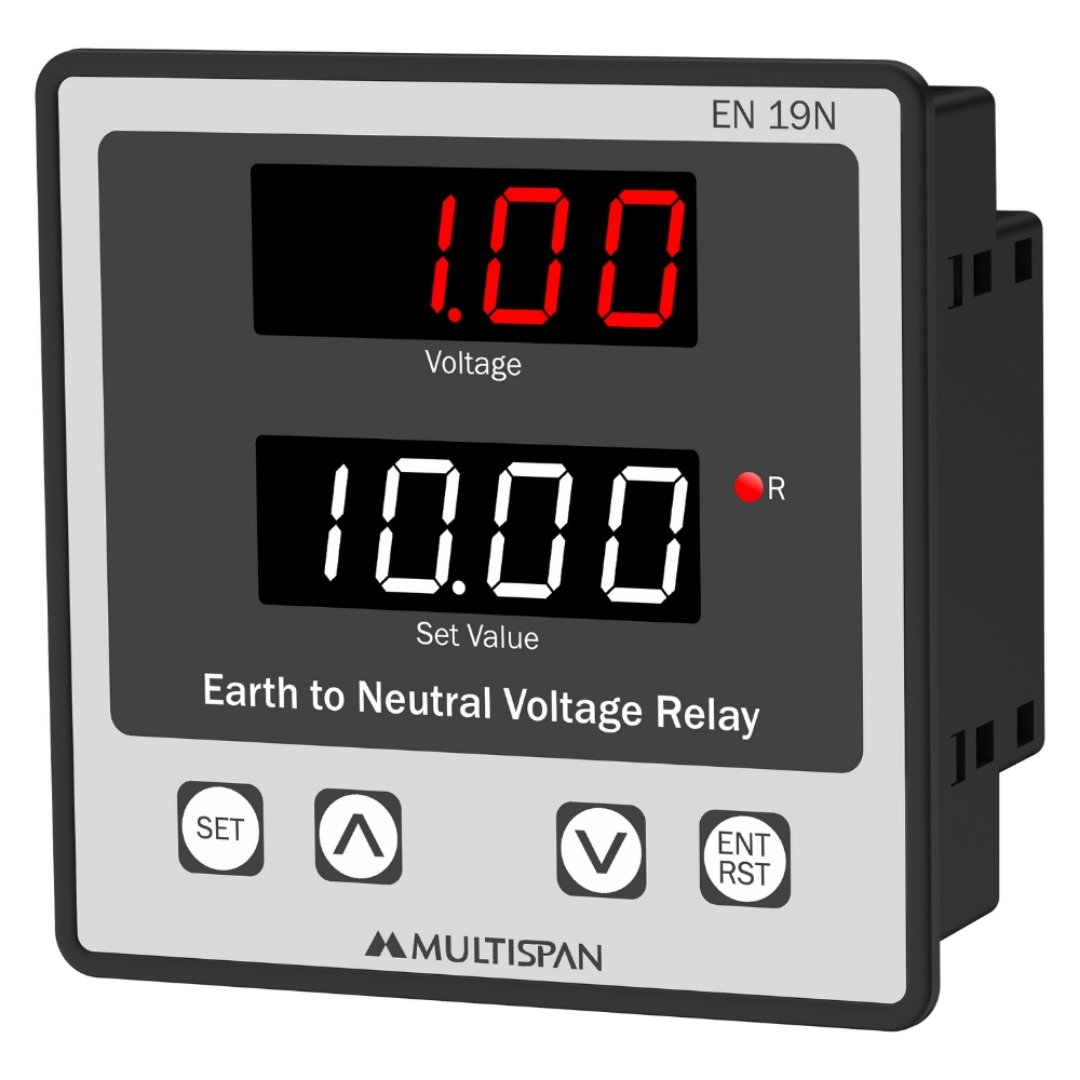

Elegant EN-19N Panel DIN Rail Mount Digital Display product image Elegant EN-19N Panel DIN Rail Mount Digital Display product image Elegant EN-19N Panel DIN Rail Mount Digital Display product image

(Panel Mount) Earth to Neutral Relay

Product: EN-19N

  • Digital Display for Earth- Neutral Voltage Indication
  • Display Range 0-10V AC
  • Programmable Relay for Set Value
  • 1 Relay 1C/O, 5A ,230V AC
  • Rs-485 MODBUS option available
  • Size: 96(H) X 96(W) X 54(D) mm
  • Supply Voltage : 100-270V AC/DC

INPUT SPECIFICATION :
Input Voltage 0 To 10 V AC
Display Voltage Range 0.00 To 10.00 V AC
Resolution 0.01 V AC
DISPLAY & KEYS :
Display Upper: 4 Digit , 7 Seg. 0.56” Red
Lower: 4 Digit , 7 Seg. 0.56”Green
Keys SET, INC, DEC, ENT/RST
DIMENSION :
Size (mm) 96(H) X 96(W) X 54(D)
Panel Cutout 92(H) X 92(W)
OUTPUT SPECIFICATION :
Relay 1 Nos.
Relay Type 1 C/O (NO-C-NC)
Rating 10A,230V AC Resistive Load
AUXILIARY SUPPLY :
Supply Voltage 100 To 250 V AC,50/60Hz
Power Consumption (VA Rating) 4VA @ 230 VAC MAX
ENVIRONMENT CONDITION:
Operating Temp. 0°C to 55°C
Relative Humidity UP to 95% RH
(non-condensing)
Protection Level
(As per request)
IP-65 (Front side) As per IS/IEC 60529 : 2001

  • Control & Relay Panel
  • Original Equipment Manufactures (OEMs)
  • Energy Management System
  • DG Set Panels
  • LT / HT Panel
  • Power Control Center Panels
  • Motor Control Center Panels

Product Variant

Part Code Mounting Size Input Range Output Supply Communication
EN-19N-A2-00 Panel 96(H)x96(W)x54(D) mm AC Voltage 0-10V AC 1R 1C/O 100-270V AC RS-485 MODBUS
EN-63-A1-00 Din Rail 76(H)x28(W)x85(D) mm AC Voltage 0-10V AC 1R 1C/O 100-270V AC
