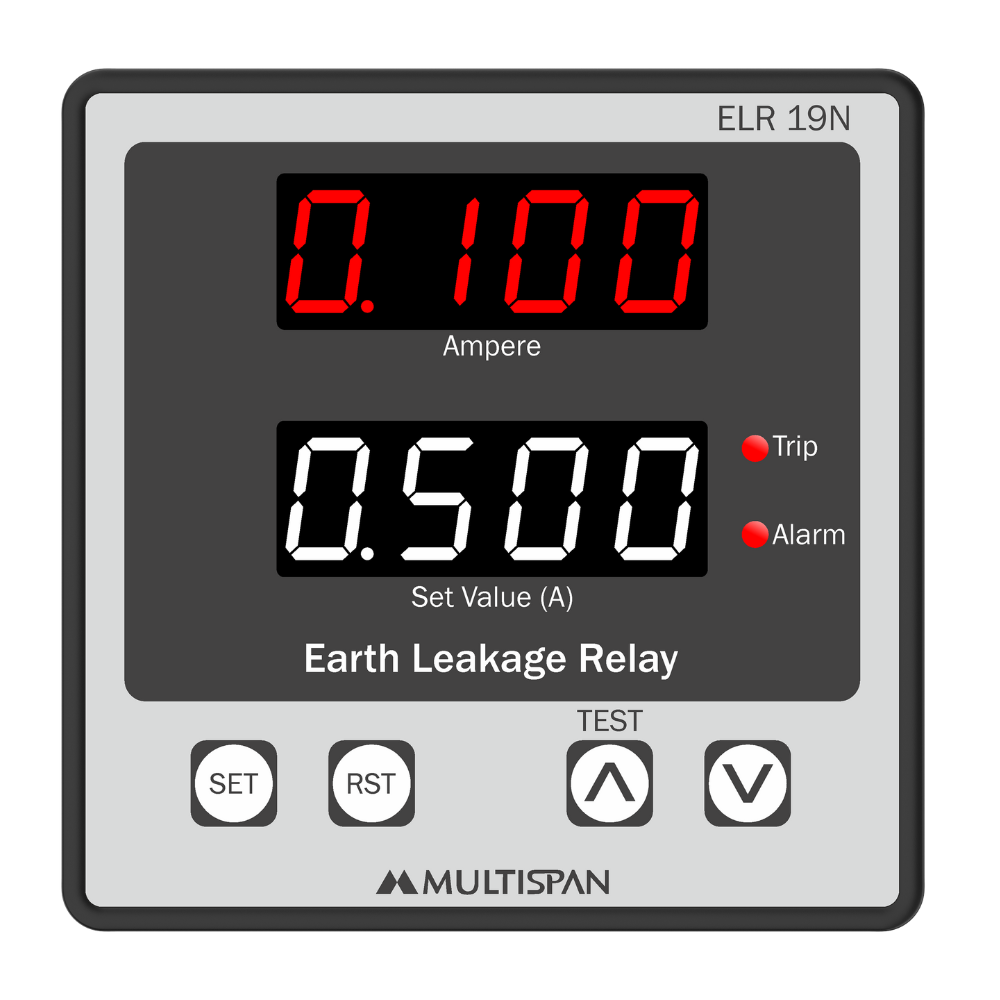

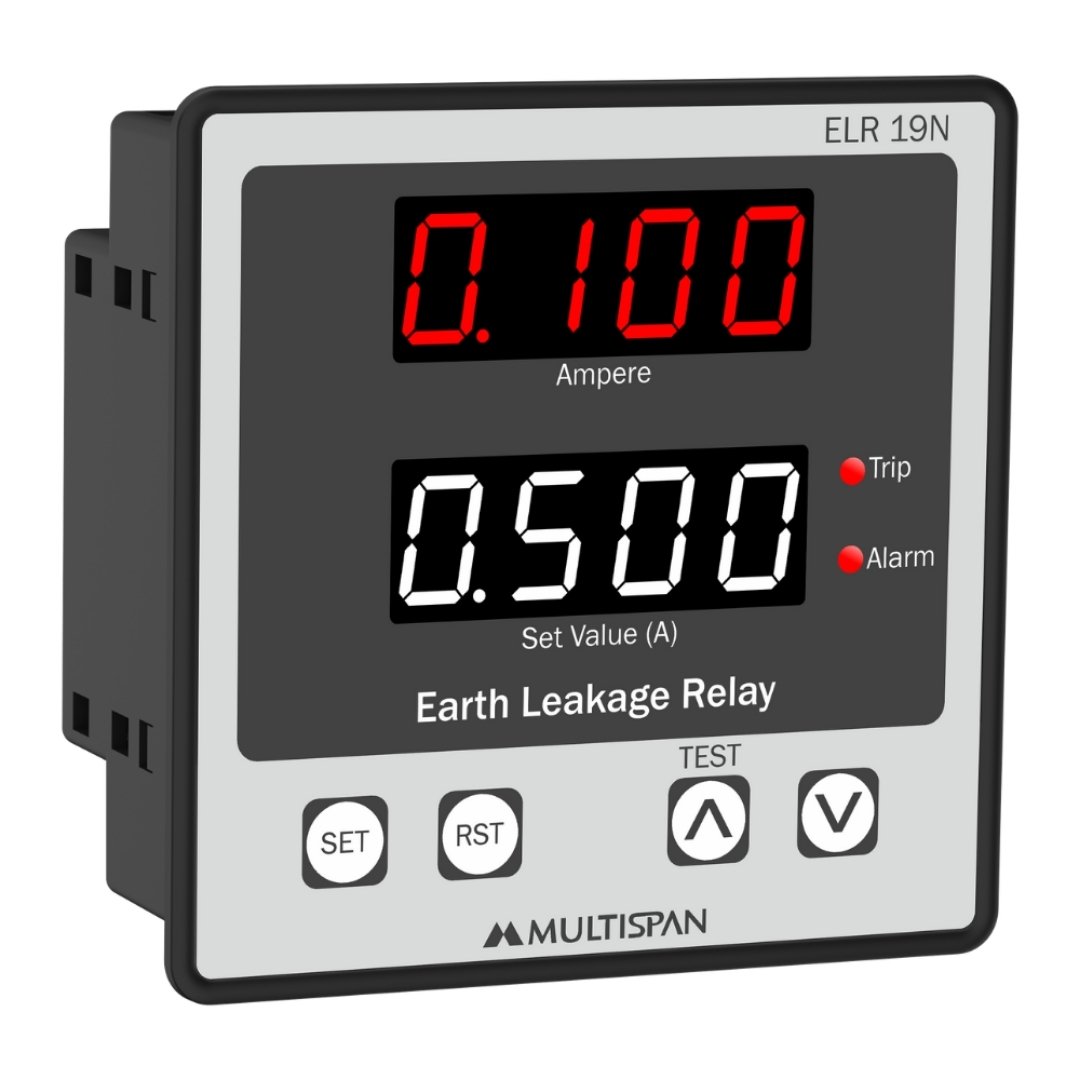

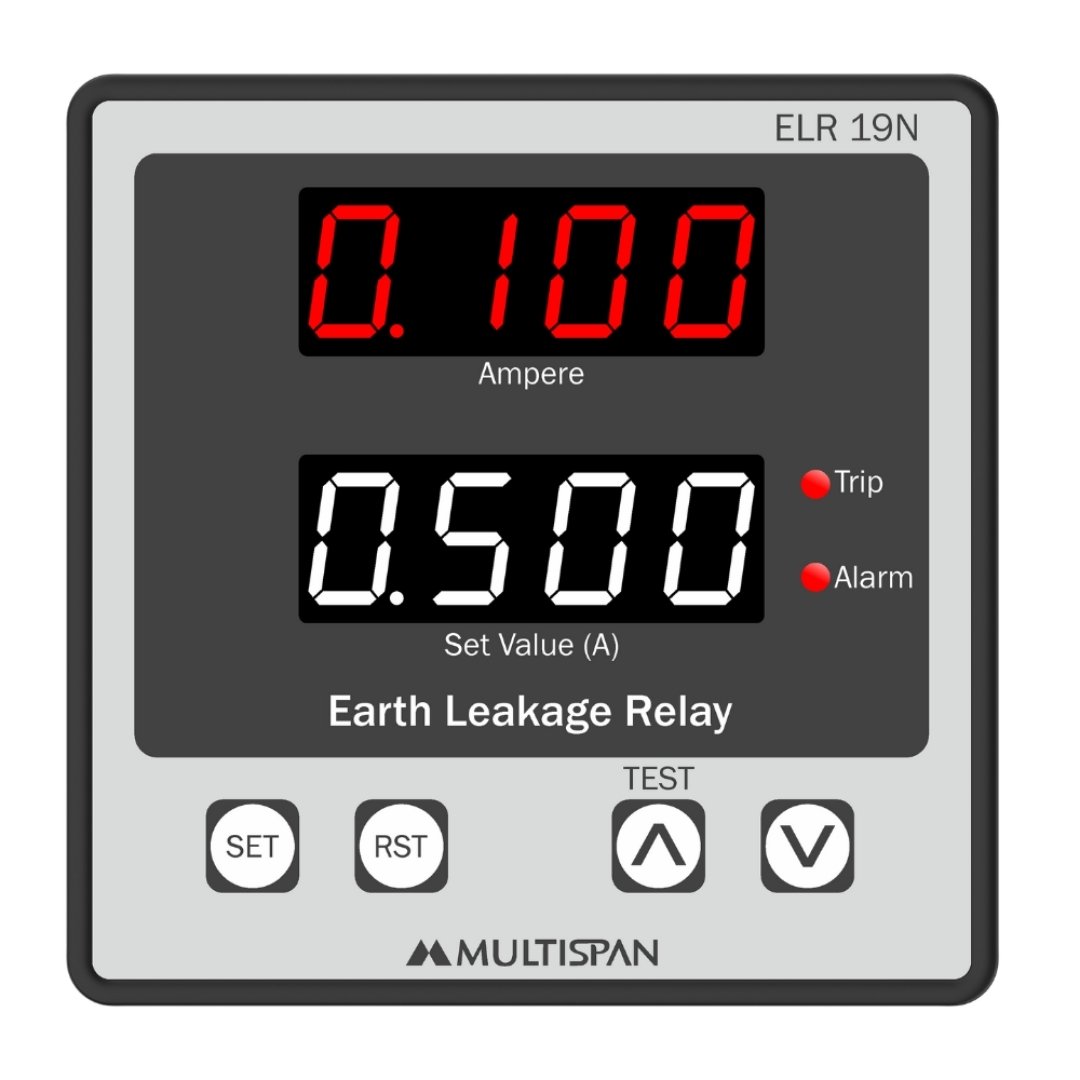

ELR-19N Panel Mount Digital Display - product image ELR-19N Panel Mount Digital Display - product image ELR-19N Panel Mount Digital Display - product image

Panel Mount Earth Leakage Relay

Product: ELR-19N

  • 4+4 Digital Display for Indication of Leakage and Set Current
  • 1-Relay, 1-C/O,5A,230V AC
  • Fail Safe and Non Fail Safe Mode
  • RS-485 Modbus Available
  • Size: (H)96mm X (W)96mm X (D)54mm
  • Supply Voltage: 100-270V AC/DC

INPUT SPECIFICATION
Input Current 30 mA To 3.00 Amp AC
Display Currant Range 0.030 To 3.000 Amp AC
Resolution If Current in mA = 1 mA If Current in Amp = 0.001A
DISPLAY & KEYS :
Display Upper: 4-Digit ,7-Seg, 0.56”, Red
Lower: 4-Digit ,7-Seg, 0.56”,White
Keys SET, INC, DEC, ENT/RST
DIMENSION :
Size (mm) 96 (H) X 96 (W) X 54 (D)
Panel Cutout (mm) 92 (H) X 92 (W)
OUTPUT SPECIFICATION :
Relay 1 Nos.
Relay Type 1-C/O (NO-C-NC)
Rating 10A,230V AC Resistive Load
AUXILIARY SUPPLY :
Supply Voltage 100 To 250 V AC,50/60Hz
Power Consumption (VA Rating) 4VA @ 230 VAC MAX
ENVIRONMENT CONDITION:
Operating Temp. 0°C to 55°C
Relative Humidity Upto 95% RH
(non-condensing)
Protection Level
(As per request)
IP-65 (Front side) As per IS/IEC 60529 : 2001

  • Control & Relay Panel
  • Energy Management System
  • DG Set Panels
  • LT / HT Panel
  • Power Control Center Panels
  • Motor Control Center Panels

Product Variant

Part Code Range Set by Input Output Supply
ELR-19-A2-00 30mA AC to 30A AC Keypdad CBCT 1 Relay  100-270V AC
ELR-11-A2-00 30mA AC to 30A AC Knob CBCT 1 Relay  100-270V AC
