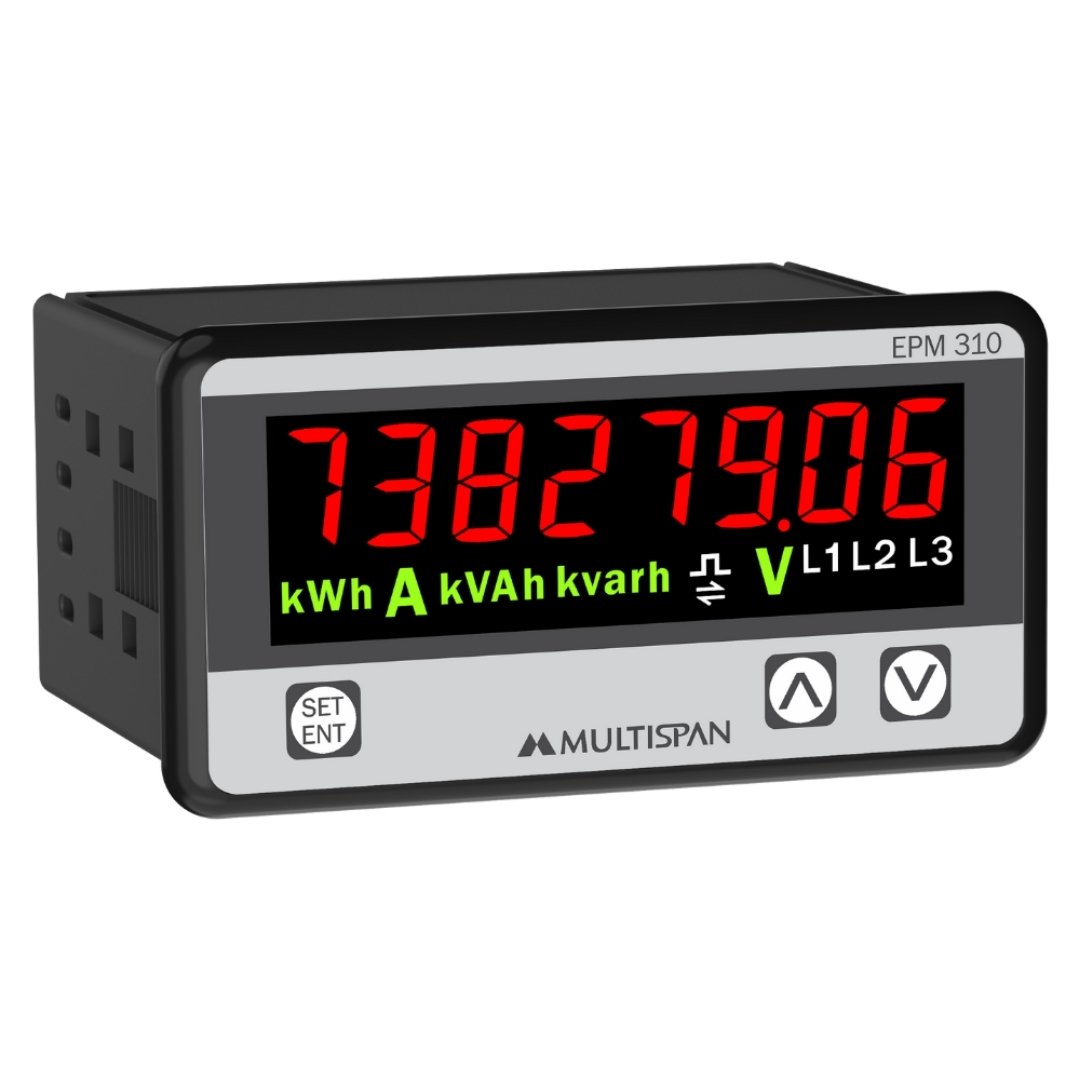

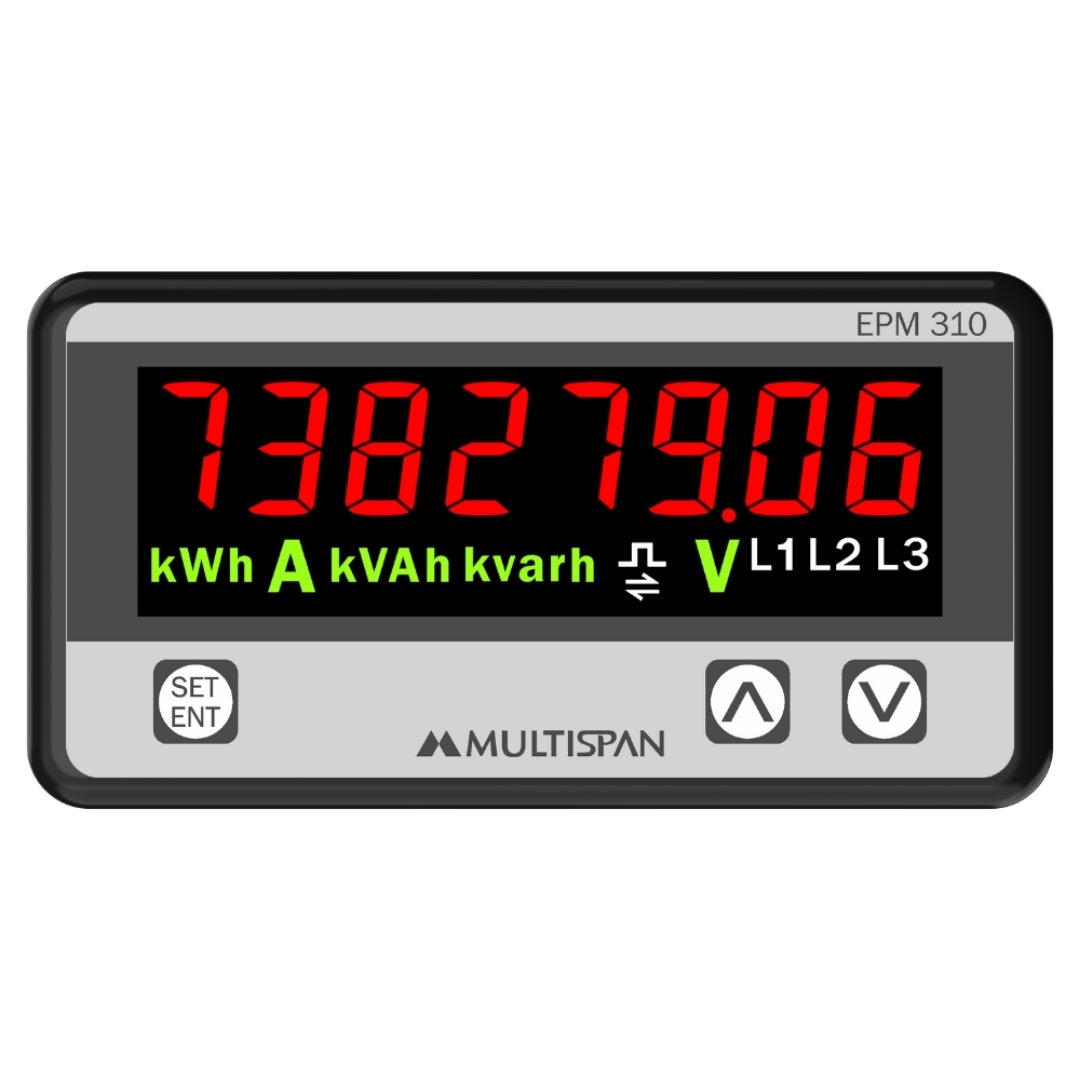

EPM-310-Multifunction Meter - Horizontal mounting - product image EPM-310-Multifunction Meter - Horizontal mounting - product image EPM-310-Multifunction Meter - Horizontal mounting - product image

Multifunction Meter - Horizontal Mounting

Product: EPM-310

  • 3Ø-3W/4W
  • 30 to 300V AC (L-N), 50 to 520V AC (L-L),
  • Pulse & RS-485 Modbus Communication
  • Size: (H)48mm X (W)96 mm
  • Aux. Supply: 100-270V AC, 50/60 Hz

PARAMETER SPECIFICATION
Input Signal  3Ø-4W/1Ø-2W Selectable
CT Primary Upto 9999A (Programmable)
PF Avg. & Per Phase 0.100 - 1.000
Frequency (Hz) 45.00 - 60.00 Hz
Load hours 9999.59 Hrs/Min.
No load hours 9999.59 Hrs/Min.
RPM 3600 RPM @ 60 Hz & 2 pole
POWER
KW Total 0.000 - 9999 kW
kW Per Phase 0.000 - 9999 kW
kVA Total 0.000 - 9999 kVA
kVA Per Phase 0.000 - 9999 kVA
kVAr Total 0.000 - 9999 kVAr
kVAr Per Phase 0.000 - 9999 kVAr
Energy
kWH Total  000.000 - 99999999 kWh
kVAh Total 000.000 - 99999999 kVAh
kVArh Total 000.000 - 99999999 kVArh
INPUT
Voltage AC
Direct Voltage AC 30 to 300V(L - N)
Current AC
Primary CT Ratio 5 to 9999 Amp selectable
Secondary Current AC 0.03 to 5 Amp
DISPLAY & KEY
Display 8-Digit,7-Segment 0.5" RED
Key SET/ENT, INC, DEC
DIMENSION
Size (mm) 48 (H) x 96 (W) x 75 (D)
Panel Cutout (mm) 45 (H) x 92 (W)
AUXILIARY SUPPLY
Supply voltage 100 to 270V AC, 50/60Hz
Power consumption (VA RATING) Approx 4 VA @ 230V AC MAX
ENVIRONMENT CONDITION
Operating Temp. 0°C to 55°C
Relative Humidity Upto 95% RH
(non-condensing)
Protection Level (AS Per Request) IP-65 (Front side) As per IS/IEC 60529 : 2001

  • Electrical Control Panel
  • Power Distribution
  • Instrumentation Panel
  • Transformer training

Product Variant

Part Code Network Input Relay Communication Aux Supply
EPM-14 3Ph-4W 30 to 300V AC (L-N), 50 to 520V AC (L-L) + 5A CT Secondary NA Yes 100-270VAC
EPM-142 3Ph-4W 31 to 300V AC (L-N), 50 to 520V AC (L-L) + 5A CT Secondary 2 Relay Yes 100-270VAC
EM-10 3Ph-4W 32 to 300V AC (L-N), 50 to 520V AC (L-L) + 5A CT Secondary NA Yes 100-270VAC
EM-1P 1Ph-2W 10 to 230V AC(L-N) + 5A CT Secondary NA Yes 100-270VAC
As on request can provide 3 Phase  CT Module 30A, 60A and 125A along with Ampere Meter
