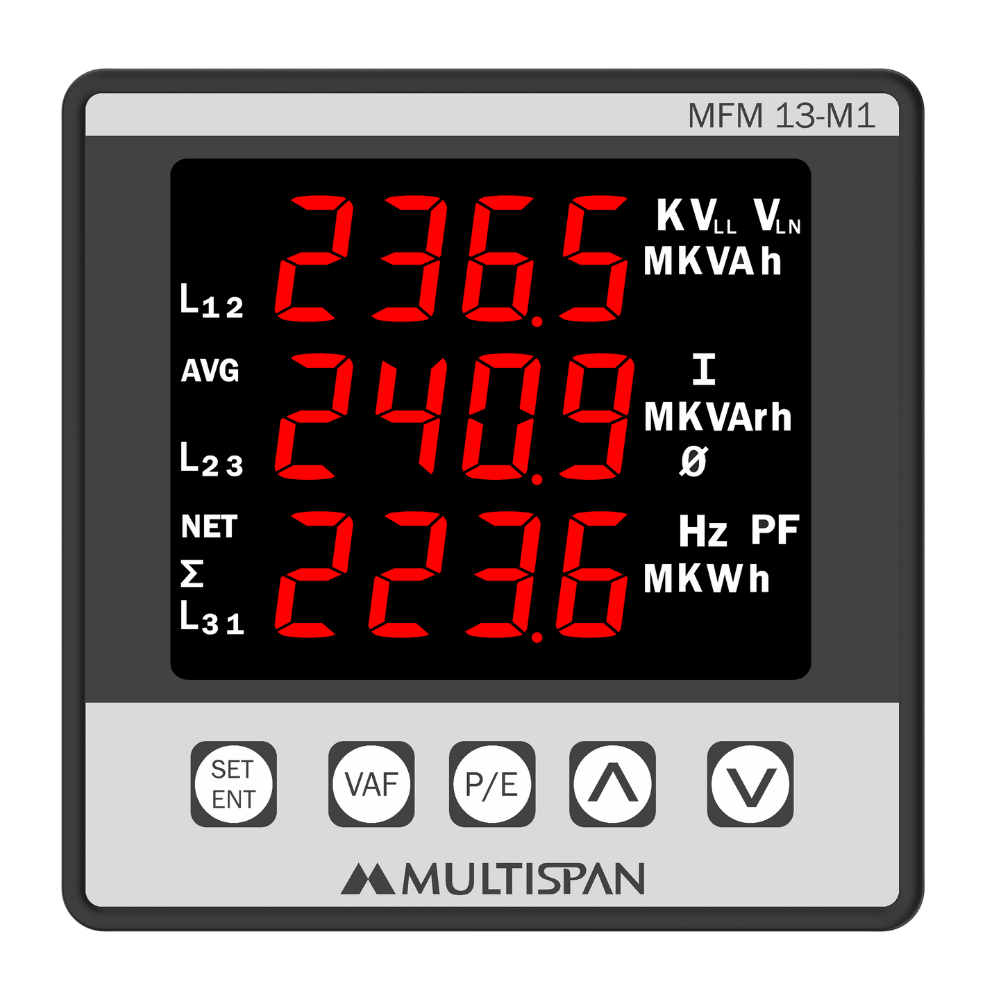

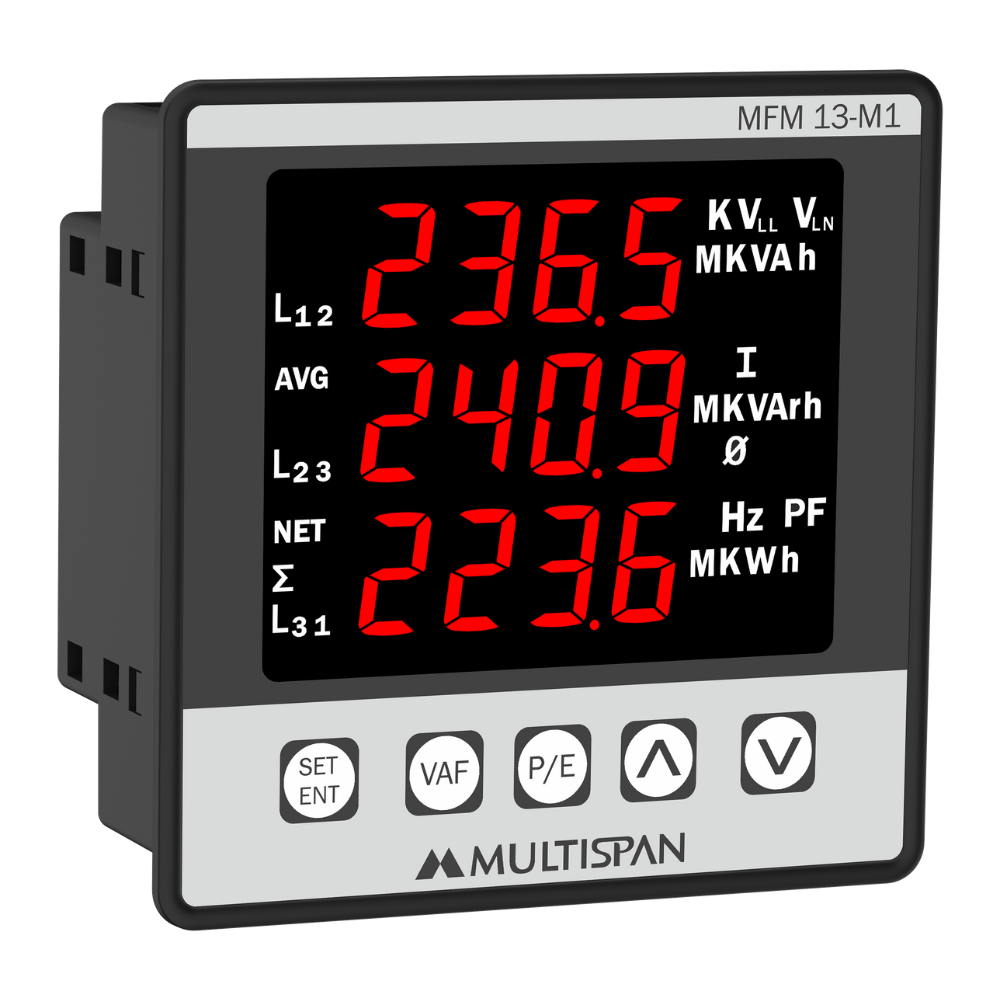

MFM-13 - Multifunction Meter - 3 Line Display - regular image MFM-13 - Multifunction Meter - 3 Line Display - front image MFM-13 - Multifunction Meter - 3 Line Display - side image

Multifunction Meter - 3 Line Display

Product: MFM-13

  • 1Ø-2W, 3Ø-3W/4W Selectable
  • Primary Voltage 100V to 520kVAC
  • Secondary Voltage 100V to 520V AC
  • Pulse & RS-485 Modbus Communication

PARAMETER SPECIFICATION
Input Signal 3Ø-3Wire / 3Ø-4Wire / 1Ø-2Wire
CT Primary Upto 6000A (Programmable)
CT Secondary 5 Amp/1 Amp selectable
PT Primary 100V to 520kV (Programmable)
PT Secondary 100V to 520V (L-L) (Programmable)
PF Avg. & Per Phase  0.100 - 1.000
Frequency (Hz) 45.00 - 60.00 Hz
Load hours 9999.59 Hrs/Min.
No load hours 9999.59 Hrs/Min.
RPM 3600 RPM @ 60 Hz & 2-Pole
THD Upto 32 level
POWER
KW Total 0.000 - 9999 MW
kW Per Phase 0.000 - 9999 MW
kVA Total 0.000 - 9999 MVA
kVA Per Phase 0.000 - 9999 MVA
kVAr Total 0.000 - 9999 MVAr
kVAr Per Phase 0.000 - 9999 MVAr
ENERGY
kWH Total 000.000 - 999999999.999 kWh
kVAh Total 000.000 - 999999999.999 kVAh
kVArh Total 000.000 - 999999999.999 kVArh
DISPLAY & KEY
Display 4-Digit, 3-Line 0.57" RED
Key SET/ENT,VAF,P/E, INC, DEC
DIMENSION
Size (mm) 96 (H) x 96 (W) x 54 (D)
Panel Cutout (mm) 92 (H) x 92 (W)
AUXILIARY SUPPLY
Supply voltage 100 to 270V AC, 50/60Hz
Power consumption (VA RATING) Approx 4 VA @ 230V AC MAX
ACCURACY Class 0.5 (Standard)
ENVIRONMENT CONDITION
Operating Temp. 0°C to 55°C
Relative Humidity

Upto 95% RH

(non-condensing)

Protection Level (AS Per Request) IP-65 (Front side) As per IS/IEC 60529: 2001

  • Control & Relay Panel
  • Energy Management System
  • DG Set Panels
  • LT / HT Panel
  • Power Control Center Panels
  • Motor Control Center Panels

Product Variant

Model Voltage Current Supply
MFM-13-E3-01-32 Network Selection :3Ø3W/4W, 1Ø2W
PT Primary: 100V to 520kV (Programmable)
PT Secondary: 100V to 520V (L-L) (Programmable)
CT Primary : Upto 6000A
CT Secondary : 5A & 1A AC
100 to 270V AC/DC
MFM-13-A2-02-32 CT Input: 30A with DIN 30AX CT  100 to 270V AC
MFM-13-A2-03-32 CT Input: 60A with DIN 60AX CT
MFM-13-A2-04-32 CT Input: 100A with DIN 100AX CT
Note: Modbus Available on Request
