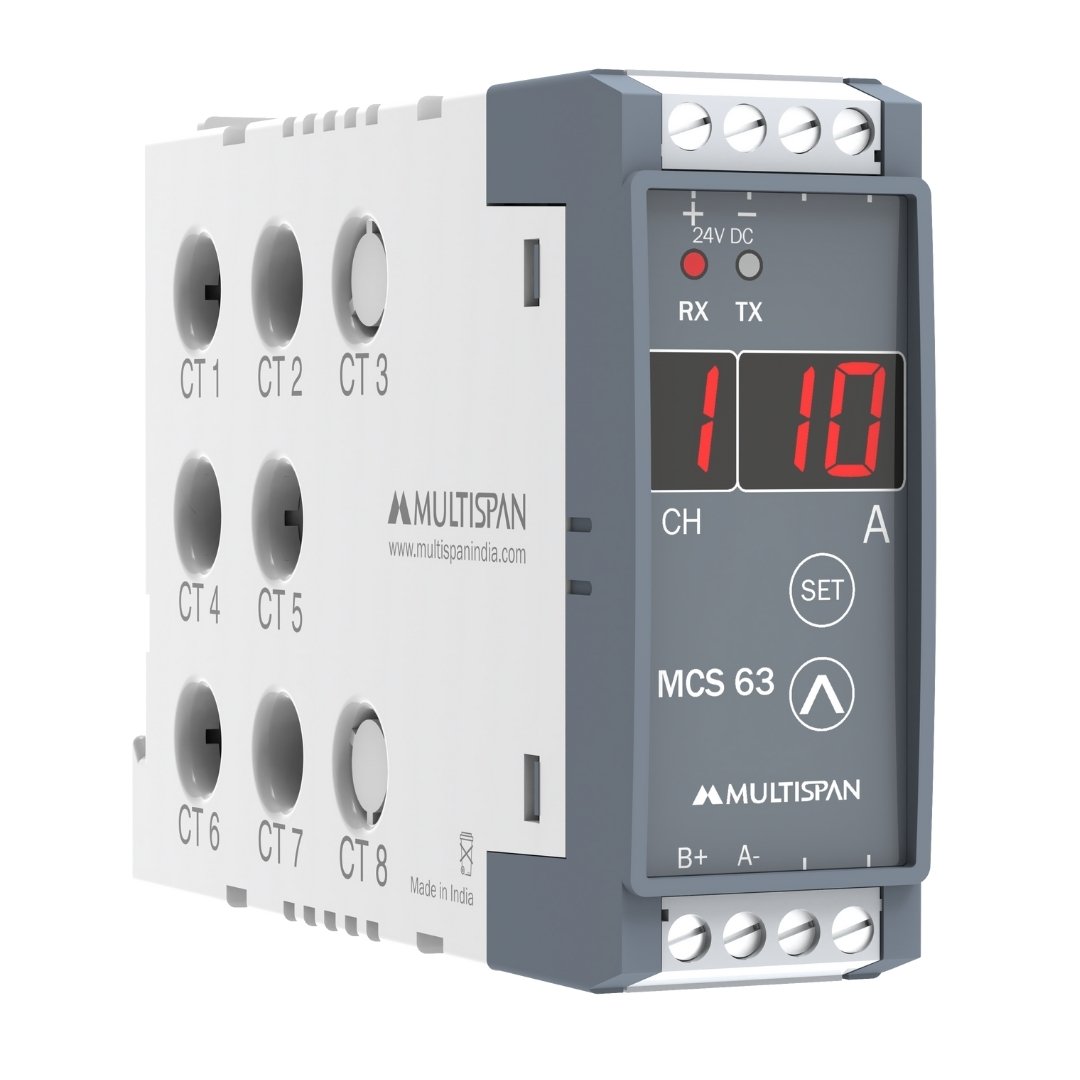

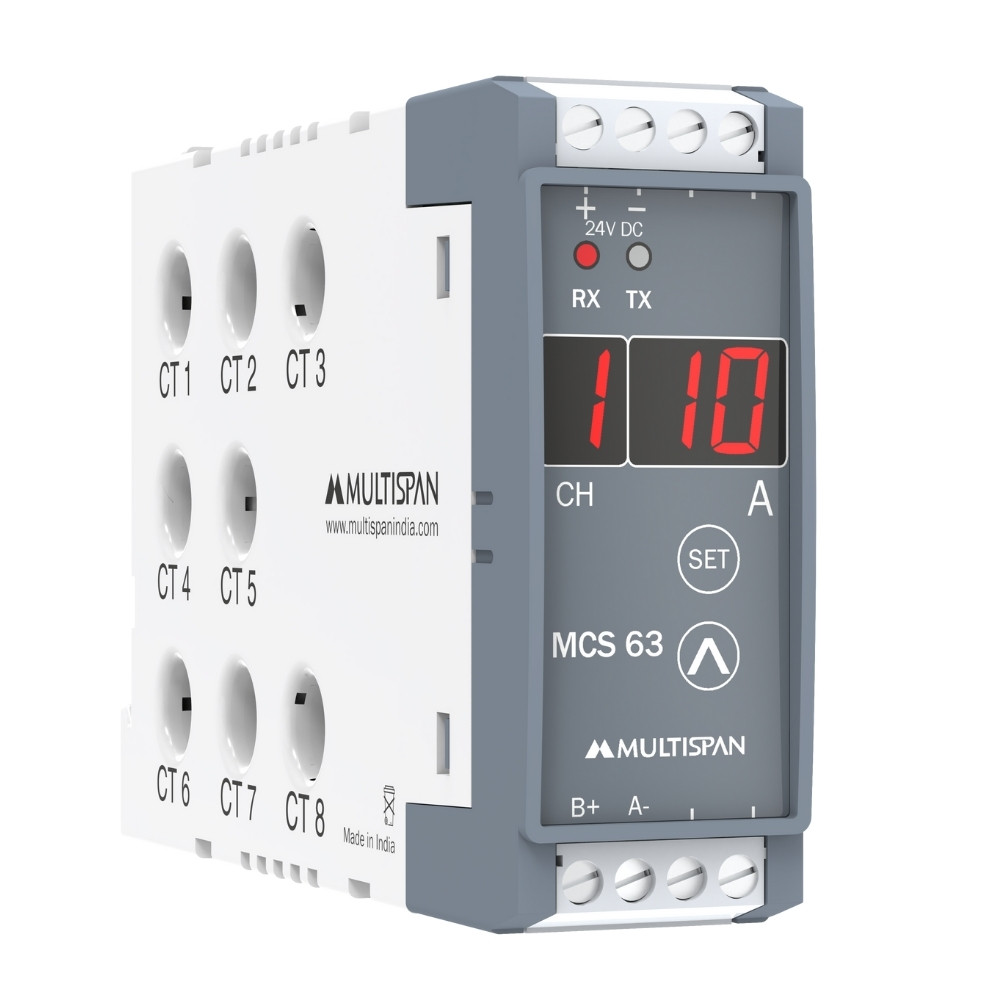

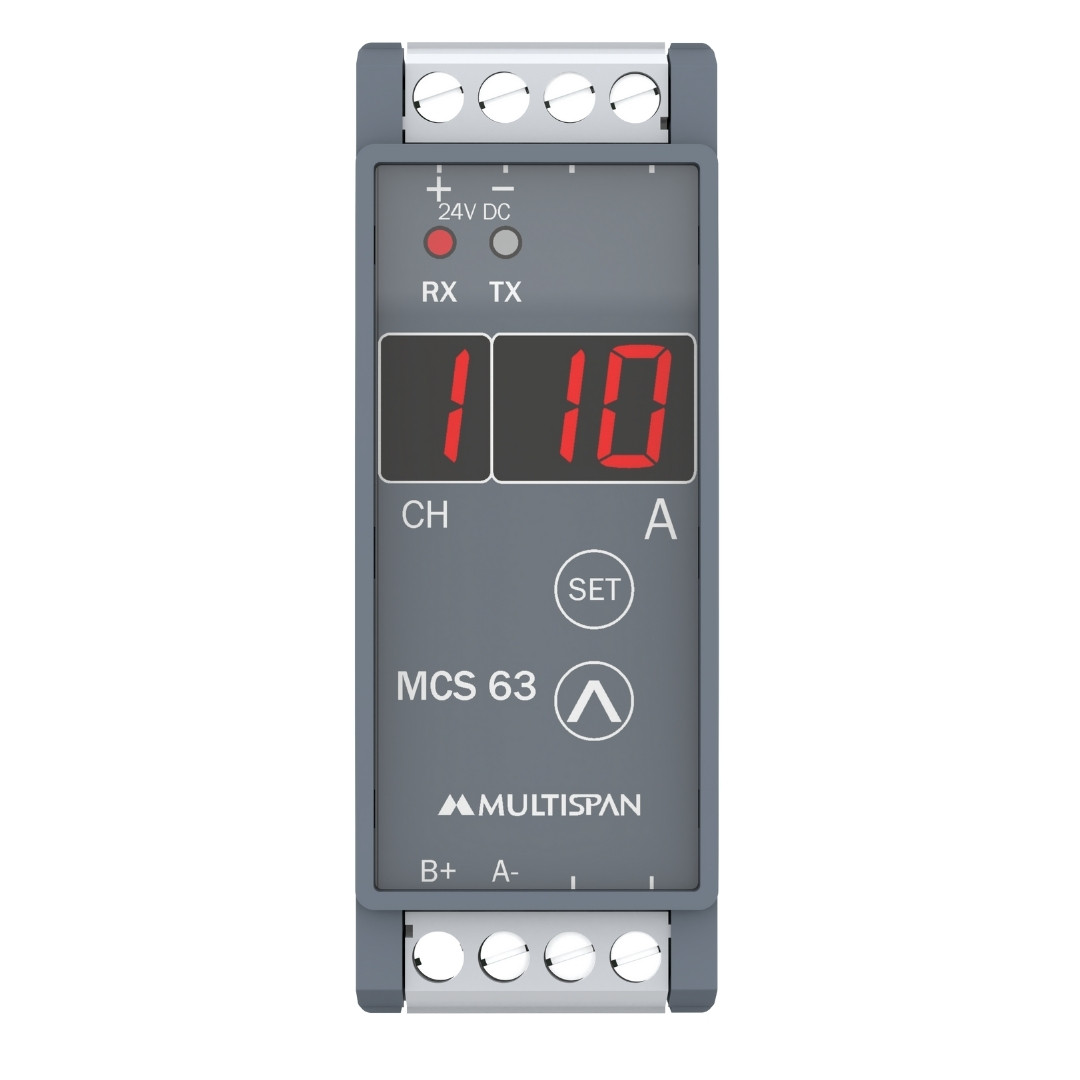

MCS-63-Multi Channel Current Scanner - product image MCS-63-Multi Channel Current Scanner - product image MCS-63-Multi Channel Current Scanner - product image

Multi Channel Current Scanner

Product: MCS-63

  • 8-CT Input with Inbuilt 60A AC Current
  • Compact Size with 3-Digit Led Display
  • RS-485 Modbus Output
  • Size: (H)76mm x (W)28mm x (D)118mm
  • Supply Voltage: 100-270V AC/24V DC

INPUT SPECIFICATION :
Current AC 1 To 60 Amp.
Burden < 0.2VA
Overload Upto 65A continuous
CALCULATED PARAMETERS
6 Different CT Current
DISPLAY & KEYS :
Display 3-Digit, 7-Seg, 0.36”, Red.
Keys SET, INC
DIMENSION
Size (mm) 76(H) x 28(W) x 116(D)
COMMUNICATION SPECIFICATION
Protocol Modbus RTU Serial
Standard RS - 485

Communication
method

2-Wire Half Duplex
Data frame N-8-0,N-8-1,N-8-2
Communication rate

2400,4800,9600,19200,
38400

Slave Address 1 to 127
Data type Integer, Float
AUXILIARY POWER SUPPLY :
Power Supply 24 V DC
ENVIRONMENTAL CONDITION
Working Temperature 0 to 55°C
Storage Temperature 0 to 55°C
Relative Humidity 95 % RH Non - Condensing

  • Road Construction Panel
  • Injection Moulding
  • Plastic Process Industry
  • Feeder Panel
  • Industrial Automation Panel

Product Variant

Sr.No Model No No. of Channel Range
1 MCS-63-3-100-D1-00 3 100A AC
2 MCS-63-360-D1-N0 3 60A AC
3 MCS-63-460-D1-N0 4 60A AC
4 MCS-63-660-D1-N0 6 60A AC
5 MCS-63-860-D1-N0 8 60A AC
