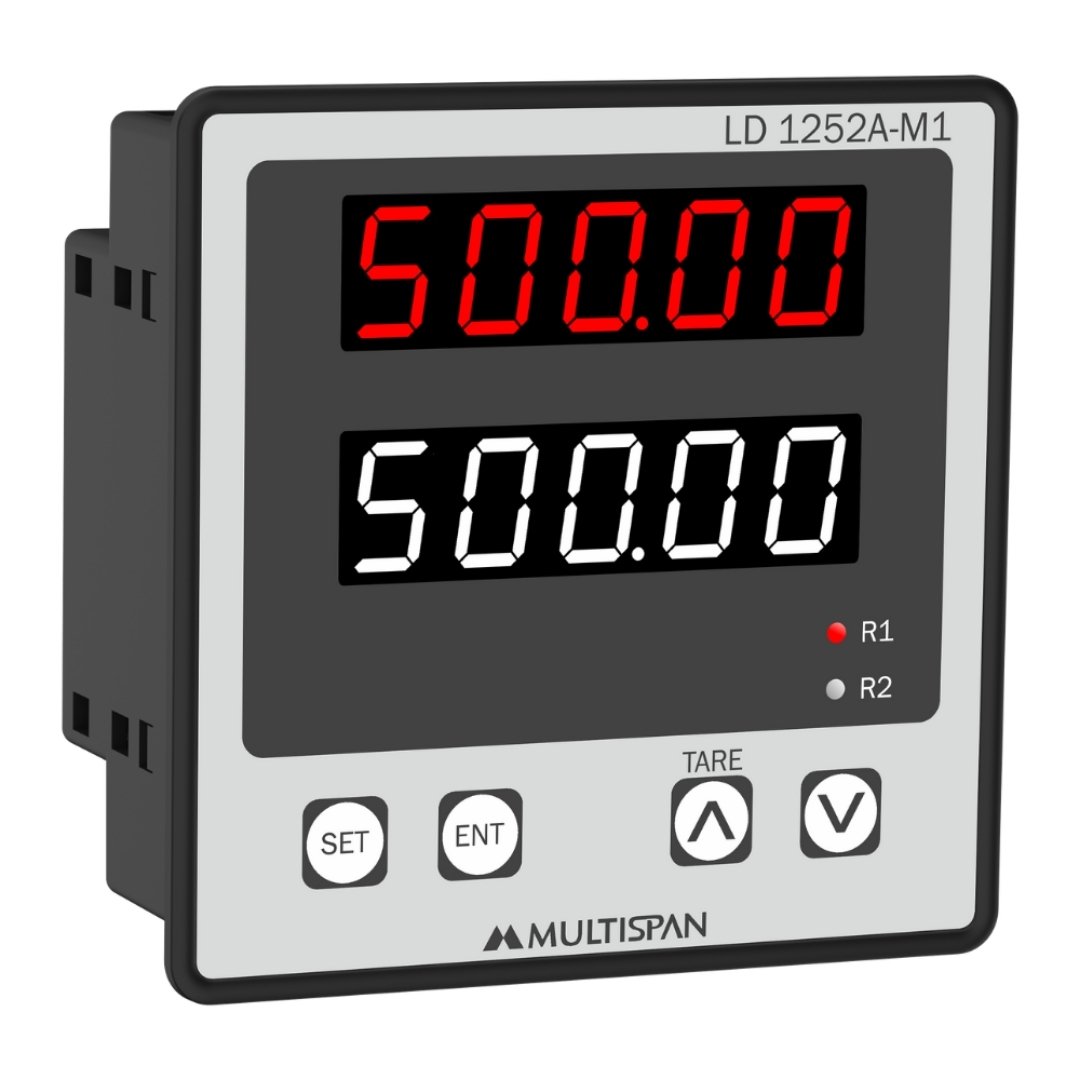

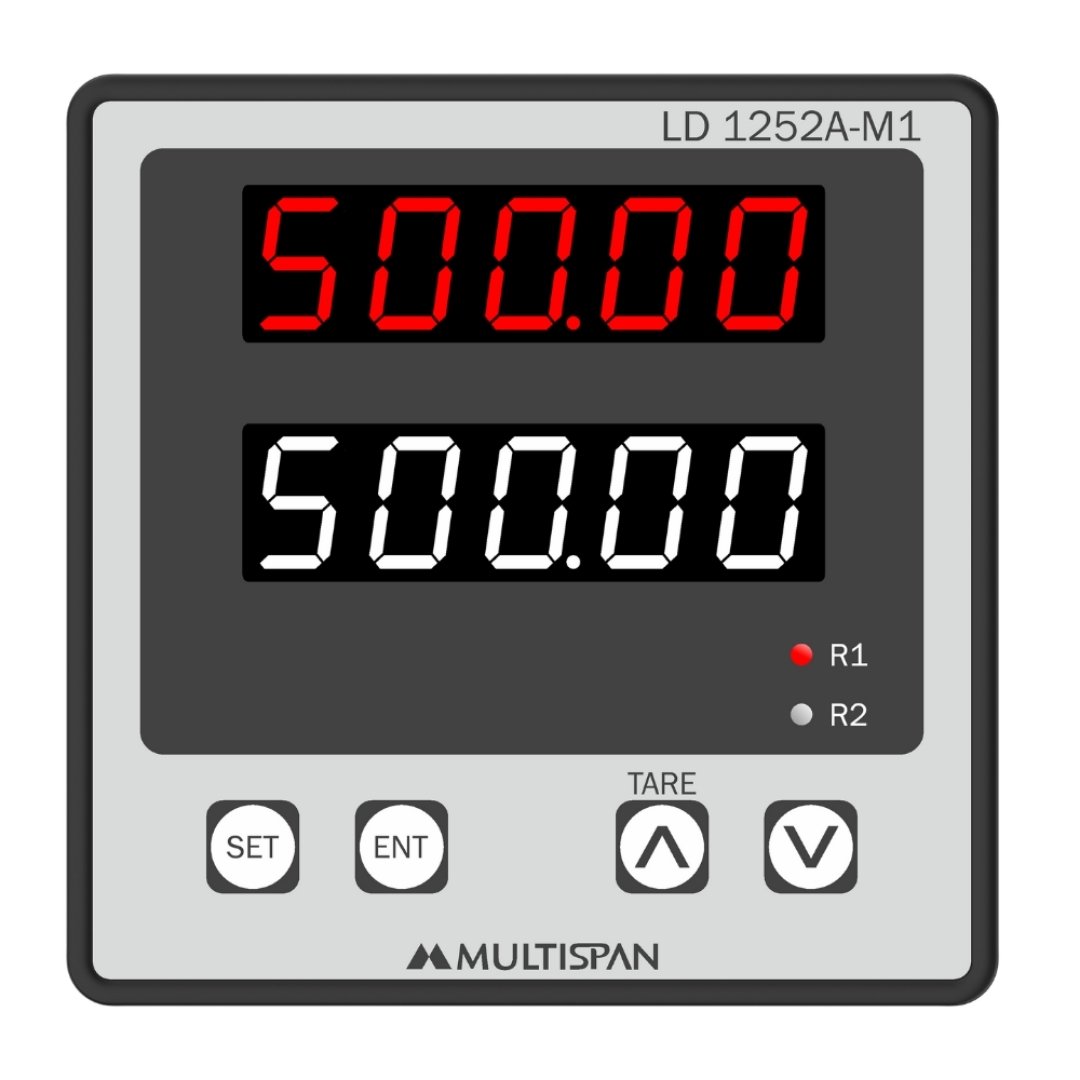

LD-1252A-M1 Load Cell Controller - product image LD-1252A-M1 Load Cell Controller - product image LD-1252A-M1 Load Cell Controller - product image

Load Cell Controller

Product: LD-1252A-M1

  • Accept  Multichannel mV Input from Load Cell to Measuring the Load
  • 5-Digit Dual LED Display for Accurate Indication of Load
  • 2-Relay for Switching Alarm, Load with Built-in Load Cell Excitation Supply
  • Optional Analog Retransmission and RS-485 MODBUS Communication
  • Size: (H)96mm x (W)96mm x (D)66mm
  • Supply Voltage: 100-270V AC

Model LD-1252A-M1
Display Upper : 5-Digit,7-Seg 0.56” RED LED
Lower : 5-Digit,7-Seg 0.56” WHITE LED
Size(mm) 96 (H) x 96 (W) x 66 (D)
Input 0 to 20mV DC

1R-1C/O & 10V DC Excitation Voltage + 4 to 20 Retransmission + RS-485 Modbus

PowerSupply 100-270VAC(SMPS)
Protection Level IP-65 (Front side) As per IS/IEC 60529 : 2001
Operating Temperature 0°C To 55°C
Relative Humidity Upto 95% RH Non Condition

  • Industrial feeding system
  • Filling machine
  • Testing Equipments
  • Pressure measurement
  • Weight based batch control system
  • Weight Indication

Product Variant

Sr.no Model No Input  Output  Relay RS-485 Modbus  Retransmission
1 LD-1252-A2-00 0-20mV DC  1
2 LD-1252-A2-01 2
3 LD-1252-M1-A2-00 1 YES
4 LD-1252-M1-A2-01 2 YES
5 LD-1252A-A2-00A 1   YES
6 LD-1252A-M1-A2-00A 1 YES YES
7 LD-1252A-A2-01A 0-30mV DC 1   YES
8 LD-1252-A2-12 2
