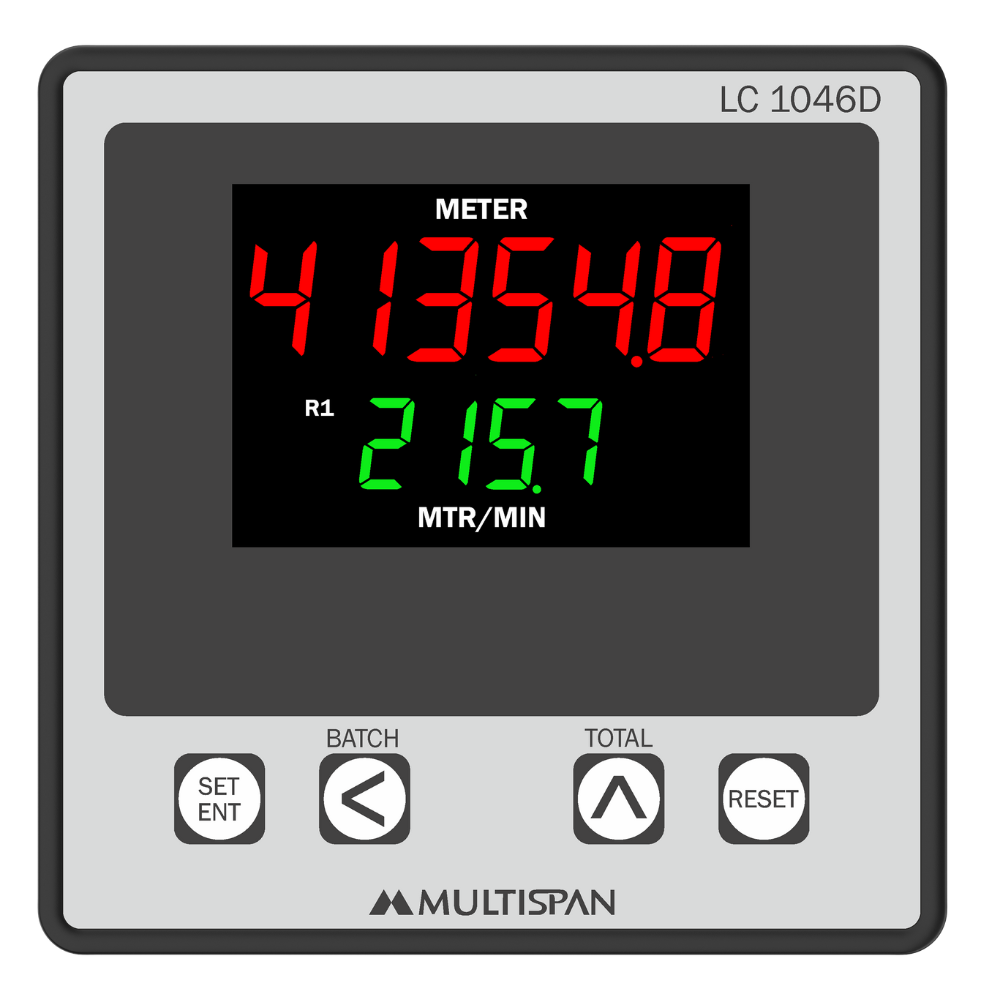

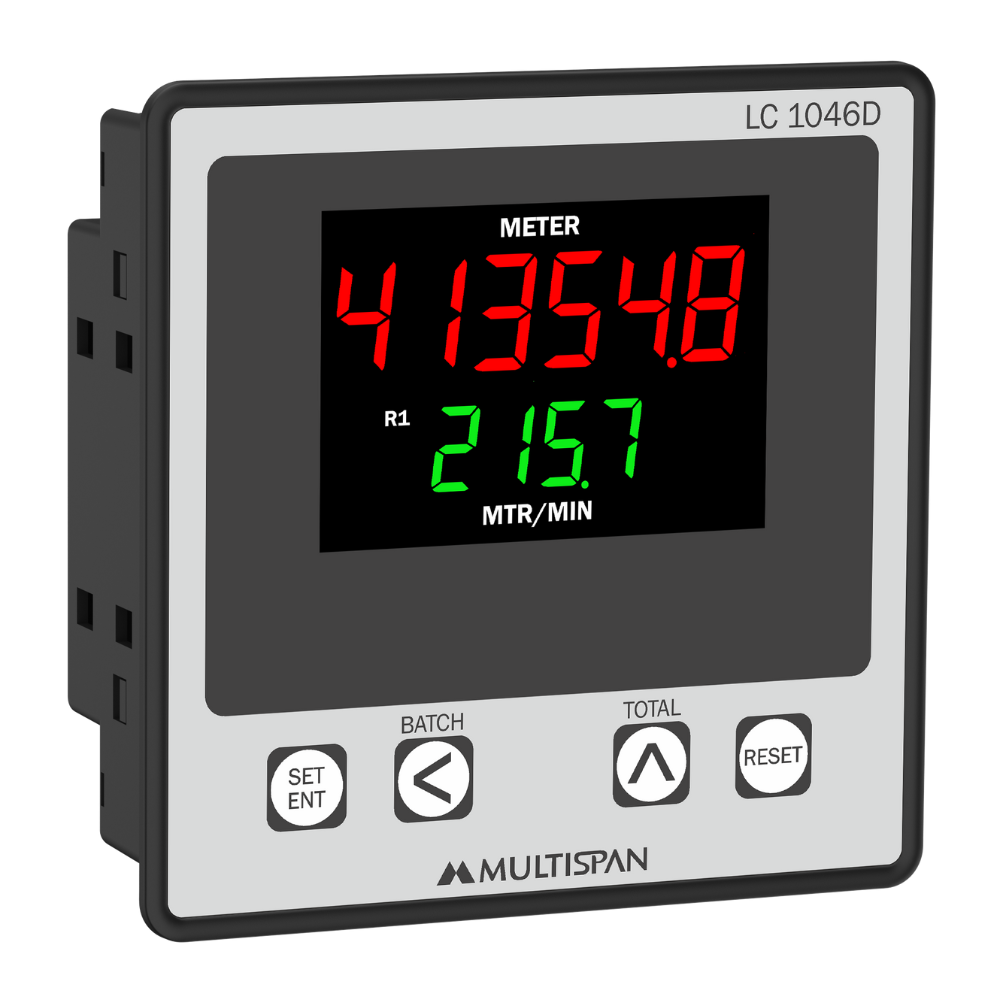

LC-1046D Length Counter

LOADING IMAGES

Product: LC-1046D

Top Variants:

INPUT SPECIFICATION:
Input	NPN/PNP Proximity
Input	Micro Switch
DISPLAY AND KEYS
Display	Upper: 6-Digit, 7-Segment, 0.56” Red
Display	Lower: 4-Digit, 7-Segment, 0.40” Green
Keys	SET/ENT, SHIFT, INC, RESET
DIMENSION:
Size (mm)	96 (H) x 96 (W) x 43 (D)
Panel Cutout (mm)	92 (H) x 92 (W)
GENERAL SPECIFICATION
Memory	Nonvolatile
Counting Direction	UP/ DOWN
Reset Option	Front Panel Reset
Reset Option	Terminal Reset
OUTPUT SPECIFICATION
Relay Output
Relay	1 nos.
Relay Type	1 C/O (NO-C-NC)
Rating	5A, 230V AC
AUXILIARY SUPPLY:
Supply Voltage	230V AC, 50Hz
Power Consumption (VA RATING)	Approx 4 VA @ 230V AC MAX
ENVIRONMENT CONDITION:
Operating Temp.	0°C to 55°C
Relative Humidity	Upto 95% RH (non-condensing)
Protection Level (AS Per Request)	IP-65 (Front side) As per IS/IEC 60529 : 2001

Model	Description	Auxillary
LC-1046D-B1-00	Input: NPN/PNP Proximity Range: 0 to 999999 Meters, 0 to 999.9 MPM Output: 1 Relay 1C/O	230V AC
LC-1046D-D1-00	Input: NPN/PNP Proximity Range: 0 to 999999 Meters, 0 to 999.9 MPM Output: 1 Relay 1C/O	24V DC
MMC-1000-A2-00	Input: NPN/PNP Proximity Range: 0 to 999999 Meters, 0 to 999.9 MPM Output: 2 Relay 1C/O	100 to 270V AC
MMC-1000-B1-01	Input: Dual Channel NPN Encoder Range: 0 to 999999 Meters, 0 to 999.9 MPM Output: 1 Relay 1C/O	230V AC
MMC-1000-B1-02	Input: Dual Channel PNP Encoder Range: 0 to 999999 Meters, 0 to 999.9 MPM Output: 1 Relay 1C/O	230V AC
MMC-1000-B1-03	Input: NPN/PNP Single Channel Encoder Range: 0 to 999999 Meters, 0 to 999.9 MPM Output: 1 Relay 1C/O	230V AC
MMC-1000-B1-04	Input: NPN/PNP Single Channel Encoder Range: 0 to 999999 Meters, 0 to 999.9 MPM Output: 2 Relay 1C/O	230V AC
LC-1048-M1-A2-00	Input: NPN/PNP Proximity Range: 0 to 99999999 Meters, 0 to 999.9 MPM Output: 1 Relay 1C/O Comminication: RS-485 MODBUS	100 to 270V AC
