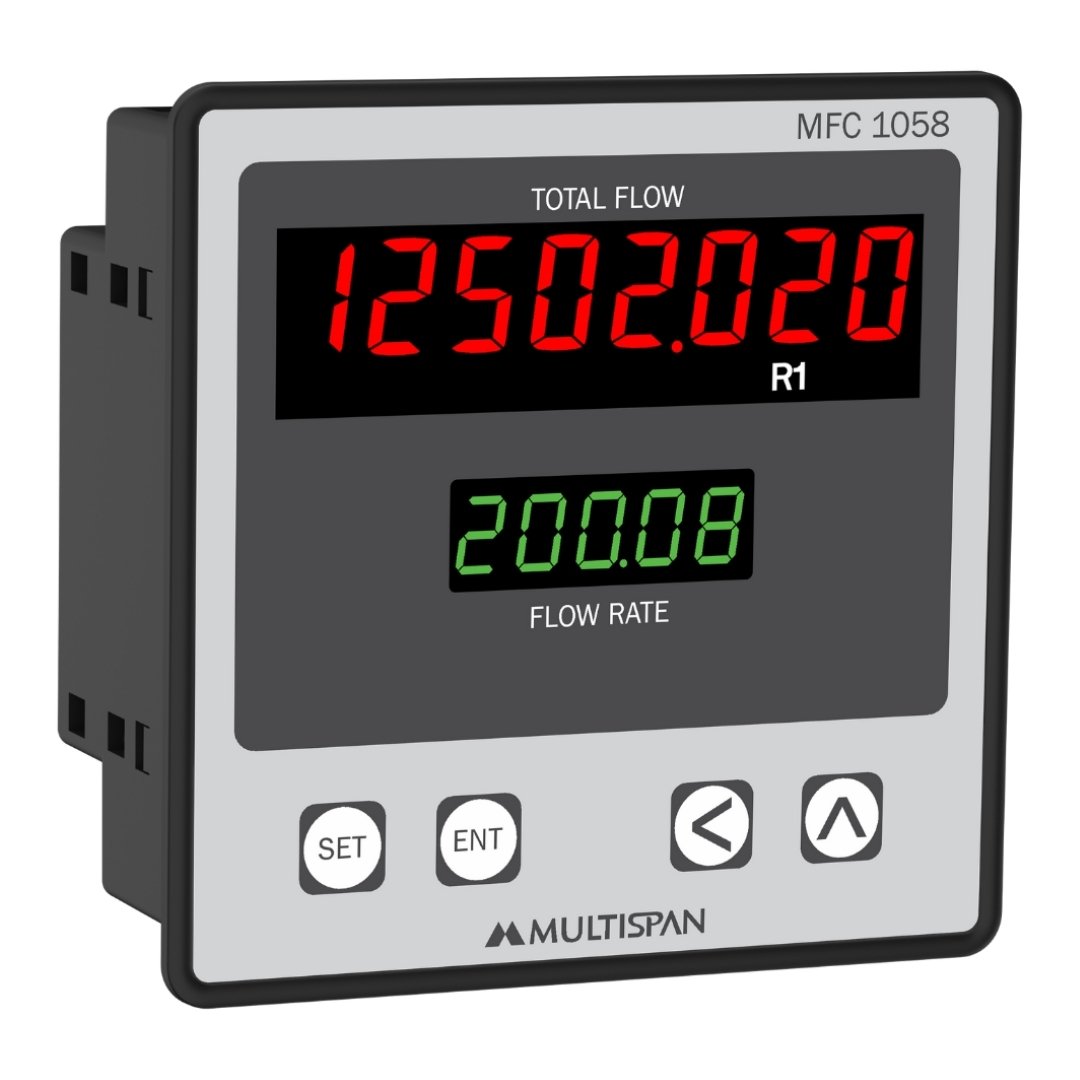

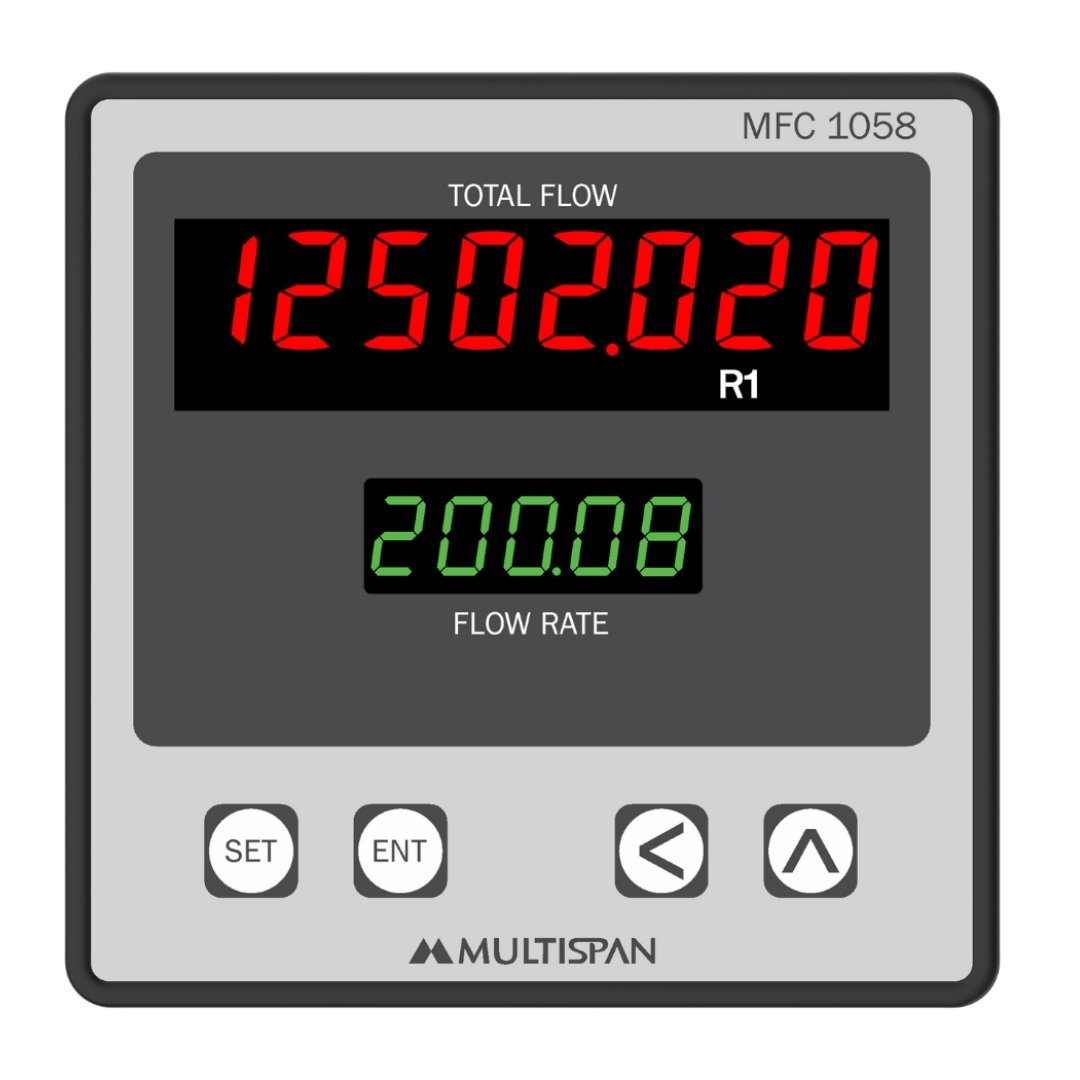

Flow Totalizer

Product: MFC-1058

  • Pulse or Analog Input for Measure the Flow
  • Inbuilt Sensor Supply
  • Individual Display for Totalizer (8-Digit) & Flow Rate (5-Digit)
  • Upto 2-Relay Output with Retransmission & RS-485 Modbus Output Facility
  • Size: (H)96mm x (W)96mm x (D)54mm
  • Supply Voltage: 100-270V AC



Top Variants:

INPUT SPECIFICATION:
Input Current : 4 TO 20mA DC
Resolution

Decimal Point Selectable:
00000/0.0000/00.000/000.00/0000.0
(For Flow rate) & Total Flow

Range Limits 0 to 99999999 For Total Flow
0 to 99999 For Flow Rate
DISPLAY AND KEYS:
Display

Upper: 8-Digit, 7-Seg, 0.5” Red
(For Total Flow)

Lower: 5-Digit, 7-Seg, 0.4” Green
(For Flow rate)

Keys SET, ENT , SHIFT , UP
DIMENSION:
Size (mm) 96 (H) x 96 (W) x 54 (D)
Panel Cutout (mm) 92 (H) x 92 (W)
GENERAL SPECIFICATION:
Memory Non Volatile
Reset Option Front Panel Reset & Back Terminal Reset
OUTPUT SPECIFICATION:
Relay Output
Relay 1 nos.
Relay Type 1 C/O (NO-C-NC)
Rating 5A, 230V AC
Transmitter Supply
24V DC
AUXILIARY SUPPLY:
Supply voltage 100 to 270V AC, 50-60Hz
Power consumption (VA RATING) Approx 6VA @ 230V AC MAX
ENVIRONMENT CONDITION:
Operating Temp. 0°C to 55°C
Relative Humidity

Upto 95% RH
(non-condensing)

Protection Level IP-65 (Front side) As per IS/IEC 60529 : 2001

  • Water Sewage Plant
  • Chemical & Pharma

Product Variant

Sr.no Model No Input  Output  Relay RS-485 Modbus  Retransmission
1 MFC-1058-A2-00 4-20mA 1
2 MFC-1058-A2-01 2
3 MFC-1058-A2-02 1   YES
4 MFC-1058-A2-04 1 YES
5 MFC-1058-A2-06 1 YES YES
6 MFC-1058-A2-07 2 YES YES
7 MFC-1058P-A2-00 Pulse  1
8 MFC-1058P-A2-01 2
9 MFC-1058P-A2-02 1   YES
10 MFC-1058P-A2-04 1 YES
11 MFC-1058P-A2-06 1 YES YES
12 MFC-1058P-A2-07 2 YES YES
