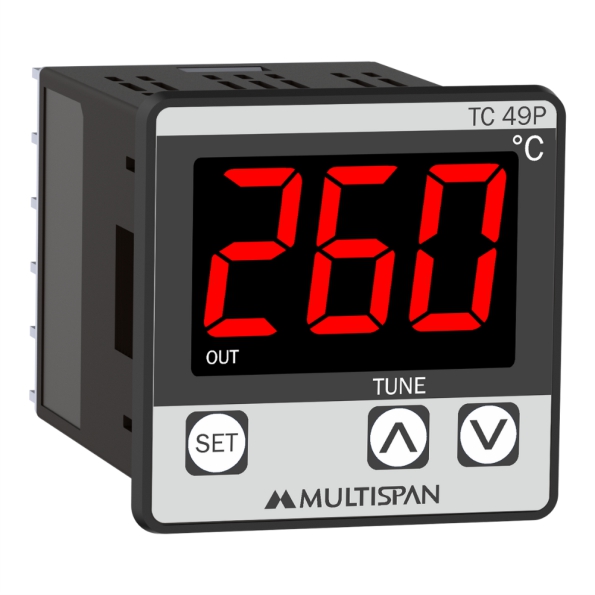

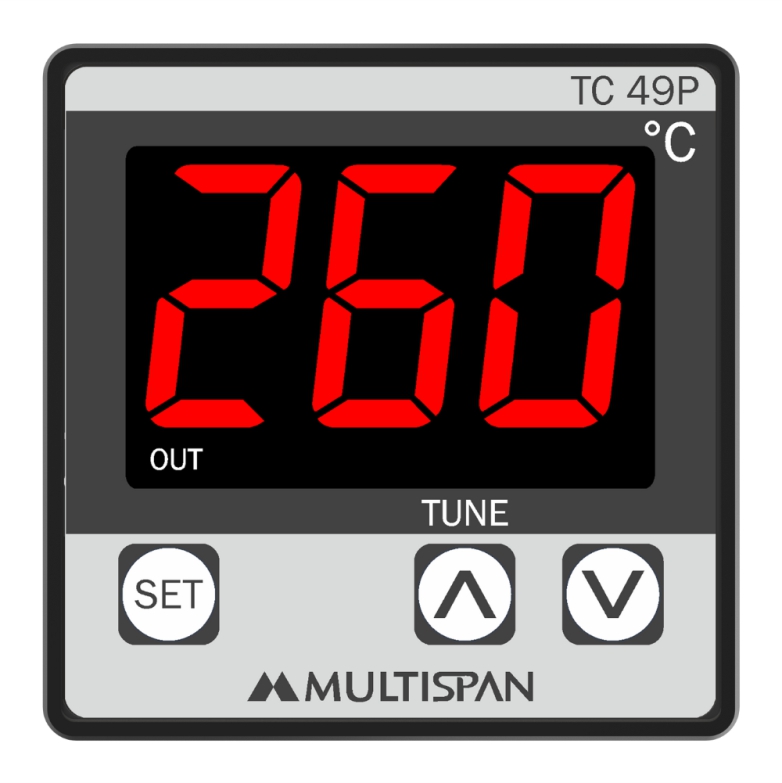

Fix Input Single Display Temperature Controller

Product: TC-49P

  • Fix Input (J/k/RTD)
  • 3-Digit Single Red/White LED Display
  • PID/On-Off Controller
  • Single Output (Relay || SSR) for Load Control
  • Size: (H)48mm x (W)48mm x (D)70mm
  • Supply Voltage: 100-270V AC

POWER SUPPLY:
Supply Voltage 100 to 270V AC, 50-60Hz
Power Consumption (VA Rating) 4VA @ 230V AC MAX
ENVIRONMENT CONDITION:
Operating Temp. 0°C to 55°C
Relative Humidity Upto 95% RH
(non-condensing)
Protection Level(As per request) IP-65 (Front side) As per IS/IEC 60529 : 2001
INPUT SPECIFICATION:
Input Types Input Range
J 0 to 600°C
K 0 to 999°C
Resolution 1°C
Indication Accuracy ±1% of FSD ± 1°C
(FSD:- Full Scale Deflection)
DISPLAY AND KEYS:
Display 3-Digit, 7-Segment, 0.8” RED
Keys SET, INC, DEC
DIMENSION:
Size (mm) 48 (H) x 48 (W) x 70 (D)
Panel Cutout (mm) 45 (H) x 45 (W)
CONTROL METHOD:
Heating 1) PID Control with Auto Tuning
2) ON-OFF Control
OUTPUT SPECIFICATION:
Relay Output
Relay 1 Nos
Relay Type 1C/O (NO-C-NC)
Rating 10A, 230V AC / 28V DC
SSR Drive Output
output Signal 12V DC, 30mA DC
(On-Off Condition)

  • Packaging Machinery
  • Extrusion Machinery
  • Furnace & Boilers
  • Ovens & Incubators
  • Food Industry

Product Variant

Sr.no Model No Input  Output  Aux Supply Display Color  Size
1 TC-19-A2-01 J type   Relay  100-270V AC  Red 96x96x43(HxWxD)mm
2 TC-19-A2-04 K type   Relay  100-270V AC  Red 96x96x43(HxWxD)mm
3 TC-19-A2-05 Pt-100  Relay  100-270V AC  Red 96x96x43(HxWxD)mm
4 TC-29-A2-01 J type   Relay || SSR 100-270V AC  Red 72x72x45(HxWxD)mm
5 TC-29-A2-04 K type   Relay || SSR 100-270V AC  Red 72x72x45(HxWxD)mm
6 TC-29-A2-05 Pt-100  Relay || SSR 100-270V AC  Red 72x72x45(HxWxD)mm
7 TC-49-A2-N1-R J/K   Relay || SSR 100-270V AC  Red 48x48x70(HxWxD)mm
8 TC-49-A2-N1-W J/K   Relay || SSR 100-270V AC  White 48x48x70(HxWxD)mm
9 TC-49-A2-N2-R Pt-100  Relay || SSR 100-270V AC  Red 48x48x70(HxWxD)mm
10 TC-49-A2-N2-W Pt-100  Relay || SSR 100-270V AC  White 48x48x70(HxWxD)mm
11 TC-49P-A2-N1-R J/K   Relay || SSR 100-270V AC  Red 48x48x70(HxWxD)mm
12 TC-49P-A2-N1-W J/K   Relay || SSR 100-270V AC  White 48x48x70(HxWxD)mm
13 TC-49P-A2-N3-R Pt-100  Relay || SSR 100-270V AC  Red 48x48x70(HxWxD)mm
14 TC-49P-A2-N3-W Pt-100  Relay || SSR 100-270V AC  White 48x48x70(HxWxD)mm
