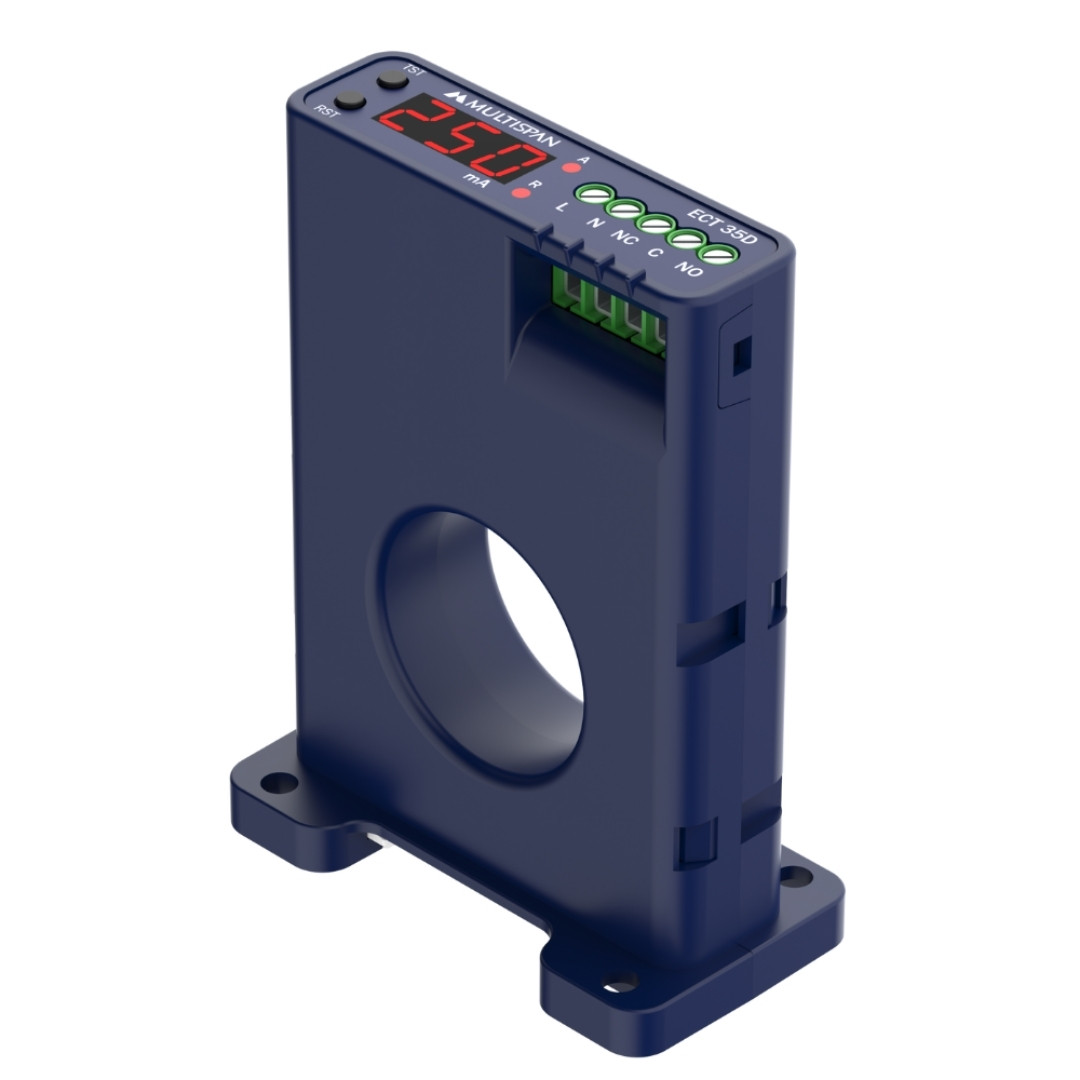

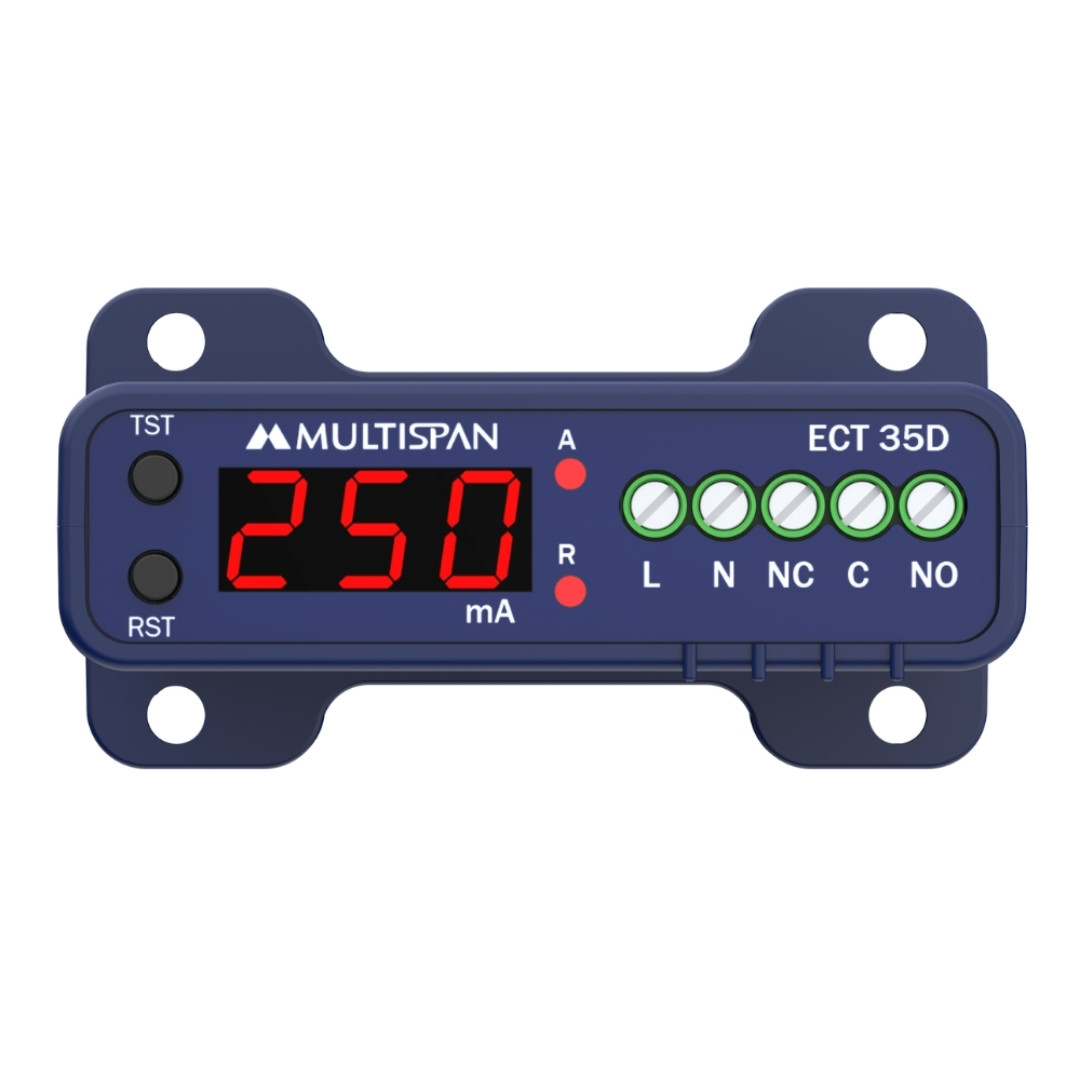

Ect-35d Elr with Built-In CBCT - product image Ect-35d Elr with Built-In CBCT - product image Ect-35d Elr with Built-In CBCT - product image

Earth Leakage Relay- BUILT IN CBCT ID 35 mm

Product: ECT-35D

  • Range 30mA to 3A AC
  • No Need of Separate CBCT as Built in CBCT (ID 35mm)
  • Digital Display for Programming Leakage Setting and Trip Delay
  • 1-Relay, 1-C/O, 5A, 230V AC
  • With Front Key and Terminal Reset and Test Function
  • Size: (H)76mm X (W)40mm X (D)103mm
  • Supply Voltage: 100-270V AC/DC

Top Variants:

INPUT SPECIFICATION :
Input Current 0.00 To 3.00 A AC in CBCT
Display Currant Range 30mA To 3.00 Amp
Resolution If Current in mA = 1 mA
If Current is Amp Above = 0.01A
DISPLAY & KEYS :
Display 3-Digit, 7-Seg., 0.28”, Red.
Keys Test, Rst
OUTPUT SPECIFICATION :
Relay 1 Nos.
Relay Type NO - C- NC
Rating 5A,230V AC Resistive Load
AUXILIARY SUPPLY :
Supply Voltage 100 To 270 V AC/DC
Power Consumption (VA Rating) 3VA @ 250 VAC MAX
ENVIRONMENT CONDITION
Operating Temp. 0 - 55°C
Relative Humidity 95% RH

  • Control & Relay Panel
  • Energy Management System
  • DG Set Panels
  • LT / HT Panel
  • Power Control Center Panels
  • Motor Control Center Panels

Product Variant

Part Code Model Size Input Range Output Supply
EC-35D-A1-00 Digital  76(H) x 40(W) x 103(D) mm CBCT 30mA to 3A AC 1R, 1-C/O 100-250V AC
ECT-35-A1-00  Analog  76(H) x 40(W) x 103(D) mm CBCT 30mA to 3A AC 1R, 1-C/O 100-250V AC
