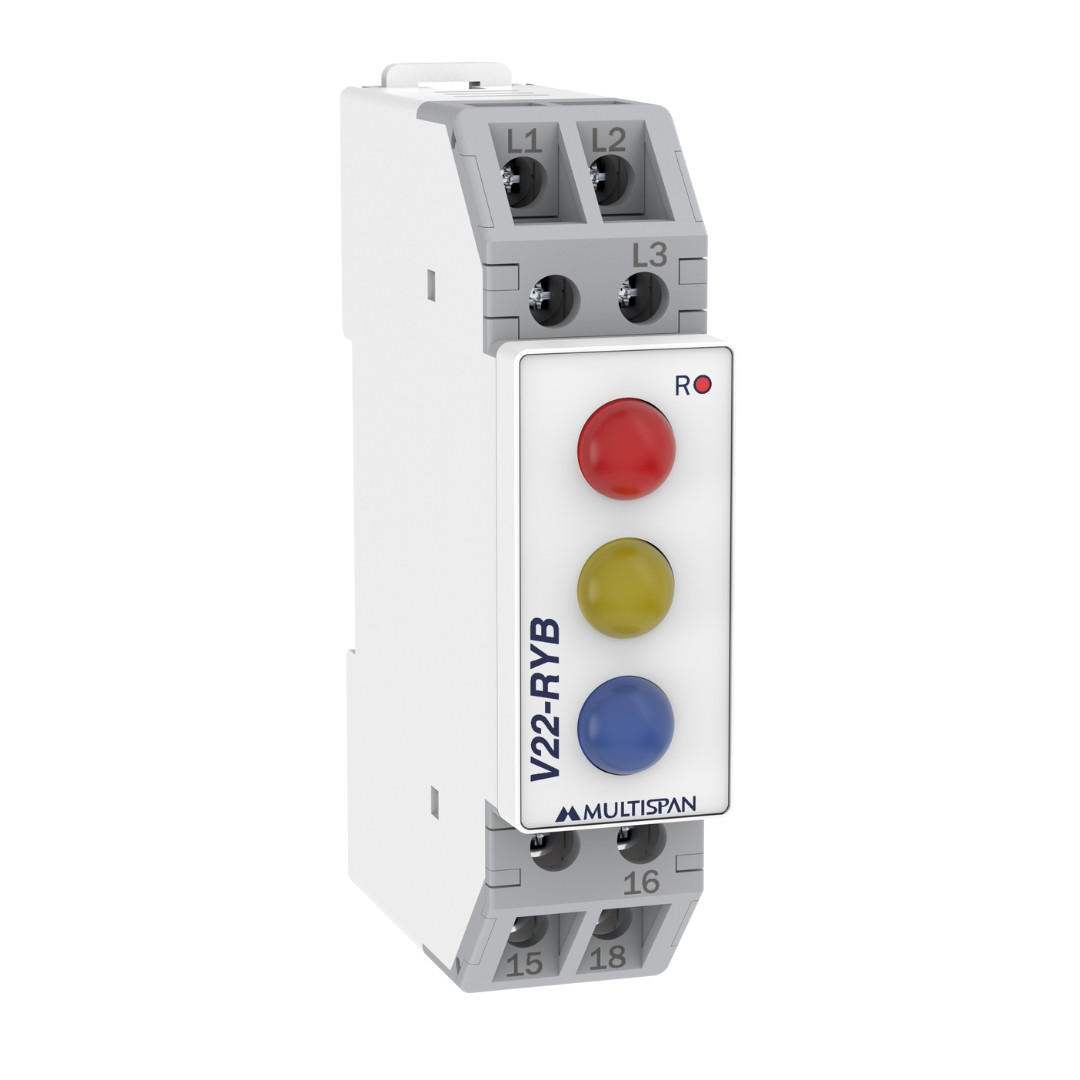

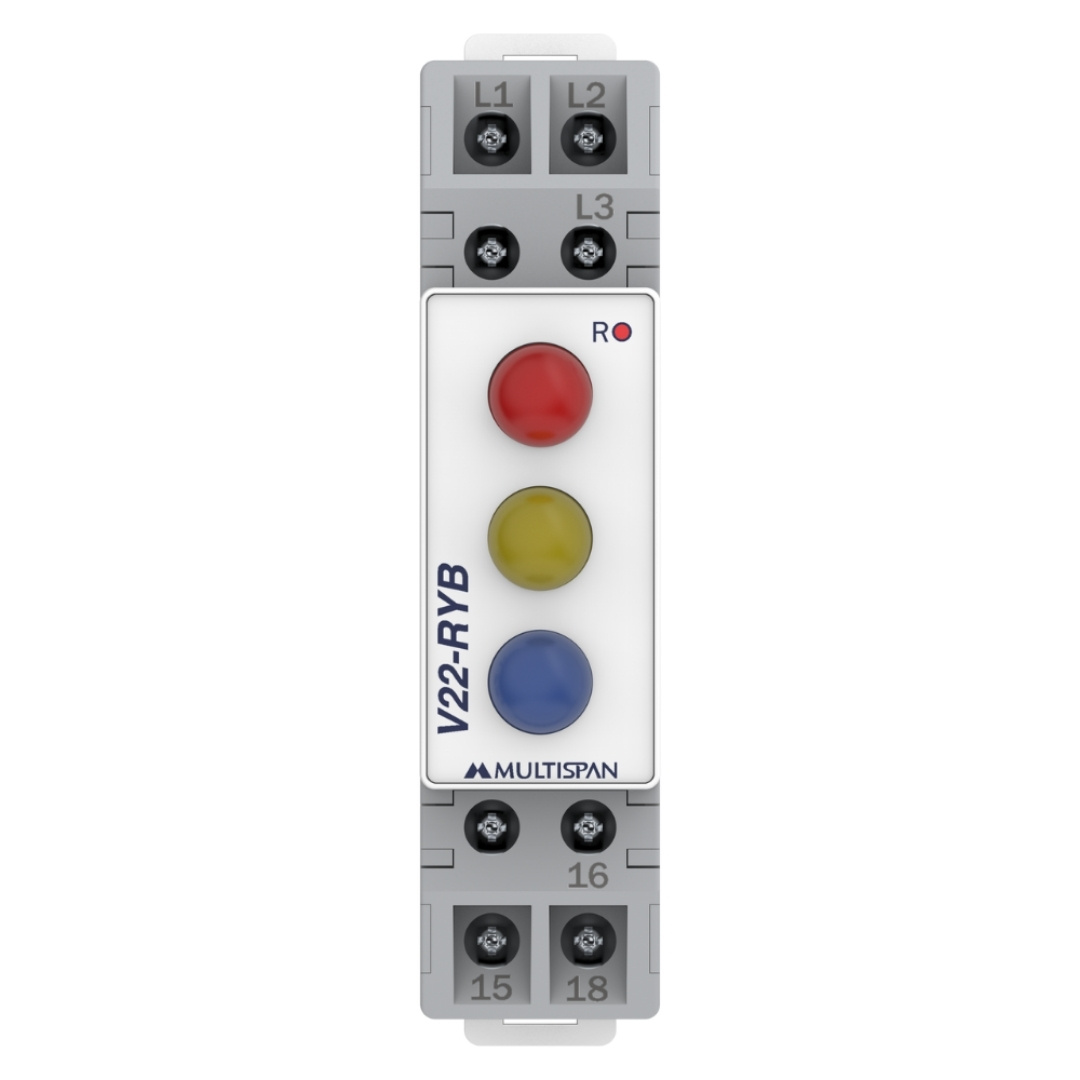

V22-RYB Voltage Protection Device - Product image V22-RYB Voltage Protection Device - Product image V22-RYB Voltage Protection Device - Product image

Din Rail Phase Sequence Relay

Product: V22-RYB

  • 3 Phase 3 Wire Input
  • Separate Aux supply not needed as it is self-powered
  • Tripping parameter : Phase Sequence, Phase Loss & Phase Asymmetry
  • 1 Relay 1 C/O
  • Unique features for Tripping Fault Identifications : Front R-Y-B LED Indication
  • Size: 90 X 22.5 X 72 (H XW X D) mm

Top Variants:

System 3Ø - 3W
Supply Voltage 280 to 520V AC (L-L)
Phase Loss < 280V AC (L-L)
Phase Asymmetry >40V AC (L-L)
Hysteresis 6 V Fix (For Auto Reset)
Reset Auto Reset on Healthy Condition
Output

1 C/O,
5 A 230V AC
5A, 28V DC
(Resistive Load)

Power ON Delay 5 Second
Trip Delay PS & PL < 200ms Asy : 5 Sec.

  • Electrical Control Panel
  • Submersible  Pump
  • Road Construction Panel
  • MCC Panel
  • Industrial Chiller And HVAC System
  • D.G. Set

Product Variant

Part Code Network Input Range Output Phase Sequence Phase Loss Phase Asymmetry
SPP-22-00 3Ph-3W 280V AC to 520V AC 1R 1C/O yes yes yes
SPP-22-1-00 3Ph-3W 280V AC to 520V AC 1R 1C/O   yes yes
SPP-22-2-00 3Ph-3W 154V AC TO 400V AC 1R 1C/O yes yes yes
SPP-22-3-00 3Ph-3W 280V AC to 520V AC 1R 1C/O yes yes
V22-RYB-00 3Ph-3W 280V AC to 520V AC 1R 1C/O yes yes yes
V22-RYB-1-00 3Ph-3W 280V AC to 520V AC 1R 1C/O   yes yes
