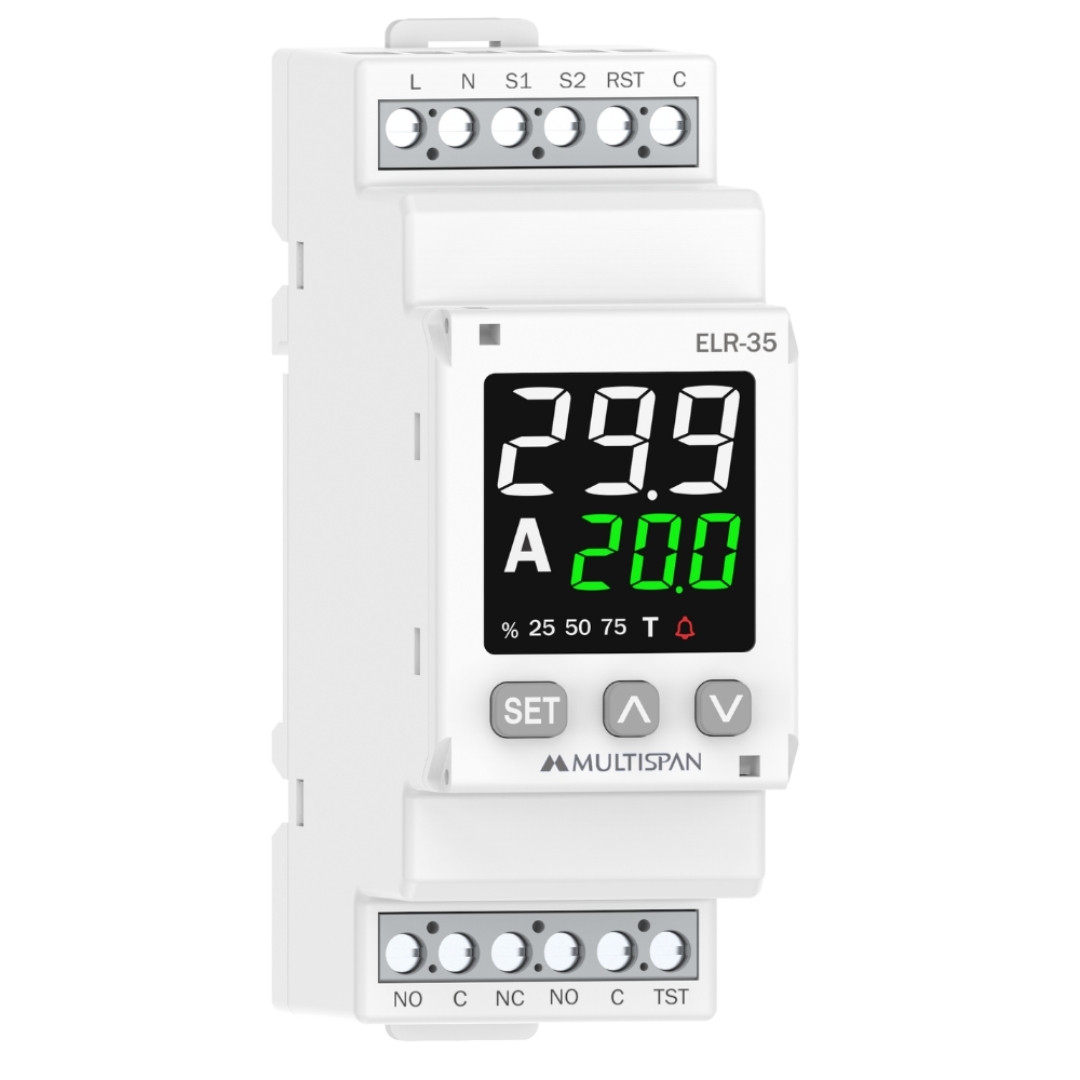

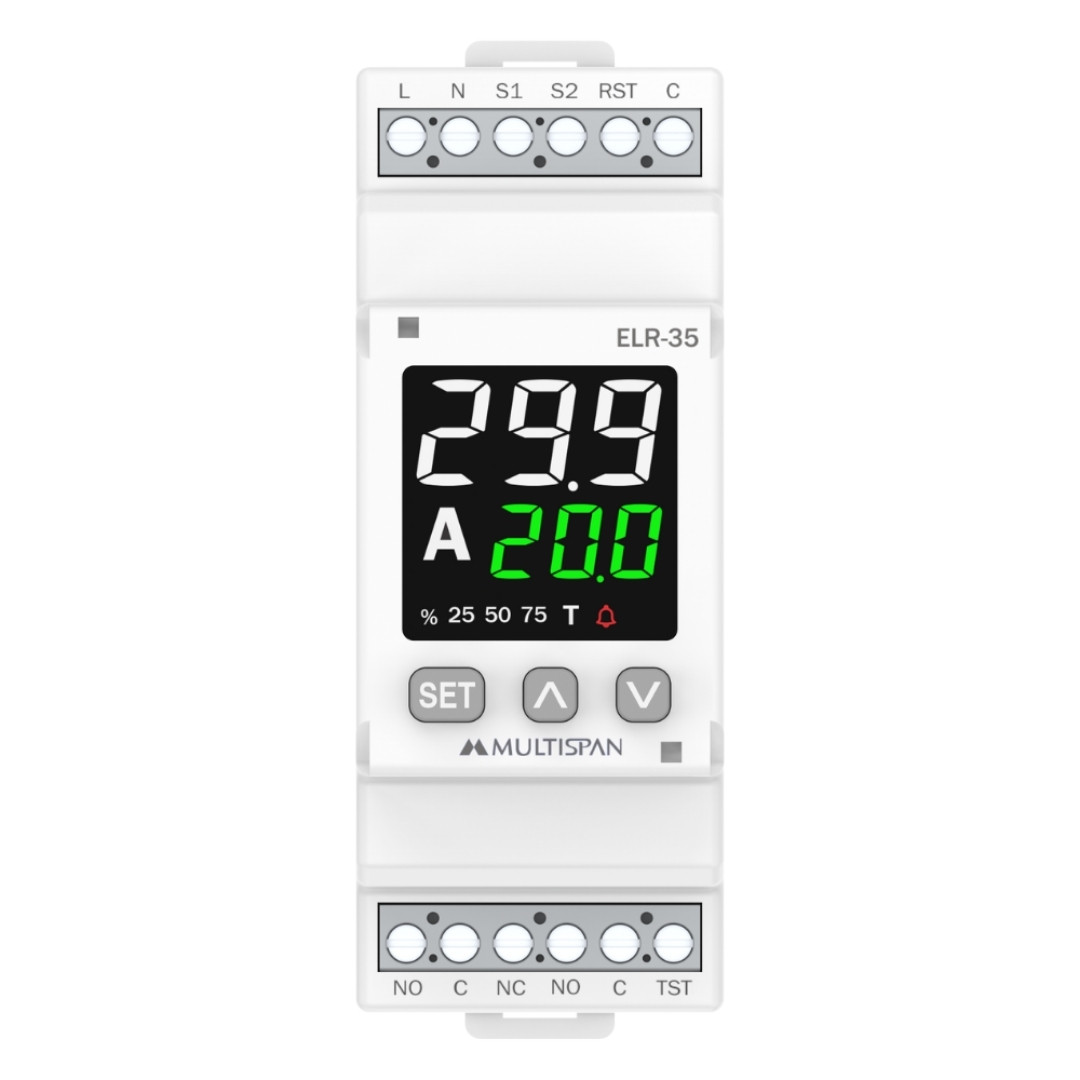

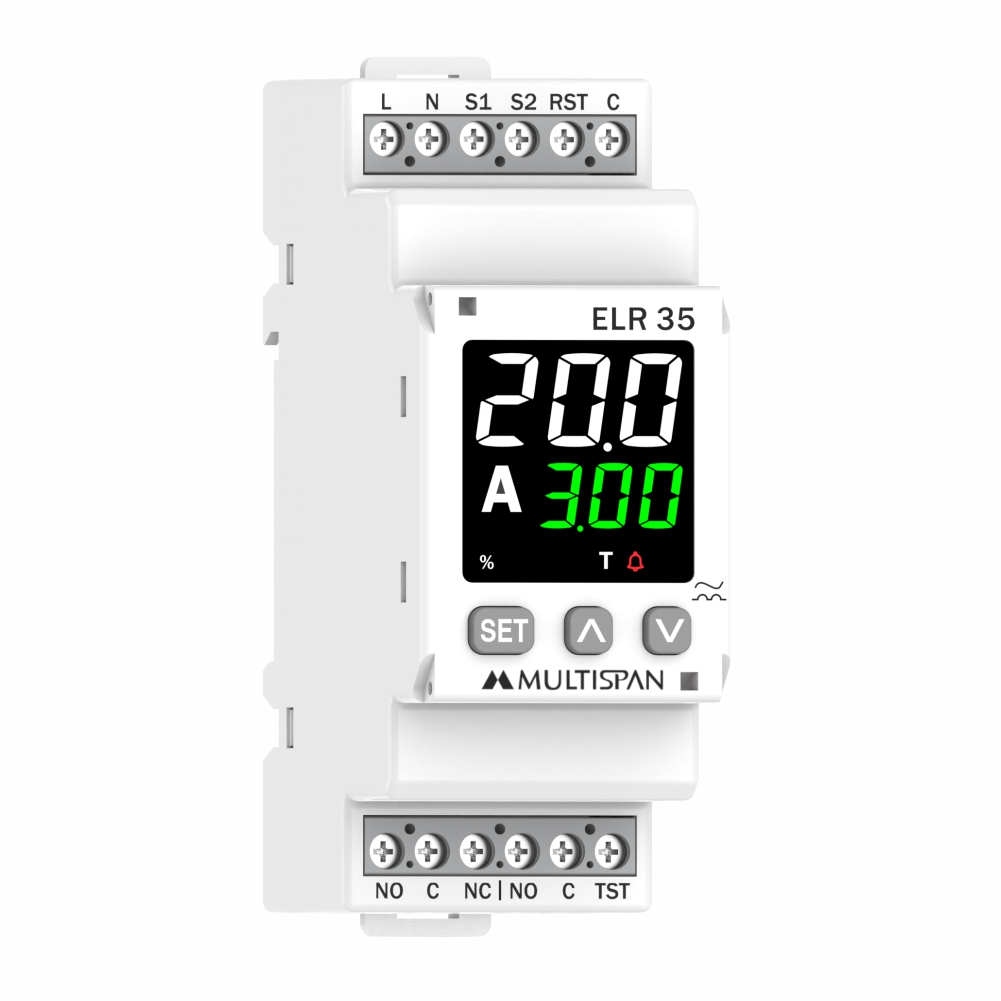

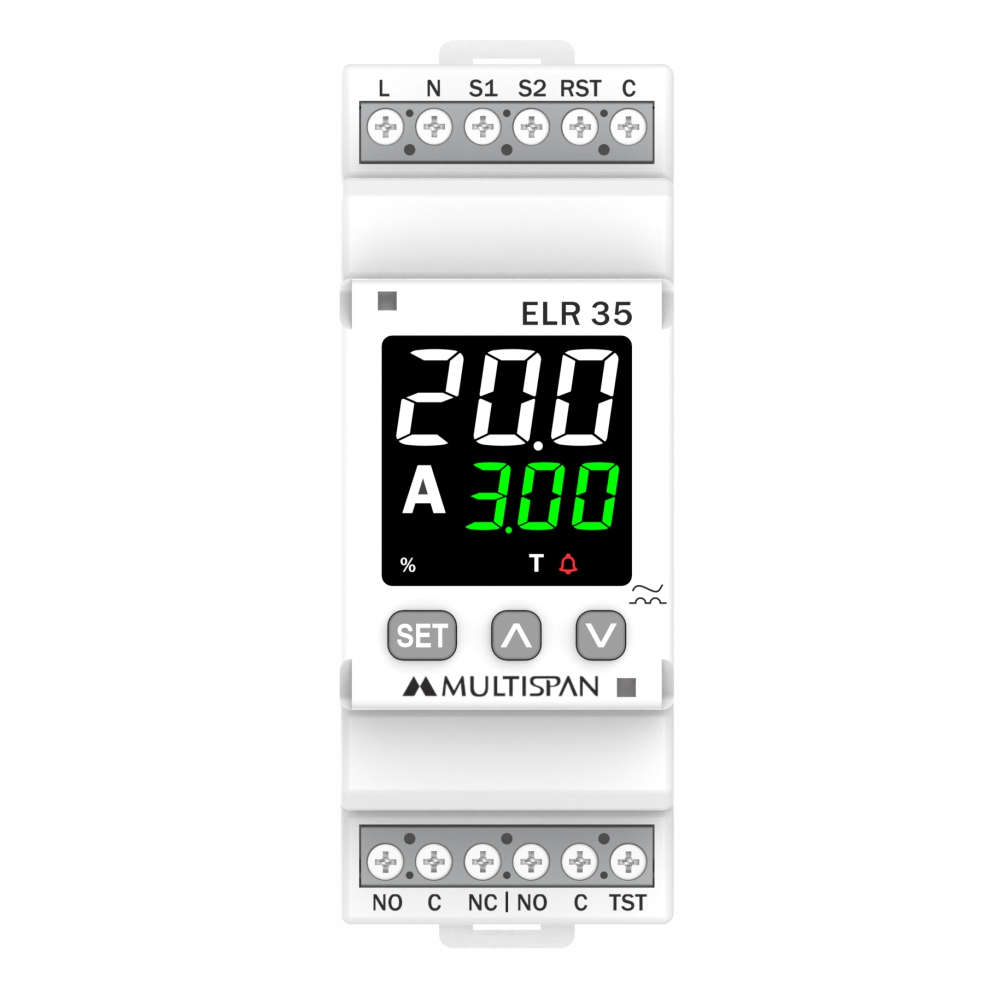

ELR-35 DIN Rail with Display - Industrial Control Equipment - product image ELR-35 DIN Rail with Display - Industrial Control Equipment - product image ELR-35 DIN Rail with Display - Industrial Control Equipment - product image

Din Rail Earth leakage Relay

Product: ELR-35

  • Bright 3+3 LED Display in Din Rail Mount
  • Range: 30mA to 30A AC
  • Programmable Trip Delay
  • 1-Relay, 1-C/O, 5A, 230V AC
  • With Front Key and Terminal Reset and Test Function
  • Fail Safe and Non Fail Safe Mode
  • With Indication Leakage Level 25%, 50%, 75% of Set Point
  • Size: (H)90mm X (W)35mm X (D)61.5mm
  • Supply Voltage: 100-270V AC

DISPLAY AND KEYS
Display Upper: 3-Digit, 7-Segment, 0.4” (White)
Lower: 3-Digit, 7-Segment, 0.28” (Green)
Keys SET, INC, DEC / RST
DIMENSION
Size (mm) 90 (H) X 35 (W) X 61.5 (D)
OUTPUT SPECIFICATION
Relay 2 Nos.
Relay Type NO-C-NC, NO-C
Rating 5A,250V AC / 30V DC
AUXILIARY SUPPLY
Supply Voltage 100 To 270 V AC,50/60Hz
Power Consumption (VA Rating) 3VA @ 230 VAC MAX
ENVIRONMENT CONDITION
Operating Temp. 0°C to 55°C
Relative Humidity Upto 95% RH
(non-condensing)
Protection Level
(As per request)
IP-65 (Front side) As per IS/IEC 60529 : 2001

Product Variant

Part Code Size Input Range Output Supply
ELR-63-A2-11 76(H)x27(W)x85(D) mm External CBCT 30mA to 30AAC 1R 1C/O 100 to 270V AC
ELR-35-A2-00 90(H) x 35(W) x 63(D) mm External CBCT 30mA to 30AAC 2R 1C/O 100 to 270V AC
