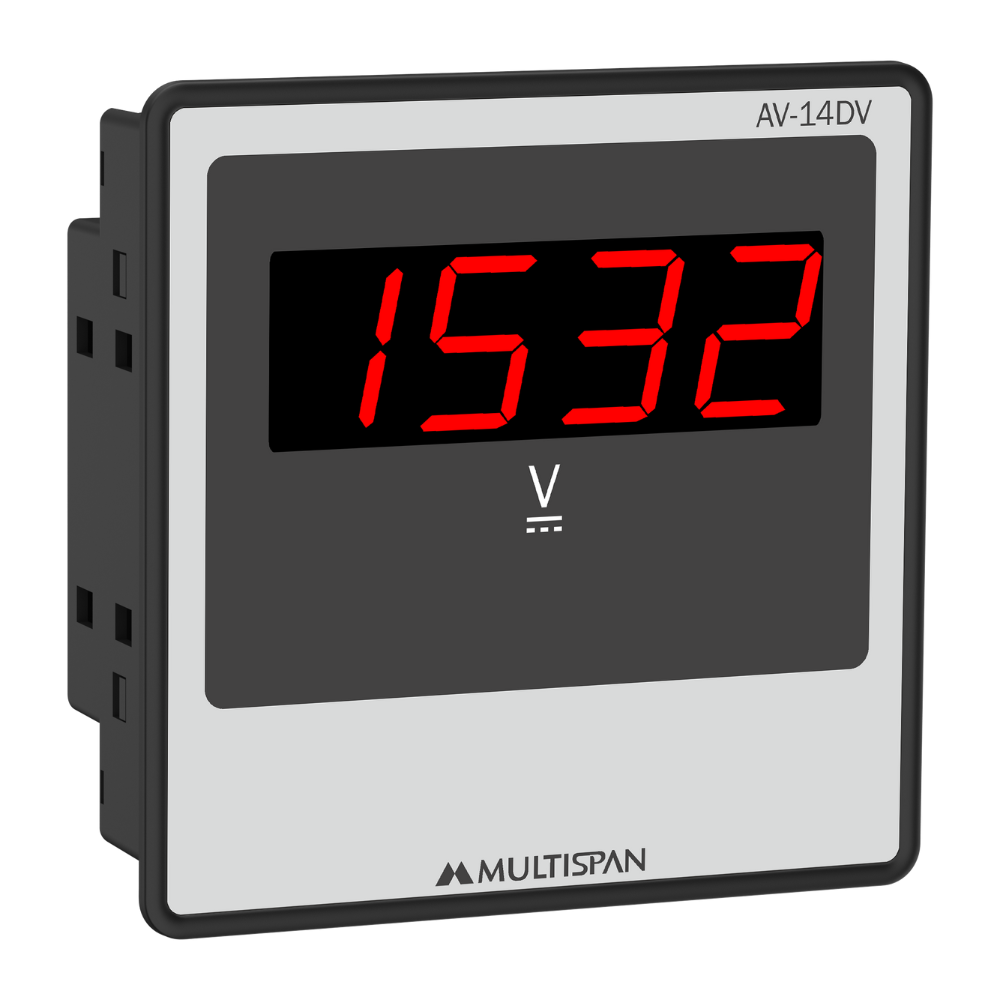

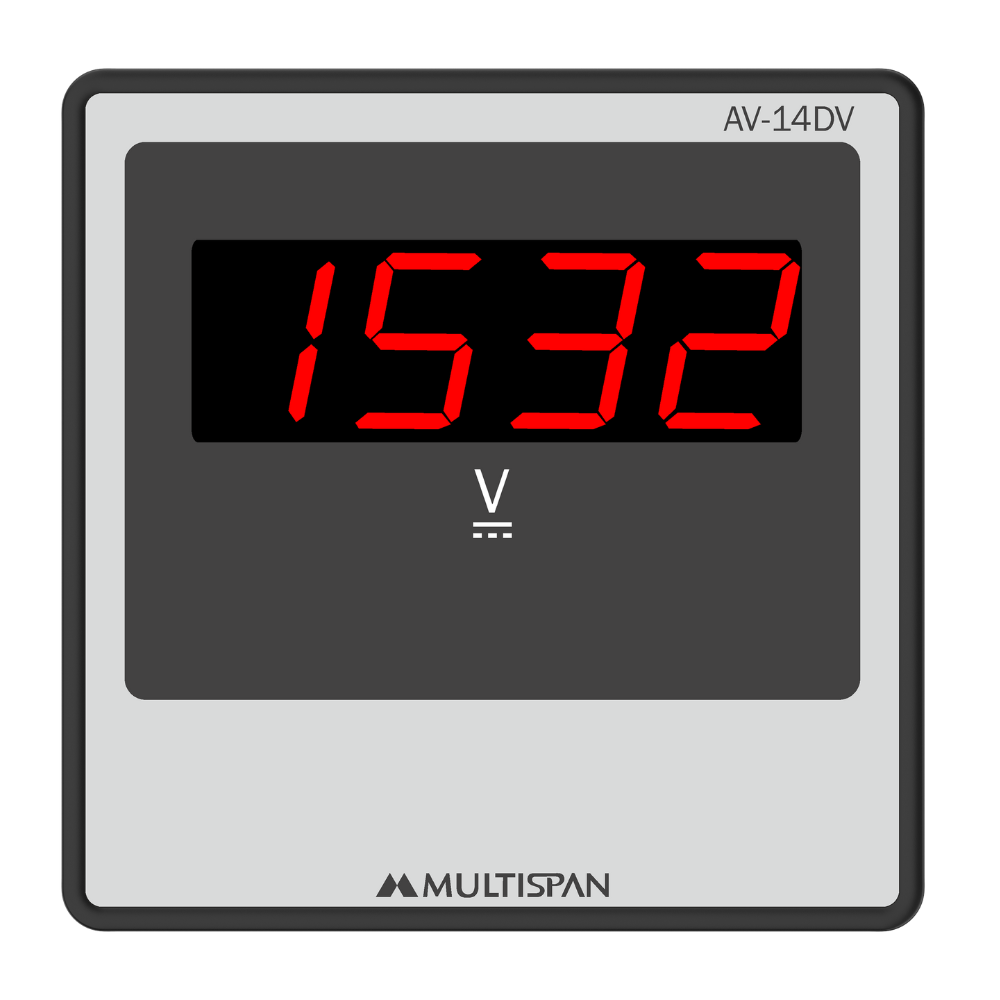

DC Volt Meter
Product: AV-14DV
- Fixed Range: -20.0V to +20.00V DC, -50.0V to +50.0V DC, -100V to 100.0V DC, -200V to +200.0V DC, -750V to +750V DC
- Size: (H)96mm X (W)96mm X (D)54mm
- Supply Voltage: 100-270V AC/DC, 50/60 Hz
Top Variants:
| Model | AV 14DV | ||
| Display | 4 Digit, Single Display | ||
| Size (mm) | 96 (H) X 96 (W) X 54 (D) | ||
| Panel Cutout (mm) | 92 (H) X 92 (W) | ||
| Input | -750V to 750V DC | ||
| Power Supply | 100-270V AC/DC, 50/60 Hz, Approx 4VA | ||
|
Protection Level (As per request) |
IP-65(Front side) AS per IS/IEC 60529:2001 | ||
|
Operating Temperature |
0°C To 55°C | ||
| Relative Humidity | Up to 95% RH Non Condensing | ||
- Electrical Control Panel
- Power Distribution
- Instrumentation Panel
- Transformer training
Product Variant
| Model | Size(H X W X D)mm | Voltage | Auxillary |
| AV-14DV-E3-00 | 96 X 96 X 54 | Voltage Input : -750V DC to 750V DC | 100 to 270V AC/DC |
| AV-14DV-E3-01 | Voltage Input : -20.0 to 20.0V DC | ||
| AV-14DV-E3-02 | Voltage Input : -50.0V to 50.0V DC | ||
| AV-14DV-E3-03 | Voltage Input : -200V DC to 200.0V DC | ||
| AV-14DV-E3-04 | Voltage Input : -100 to 100.0V DC | ||
| AV-24DV-E3-00 | 72 X 72 X 36 | Voltage Input : -750V DC to 750V DC | |
| AV-24DV-E3-01 | Voltage Input : -200V DC to 200.0V DC | ||
| AV-24DV-E3-02 | Voltage Input : -100 to 100.0V DC | ||
| AV-24DV-E3-04 | Voltage Input : -50.0V to 50.0V DC | ||
| AV-24DV-E3-05 | Voltage Input : -20.0 to 20.0V DC | ||
| AV-34DV-E3-00 | 48 X 96 X 26 | Voltage Input : -750V DC to 750V DC | |
| AV-34DV-E3-01 | Voltage Input : -200V DC to 200.0V DC | ||
| AV-34DV-E3-02 | Voltage Input : -100 to 100.0V DC | ||
| AV-34DV-E3-04 | Voltage Input : -50.0V to 50.0V DC | ||
| AV-34DV-E3-05 | Voltage Input : -20.0 to 20.0V DC | ||
| AV-41DV-A2-00 | 48 X 48 X 70 | Voltage Input :10V DC -750V DC | 100 to 270V AC |
| AV-41DV-A2-02 | Voltage Input :0V DC to 49.9V DC | ||
| AV-41DV-A2-03 | Voltage Input :0V DC to 99.9V DC | ||
| AV-41DV-A2-04 | Voltage Input :0V DC to 200V DC |
