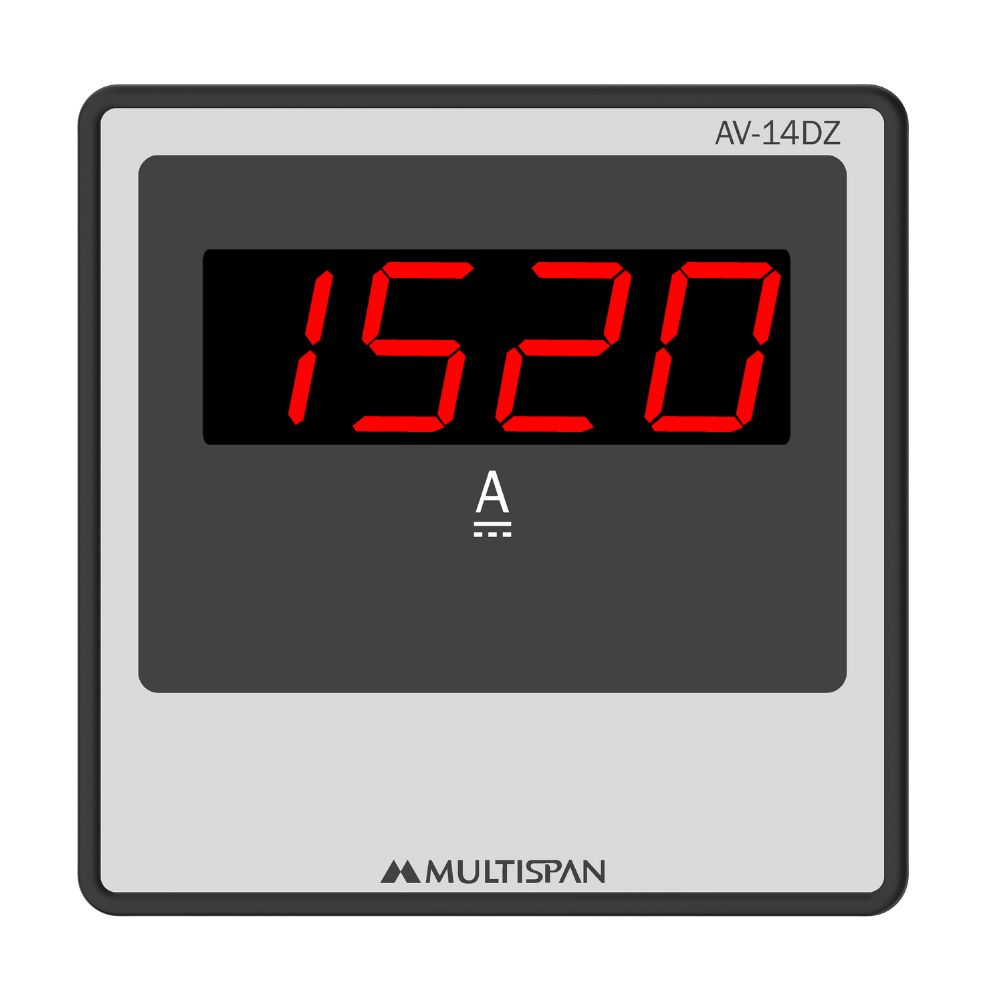

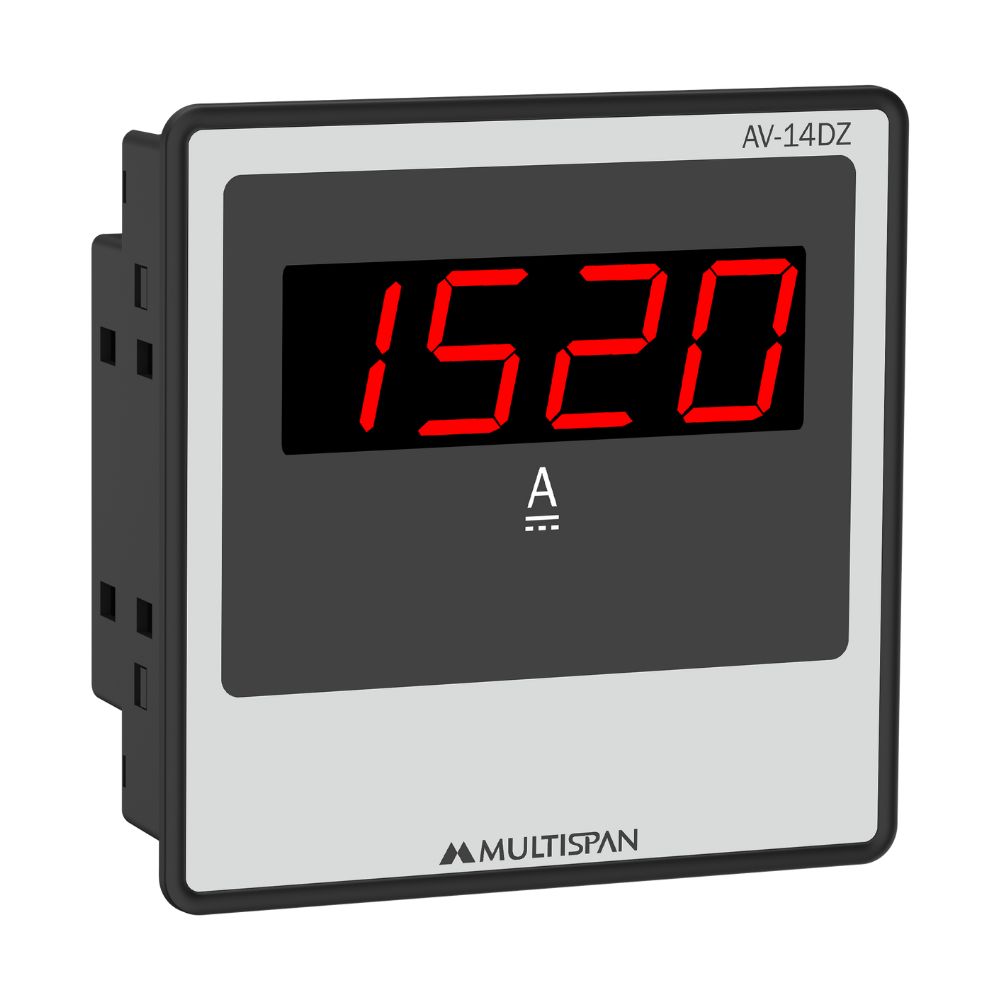

AV-14DZ - DC Ampere meter- Direct 20A DC - product regular image AV-14DZ - DC Ampere meter- Direct 20A DC - product front image AV-14DZ - DC Ampere meter- Direct 20A DC - product side image

DC Ampere Meter- Direct 20A DC

Product: AV-14DZ

  • Input through DC Shunt 75mV DC
  • Range: 2A DC, 5A DC, 10A DC, 20A DC (Factory Set)
  • Size: (H)96mm X (W)96mm X(D)54mm
  • Supply Voltage:100-270V AC/DC, 50/60 Hz

Model AV 14DZ
Display 4-Digit, 7-Seg 0.56”,Red LED Display
Size (mm) 96 (H) X 96 (W) X 54 (D)
Panel Cutout (mm) 92 (H) X 92 (W)
Range 20.0A DC
Power Supply 100-270V AC/DC, 50/60 Hz, Approx 4VA

Protection Level (As per request)

IP-65(Front side) AS per IS/IEC 60529:2001

Operating Temperature

0°C To 55°C
Relative Humidity Upto 95% RH Non Condensing

Product Variant

Model Size(H X W X D)mm Current Auxillary
AV-14DZ-E3-00 96 X 96 X 43 Direct: 0 to 20.0A DC 100 to 270V AC/DC
AV-14DZ-E3-01 Direct:  0 to 5.00A DC
AV-24DZ-E3-00 72 X 72 X 36 Direct: 0 to 20.0A DC
AV-24DZ-E3-01 Direct:  0 to 5.00A DC
AV-24DZ-E3-03 Direct: 0 to 2.000A DC
AV-34DZ-E3-00 48 X 96 X 26 Direct: 0 to 20.0A DC
AV-34DZ-E3-01 Direct:  0 to 5.00A DC
AV-34DZ-E3-03 Direct: 0 to 2.000A DC
AV-34DZ-E3-04 Direct: 0 to 10.00A DC
