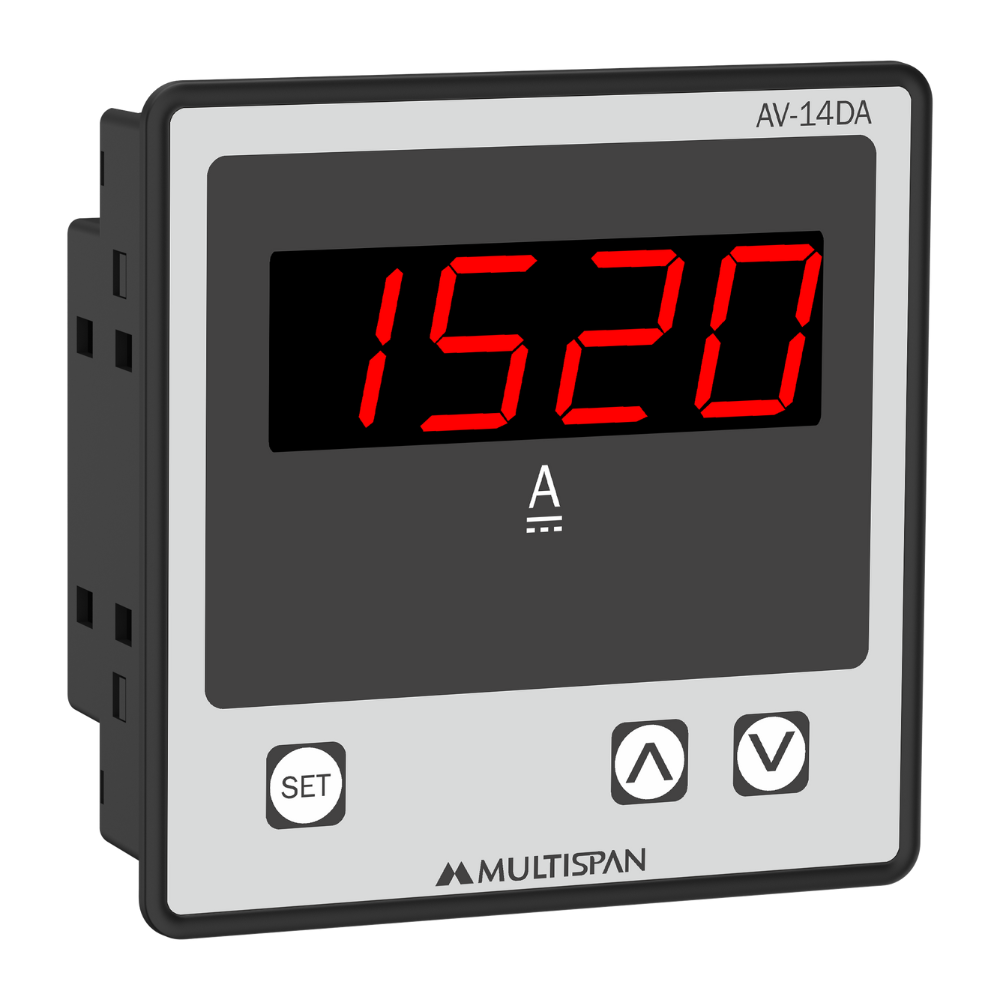

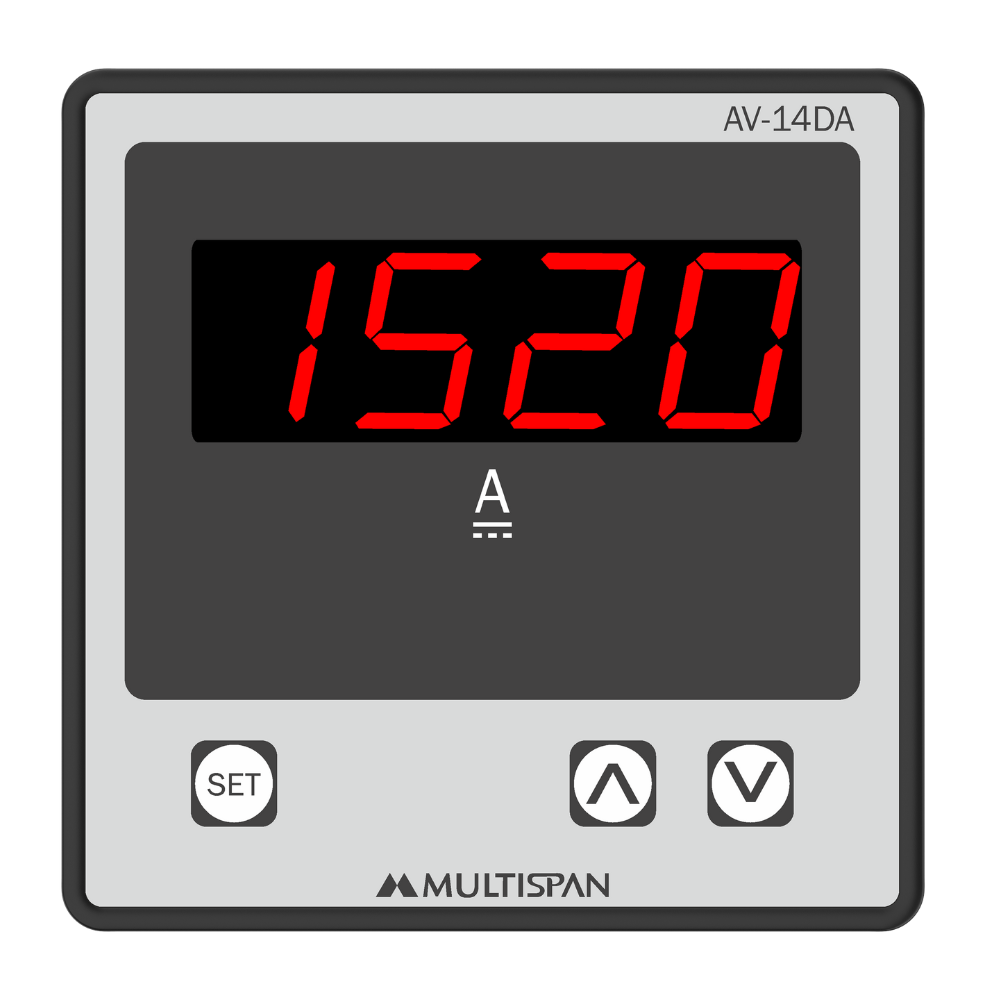

DC Ampere Meter
Product: AV-14DA
- Shunt Primary :-999A DC to 9999A DC
- Shunt Secondary : -75mV DC to 75mV DC
- Size: (H)96mm x (W)96mm x (D)43mm
- Supply 100-270V AC/DC, 50/60 Hz
Top Variants:
| Parameter | Value |
|---|---|
| Model | AV 14DA |
| Display | 4-Digit, Single Display |
| Size (mm) | 96 (H) x 96 (W) x 43 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| Input | -75mV DC to +75mV DC |
| Current Range | -999 to 9999 Ampere |
| Power Supply | 100 to 270V AC/DC, 50/60 Hz, Approx 2VA |
| Protection Level | IP-65 (Front side) |
| Compliance | AS per IS/IEC 60529:2001 |
| Operating Temperature Range | 0°C to 55°C |
| Relative Humidity | Upto 95% RH Non-Condensing |
- Electrical Control Panel
- Power Distribution
- Instrumentation Panel
- Transformer training
Product Variant
| Model | Size(H X W X D)mm | Current | Auxillary |
| AV-14DA-E3-00 | 96 X 96 X 54 | Shunt Primary :-999A DC to 9999A DC Shunt Secondary : -75mV DC to 75mV DC |
100 to 270V AC/DC |
| AV-24DA-E3-00 | 72 X 72 X 36 | ||
| AV-34DA-E3-00 | 48 X 96 X 26 | ||
| AV-41DA-A2-00 | 48 X 48 X 70 | Shunt Primary : 0-75mV DC Shunt Secondary : 0 to 999A DC |
100 to 270V AC |
