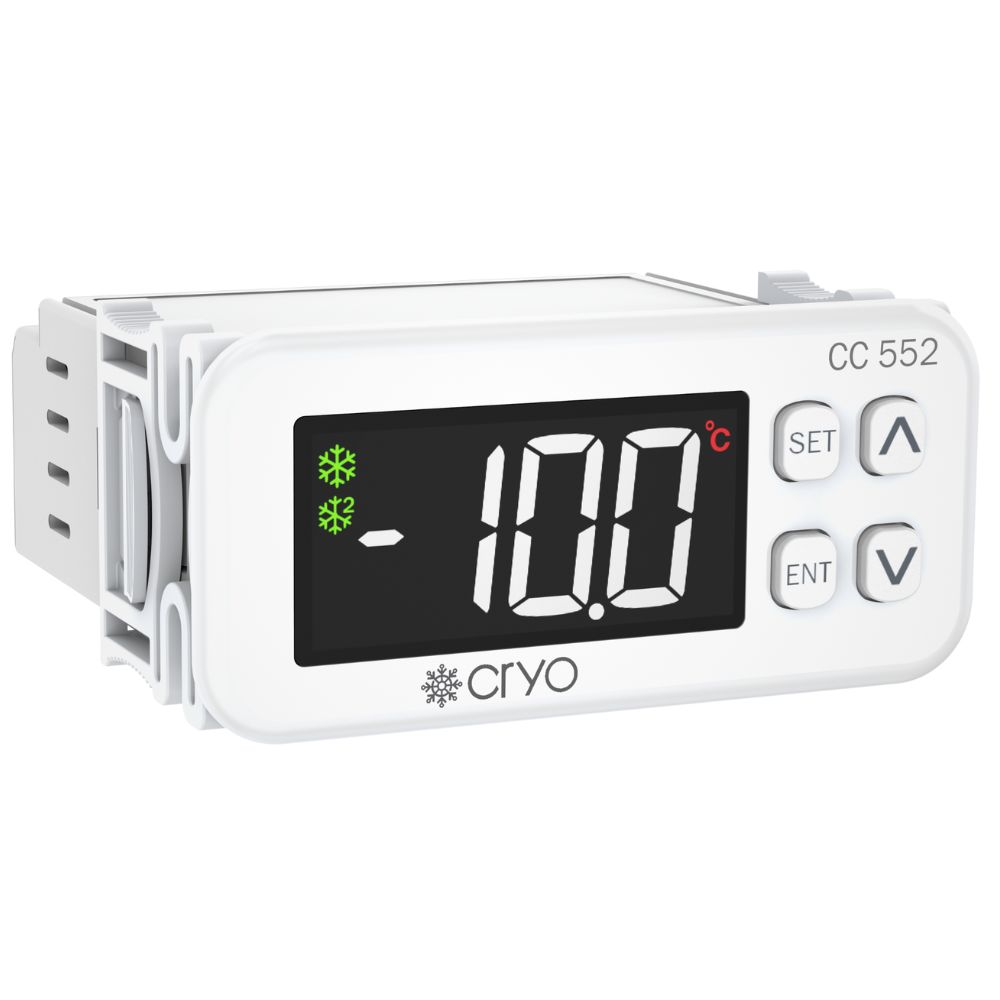

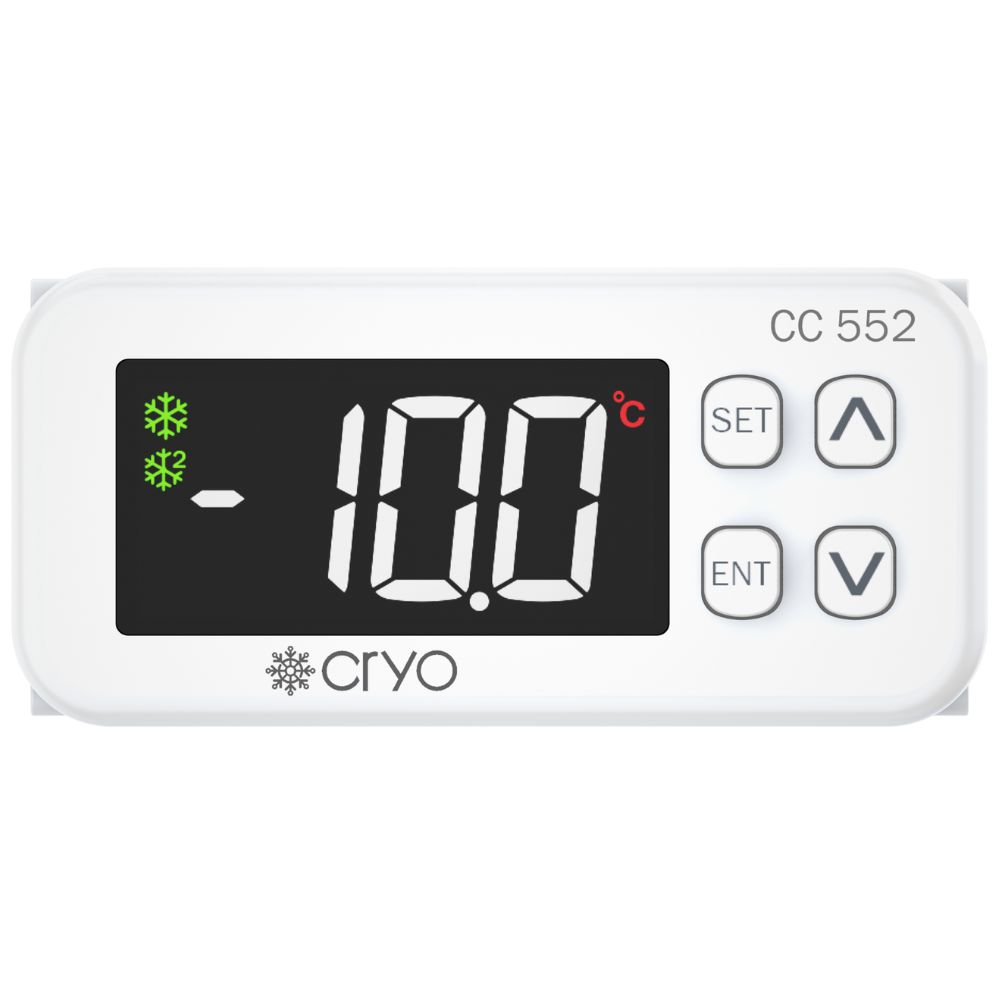

CRYO – Dual Compressor Output
Product: CC-552
- Single NTC input
- 2X10A Relay Output for Compressor with 2 individual set points & time delays
- 3 Digit White/Red Display With 0.1 Resolution
- Prevent compressor overloading with cyclic operation of compressor
- Available in touch/keypad module With Black & White color plastic Enclosure
- Size : 37x78x70(HxWxD)mm
- Supply : 230V AC/24VDC/12V DC
| Model | CC-552 |
| Display | 3 Digit 0.62” 7 Segment RED / WHITE Display |
| Size (mm) | 37 (H) x 78 (W) x 70 (D) mm |
| Panel Cutout | 30(H) X 71(W) mm |
| Input | NTC Thermistor |
| Output |
2 Relay, 1 C/O(NO-C-NC) 1st Relay For Compressor } 10A ( Resistive load ) 2nd Relay For Compressor } 10A ( Resistive load ) |
| Range | -50.0°C To 99.9°C |
| Power Supply | 230V AC,50/60Hz,Approx 3VA |
| Operating Temperature | 0°C To 55°C |
| Relative Humidity | Upto 95% RH Non Condensing |
Product Variant
| sr.no | Model Number | Output 1 | Output 2 | Keypad | Display Color | Body color |
| 1 | CC-552-B1-01-W | 10A Relay | 10A Relay | Key | White | White |
| 2 | CC-552-B1-01-W-BL | 10A Relay | 10A Relay | Key | White | Black |
| 3 | CC-552T-B1-01-W | 10A Relay | 10A Relay | Touch | White | White |
| 4 | CC-552T-B1-01-W-BL | 10A Relay | 10A Relay | Touch | White | Black |
