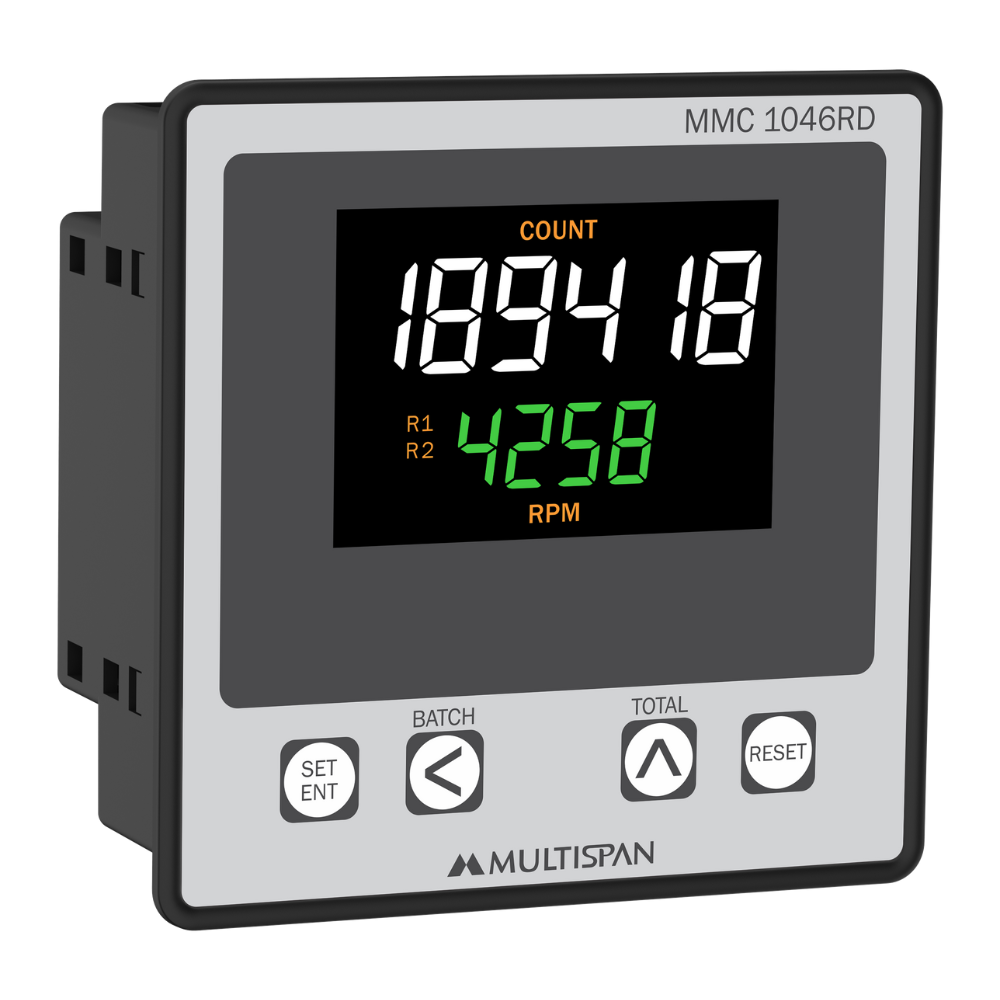

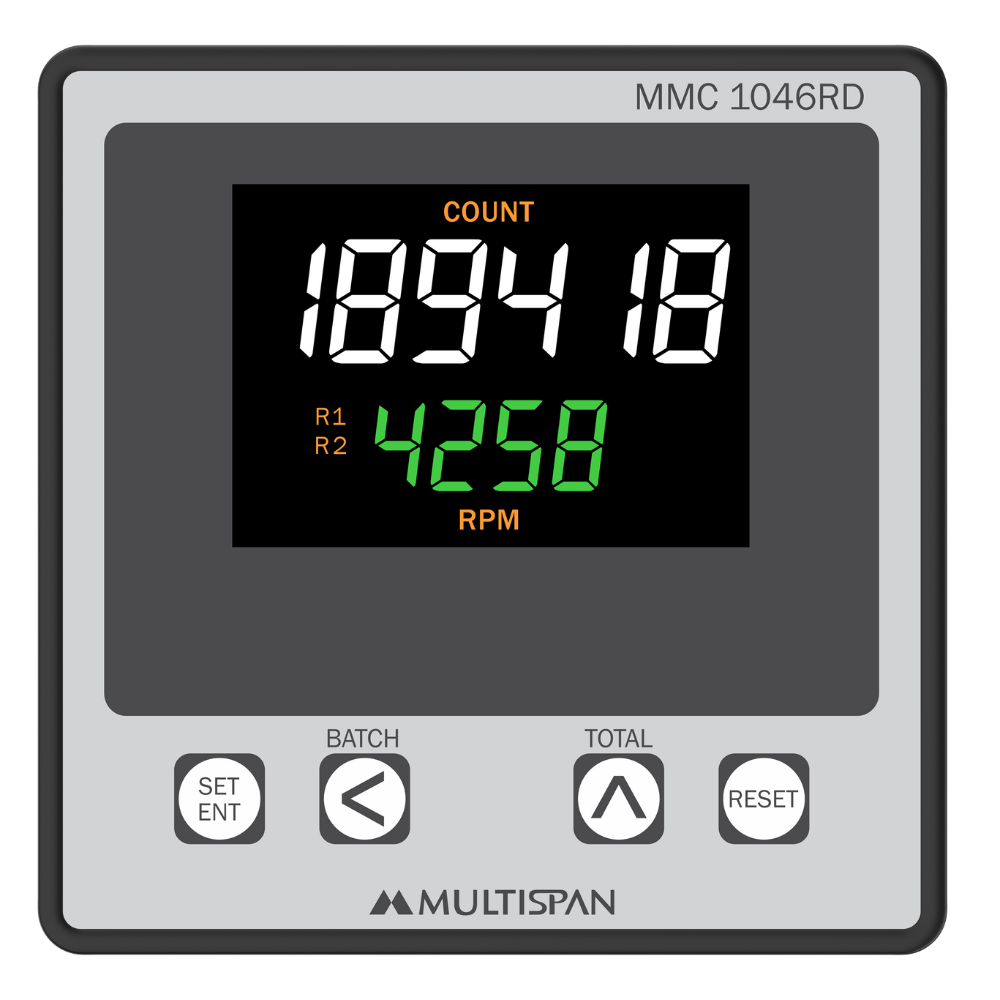

MMC-1046RD Counter RPM - product regular image MMC-1046RD Counter RPM - product front image MMC-1046RD Counter RPM - product side image

Counter + RPM

Product: MMC-1046RD

  • PNP/NPN Proximity Input
  • 1 Relay 1C/O Output on Count Totalizer
  • Individual Display for Total Count & RPM
  • Auto/Manual Reset
  • Size: (H)96mm x (W)96mm x (D)43mm
  • Supply Voltage: 230V AC

Top Variants:

Model MMC-1046RD
Display

UPPER:- 6 Digit 7 seg 0.56”, White LED Display
LOWER:- 4 Digit 7 seg 0.4”, Green LED Display

Size (mm) 96  (H) X 96 (W) X 43 (D)
Panel Cutout (mm) 92 (H) X 92 (W)
Range Counter : 0 - 999999, RPM : 4 - 5000
Output 1-Relay, 1-C/O,230V AC,5A
Power Supply 230V AC, 50 Hz, Approx 4VA
Sensor Proximity PNP/NPN (Selectable) & Micro Switch
Memory Nonvolatile
Reset Reset at Both Front & Back

Protection Level (As per request)

IP-65(Front side) AS per IS/IEC 60529:2001

Operating Temperature

0°C To 55°C

Relative Humidity

Upto 95% RH Non Condensing

  • Dust Collector
  • Bag Filteration
  • Hydrophonic
  • Pharmaceutical
  • Food Processing
