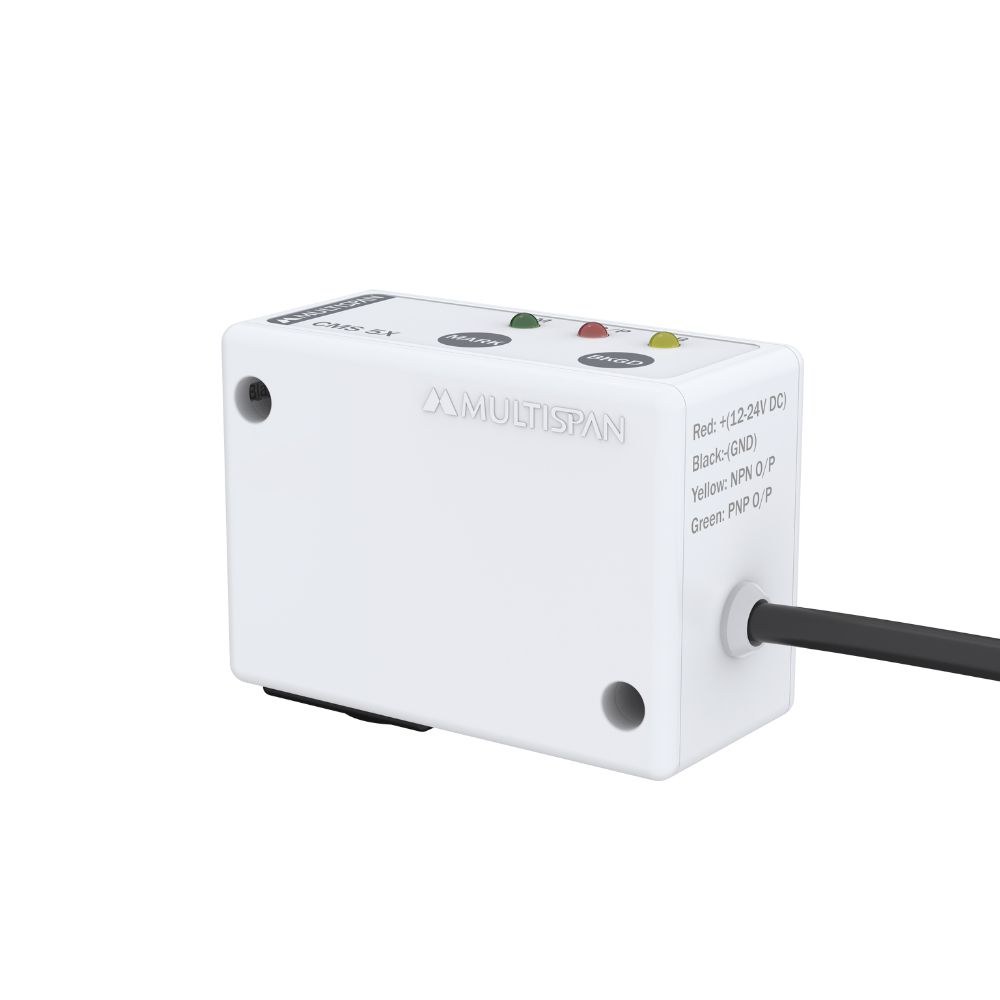

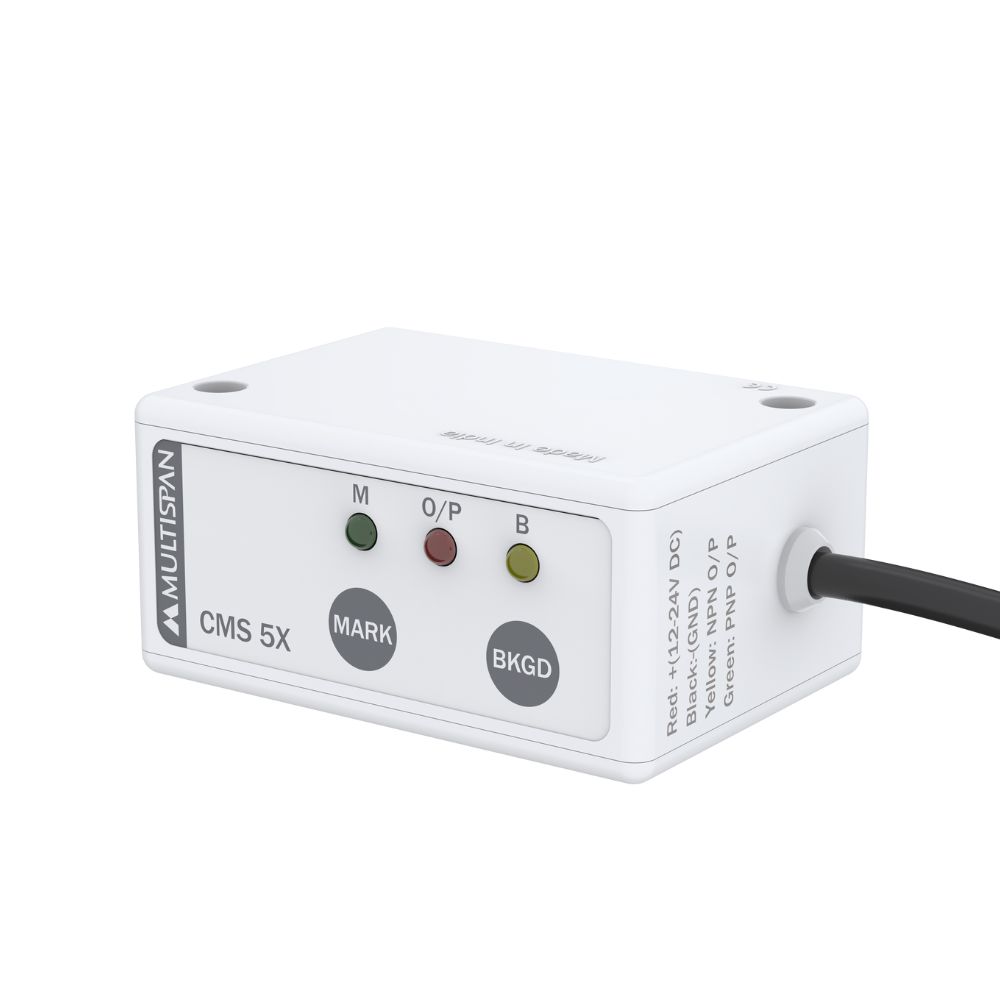

CMS-5X - color mark sensor - product image CMS-5X - color mark sensor - product image CMS-5X - color mark sensor - product image

Color mark sensor

Product: CMS-5X

  • Multicolor sensing
  • Ultrafast & Accurate Response
  • Compact & Sleek Design
  • NPN/PNP Output Selectable
  • Operating Distance: 10-15mm
  • Power Supply : 12-24V DC

Model CMS 5X
Power Supply 12 - 24V DC
Current Consumption 35 mA max.@ 24 V DC
Output NPN/PNP Output
Output Current 25 mA max
Response Time 2 Millisecond
Indications LED 1 : Mark LED(Green)
LED 2 : Output LED(Red)
LED 3 : Background LED (Yellow)
Push Buttons Button 1 : Mark Button
Button 2 : Background Button
Min. Mark Output Delay 20 ms
Operating Temp. -10 to 50 C
Storage Temp. -20 to 70 C
Operating Distance 10 to 15 mm
Minimum Spot Diameter 5 mm
Emission type RED (630 nm)
GREEN (520 nm)
BLUE (465 nm)
Ambient Light Rejection Yes
Vibration 0.5 mm amplitude,
10 to 55 Hz Frequency
Housing Material ABS
Lens Material Glass
Connection Shielded 4 Wire Cable

  • Printing Machinery
  • Packaging Machinery
  • Food & Beverage
  • Pharmaceutical Applications
