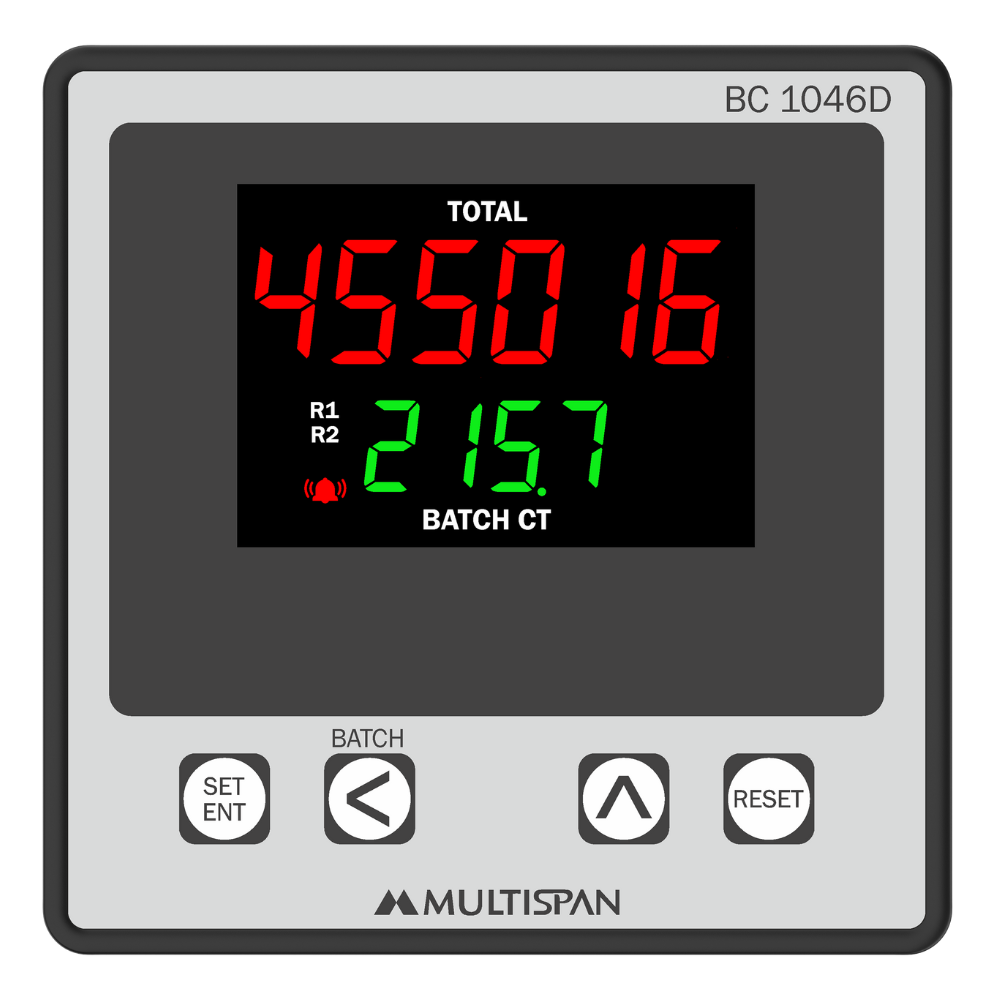

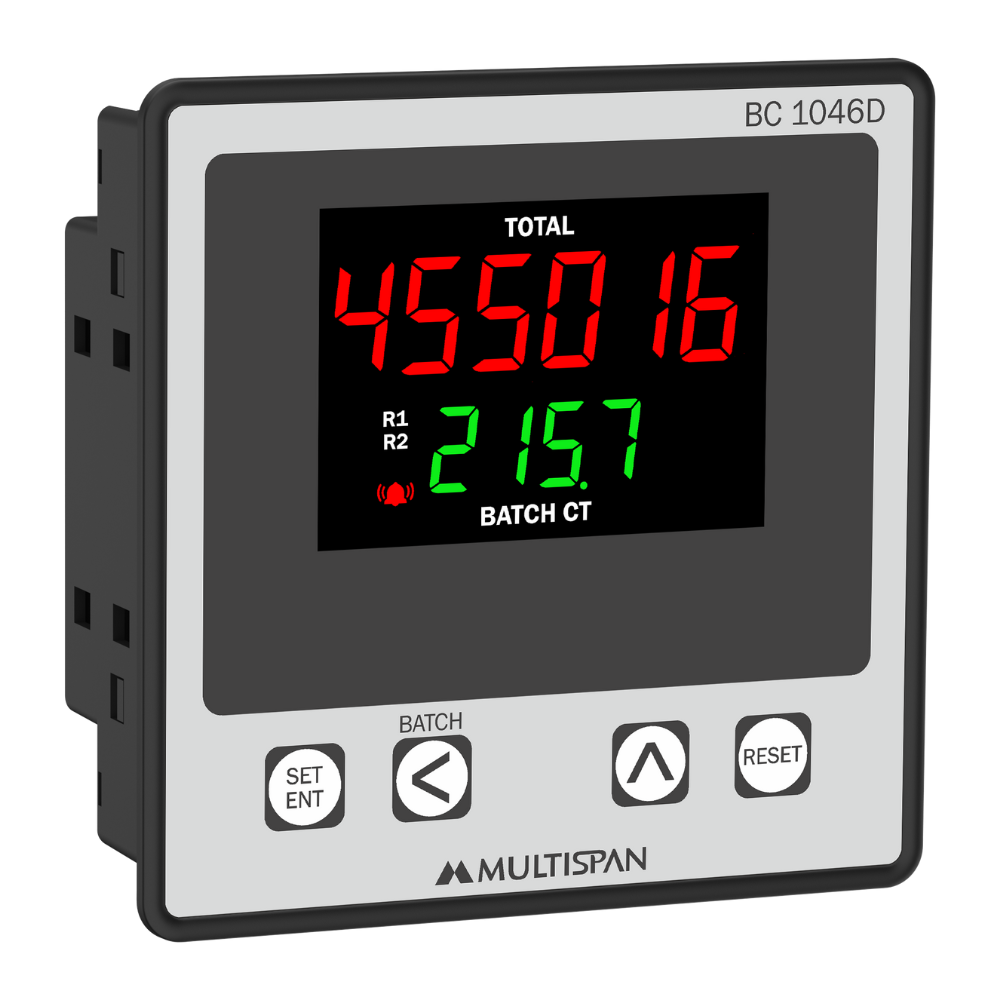

BC-1046D- Batch Counter - product image BC-1046D- Batch Counter - product image BC-1046D- Batch Counter - product image

Batch Counter

Product: BC-1046D

  • Proximity or Micro Switch Input
  • Upto 2-Relay Output
  • 6-Digit Total Count, 4-Digit Batch Count
  • Auto/Manual Reset
  • Size: (H)96mm x (W)96mm x (W)54mm
  • Supply Voltage: 230V AC

Model BC-1046D
Display UPPER: 6-Digit, 7-Seg 0.56", red LED Display
LOWER: 4-Digit, 7-Seg 0.4", green LED Display
Size (mm) 96 (H) X 96 (W) X 43 (D)
Panel Cutout (mm) 92 (H) X 92 (w)
Output 1-Relay, 1-C/O, 230V AC, 5A & Buzzer
Power Supply 230V AC, 50 Hz, Approx 4VA
Sensor Proximity PNP/NPN (Selectable) & Micro Switch
Memory Nonvolatile
Protection Level (As per request) IP-65 (Front side) As per IS/IEC 60529:2001
Operating Temperature 0°C To 55°C
Relative Humidity Upto 95% RH Non Condensing

  • Pharmaceutical Machinery
  • Product Counting Machinery
  • Packaging Machinery
