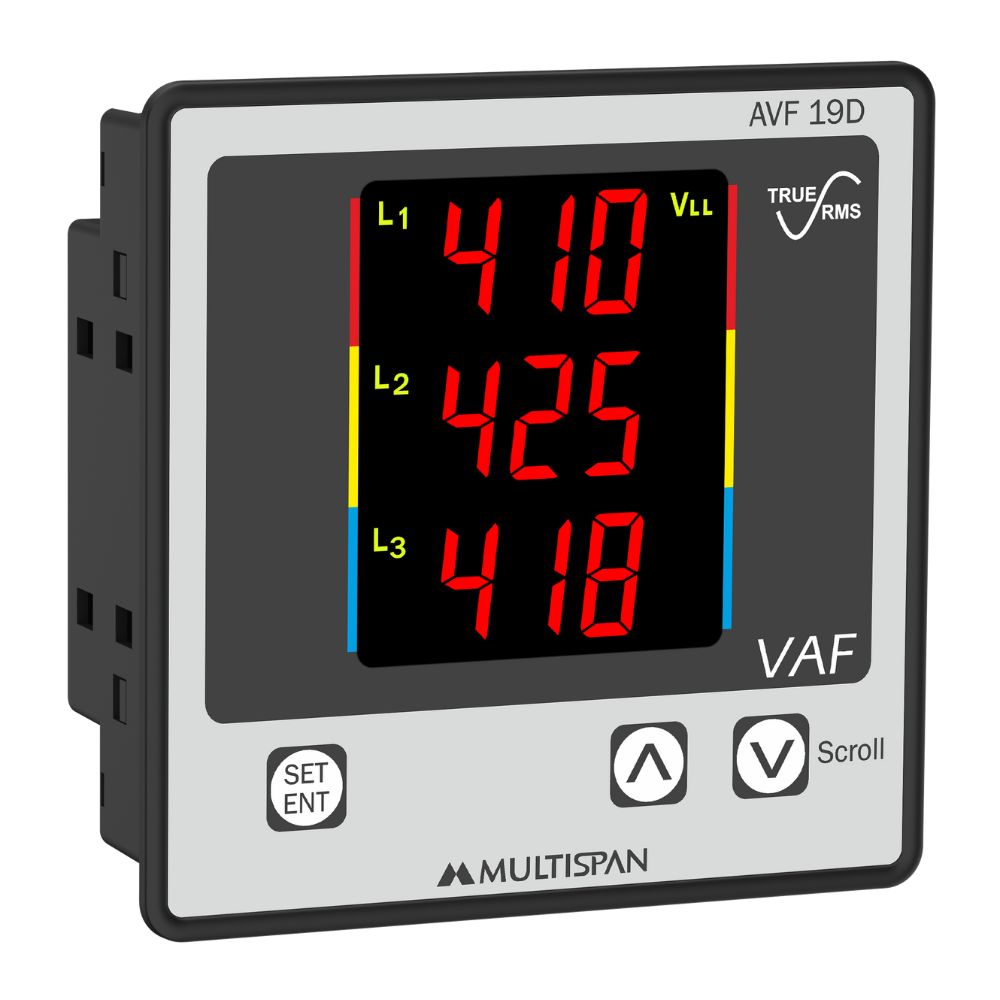

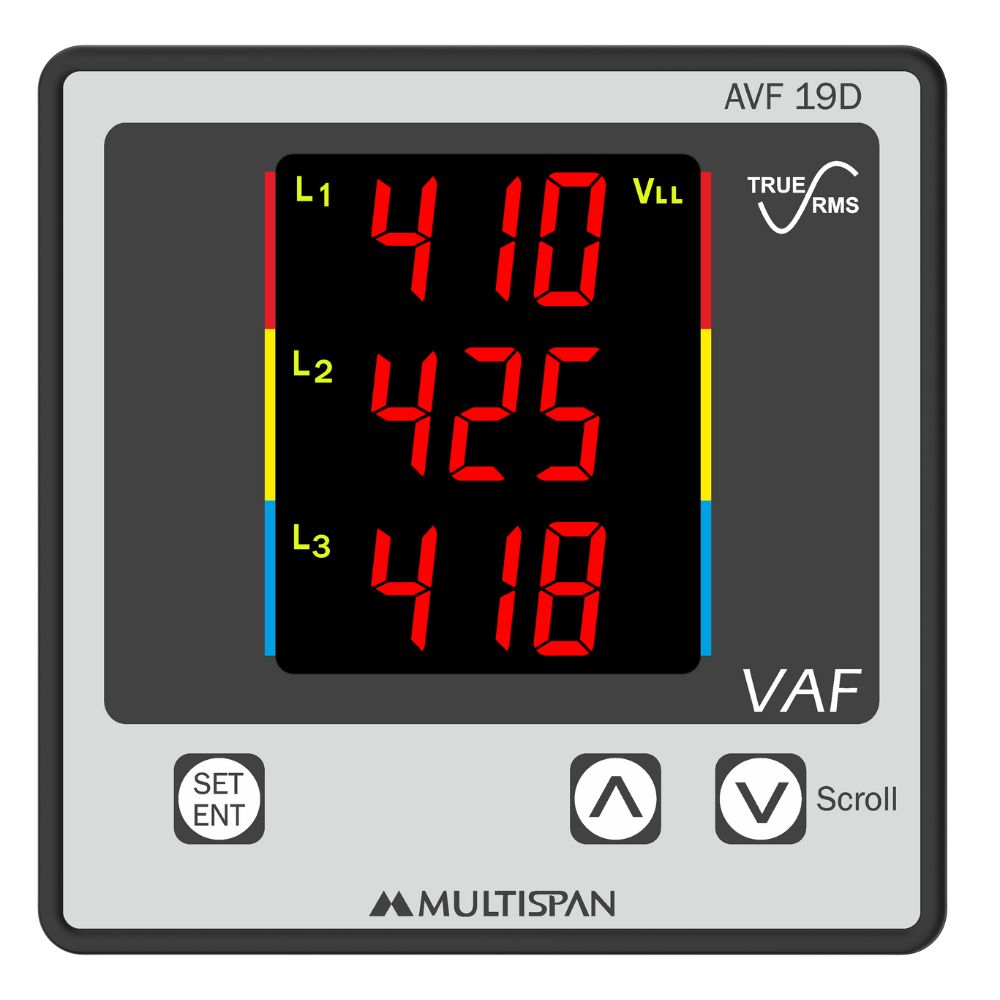

AVF Meter - 3 Line Display
Product: AVF-19D
- 3Ø -3W/4W, 1Ø-2W Selectable
- 3-Digit, 3-Line, 7-Seg, 0.59” RED LED
- Primary CT Selectable upto 9999A
- Secondary CT 5A
- 50-520V AC (L-L), 30-300V AC (L-N)
- Size: (H)96mm X (W)96mm X (D)43mm
- Supply Voltage: 230V AC,50Hz ± 20%
Top Variants:
| INPUT | |
| Voltage AC | |
| Direct voltage AC | 30 to 300V (L - N) 50 to 520V (L - L) |
| Burden | < 0.2 VA |
| Current AC | |
| Primary CT Ratio | Upto 9999A Selectable |
| Secondary Current Ac | 0.1 To 5 Amp |
| Burden | < 0.2 VA |
| Overload | Upto 6A Continuous |
| Frequency | 45.0 to 65.0 Hz |
| DISPLAY, KEY & LED | |
| Display | 3-Digit, 3-Line, 7-Segment, 0.59” RED LED |
| Key | Set/Ent, Inc, Dec/Scroll |
| LED Indication | A, KA, VLL, VLN, Avg, HZ, L1, L2, L 3 |
| DIMENSION | |
| Size (mm) | 96 (H) x 96 (W) x 43 (D) |
| Panel Cutout (mm) | 92 (H) x 92 (W) |
| CALCULATED PARAMETERS | |
| Voltage | VLL, VLN, Avg |
| Current | All Phase Ampere, Avg. Ampere |
| Frequency | System Frequency |
| Load hour | Upto 9999 Hr 59 min |
| ACCURACY | |
| Class 0.5 (Standard) | |
| AUXILIARY POWER SUPPLYv | |
| Power Supply | 230V AC, 50Hz ± 20% |
| Burden | 3VA |
| ENVIRONMENTAL CONDITION | |
| Working Temperature | 0 to 55°C |
| Storage Temperature | 0 to 55°C |
| Relative Humidity | Upto 95% RH Non-Condensing |
| Protection Level ( As per Request ) |
IP-65 (Front side As per IS/IEC 60529 : 2001) |
- Control & Relay Panel
- Energy Management System
- DG Set Panels
- LT / HT Panel
- Power Control Center Panels
- Motor Control Center Panels
Product Variant
| Model | Voltage | Current | Auxillary |
| AVF-19D-B1-N1 | Network Selection :3Ø3W/4W, 1Ø2W Voltage Input: 50-520V AC (P-P) 30-300V AC (P-N) |
CT Primary :Upto 9999A CT Secondary : 5A |
230V AC |
| AVF-19D-B1-N3 | CT Input: 30A with DIN 30AX CT | ||
| AVF-19D-B1-N6 | CT Input: 60A with DIN 60AX CT | ||
| AVF-19D-B1-N8 | CT Input: 125A with DIN 125AX CT |
