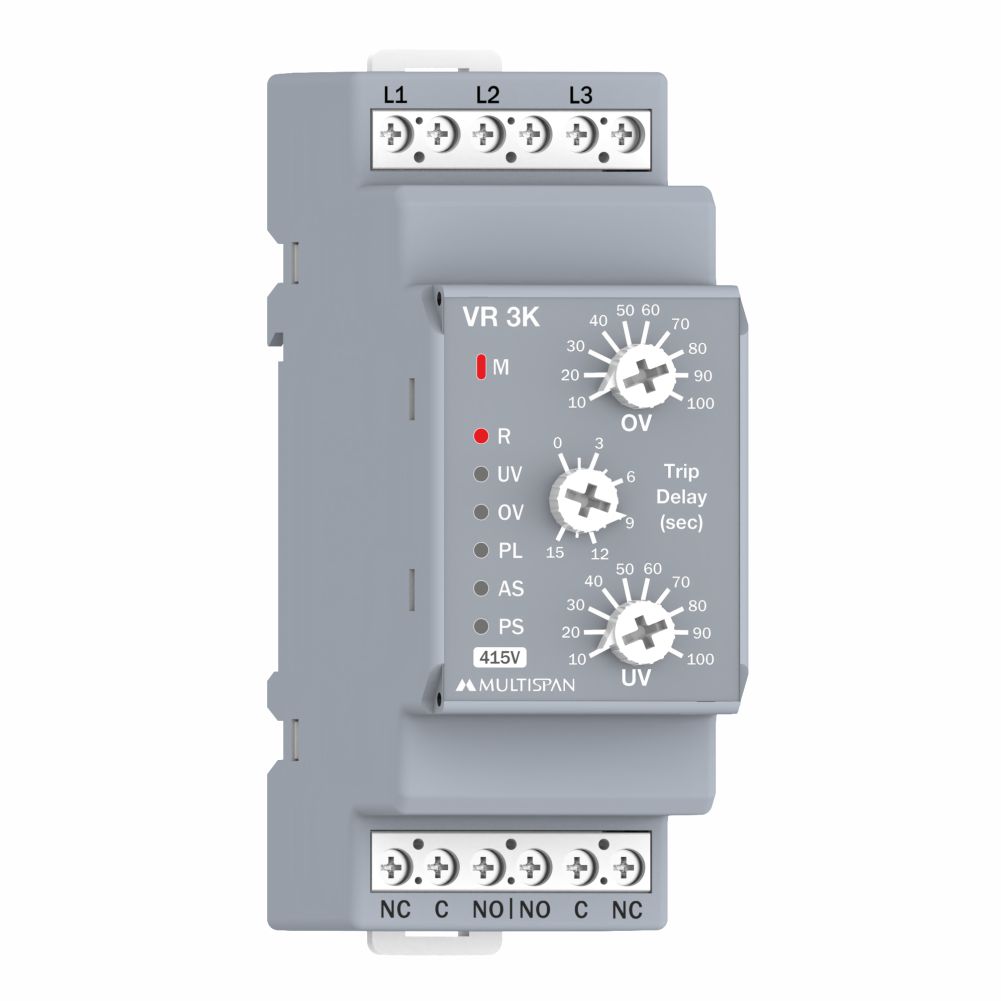

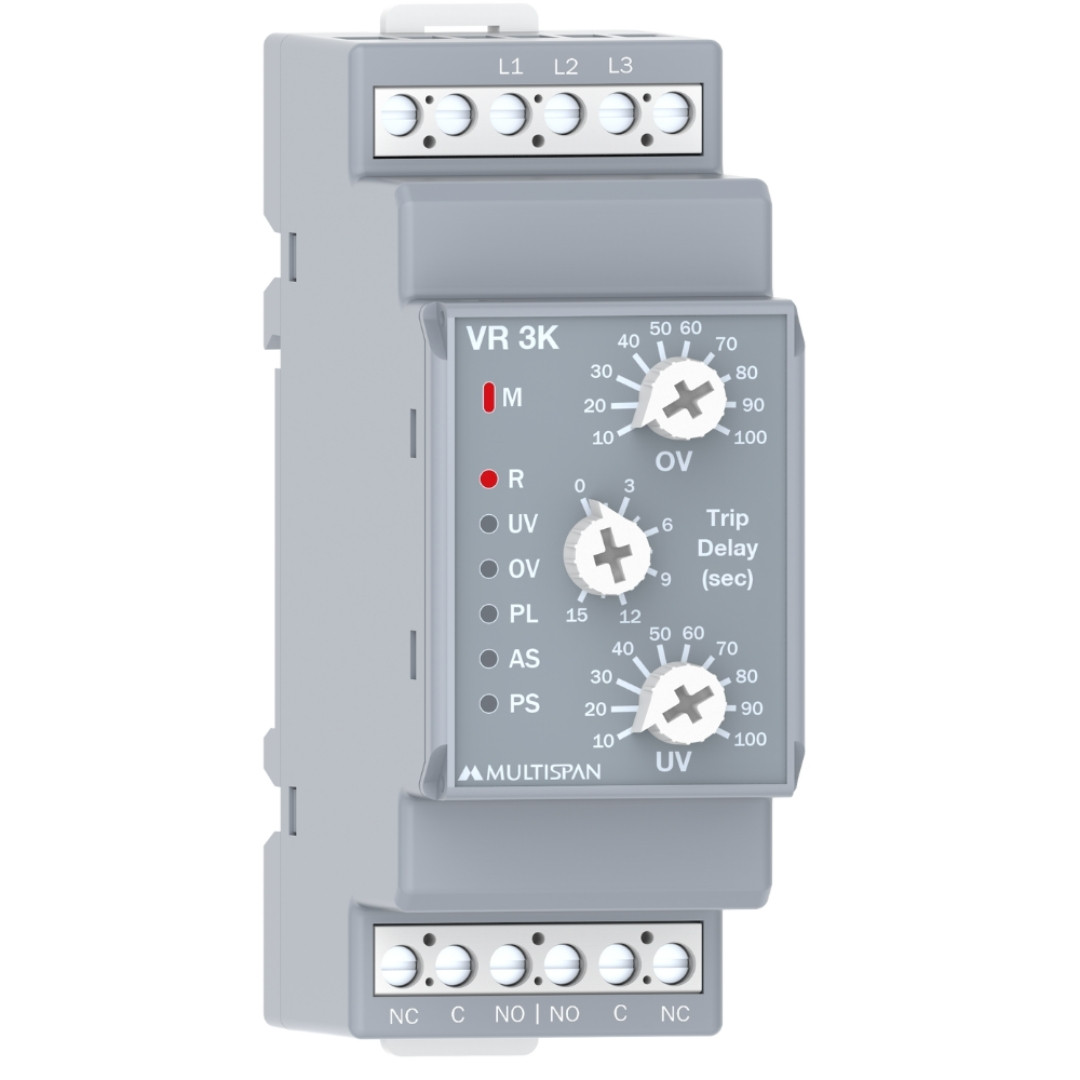

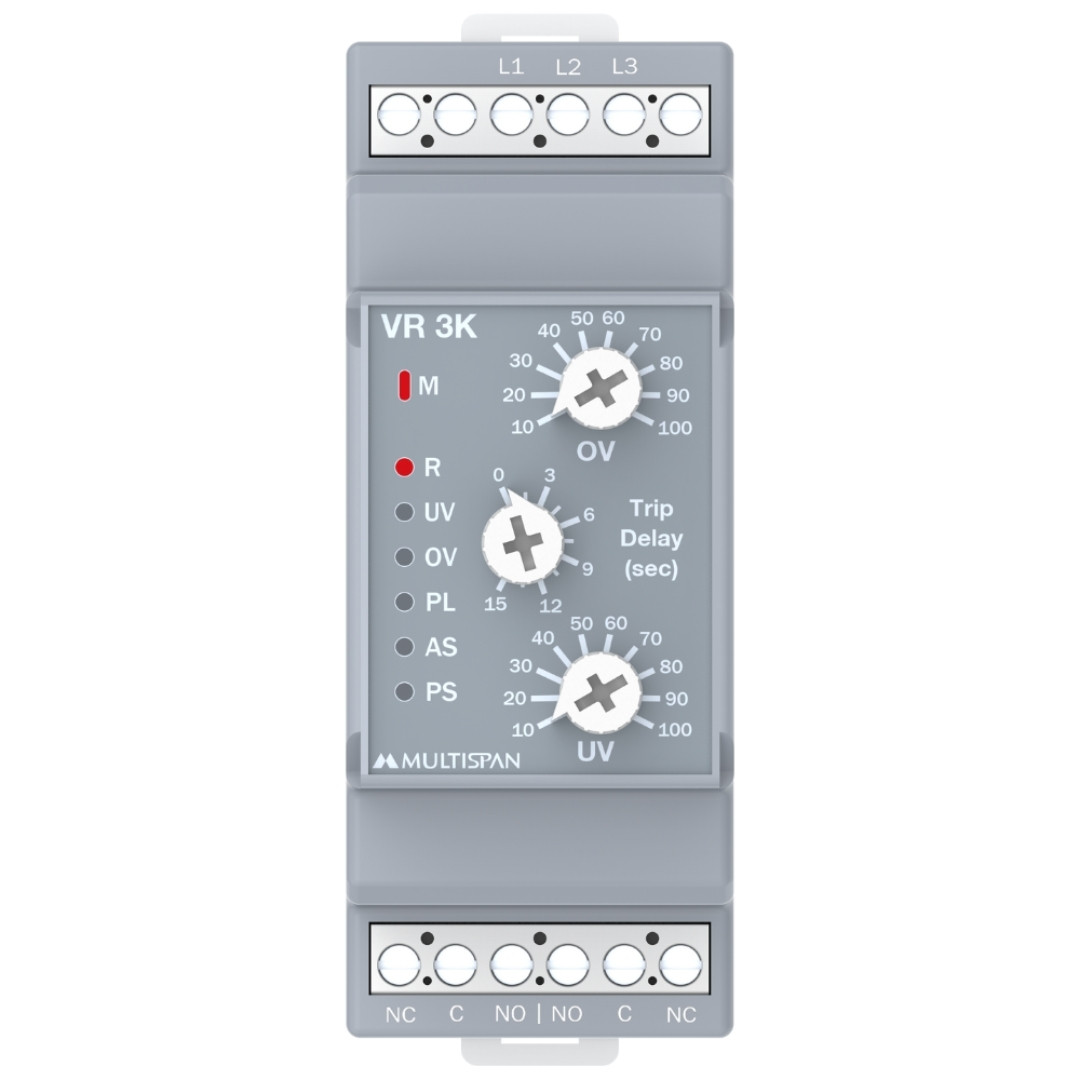

VR-3K Analog Voltage Protection Relay - Product image VR-3K Analog Voltage Protection Relay - Product image VR-3K Analog Voltage Protection Relay - Product image

Analog Voltage Protection Relay - Din Rail Mount

Product: VR-3K

  • Selection of Under- Over Voltage and Trip Delay by Knob
  • 1-Relay, 2-C/O, 5A,230V AC
  • Size: (H)90mm X (W)35mm X (D)62.5mm
  • Self-Powered

Parameter Specification
Power Supply Self Power
Input Voltage 280 to 520V AC (L-L) 3Ø -3W
Rated Voltage 415V AC (L-L)
Output 1-Relay, 1-C/O, 5A 230V AC Resistive Load
Tripping Parameters Under Voltage
Over Voltage
Phase Asymmetry
Phase Sequence
Phase Loss
Reset Mode Auto

  • DG Set Panels
  • Motor Control Center Panels
  • Control Panels
  • Distribution Panels
  • Process Control

Product Variant

Part Code Size(mm) Network Input Output Supply
VR-3K-00 90 x 35 x 62.5 3Ø-3W 280V AC to 520V AC 1-Relay, 2-C/O Self Powered
VR-3KN-00 90 x 35 x 62.5 3Ø-4W 160V AC to 300V AC 1-Relay, 2-C/O Self Powered
