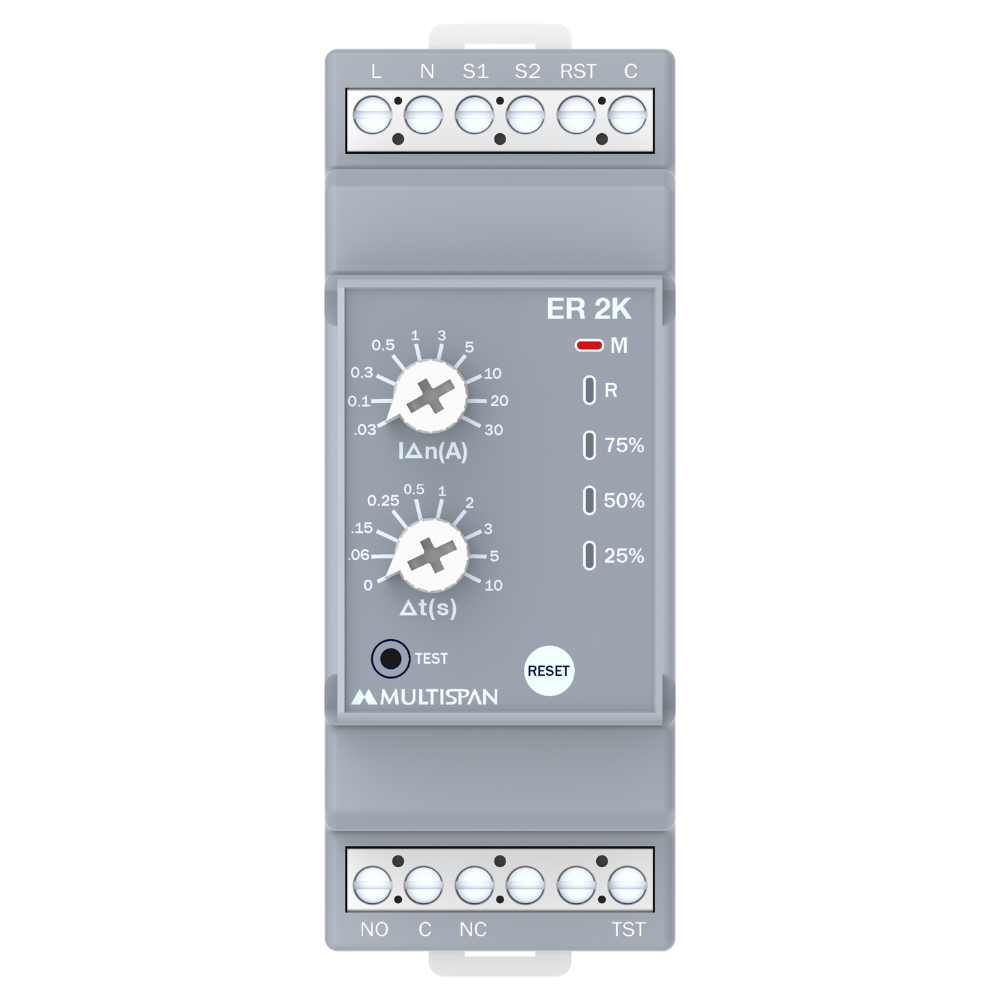

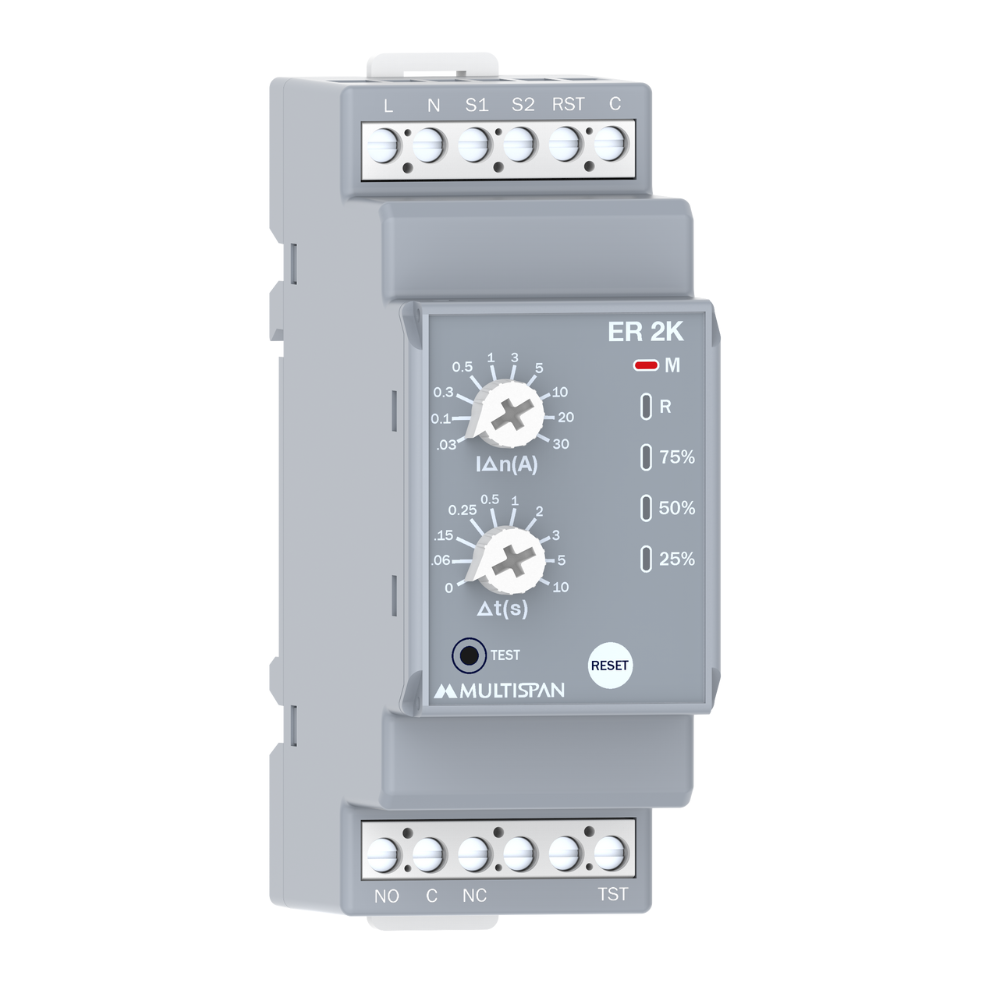

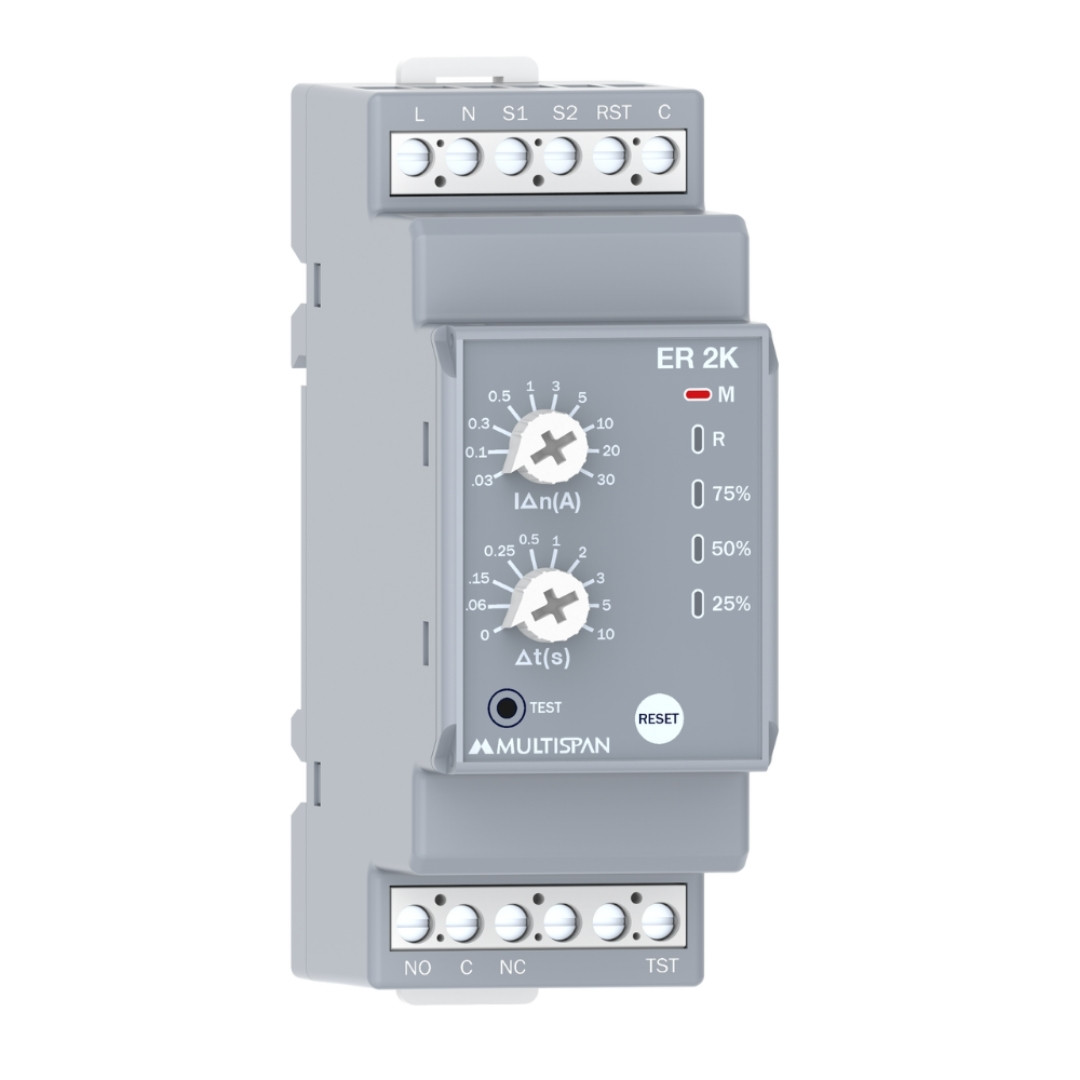

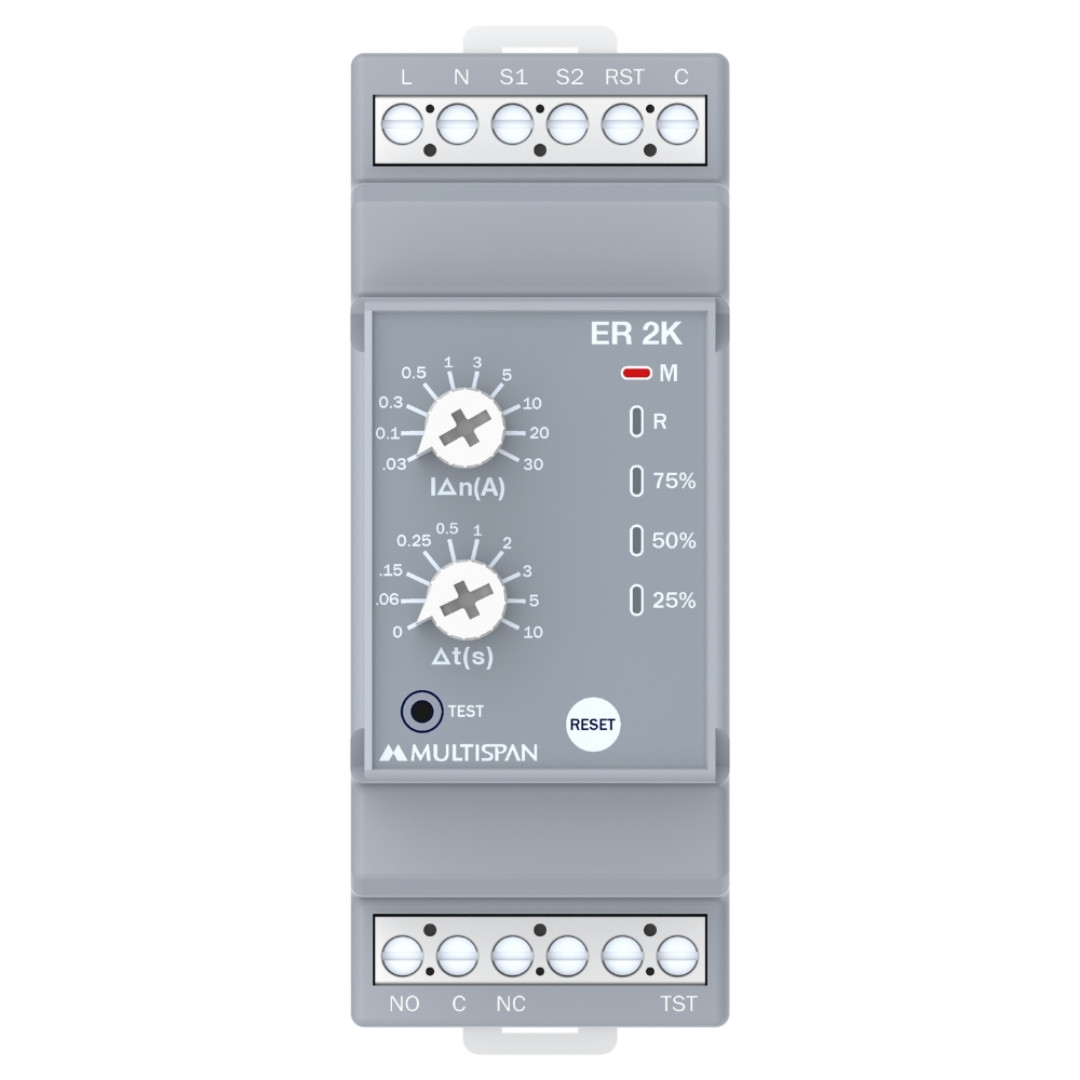

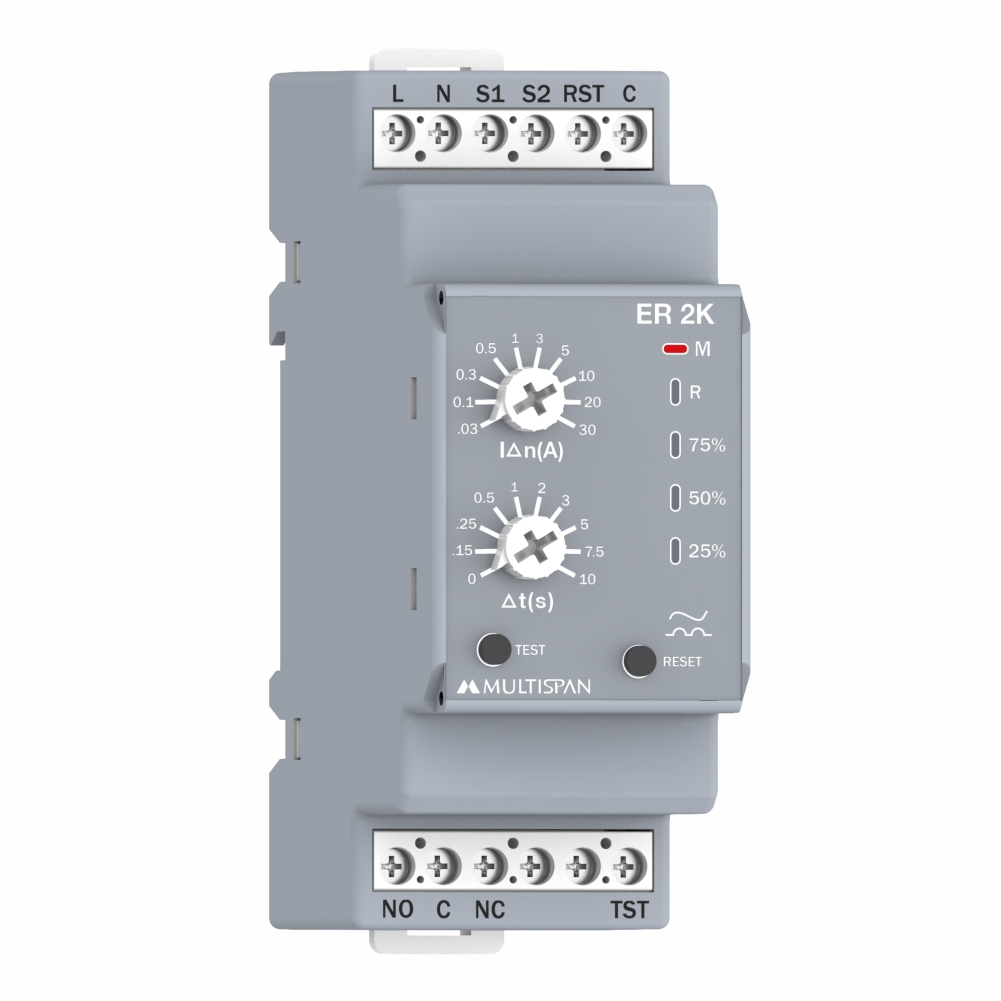

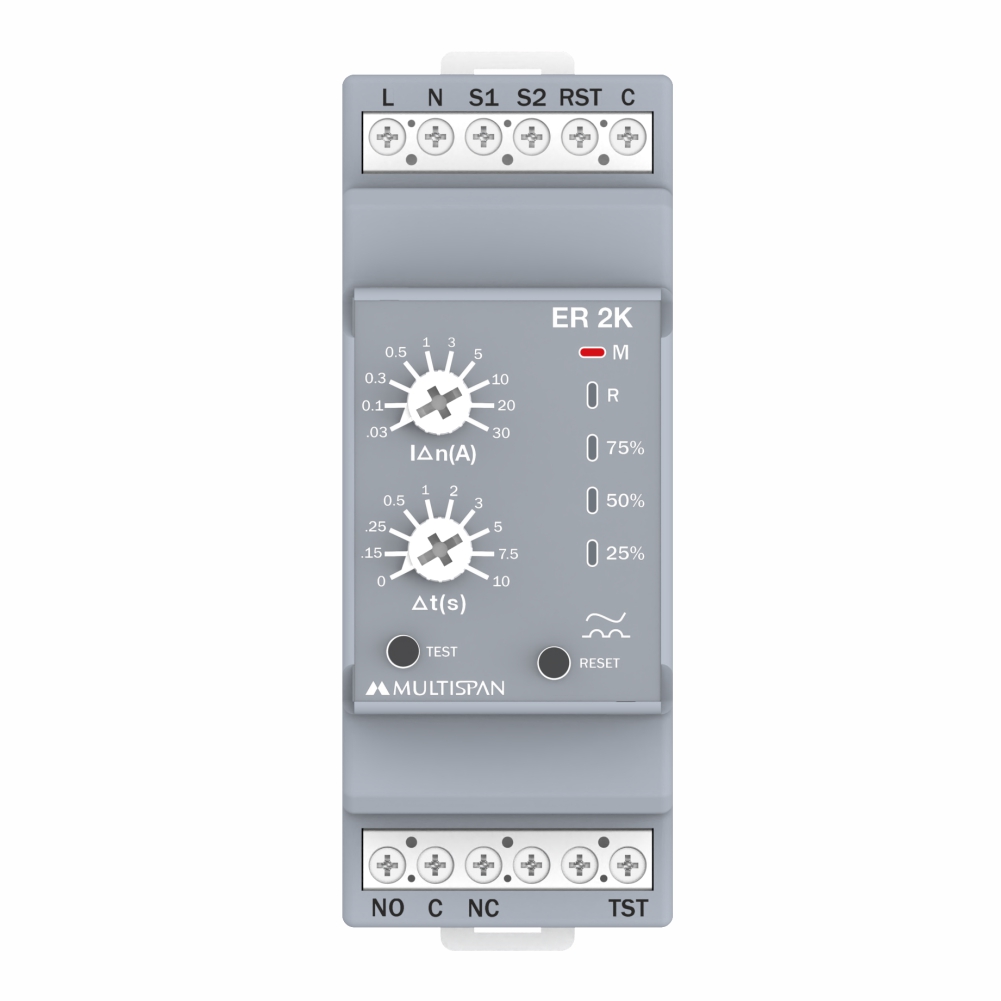

ER-2K Analog Set by Knob - product image ER-2K Analog Set by Knob - product image ER-2K Analog Set by Knob - product image

Analog Din Rail Earth Leakage Relay

Product: ER-2K

  • Range: 30mA to 30A AC
  • Programmable Set and Trip Delay by Knob
  • 1-Relay 1-C/O,5A,230V AC
  • With Front Key and Terminal Reset and Test Function
  • Size: (H)90mm X (W)35mm X (D)61.5mm
  • Supply Voltage: 100-270V AC

INPUT SPECIFICATION :
Input Current 30mA To 30A AC From CBCT
Set Currant Range 0.03A To 30Amp
Trip Delay Time 0 to 10 Second
KEYS :
Keys Test, Rst
OUTPUT SPECIFICATION
Relay 1 Nos.
Relay Type NO - C - NC
Rating 5A,230V AC Resistive Load
AUXILIARY SUPPLY :
Supply Voltage 100 To 270 V AC
Power Consumption (VA Rating) 2VA @ 230 VAC MAX
ENVIRONMENT CONDITION
Operating Temp. 0 - 55°C
Relative Humidity 95% RH
