UTC-1202G PID Controller with 2 Outputs

LOADING IMAGES

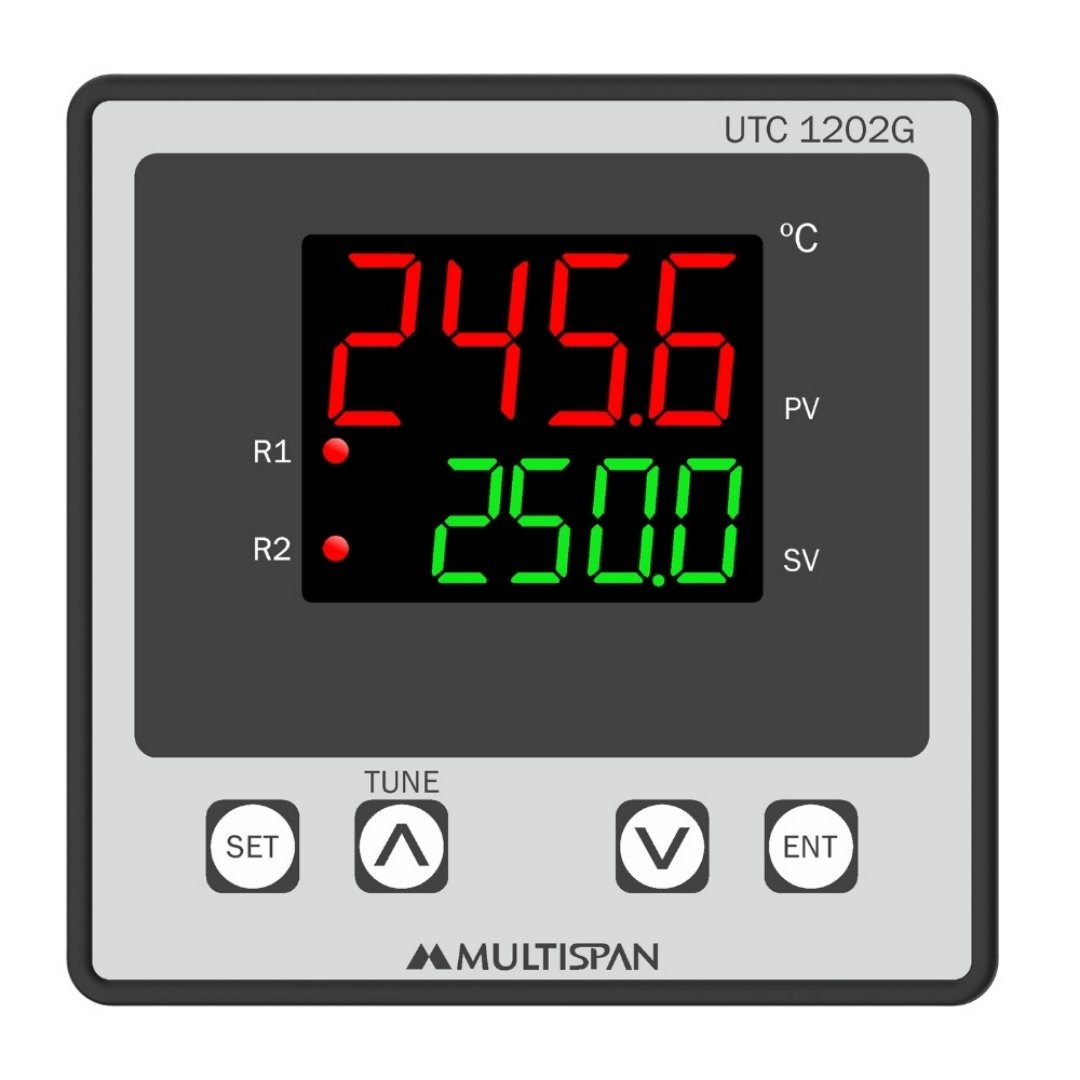

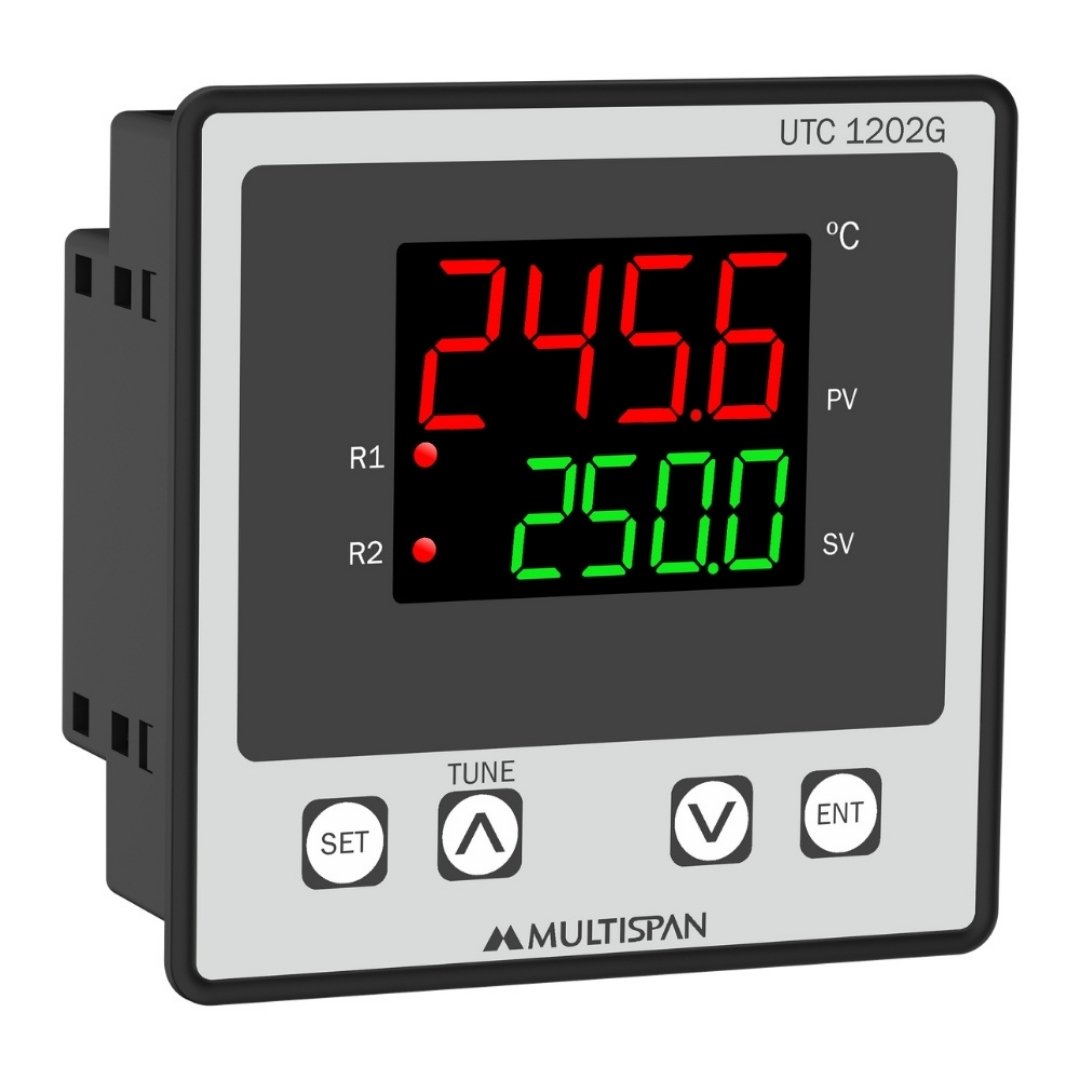

UTC-1202G PID Controller - Dual Output Model - product image

Enquiry

4 Digit Dual Display Dual Output Accurate PID Controller

Product: UTC-1202G

Universal Input (J/K/RTD)
4-Digit Dual Red/White LED Display
Accurate PID controller
Dual Output (Relay || SSR) + (Relay or SSR) for Load Control & Alarm Functions
With Soak Timer Facility
Size: (H)96mm x (W)96mm x (D)54mm
Supply Voltage: 100-270V AC

Product Variant

INPUT SPECIFICATION:
Input Types	Input	Range
	J	0 to 600°C
	K	0 to 1200°C
	PT-100	-99 to 400°C
	PT.1	-99.9 to 400.0°C
Resolution	J,K,PT-100 = 1°C
	J.1,K.1,PT.1 = 0.1°C
Indication Accuracy	±0.5% of FSD
DISPLAY AND KEYS:
Display	Upper: 4-Digit, 7-Segment, 0.70”
	Lower: 4-Digit, 7-Segment, 0.50”
Keys	SET, INC, DEC, ENT
DIMENSION:
Size (mm)	96 (H) x 96 (W) x 54 (D)
Panel Cutout (mm)	92 (H) x 92 (W)
CONTROL METHOD:
Heating	1. PID control with Auto-Tuning
	2. (TP) Time Proportional
	3. ON-OFF control
Cooling	1. BL.TP (Blower Time Proportional)
	2. ON-OFF control
Alarm	High /Low /Absolute Low/ Inband/
	Absolute Outband/Outband/End Alarm
POWER SUPPLY
Supply voltage	100 to 270V AC, 50-60Hz
Power consumption (VA RATING)	Approx 4VA @ 230V AC MAX
OUTPUT SPECIFICATION :
Relay Output
Relay	2 nos.
Relay Type	1 C/O , (NO-C-NC)
Rating	10A, 230V AC / 28 V DC
SSR Drive Output
Output Signal	12V DC, 30mA DC
	(ON-OFF Condition)
Relay 1 Parallel to SSR
ENVIRONMENT CONDITION:
Operating Temp.	0°C to 55°C
Relative Humidity	Upto 95% RH
	(non-condensing)
Protection Level (As per request)	IP-65 (Front side) As per IS/IEC 60529 : 2001

Packaging Machinery
Extrusion Machinery
Furnace & Boilers
Ovens & Incubators
Food Industry

Product Variant

Sr.no	Model No	Input	Output	Aux Supply	Display	Size
1	UTC-1202G-RG-A2-00	J/K/Pt-100 (Selectable)	Relay \|\| SSR + Relay	100-270V AC	Red + Green	96x96x54(HxWxD)mm
2	UTC-1202G-RG-A2-01	J/K/Pt-100 (Selectable)	Relay \|\| SSR + SSR	100-270V AC	Red + Green	96x96x54(HxWxD)mm
3	UTC-1202G-WG-A2-00	J/K/Pt-100 (Selectable)	Relay \|\| SSR + Relay	100-270V AC	White + Green	96x96x54(HxWxD)mm
4	UTC-1202G-WG-A2-01	J/K/Pt-100 (Selectable)	Relay \|\| SSR + SSR	100-270V AC	White + Green	96x96x54(HxWxD)mm
5	UTC-1202G-RG-A2-54	J/K/Pt-100/R/S(Selectable)	Relay \|\| SSR + Relay	100-270V AC	Red + Green	96x96x54(HxWxD)mm
6	UTC-2202G-RG-A2-00	J/K/Pt-100 (Selectable)	Relay \|\| SSR + Relay	100-270V AC	Red + Green	72x72x85(HxWxD)mm
7	UTC-2202G-RG-A2-01	J/K/Pt-100 (Selectable)	Relay \|\| SSR + SSR	100-270V AC	Red + Green	72x72x85(HxWxD)mm
8	UTC-2202G-WG-A2-00	J/K/Pt-100 (Selectable)	Relay \|\| SSR + Relay	100-270V AC	White + Green	72x72x85(HxWxD)mm
9	UTC-2202G-WG-A2-01	J/K/Pt-100 (Selectable)	Relay \|\| SSR + SSR	100-270V AC	White + Green	72x72x85(HxWxD)mm
10	UTC-2202G-RG-A2-54	J/K/Pt-100/R/S(Selectable)	Relay \|\| SSR + Relay	100-270V AC	Red + Green	72x72x85(HxWxD)mm
11	UTC-4202G-RG-A2-00	J/K/Pt-100 (Selectable)	Relay \|\| SSR + Relay	100-270V AC	Red + Green	48x48x95(HxWxD)mm
12	UTC-4202G-RG-A2-01	J/K/Pt-100 (Selectable)	Relay \|\| SSR + SSR	100-270V AC	Red + Green	48x48x95(HxWxD)mm
13	UTC-4202G-WG-A2-00	J/K/Pt-100 (Selectable)	Relay \|\| SSR + Relay	100-270V AC	White + Green	48x48x95(HxWxD)mm
14	UTC-4202G-WG-A2-01	J/K/Pt-100 (Selectable)	Relay \|\| SSR + SSR	100-270V AC	White + Green	48x48x95(HxWxD)mm
15	UTC-4202G-RG-A2-54	J/K/Pt-100/R/S(Selectable)	Relay \|\| SSR + Relay	100-270V AC	Red + Green	48x48x95(HxWxD)mm
