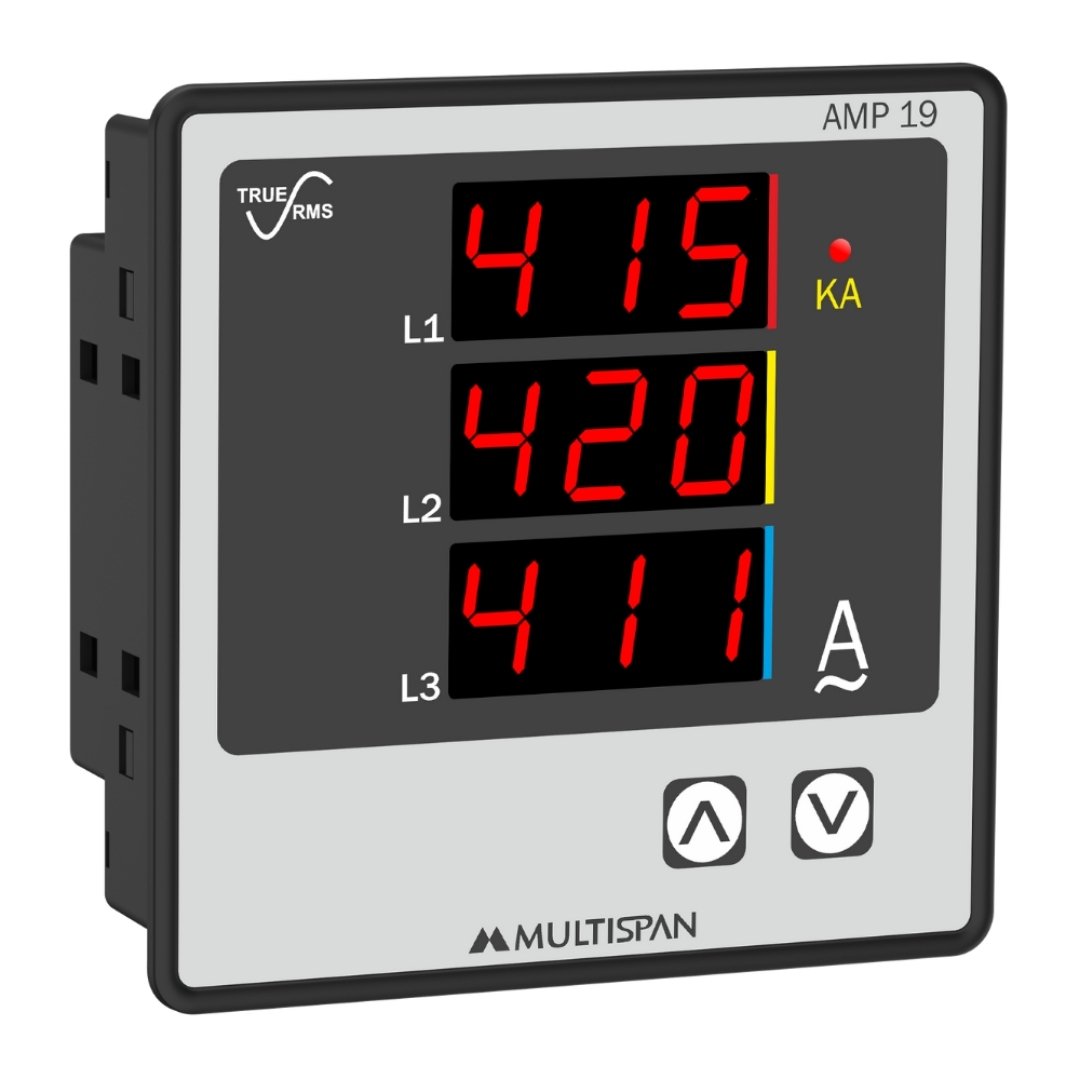

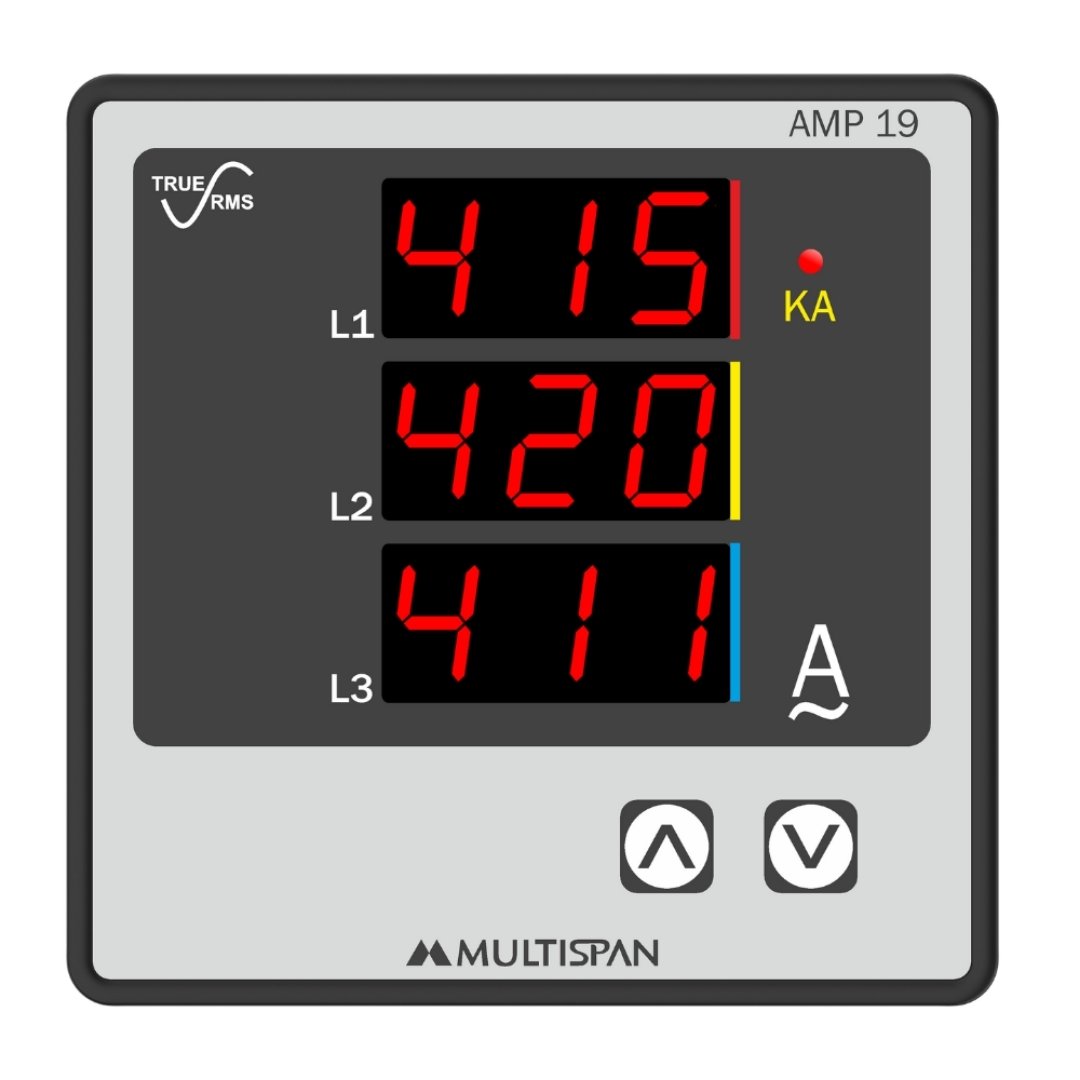

AMP-19 - 3 Phase Ampere meter - product regular image AMP-19 - 3 Phase Ampere meter - product front image AMP-19 - 3 Phase Ampere meter - product side image

3Ø Ampere Meter

Product: AMP-19

  • Individual Display for Each Phase Current Ampere
  • CT Primary Selectable up to 9999A
  • CT Secondary: 5A
  • Size: (H)96mm X (W)96mm X(D)43mm
  • Supply Voltage: 100-270V AC, 50/60 Hz

Top Variants:

Model AMP-19
Display 3-Digit, 3-Line, 7-Seg 0.56”,red LED Display
Size (mm) 96(H) X 96 (W) X 43 (D)
Panel Cutout (mm) 92 (H) X 92 (W)
Input Current 0.5 to 5AMP AC, (PRIMARY) CAT III

LED
Indication

Kilo Ampere Reading
Power Supply 100 to 270V AC,50/60 Hz, Approx 3VA

Protection Level
(As per request)

IP-65 (Front side) As per IS/IEC 60529 : 2001
Operating Temperature 0°C To 55°C
Relative Humidity Upto 95% RH Non Condensing

  • Electrical Control Panel
  • Power Distribution
  • Instrumentation Panel
  • Transformer testing

Product Variant

Model Current Auxillary
AMP-19-B1-00 CT Primary :Upto 6000A
CT Secondary : 5A
230V AC
AMP-19-B1-06 CT Input: 60A with DIN 60AX CT
AMP-19-B1-07 CT Input: 30A with DIN 30AX CT
AMP-19-B1-08 CT Input: 125A with DIN 125AX CT
Note: Modbus Available on Request in AMP-13
