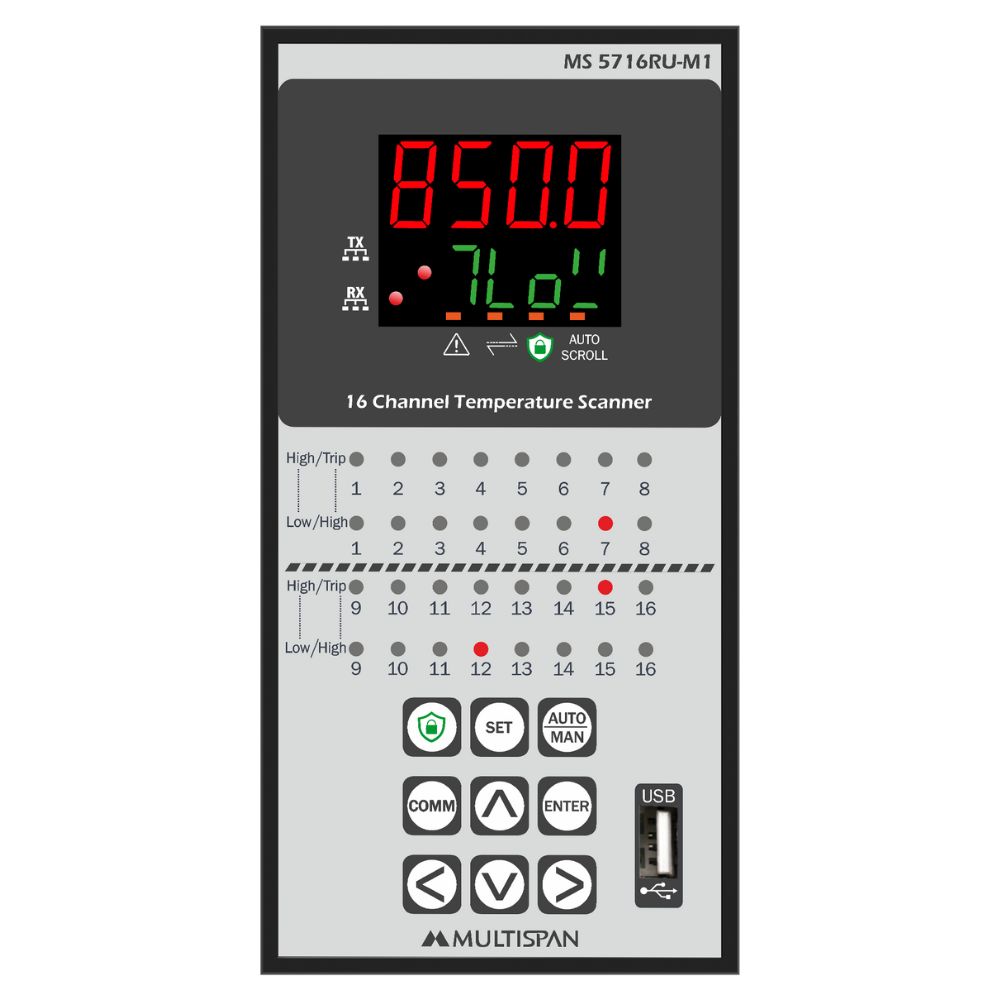

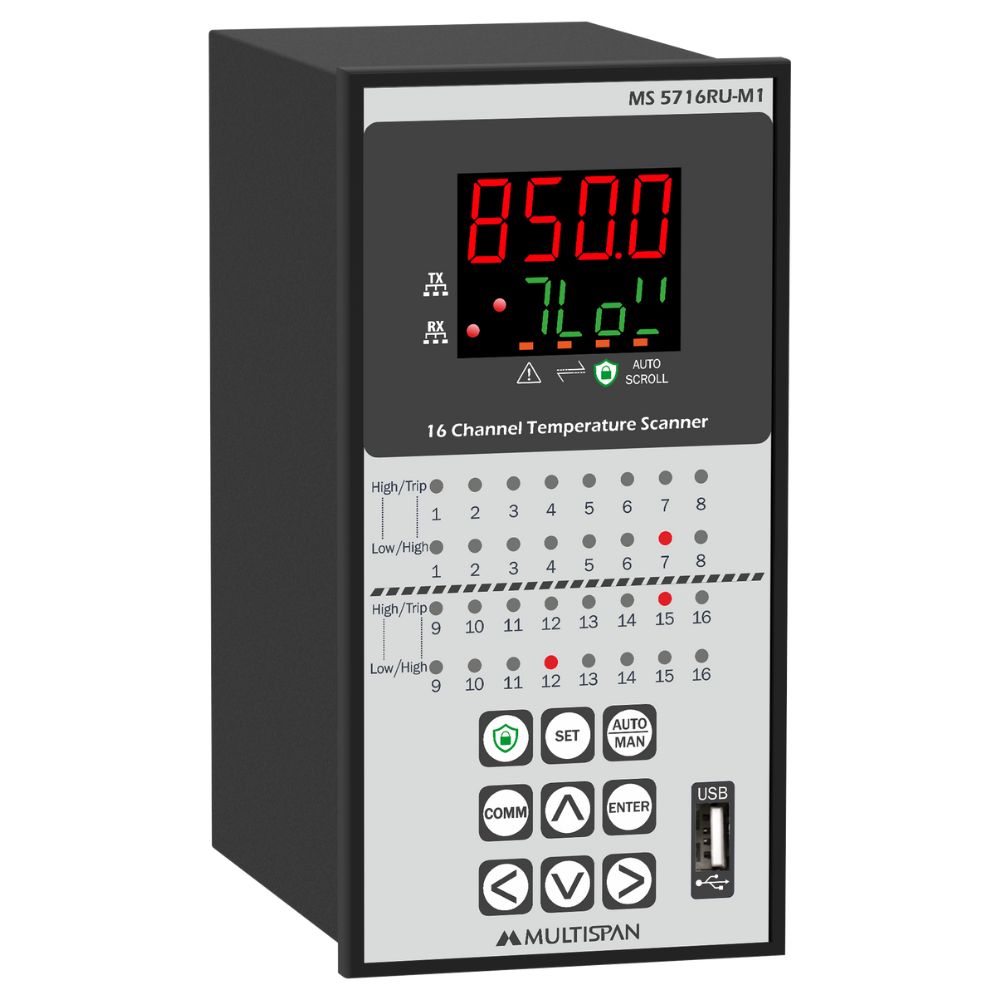

MS-5716-RU-M1 - 16 Channel Scanner - product image MS-5716-RU-M1 - 16 Channel Scanner - product image MS-5716-RU-M1 - 16 Channel Scanner - product image

16 Channel Scanner

Product: MS-5716-RU-M1

  • Universal Input (J/K/RTD/4-20mA DC/0-10V DC/0-20mA DC)
  • 8-Relay Output for Alarm and Tripping with Grouping Facility
  • USB Data Logging & RS-485 Modbus Facility
  • Size: (H)192mm X (W)96mm X (D)168mm
  • Supply Voltage: 100-270 AC

Model MS-5716 RU-M1
Display UPPER: 4-Digit, 7-Seg 0.70”, RED LED Display
LOWER: 4-Digit, 7-Seg 0.50”, GREEN LED Display
Size (mm) 192 (H) X 96 (W) X 140 (D)
Panel Cutout (mm) 188 (H) X 92 (W)
Inputs and Range Thermocouple                                   RTD Analog input Range
J: 0 to 600℃                     PT-100/3W -99 to 400℃ 0 - 10V DC   -999 To 9999
K: 0 to 1200℃                     PT.1/3W -99.0 to 400.0℃ 0 - 20mA DC   -999 To 9999
4 - 20mA DC   -999 To 9999
Output 8-Relay, (NO-C) 1C/O 5A@230V AC
USB Data Logger Facility
RS-485 RTU MODBUS
Note :- 1C/O 5A@230V AC for resistive load.
Power Supply 100 to 250V AC, 50/60 Hz, Approx 11VA


0 To 55℃
Relative Humidity Upto 95% RH Non Condensing

  • Motor Protection
  • Generator Monitoring & Protection
  • Electrical Sub-station monitoring
  • Metal and Mining applications
  • Machine Condition Monitoring
  • Gas Detection
  • Laboratory Equipment Monitoring

Product Variant

Sr.no Model No Output  Relay RS-485 Modbus  USB Port
1 MS-5716
2 MS-5716-M1   YES
3 MS-5716U     YES
4 MS-5716U-M1   YES YES
5 MS-5716R 8
6 MS-5716R-M1 8 YES
7 MS-5716RU 8   YES
8 MS-5716RU-M1 8 YES YES
