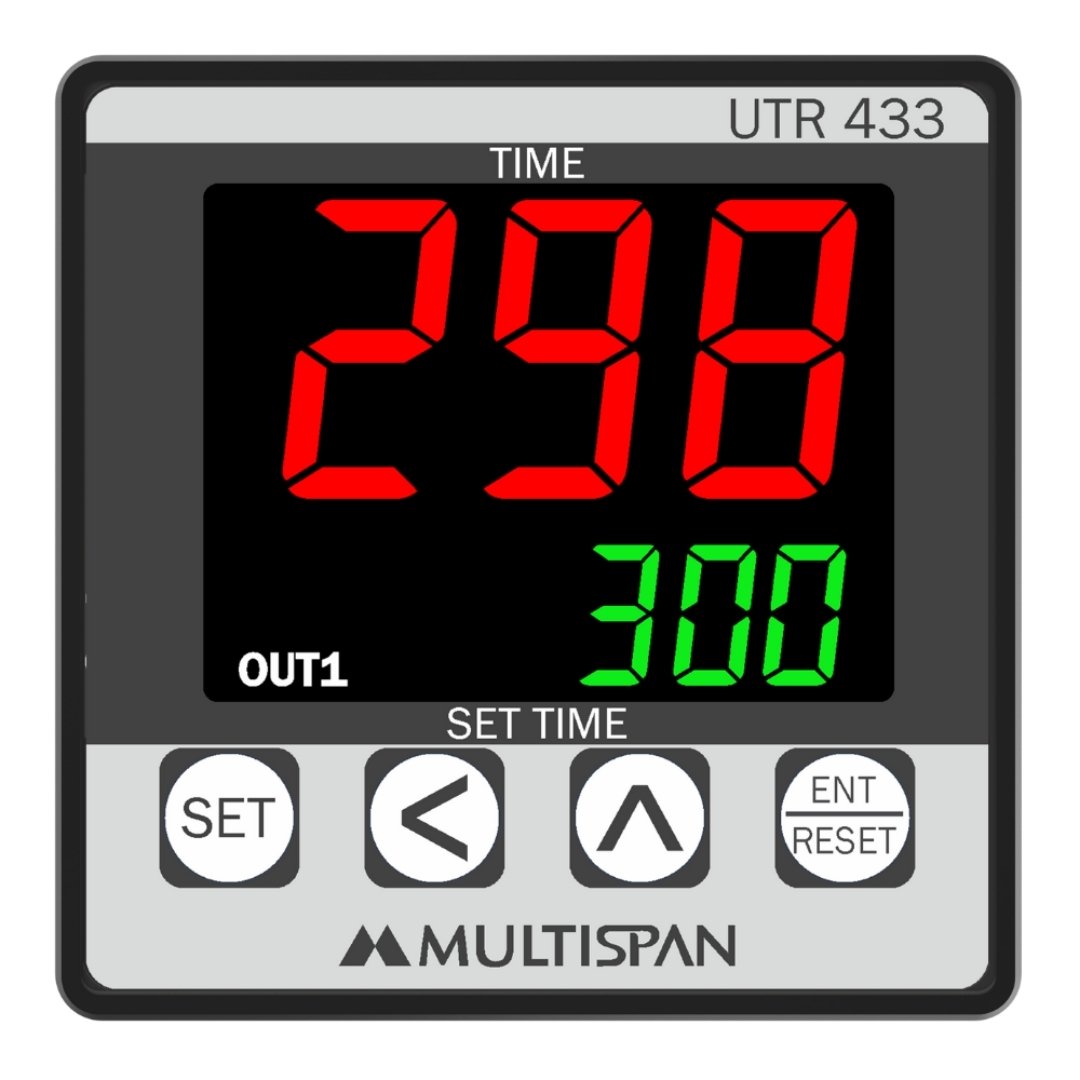

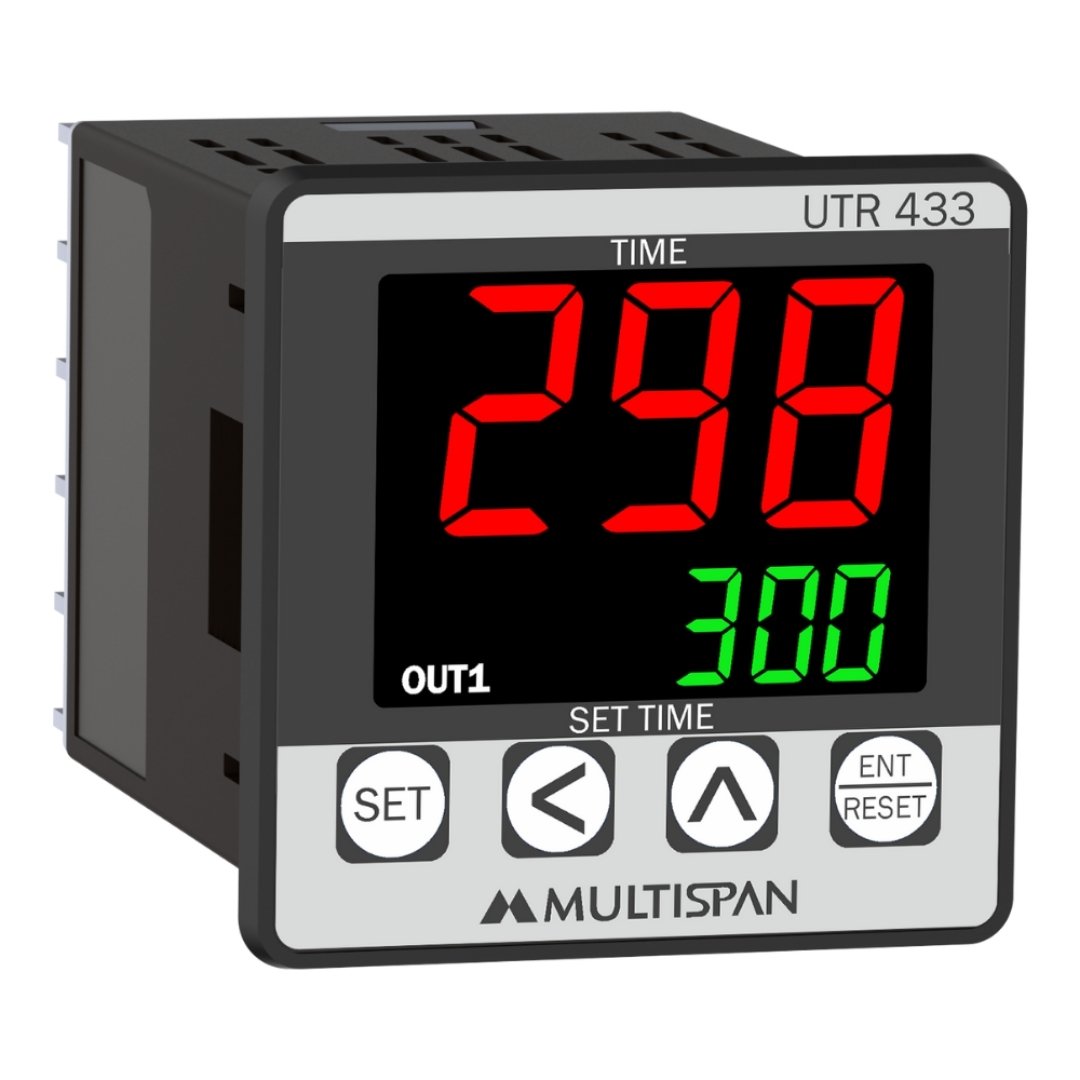

UTR-433 Universal Timer - product image UTR-433 Universal Timer - product image UTR-433 Universal Timer - product image

1-Relay Digital Timer

Product: UTR-433

  • 3+3 Digit Dual Display Timer
  • PNP/NPN/Micro Switch Trigger Input
  • Instant On-Off Delay/Cyclic Mode
  • Range: Hour/Minute/Second
  • Reset by Front Keypad and Remote
  • With Power Fail Memory
  • Size: (H)48mm x (W)48mm x (D)70mm
  • Supply Voltage: 100-270V AC

Top Variants:

INPUT SPECIFICATION:
Input  NPN/PNP Proximity, Limit Switch, Micro Switch (Configurable)
Time Range Sec (9.99/99.9/999)
Min (9.59/99.9/999)
Hour (9.59/99.9/999)
DISPLAY AND KEYS
Display Upper: 3-Digit, 7-Segment, 0.80”
Lower: 3-Digit, 7-Segment, 0.40”
Keys SET, SHIFT, INC, ENT/RST
DIMENSION
Size (mm) 48 (H) x 48 (W) x 70 (D)
Panel Cutout (mm) 45 (H) x 45 (W)
GENERAL SPECIFICATION:
Operating Mode Cyclic On Timer
Cyclic Off Timer
Delay On Timer
Delay Off Timer
Counting Direction Up/ Down
Reset Option Front Panel Reset
Terminal Reset
OUTPUT SPECIFICATION:
Relay Output
Relay 1 nos.
Relay Type 2-C/O
Rating 5A, 230V AC
AUXILIARY SUPPLY:
Supply voltage 100 to 270V AC, 50-60Hz
Power consumption (VA RATING) Approx 4 VA @ 230V AC MAX
ENVIRONMENT CONDITION:
Operating Temp. 0°C to 55°C
Relative Humidity Upto 95% RH
(non-condensing)
Protection Level (AS Per Request) IP-65 (Front side) As per IS/IEC 60529 : 2001

  • Packaging Machine
  • Printing Machine
  • Stone Cutting Industry
  • Injection Moulding Machine

Product Variant

Sr.no Model No Output  Aux Supply Size
1 UTR-1033-A2-00  1Relay 2C/O 100-270V AC  96x96x43(HxWxD)mm
2 UTR-2033-A2-00  1Relay 2C/O 100-270V AC  72x72x45(HxWxD)mm
3 UTR-433-A2-N-RG  1Relay 2C/O 100-270V AC  48x48x70(HxWxD)mm
