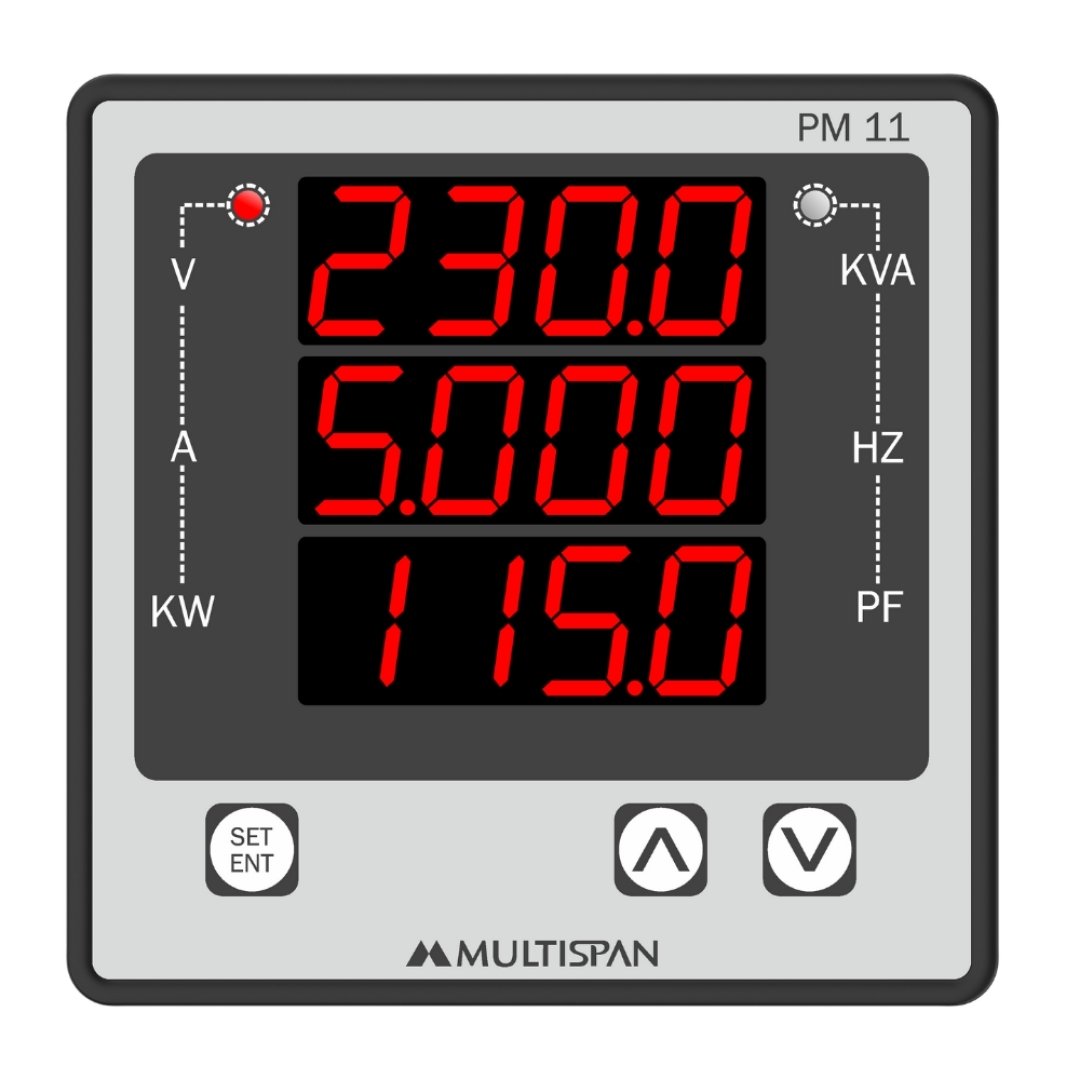

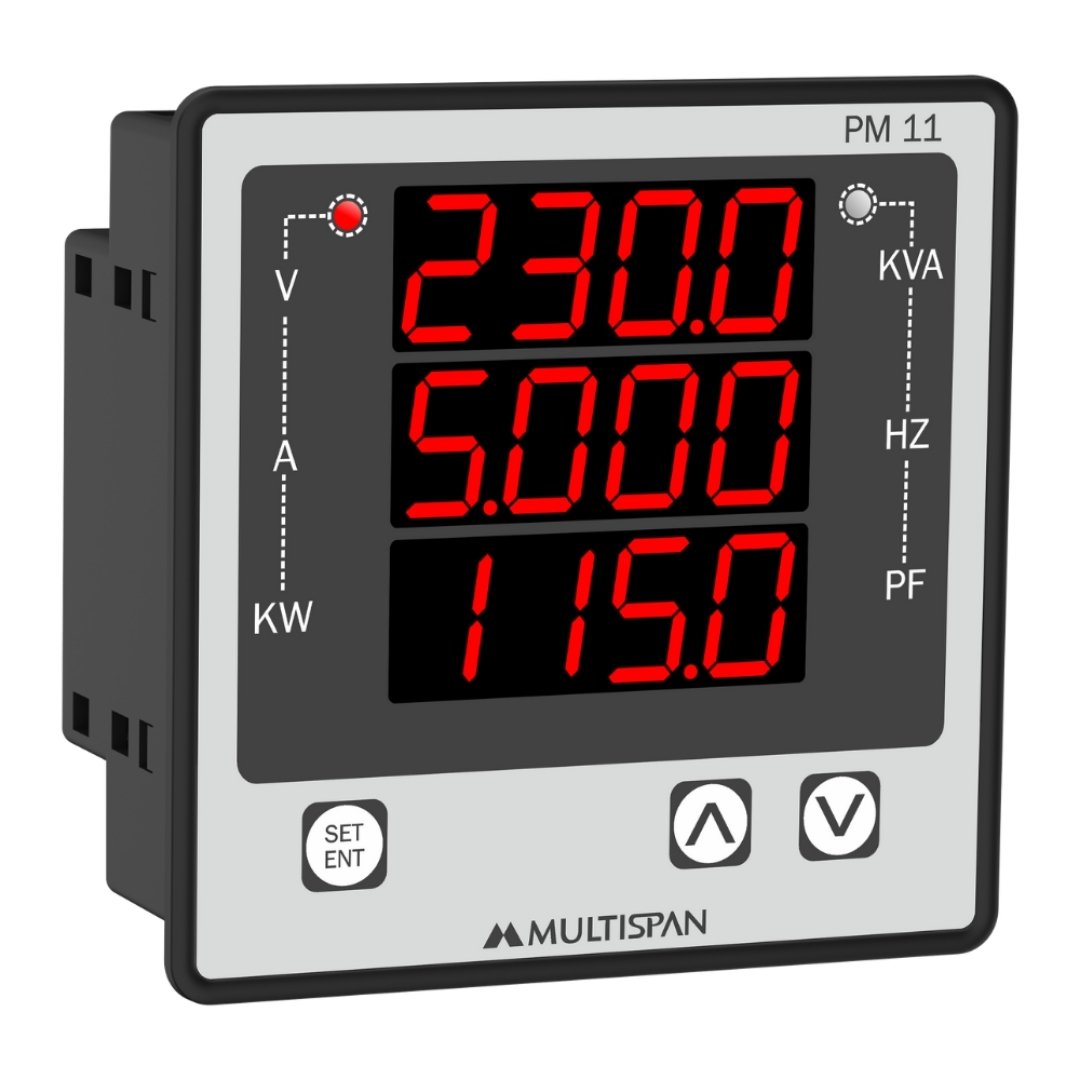

PM-11 - 1Ø Multifunction Meter regular image PM-11 - 1Ø Multifunction Meter front image PM-11 - 1Ø Multifunction Meter side image

1Ø Multifunction Meter

Product: PM-11

  • Network Selection: 1Ø-2W
  • Display Voltage, Current, Frequency, Power Factor, Kilo-Watt, Kilo-Watt Hours
  • RS-485 Modbus as Per Request
  • Size: (H)96mm x (W)96mm x (D)54mm
  • Supply: 100- 270V AC/DC, 50/60Hz

INPUT
Input Signal 1Ø-2 Wire
CT Primary UP to 9999A (Programm.)
CT Secondary 5A/1Amp Selectable
PF 0.100 - 1.000
Frequency 45.0 to 65.0 Hz
DISPLAY, KEY & LED
Display 4-Digit, 3-Line, 7-Seg, 0.56” Red LED
Key Set, Inc, Dec
DIMENSION
Size (mm) 96 (H) x 96 (W) x 54 (D)
Panel Cutout (mm) 92 (H) x 92 (W)
ACCURACY
Class 0.5 (Standard)
AUXILIARY POWER SUPPLY
Power Supply 100 to 270V AC/DC, 50/60Hz
Burden 3VA
ENVIRONMENTAL CONDITION
Working Temperature 0 to 55°C
Storage Temperature 0 to 55°C
Relative Humidity 95 % RH NonCondensing
Protection Level ( As per Request ) IP-65 (Front side As per IS/IEC 60529 : 2001)

  • Electrical Control Panel
  • Power Distribution
  • Instrumentation Panel
  • Transformer training

Product Variant

Model Voltage Current Supply
PM-11-E3-00 Network Selection :1Ø2W
Voltage : 30V to 300V AC
CT Primary : 5A to 9999A
CT Secondary : 5A & 1A Selectable
100 to 270V AC/DC
Note: Modbus Available on Request
