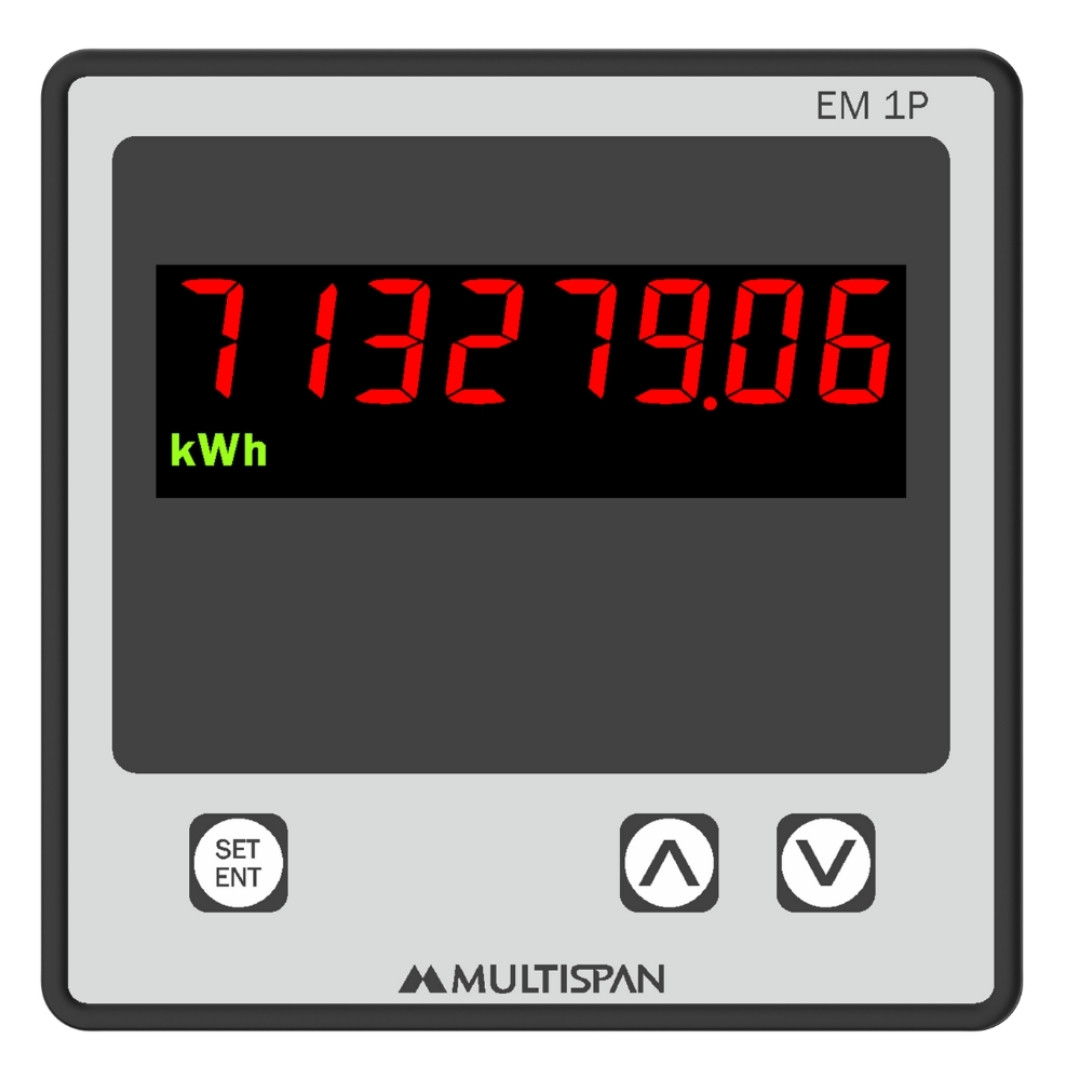

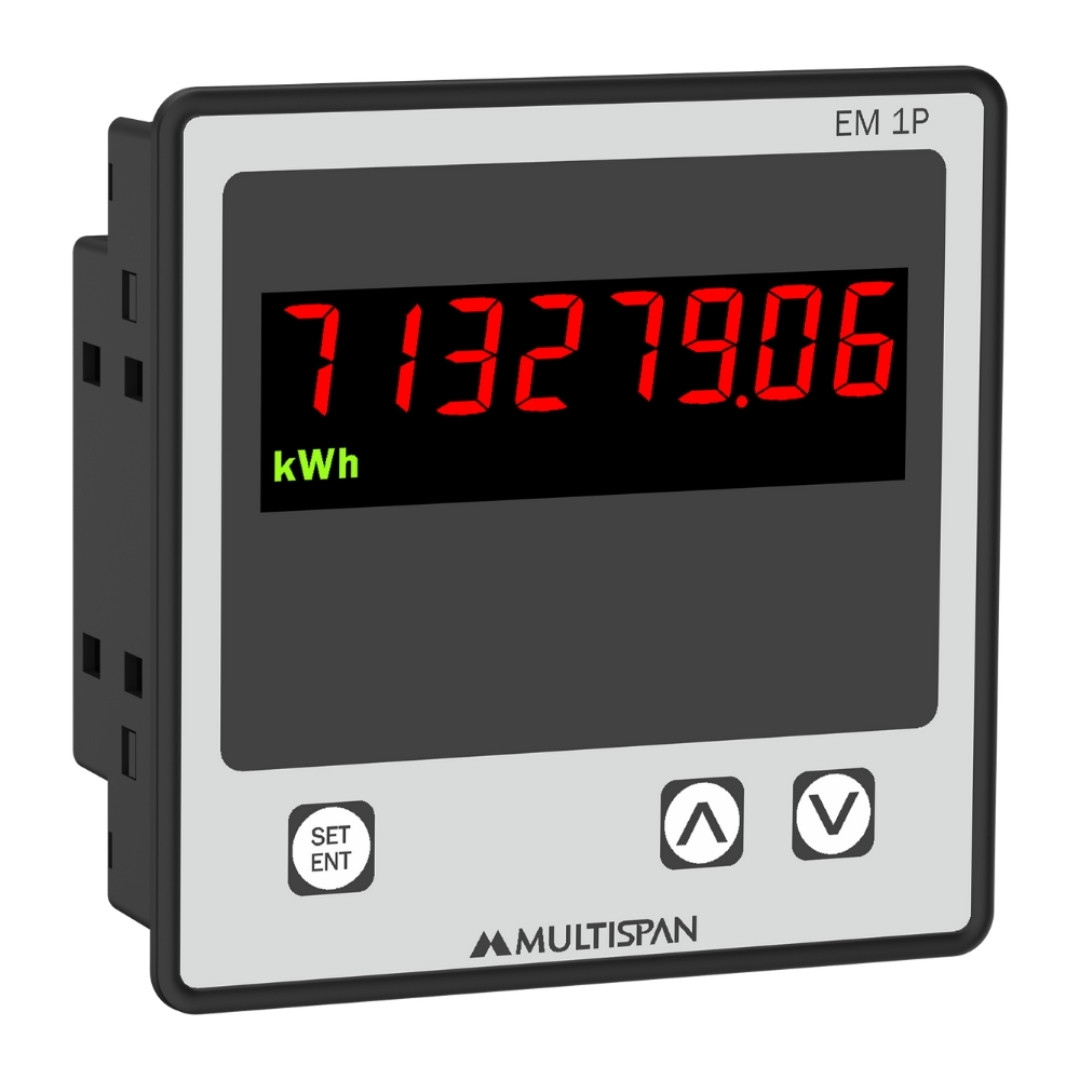

EM-1P - 1 Phase Energy Meter - product regular image EM-1P - 1 Phase Energy Meter - product front image EM-1P - 1 Phase Energy Meter - product side image

1Ø Energy Meter

Product: EM-1P

  • 1Ø-2 Wire
  • 30 to 300V AC (L-N)
  • RS-485 Modbus Communication Available

Model EM-1P
Display 8-Digit, 7-Segment, 0.5” Red Display
Size (mm) 96(H) X 96 (W) X 43 (D)
Panel Cutout (mm) 92 (H) X 92 (W)
Voltage Input 30 To 300V AC VLN CAT III
Current Input 5-Amp or Higher Through External CT
Active Power (KW) 0.000 To 9999 KW
Active energy (KWh) 0.000 To 99999999 KWH
Power Supply 100 To 270V AC,50/60Hz,Approx 4VA
Frequency 45 To 65 Hz
Wiring System

1Ø-2Wire

Protection
Level
(As Per Request)
IP-65 (Front side) As per IS/IEC 60529 : 2001
Operating Temperature 0°C To 50°C
Relative Humidity Upto 95% RH Non Condensing

Product Variant

Model Voltage Current Supply
EM-1P-A2-00 Network Selection :1Ø-2Wire
Voltage Input: 30 To 300V AC
CT Primary: 5A to 9999A
CT Secondary: 5A
100 to 270V AC
EM-1P-A2-03 CT Input: 30A with Din 30-1CT
EM-1P-A2-04 CT Input: 60A with DIN 60-1CT
Note: Modbus Available on Request
