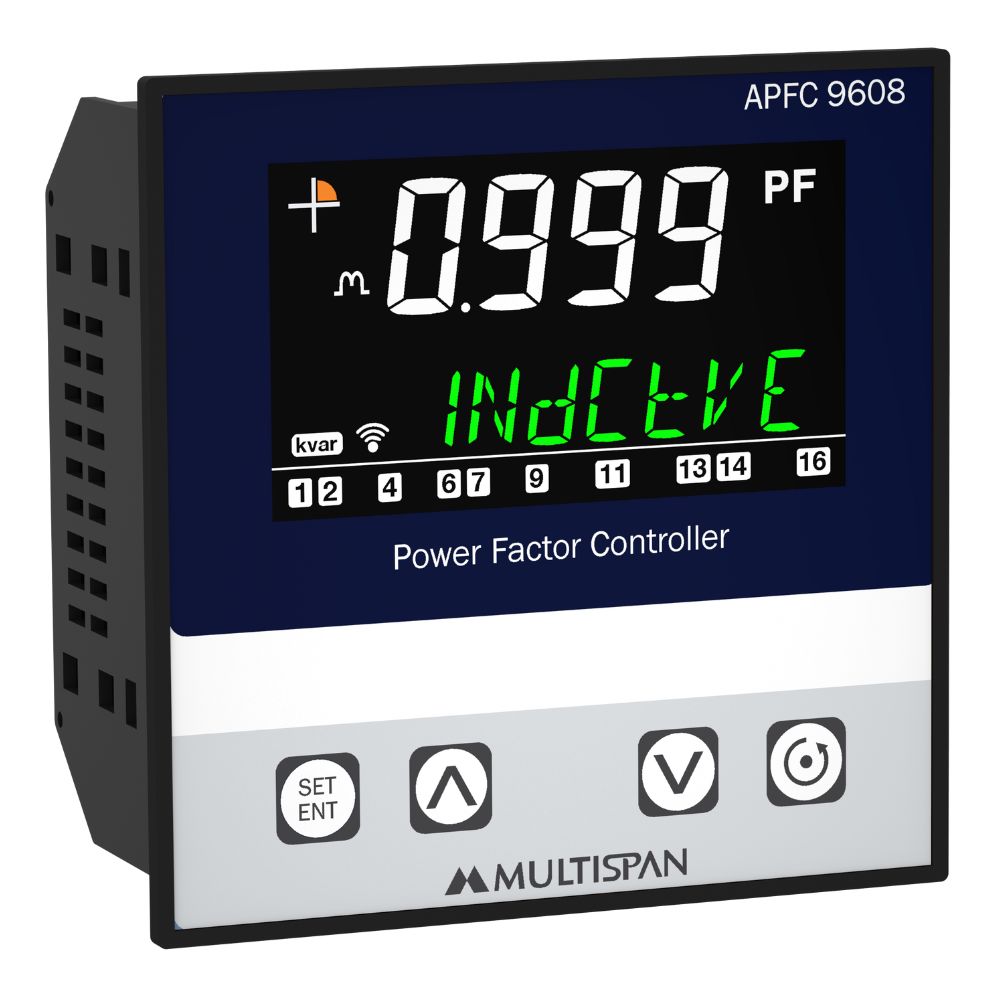

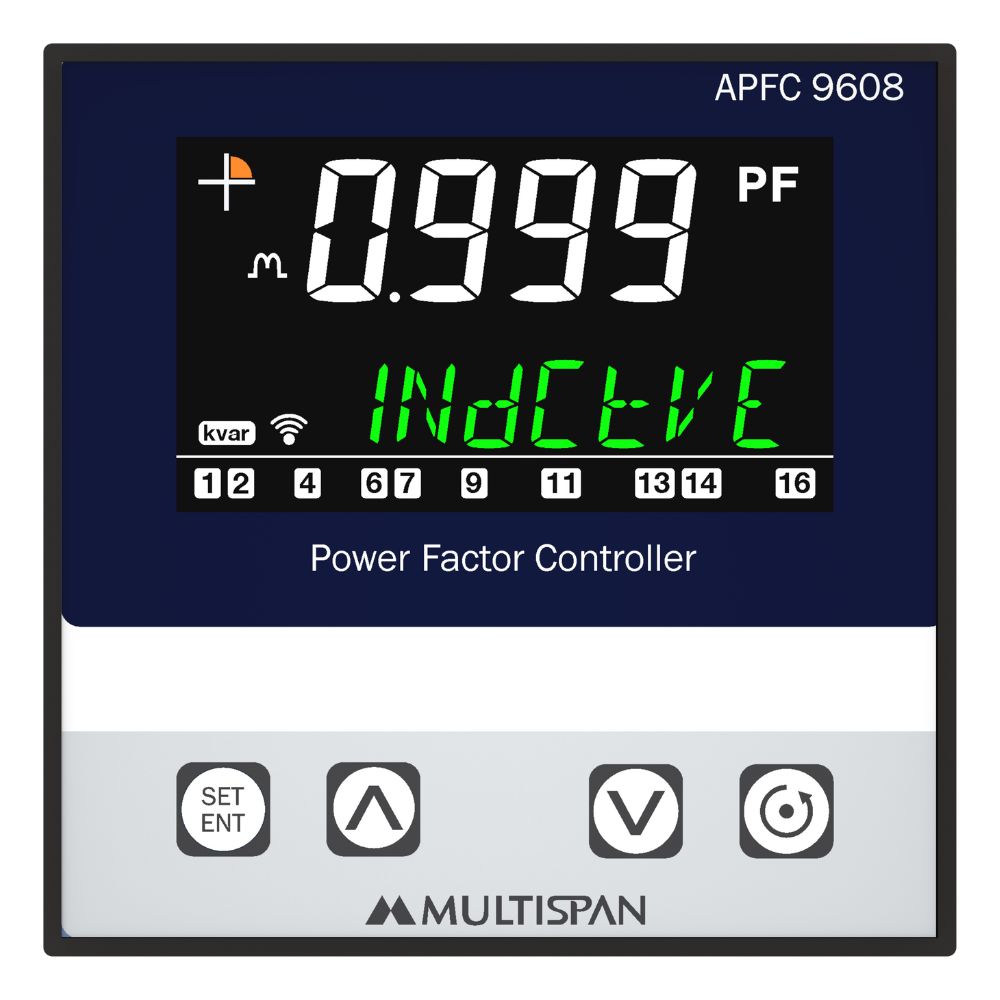

APFC-9608 - Automatic Power Factor Controller- APFC regular image image APFC-9608 - Automatic Power Factor Controller- APFC front image APFC-9608 - Automatic Power Factor Controller- APFC side image

Automatic Power Factor Controller- APFC

Product: APFC-9608

  • Single CT, 2Ø Voltage Input
  • 8 Stage APFC
  • Auto/manual/rotation mode

INPUT:
Voltage AC
Input voltage AC 30 to 320V AC (L - N)
Burden < 6 VA
Frequency 50/60 Hz
Current AC(1 CT Sensing)
Primary CT Ratio 5 to 9999 Amp Selectable
Secondary Current Ac 0.01 To 5.0 Amp (Without CT)
Burden < 0.4 VA
Overload Up to 6A Continuous
DISPLAY, KEY & LED:
Display Upper: 4 Digit,7 seg,0.60"
Lower: 7 Digit,7 seg,0.38"
Key SET/ENT, INC, DEC, SCROLL
DIMENSION:
Size 96 (H) x 96 (W) x 54 (D) mm
Panel Cutout 92 (H) x 92 (W) mm
CONTROLLING RANGE:
Operating Mode Kvar / Intel / Manual
Programmable
Hysteresis
0 to 25 KVAr
OUTPUT SPECIFICATION:
8 Stage Capacitor Relay
Relay Type (NO-C)
Rating 7A, 250V AC
AUXILIARY SUPPLY:
Supply voltage 100 to 270V AC, 50/60Hz
Power consumption
(VA RATING)
Approximately 6VA
ACCURACY:
Class 0.5 (Standard)
ENVIRONMENT CONDITION:
Operating Temp. 0°C to 55°C
Relative Humidity UP to 95% RH
(non-condensing)

  • PF Management using 1 CT Method
  • For 3Ø Balanced Industrial Loads
  • Energy Monitoring System
  • DG Set Panels
  • Process Control
  • Power Factor Correction Panels
  • Commercial Buildings
