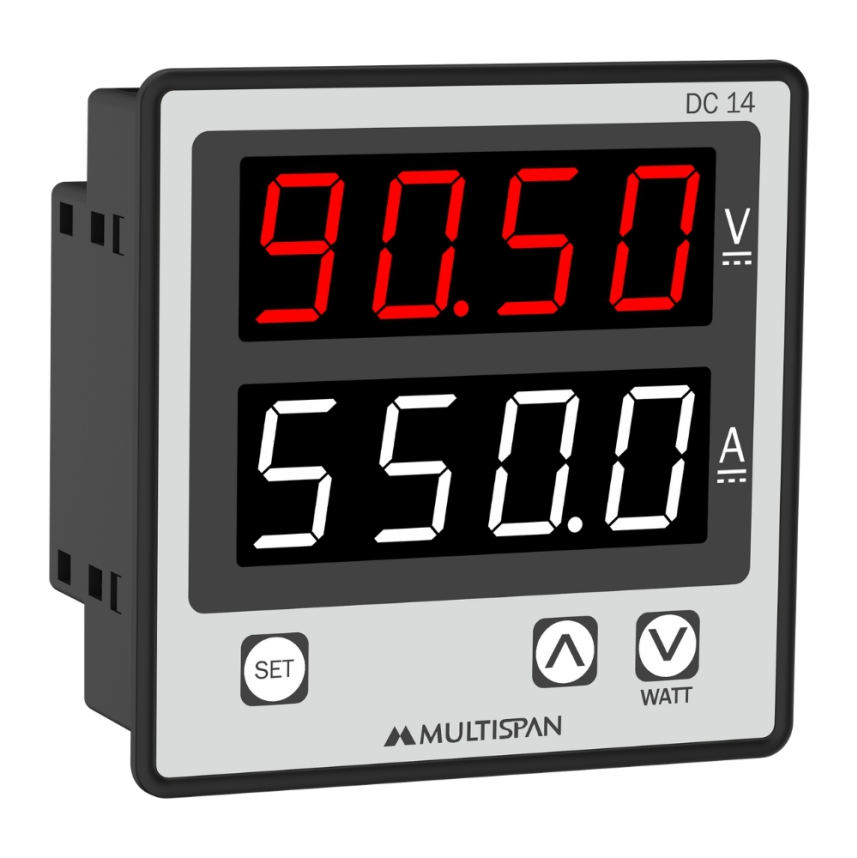

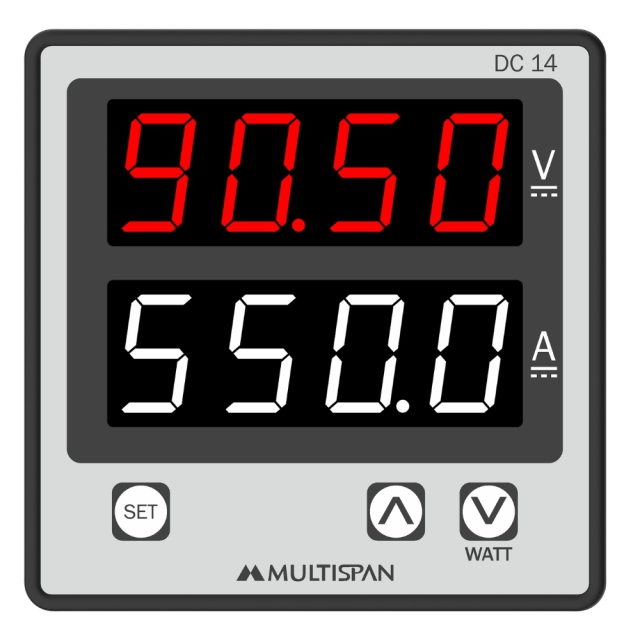

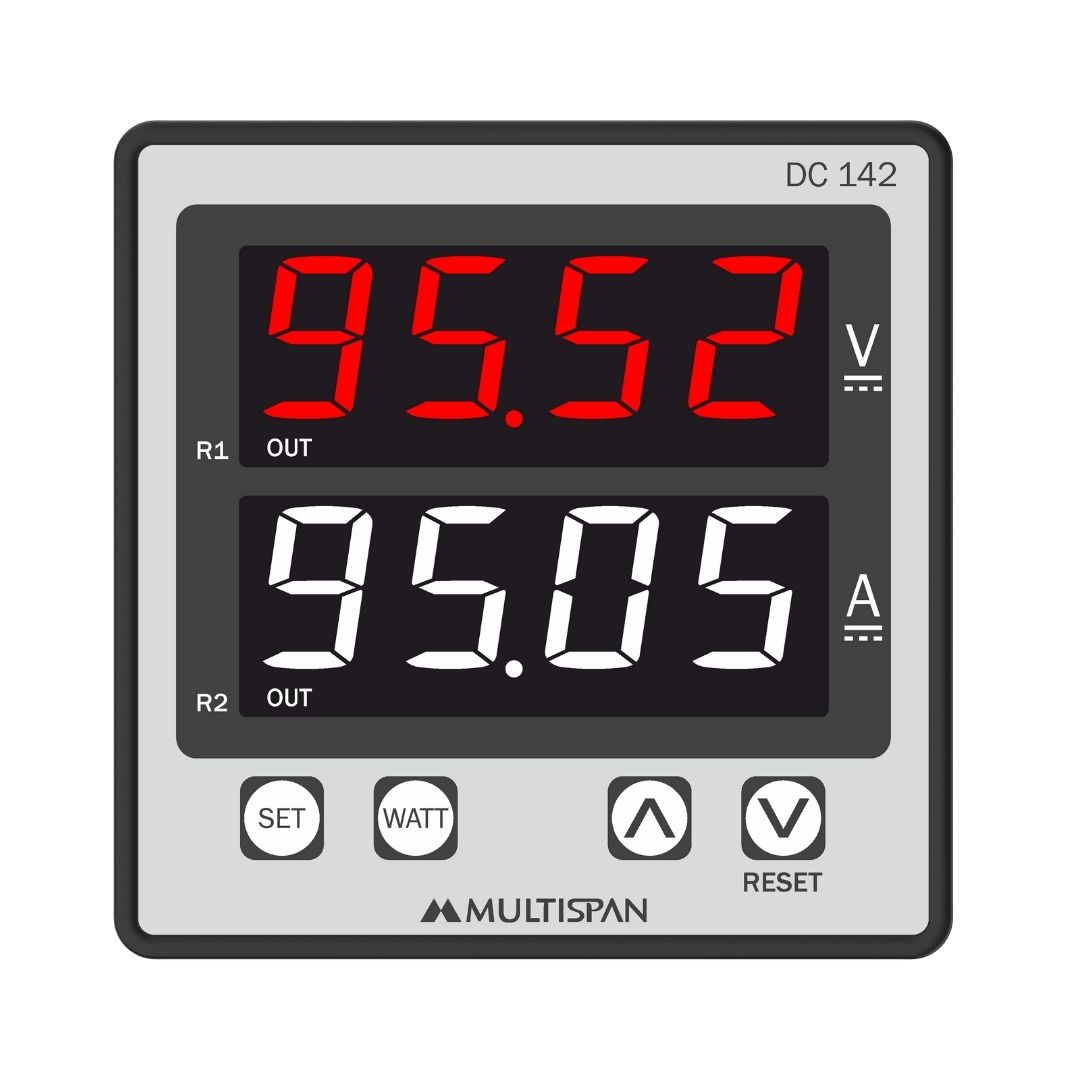

DC-14- DC Ampere + Volt meter - product regular image DC-14- DC Ampere + Volt meter - product front image DC-14- DC Ampere + Volt meter - product side image

DC Amp+ Volt Combined Meter

Product: DC-14

  • DC Ampere Range: -999 to 9999A DC
  • DC Voltage Range: 0 to 1000V DC
  • DC Watt Range: 0000 to 9999KW DC
  • RS-485 Modbus Optional
  • Size: (H)96mm X (W)96mm X (D)54mm
  • Supply Voltage: 100-270V AC/DC, 50/60 Hz

Top Variants:

INPUT SPECIFICATION
Current
Input Current Through external shunt (-75mV To+75mV DC)
Shunt Selectable -999 to 9999 Amp
Voltage
Direct voltage DC 0 to 1000V DC
CALCULATED PARAMETERS
Parameter Range Accuracy
DC Voltage 0.00 - 49.99 V DC 1 % OF 49.99V
50.0 - 199.9 V DC 1 % OF 199.9V
200.0 - 399.9 V DC 1 % OF 399.9V
400.0 - 1000 V DC 1 % OF 1000 V
DC Current -999 - 9999 A DC 1 % OF FSD
WATT 0000 - 9999 KW
DISPLAY & KEYS
Display 4-Digit, 1-Line, 7-Seg. 0.8" RED
4-Digit, 1-Line, 7-Seg. 0.8" White
Key Set, INC, DEC
DIMENSION
Size (mm) 96 (H) x 96 (W) x 54 (D)
Panel Cutout (mm) 92 (H) x 92 (W)
AUXILIARY POWER SUPPLY
Power Supply 100V to 270V AC/DC,50/60Hz
Burden Approx 3VA @ 230V AC
ACCURACY Class 1.0 (Standard)
ENVIRONMENTAL CONDITION
Working Temperature 0 to 55°C
Storage Temperature 0 to 55°C
Relative Humidity

95 % RH Non-Condensing

Protection Level ( As per Request ) IP-65 (Front side As per IS/IEC 60529 : 2001)

  • Electrical Control Panel
  • Instrumentation Panel
  • Solar Panel
  • EV Charging Station

Product Variant

Model Voltage Current Auxillary
DC-14-E3-00 Voltage Input :0V to 1000V DC Shunt Primary :-999A DC to 9999A DC
Shunt Secondary : -75mV DC to 75mV DC
100 to 270V AC/DC
Note: Modbus is Available in DC-14 on Request
