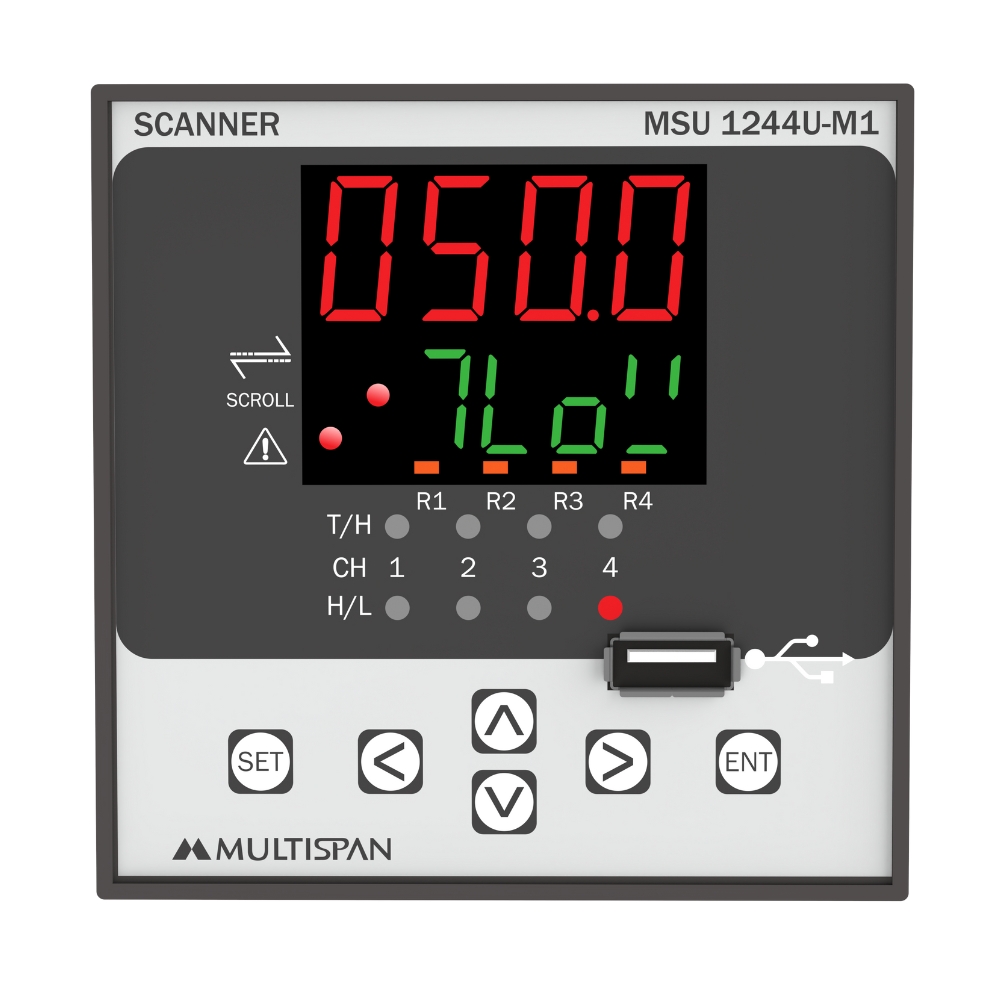

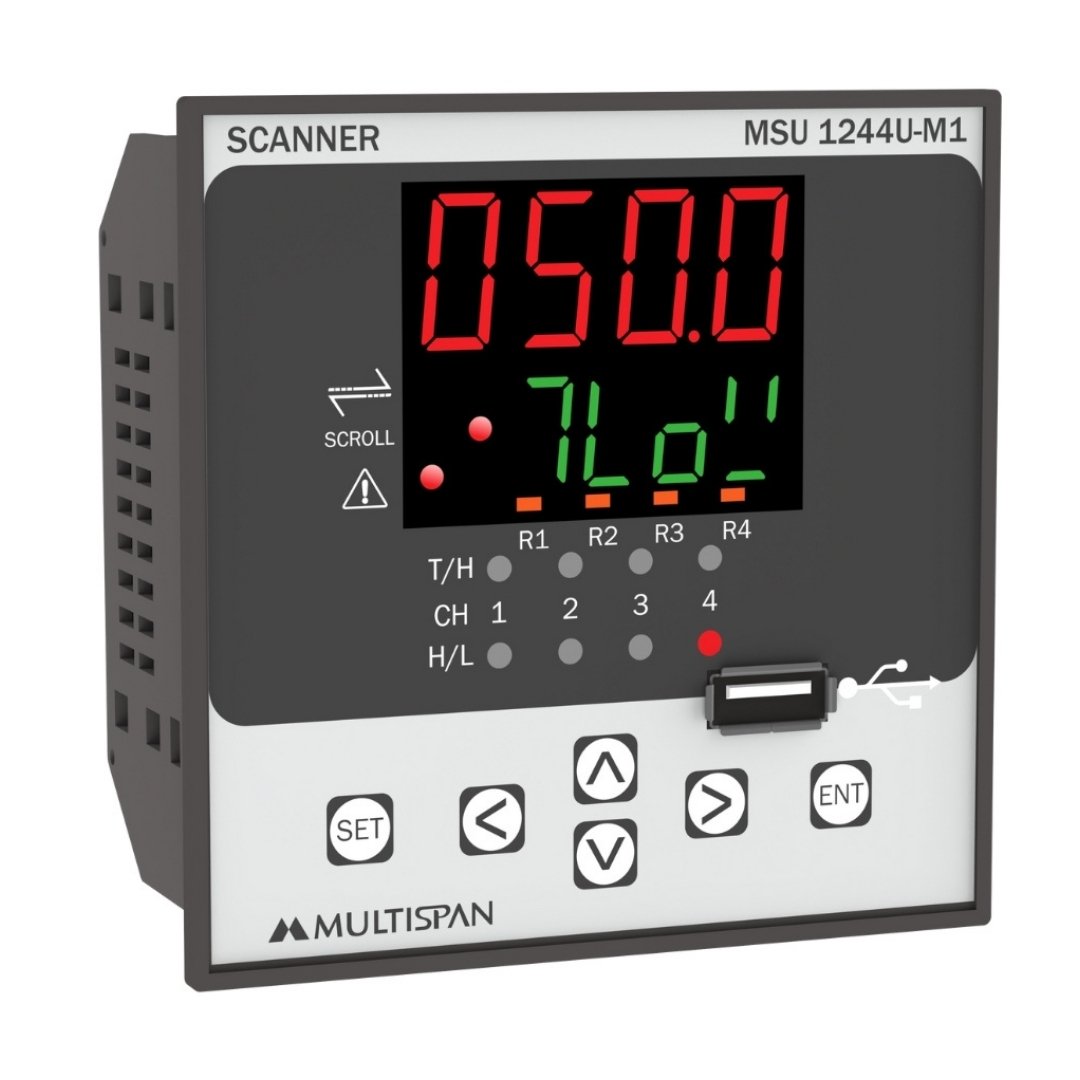

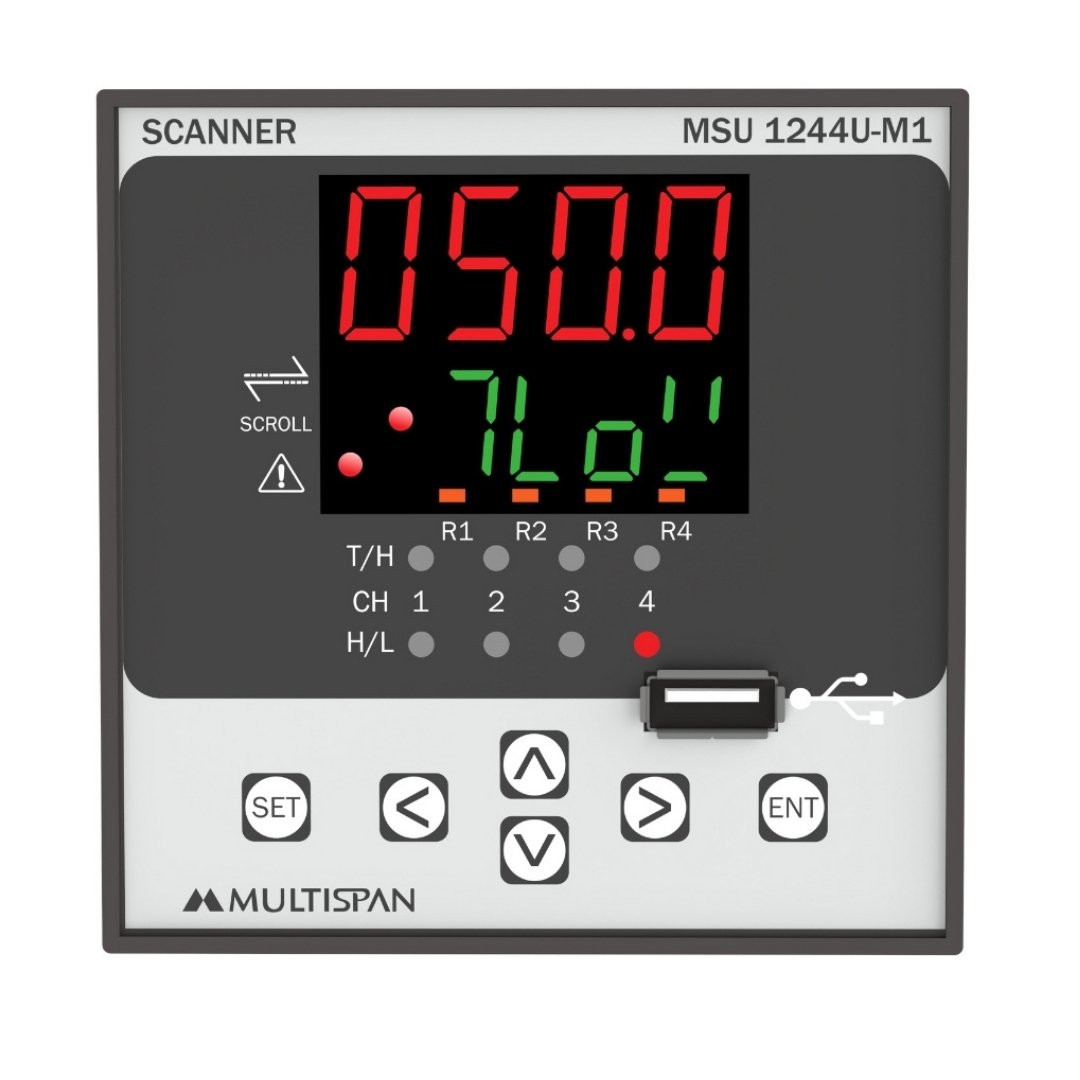

MSU-1244U-M1-4 Channel Scanner - product image MSU-1244U-M1-4 Channel Scanner - product image MSU-1244U-M1-4 Channel Scanner - product image

4 Channel Scanner

Product: MSU-1244U-M1

  • Universal Input (J/K/RTD/4-20mA DC/0-10V DC/0-20mA DC)
  • 4 Relay Output for Alarm and Tripping with Grouping Facility
  • USB Data Logging & RS-485 Modbus Facility
  • Size: (H)96mm x (W)96mm x (D)70mm
  • Supply Voltage: 100-270V AC

Model MSU-1244U-M1
Display UPPER: 4-Digit, 7-Seg 0.70”, RED LED Display
LOWER: 4-Digit, 7 Seg 0.50”, GREEN LED Display
Size (mm) 96 (H) X 96 (W) X 70 (D)
Panel Cutout 92 (H) X 92 (W)
Inputs and Range Thermocouple Analog input Range RTD

J: 0 to 600°C
K: 0 to 1200°C

0 - 10V DC -999 To 9999

PT-100/3W -99 to 400°C
PT.1/3W -99.0 to 400.0°C

0 - 20mA DC -999 To 9999
4 - 20mA DC -999 To 9999
Output 4-Relay (NO-C-NC) 1C/O 5A@230V AC, 5A for Resistive Load with RS-485 RTU MODBUS & USB Data Logger Facility
Power Supply 100 to 270V AC,50/60 Hz, Approx7VA
Operating Temperature 0°C To 55°C
Relative Humidity Upto 95% RH Non Condensing

  • Pharma & Chemical Industry application
  • Generator Monitoring & Protection
  • Remote terminal unit (RTU) For SCADA
  • Compressor/Pump/DG set monitoring
  • Machine Condition Monitoring
  • As a distributed I/O module for interface with PLC/DCS/SCADA
  • Laboratory Equipment Monitoring

Product Variant

Sr.no Model No Output  Relay RS-485 Modbus  USB Port
1 MSU-1244 4
2 MSU-1244-M1 4 YES
3 MSU-1244U 4   YES
4 MSU-1244U-M1 4 YES YES
